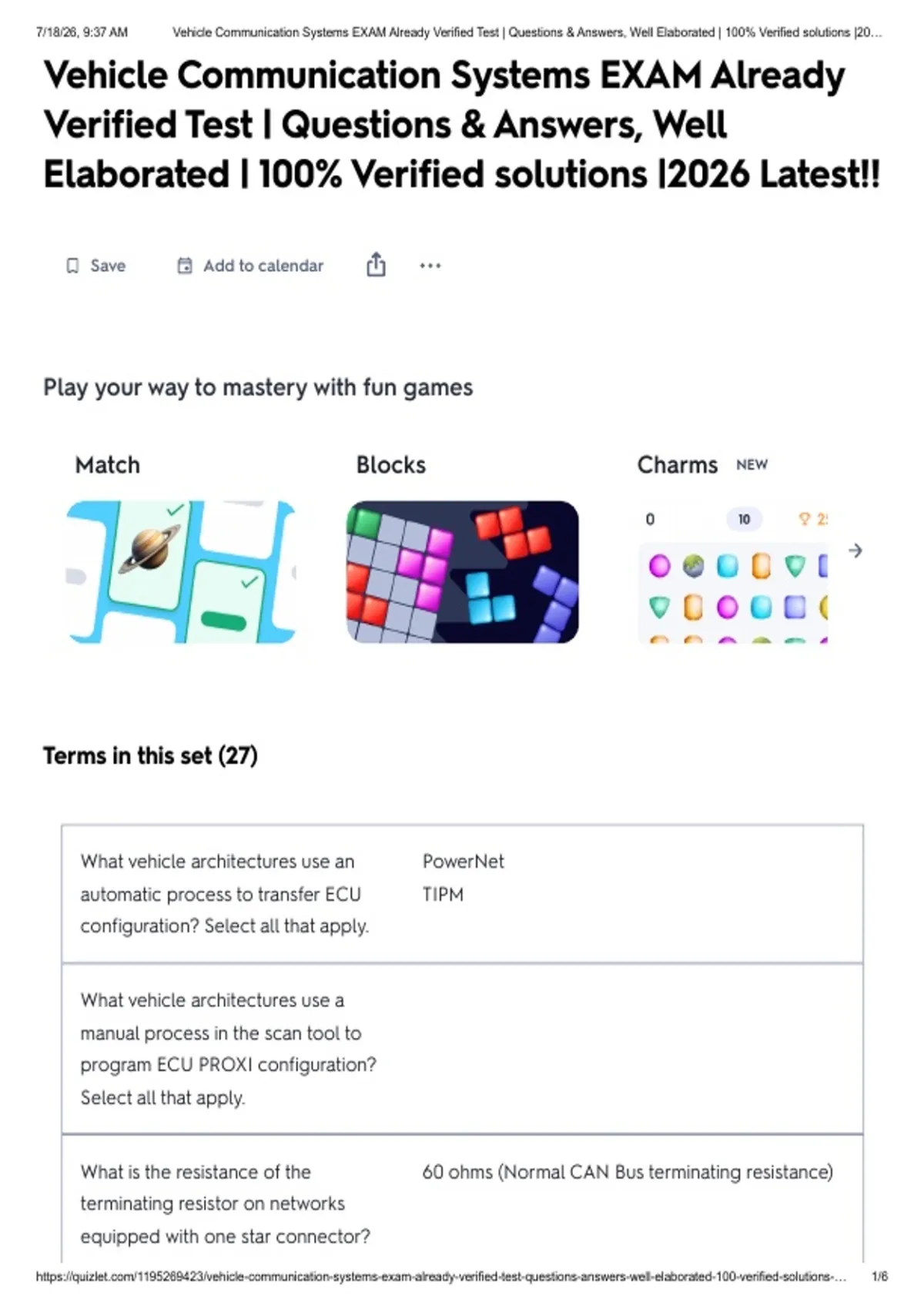

Vehicle Communication Systems EXAM Already
Verified Test | Questions & Answers, Well
Elaborated | 100% Verified solutions |2026 Latest!!
Save Add to calendar
Play your way to mastery with fun games
Match Blocks Charms NEW
Terms in this set (27)
What vehicle architectures use an PowerNet
automatic process to transfer ECU TIPM
configuration? Select all that apply.
What vehicle architectures use a
manual process in the scan tool to
program ECU PROXI configuration?
Select all that apply.
What is the resistance of the 60 ohms (Normal CAN Bus terminating resistance)
terminating resistor on networks
equipped with one star connector?
https://quizlet.com/1195269423/vehicle-communication-systems-exam-already-verified-test-questions-answers-well-elaborated-100-verified-solutions-… 1/6
, 7/18/26, 9:37 AM Vehicle Communication Systems EXAM Already Verified Test | Questions & Answers, Well Elaborated | 100% Verified solutions |20…
With the bus active and no faults Not Approximately 4.8V
present, what voltages should be 1.3-2.3V
measured on CAN-C (-)?
Which of the following vehicles are Jeep renegade
equipped with the Atlantis Jeep compass
architecture? Select all that apply. Alfa Giulia
Alfa Stelvio
What Atlantis-High network uses The WL Grand Cherokee
splice block connectors? Only on the CAN-BH Bus
Atlantis-High found on? 2021 Grand Cherokee(or WL) (Automotive Ethernet
standard 100BASE-TX){1500 bytes up to 100 mbps}
<still use a twisted pair like CAN>
Can't be spliced or repaired like CAN Wires
Ideal for screen mirroring and streaming
connected services
2022 Wagoneer(or WS)
With the bus active and no faults 0.39V-0.46V
present, what voltages should be
measured on CAN-B (+)?
Which diagnostic software and scan Hybrid of CAN with early versions of serial-
tool should be used to diagnose communication networks
legacy vehicle architectures? Peripheral Component Interconnect
Serial Communication Interface
SAE's J1850, or K-Line as primary network
DRB-III or Star Scan
Enhanced DRB-III Emulatora
