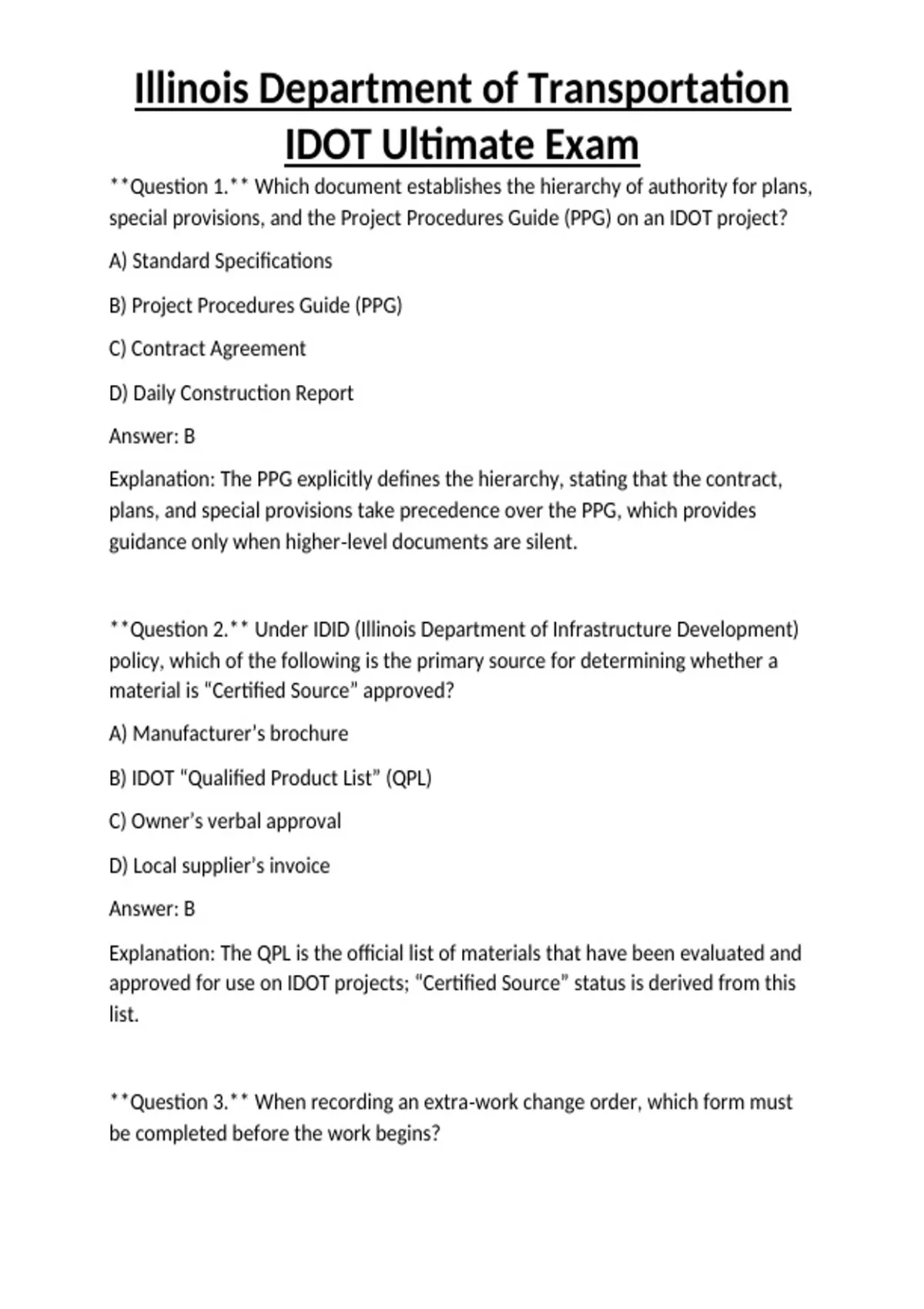

Illinois Department of Transportation
IDOT Ultimate Exam
**Question 1.** Which document establishes the hierarchy of authority for plans,
special provisions, and the Project Procedures Guide (PPG) on an IDOT project?
A) Standard Specifications
B) Project Procedures Guide (PPG)
C) Contract Agreement
D) Daily Construction Report
Answer: B
Explanation: The PPG explicitly defines the hierarchy, stating that the contract,
plans, and special provisions take precedence over the PPG, which provides
guidance only when higher-level documents are silent.
**Question 2.** Under IDID (Illinois Department of Infrastructure Development)
policy, which of the following is the primary source for determining whether a
material is “Certified Source” approved?
A) Manufacturer’s brochure
B) IDOT “Qualified Product List” (QPL)
C) Owner’s verbal approval
D) Local supplier’s invoice
Answer: B
Explanation: The QPL is the official list of materials that have been evaluated and
approved for use on IDOT projects; “Certified Source” status is derived from this
list.
**Question 3.** When recording an extra-work change order, which form must
be completed before the work begins?
, Illinois Department of Transportation
IDOT Ultimate Exam
A) Daily Diary Entry
B) Work Order Authorization (WOA)
C) Inspection Report
D) Material Certification Sheet
Answer: B
Explanation: The Work Order Authorization documents the scope, price, and
justification for extra work and must be signed before any field activity
commences.
**Question 4.** In the IDOT MISTIC system, what is the purpose of the “Test
Information” module?
A) To store daily labor hours
B) To log equipment fuel consumption
C) To record laboratory test results for material approvals
D) To generate payroll checks
Answer: C
Explanation: The “Test Information” module captures laboratory test data (e.g.,
slump, air content) that support material acceptance decisions.
**Question 5.** Which of the following is NOT a required element of the
Resident Engineer’s Daily Diary?
A) Weather conditions
B) Contractor’s crew list
C) Quantity of concrete placed
D) Contractor’s invoice number
, Illinois Department of Transportation
IDOT Ultimate Exam
Answer: D
Explanation: Invoice numbers are financial records, not daily field observations;
the diary focuses on site conditions, work performed, and personnel.
**Question 6.** The “Buy America” provision for steel and iron primarily applies
to which of the following?
A) All aggregate deliveries
B) Structural steel for bridges
C) Asphalt binder additives
D) Paint and coating materials
Answer: B
Explanation: “Buy America” mandates that steel and iron used in federal-aid
projects, such as bridge components, be produced in the United States.
**Question 7.** Which test is used to verify the air content of a freshly placed
PCC (Portland Cement Concrete) slab?
A) Slump test
B) Pressure test
C) Pressure-meter test
D) Air-meter test (ASTM C231)
Answer: D
Explanation: The air-meter directly measures entrapped air in fresh concrete, a
critical parameter for durability.
, Illinois Department of Transportation
IDOT Ultimate Exam
**Question 8.** When a contractor submits a Bill of Lading for a HMA (Hot-Mix
Asphalt) shipment, the RE must verify which of the following?
A) That the quantity matches the daily mix schedule
B) The driver’s license number
C) The color of the asphalt truck
D) The contractor’s insurance policy number
Answer: A
Explanation: The RE confirms that the delivered tonnage aligns with the planned
mix volume to ensure accurate payment and quality control.
**Question 9.** For a trench backfill volume calculation using the average end
area method, which two cross-sections are required?
A) The top of the trench and the bottom of the trench
B) The upstream and downstream ends of the trench
C) The start and end stations of the trench segment
D) The left and right sidewalls of the trench
Answer: C
Explanation: The average end area method averages the cross-sectional areas at
the start and end stations, then multiplies by the length between them.
**Question 10.** Which pay item unit is appropriate for measuring the
installation of a precast concrete barrier?
A) Ton
B) Cu Yd
C) Each
