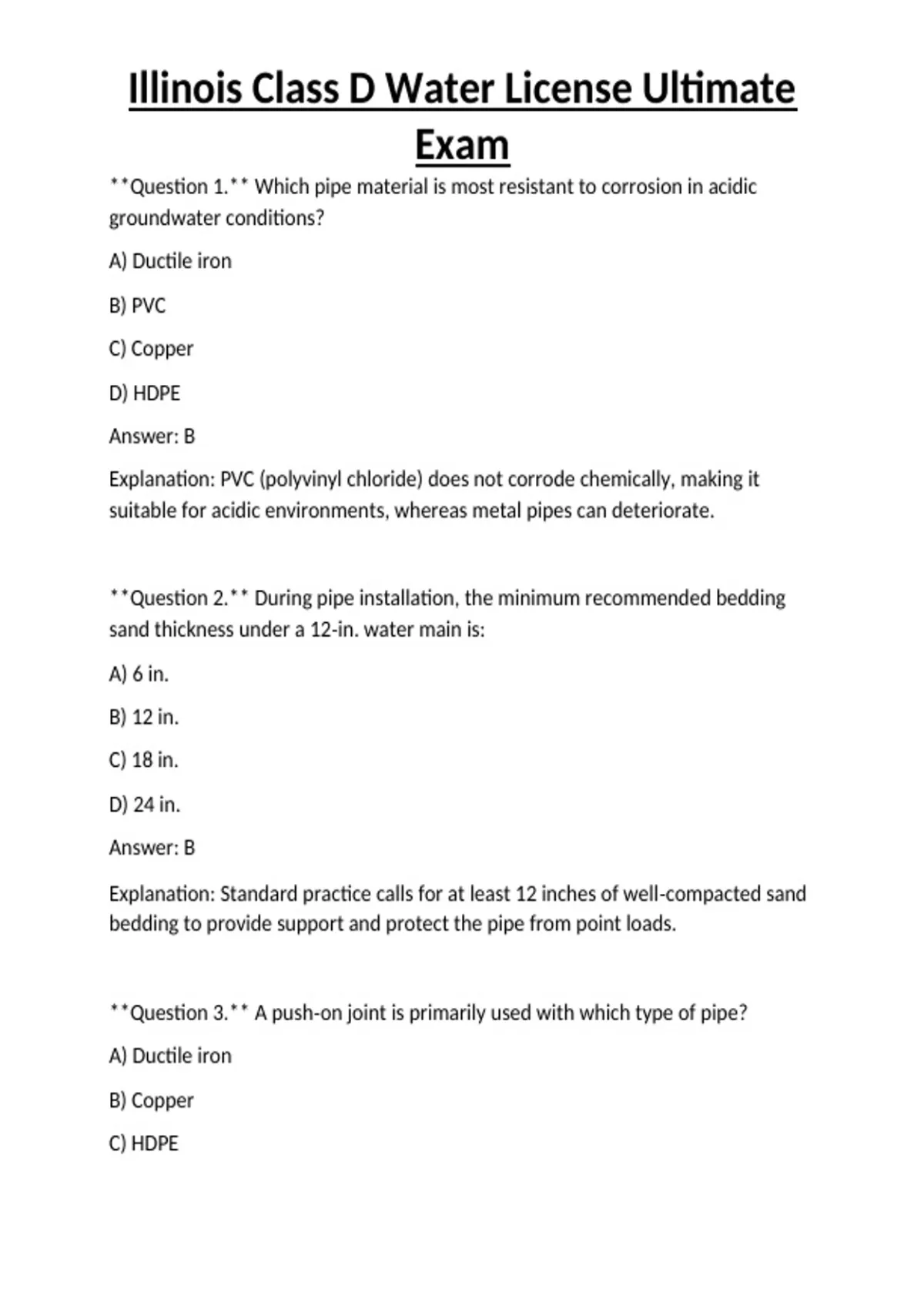

Illinois Class D Water License Ultimate
Exam
**Question 1.** Which pipe material is most resistant to corrosion in acidic
groundwater conditions?
A) Ductile iron
B) PVC
C) Copper
D) HDPE
Answer: B
Explanation: PVC (polyvinyl chloride) does not corrode chemically, making it
suitable for acidic environments, whereas metal pipes can deteriorate.
**Question 2.** During pipe installation, the minimum recommended bedding
sand thickness under a 12-in. water main is:
A) 6 in.
B) 12 in.
C) 18 in.
D) 24 in.
Answer: B
Explanation: Standard practice calls for at least 12 inches of well-compacted sand
bedding to provide support and protect the pipe from point loads.
**Question 3.** A push-on joint is primarily used with which type of pipe?
A) Ductile iron
B) Copper
C) HDPE
, Illinois Class D Water License Ultimate
Exam
D) PVC
Answer: C
Explanation: Push-on (or gasketed) joints are common on HDPE pipe because the
material’s flexibility allows the joint to be sealed without welding.
**Question 4.** The required separation distance between a water main and a
sanitary sewer line in Illinois is:
A) 5 ft horizontal, 10 ft vertical
B) 10 ft horizontal, 5 ft vertical
C) 12 ft horizontal, 12 ft vertical
D) No specific separation required
Answer: A
Explanation: Illinois plumbing code mandates at least 5 feet horizontal separation
and 10 feet vertical separation to minimize cross-contamination risk.
**Question 5.** Which valve type provides quick shut-off but offers poor
throttling control?
A) Gate valve
B) Butterfly valve
C) Globe valve
D) Check valve
Answer: B
Explanation: Butterfly valves open and close rapidly with a quarter-turn, making
them ideal for isolation, but they cannot precisely regulate flow.
, Illinois Class D Water License Ultimate
Exam
**Question 6.** A pressure reducing valve (PRV) is installed downstream of a
pump to:
A) Increase system pressure
B) Prevent backflow
C) Maintain a constant downstream pressure
D) Eliminate water hammer
Answer: C
Explanation: PRVs automatically reduce and hold the pressure at a set value,
protecting downstream equipment and maintaining service pressure.
**Question 7.** The main advantage of a dry-barrel fire hydrant in cold climates
is:
A) Higher flow rate
B) Reduced water loss during flushing
C) Prevention of freeze-thaw damage to the valve stem
D) Lower installation cost
Answer: C
Explanation: Dry-barrel hydrants keep the valve mechanism above ground,
preventing water from freezing inside the barrel.
**Question 8.** Which of the following is NOT a routine maintenance task for fire
hydrants?
A) Flushing to remove sediment
B) Lubricating the stem
C) Painting the barrel with reflective paint
, Illinois Class D Water License Ultimate
Exam
D) Inspecting for leakage at the base
Answer: C
Explanation: While hydrants may be painted for identification, reflective paint is
not a standard maintenance requirement.
**Question 9.** An elevated storage tank is primarily used to:
A) Reduce construction cost
B) Provide hydraulic head for distribution
C) Minimize evaporation losses
D) Facilitate underground installation
Answer: B
Explanation: Elevated tanks create static pressure (hydraulic head) that assists in
delivering water without additional pumping.
**Question 10.** The purpose of an altitude valve on a standpipe is to:
A) Regulate water temperature
B) Prevent backflow from higher elevations
C) Control flow to lower-level fixtures during fire events
D) Automatically vent air from the tank
Answer: C
Explanation: Altitude valves shut off flow to lower-level outlets when the
standpipe is used for fire suppression, preventing loss of pressure.
