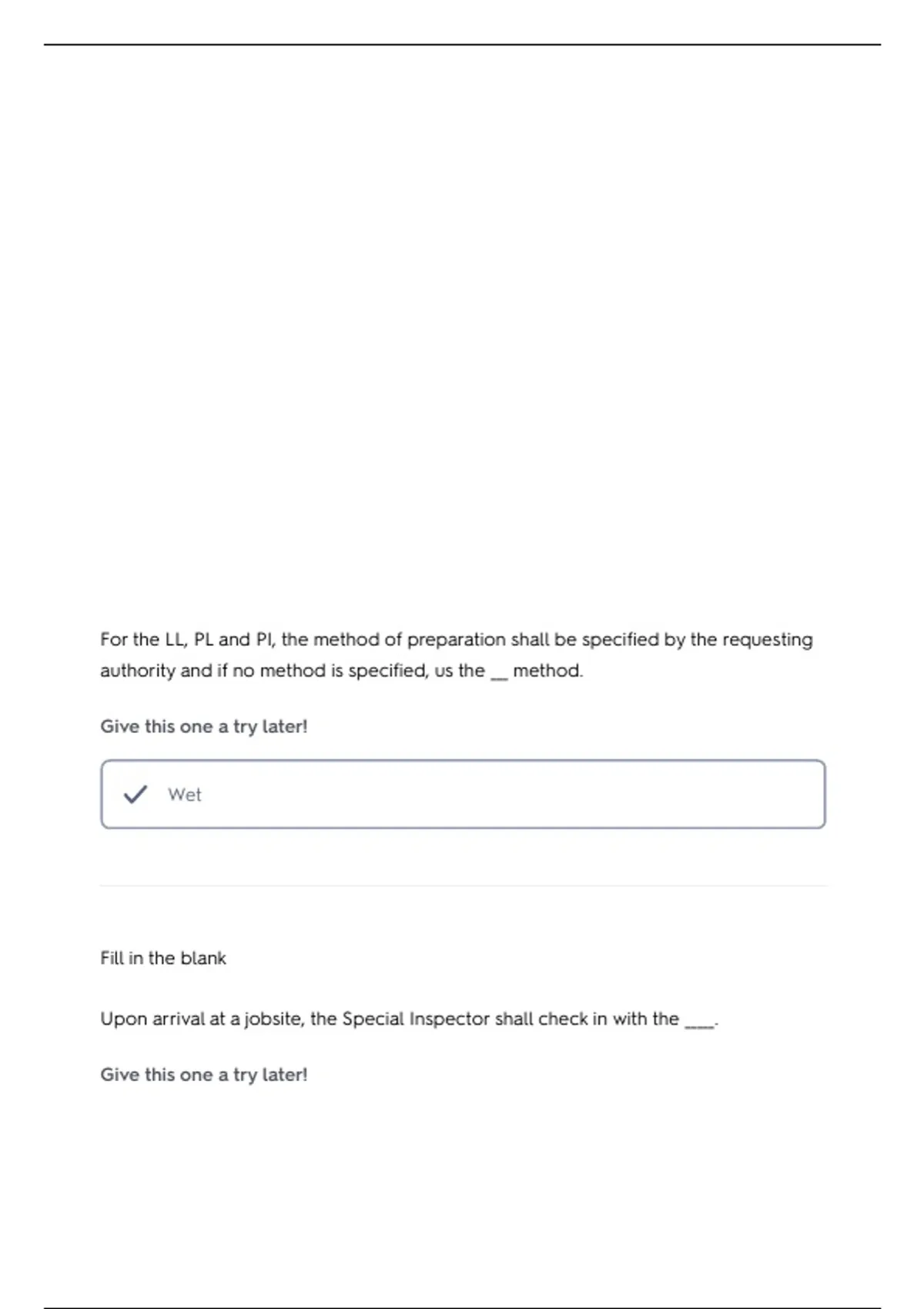

For the LL, PL and PI, the method of preparation shall be specified by the requesting
authority and if no method is specified, us the ___ method.
Give this one a try later!
Wet
Fill in the blank
Upon arrival at a jobsite, the Special Inspector shall check in with the _____.
Give this one a try later!
, Contractor
SIM p.16
Interceptor drains shall have a minimum depth of ___ and a minimum width of ___ with a
slope approved by the Building Official but not less than ___.
Give this one a try later!
1 ft;
3 ft;
2% (50 to 1)
For ASTM D698 or D1557, the required sample mass for Procedures/Methods A and B
is approximately ___ and for Procedure/Method C is approximately ___ of dry soil.
Give this one a try later!
35 lbs;
65 lbs
The ___ is calculated as the difference between the liquid limit and the plastic limit. The
equation is as follows:
___ = __ - ___.
Give this one a try later!
, Plasticity index;
PI = LL - PL
___ shall be installed along the top of cut slopes receiving drainage from a tributary
with a minimum of ___ measured horizontally.
Give this one a try later!
Interceptor drains; 40ft
Identify soil as a high plasticity silt (elastic), ___, if the soil has a low to medium dry
strength, no to low dilatancy, and low to medium toughness and plasticity.
Give this one a try later!
MH
The water content, in percent, of a soil at the boundary between the plastic and semi-
solid states is known as the ___.
Give this one a try later!
Plastic Limit (PL)
