An idea, a design - CORRECT ANSWER-A technical drawing is one way of communicating... ASME, ISO - CORRECT ANSWER-The two organizations that control the content of engineering drawings.

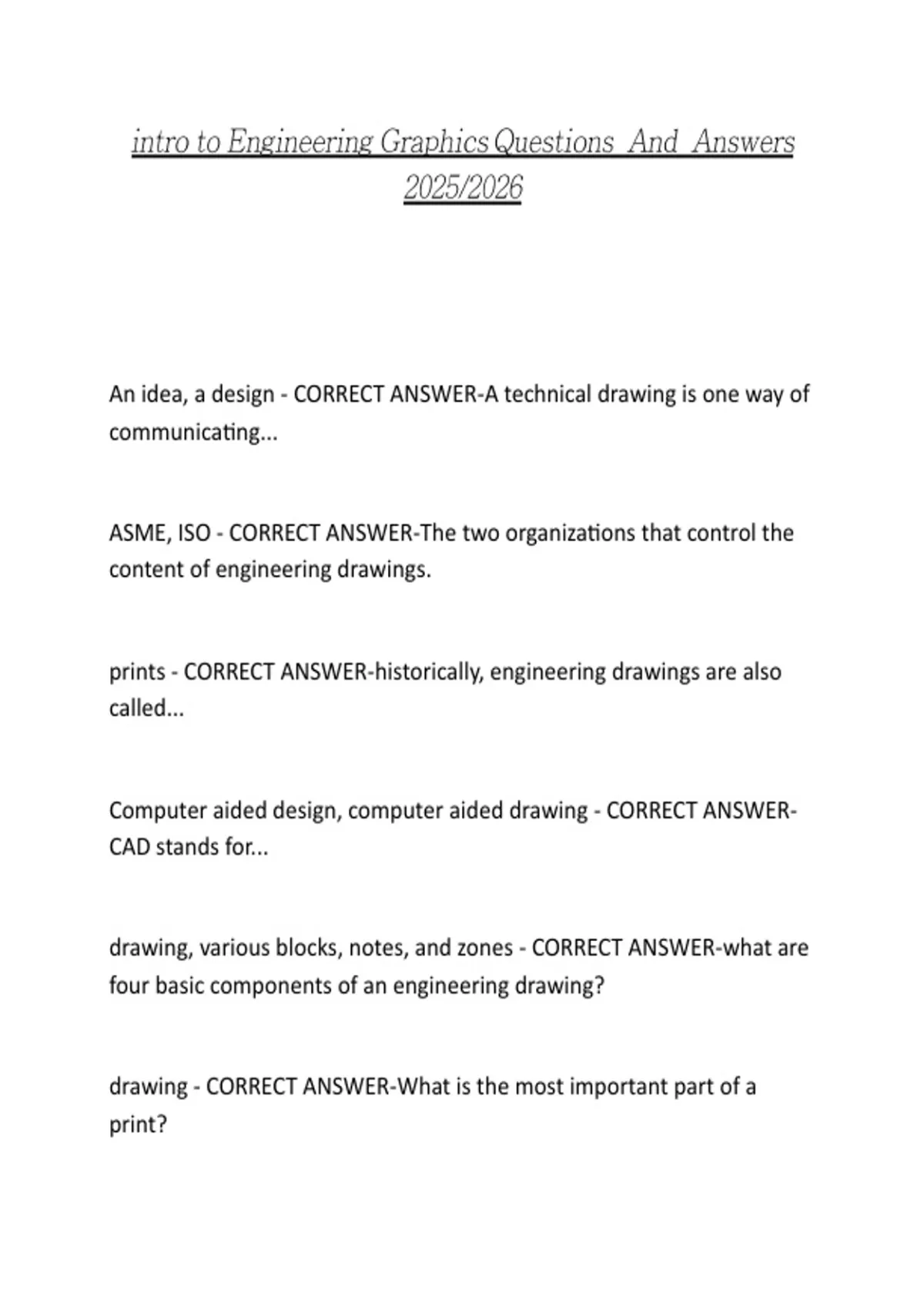

Content preview

intro to Engineering Graphics Questions And Answers
2025/2026

An idea, a design - CORRECT ANSWER-A technical drawing is one way of
communicating...

ASME, ISO - CORRECT ANSWER-The two organizations that control the
content of engineering drawings.

prints - CORRECT ANSWER-historically, engineering drawings are also
called...

Computer aided design, computer aided drawing - CORRECT ANSWER-
CAD stands for...

drawing, various blocks, notes, and zones - CORRECT ANSWER-what are
four basic components of an engineering drawing?

drawing - CORRECT ANSWER-What is the most important part of a
print?
