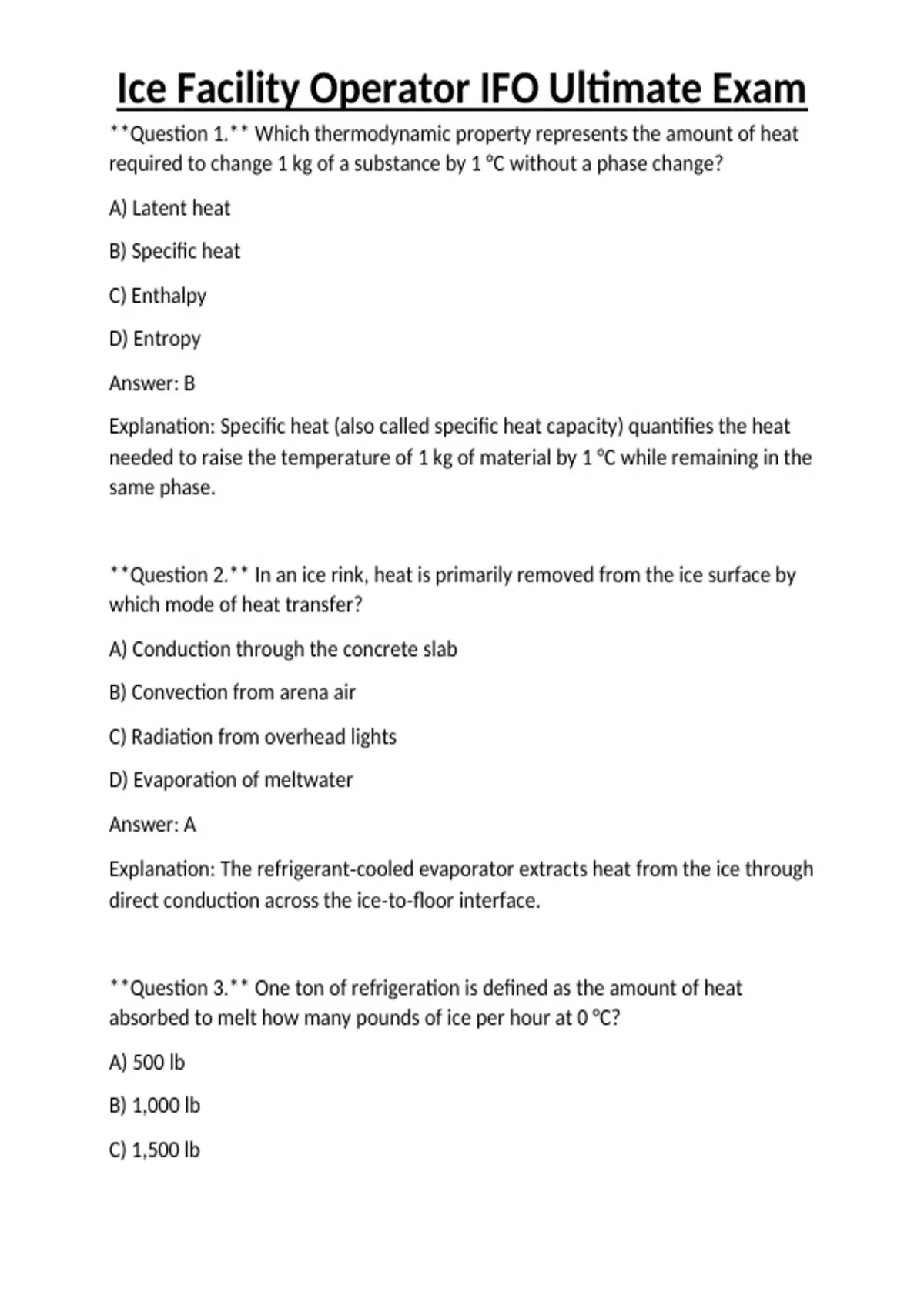

Ice Facility Operator IFO Ultimate Exam
**Question 1.** Which thermodynamic property represents the amount of heat
required to change 1 kg of a substance by 1 °C without a phase change?
A) Latent heat
B) Specific heat
C) Enthalpy
D) Entropy
Answer: B
Explanation: Specific heat (also called specific heat capacity) quantifies the heat
needed to raise the temperature of 1 kg of material by 1 °C while remaining in the
same phase.
**Question 2.** In an ice rink, heat is primarily removed from the ice surface by
which mode of heat transfer?
A) Conduction through the concrete slab
B) Convection from arena air
C) Radiation from overhead lights
D) Evaporation of meltwater
Answer: A
Explanation: The refrigerant-cooled evaporator extracts heat from the ice through
direct conduction across the ice-to-floor interface.
**Question 3.** One ton of refrigeration is defined as the amount of heat
absorbed to melt how many pounds of ice per hour at 0 °C?
A) 500 lb
B) 1,000 lb
C) 1,500 lb
,Ice Facility Operator IFO Ultimate Exam
D) 2,000 lb
Answer: B
Explanation: A refrigeration ton equals the heat required to melt 1,000 lb of ice in
24 h, i.e., 12,000 BTU/h.
**Question 4.** In the basic vapor-compression cycle, which component reduces
the refrigerant pressure from high to low?
A) Compressor
B) Condenser
C) Expansion valve
D) Evaporator
Answer: C
Explanation: The expansion valve (or throttling device) creates a pressure drop,
causing the refrigerant to partially evaporate and cool.
**Question 5.** On a pressure-enthalpy (P-h) diagram, the refrigerant line that is
horizontal at constant pressure represents which process?
A) Isentropic compression
B) Isenthalpic expansion
C) Isobaric condensation
D) Isothermal evaporation
Answer: B
Explanation: An isenthalpic (constant-enthalpy) throttling process appears as a
horizontal line because enthalpy does not change while pressure drops.
,Ice Facility Operator IFO Ultimate Exam
**Question 6.** Which of the following refrigerants is classified as an HFC with
zero ozone depletion potential (ODP) and low global warming potential (GWP) for
ice rink applications?
A) R-22 (CHClF₂)
B) R-404A
C) R-1234yf (HFO-1234yf)
D) R-12 (CCl₂F₂)
Answer: C
Explanation: R-1234yf is an HFO/HFC blend with near-zero ODP and a GWP under
1, making it environmentally preferable.
**Question 7.** Calcium chloride brine used as a secondary coolant typically has
a concentration of about 30 % by weight. What is the main advantage of this
concentration?
A) Maximizes freezing point elevation
B) Minimizes corrosion risk
C) Reduces viscosity for pump efficiency
D) Lowers electrical conductivity
Answer: A
Explanation: A 30 % CaCl₂ solution depresses the freezing point to roughly –20 °C,
allowing efficient heat removal at low temperatures.
**Question 8.** Which test is most appropriate for verifying that glycol-based
coolant has the correct concentration?
A) pH meter
B) Refractometer
, Ice Facility Operator IFO Ultimate Exam
C) Conductivity probe
D) Dissolved oxygen meter
Answer: B
Explanation: A refractometer measures the refractive index, which correlates
directly with glycol concentration.
**Question 9.** Reciprocating compressors differ from screw compressors
primarily in:
A) Ability to handle variable loads without VFDs
B) Use of rotating helical rotors instead of pistons
C) Higher oil carry-over in the discharge gas
D) Lower noise levels at full capacity
Answer: B
Explanation: Screw compressors use intermeshing helical rotors, whereas
reciprocating compressors use pistons.
**Question 10.** During start-up of a reciprocating compressor, why is it critical
to check the oil level before energizing the motor?
A) To prevent suction line cavitation
B) To ensure proper lubrication of pistons and valves
C) To avoid excessive discharge temperature
D) To calibrate the pressure transducer
Answer: B
Explanation: Adequate oil is essential for lubricating moving parts; insufficient oil
can cause rapid wear or seizure.
