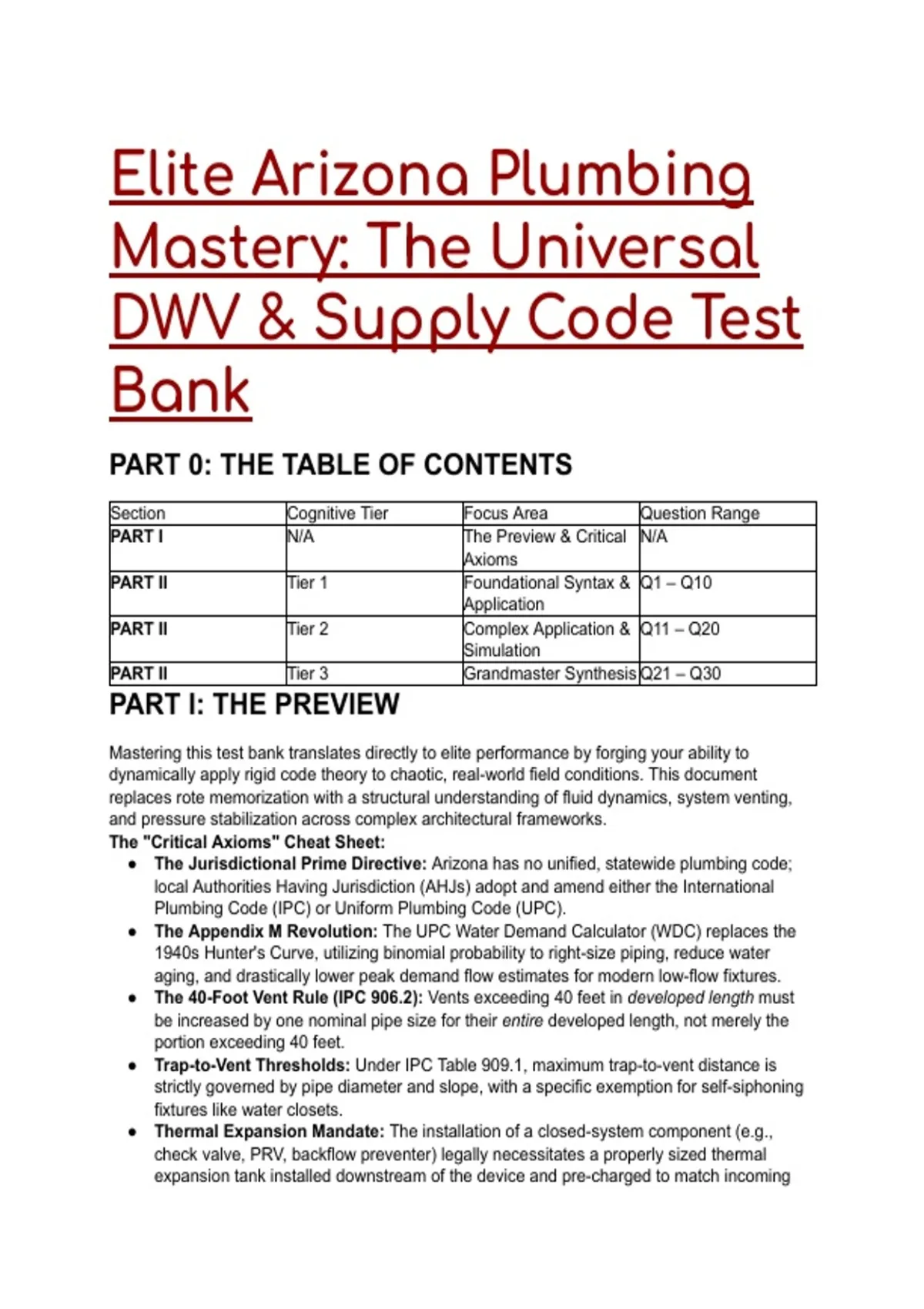

Elite Arizona Plumbing
Mastery: The Universal
DWV & Supply Code Test
Bank
PART 0: THE TABLE OF CONTENTS
Section Cognitive Tier Focus Area Question Range
PART I N/A The Preview & Critical N/A
Axioms
PART II Tier 1 Foundational Syntax & Q1 – Q10
Application
PART II Tier 2 Complex Application & Q11 – Q20
Simulation
PART II Tier 3 Grandmaster Synthesis Q21 – Q30
PART I: THE PREVIEW
Mastering this test bank translates directly to elite performance by forging your ability to
dynamically apply rigid code theory to chaotic, real-world field conditions. This document
replaces rote memorization with a structural understanding of fluid dynamics, system venting,
and pressure stabilization across complex architectural frameworks.
The "Critical Axioms" Cheat Sheet:
● The Jurisdictional Prime Directive: Arizona has no unified, statewide plumbing code;
local Authorities Having Jurisdiction (AHJs) adopt and amend either the International
Plumbing Code (IPC) or Uniform Plumbing Code (UPC).
● The Appendix M Revolution: The UPC Water Demand Calculator (WDC) replaces the
1940s Hunter's Curve, utilizing binomial probability to right-size piping, reduce water
aging, and drastically lower peak demand flow estimates for modern low-flow fixtures.
● The 40-Foot Vent Rule (IPC 906.2): Vents exceeding 40 feet in developed length must
be increased by one nominal pipe size for their entire developed length, not merely the
portion exceeding 40 feet.
● Trap-to-Vent Thresholds: Under IPC Table 909.1, maximum trap-to-vent distance is
strictly governed by pipe diameter and slope, with a specific exemption for self-siphoning
fixtures like water closets.
● Thermal Expansion Mandate: The installation of a closed-system component (e.g.,
check valve, PRV, backflow preventer) legally necessitates a properly sized thermal
expansion tank installed downstream of the device and pre-charged to match incoming
, supply pressure.
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: A plumbing engineer is drafting the sanitary and supply schematics for a large commercial
development that physically spans the municipal border between Phoenix and a neighboring
unincorporated Maricopa County zone. Based on the principles of Arizona plumbing code
jurisdiction, which action is the FIRST and MOST APPROPRIATE?
A) Assume the entire project falls under the 2018 IPC, as it serves as the default statewide code
for commercial construction. B) Apply the 2024 UPC to all systems, as Phoenix's adoption
supersedes unincorporated county regulations. C) Query the specific Authority Having
Jurisdiction (AHJ) for each geographic zone, as Arizona lacks a single statewide code and
jurisdictions independently adopt and amend the IPC or UPC. D) Engineer the system to the
strictest requirements of the UPC, as state law requires the most restrictive code to apply in
border-straddling developments.
● The Answer: C (Query the specific Authority Having Jurisdiction (AHJ) for each
geographic zone, as Arizona lacks a single statewide code and jurisdictions
independently adopt and amend the IPC or UPC.)
● Distractor Analysis:
○ A is incorrect: Arizona does not possess a single, default statewide plumbing code
for local jurisdictions to default to; regulation is hyper-localized.
○ B is incorrect: Phoenix's municipal adoption of the 2024 UPC does not hold
extraterritorial jurisdiction over unincorporated county zones, which may rely on
varying editions of the IPC or UPC.
○ D is incorrect: There is no state statute mandating the use of the most restrictive
code in cross-jurisdictional projects; each AHJ independently enforces its own
adopted ordinance.
The Mentor's Analysis: Never assume continuity across municipal boundaries. When facing
multi-jurisdictional projects, the immediate priority is verifying the adopted code family, edition,
and local amendments with each specific AHJ. By utilizing AHJ-specific verification, you bypass
the common trap of engineering an entire project to an invalid legal standard that will ultimately
fail plan review. Professional/Academic Intuition: Code legality is strictly geographical;
always verify the AHJ ordinance before generating the first line of piping.
Q2: Under the International Plumbing Code (IPC), a technician is laying out horizontal sanitary
drainage piping. A 4-inch building drain is required to route waste to the municipal sewer. Based
on the principles of horizontal slope minimums, what is the MOST ACCURATE minimum slope
required for this 4-inch line?
A) 1/4 inch per foot B) 1/16 inch per foot C) 1/8 inch per foot D) 1/2 inch per foot
● The Answer: C (1/8 inch per foot)
● Distractor Analysis:
○ A is incorrect: 1/4 inch per foot is the standard minimum for smaller pipes
measuring 2.5 inches or less in diameter, not 4-inch pipes.
○ B is incorrect: 1/16 inch per foot is strictly reserved for large-diameter gravity mains
of 8 inches or greater.
○ D is incorrect: 1/2 inch per foot is an excessive slope that can lead to liquids
, outrunning suspended solids, inducing severe blockages.
The Mentor's Analysis: Pipe slope dictates hydraulic scour velocity. When facing larger
diameter horizontal drainage, the immediate priority is ensuring adequate flow velocity without
causing the separation of liquids and solids. By utilizing the 1/8-inch per foot minimum for 3- to
6-inch pipes, you bypass the common trap of over-sloping or under-sloping the main drain, both
of which lead to chronic occlusion.
Size (inches) Minimum Slope (inch per foot)
2.5 or less 1/4
3 to 6 1/8
8 or larger 1/16
Professional/Academic Intuition: Velocity
dictates particulate suspension; 4-inch
pipes require a precise 1/8-inch slope to
maintain the optimal scour rate.
Q3: An apprentice is piping a 2-inch fixture drain from a shower trap weir to the vent fitting.
Under IPC Table 909.1, based on the principles of trap-to-vent distance limits, what is the
MAXIMUM allowable developed length for this configuration?
A) 5 feet B) 6 feet C) 8 feet D) 12 feet
● The Answer: C (8 feet)
● Distractor Analysis:
○ A is incorrect: 5 feet is the maximum developed length for a smaller 1 1/4-inch trap.
○ B is incorrect: 6 feet is the maximum developed length for a 1 1/2-inch trap.
○ D is incorrect: 12 feet is the maximum developed length for a larger 3-inch trap.
The Mentor's Analysis: Vent proximity protects the trap seal from hydraulic siphoning. When
facing trap arm sizing, the immediate priority is limiting the friction loss and hydraulic gradient
drop between the weir and the vent connection. By utilizing Table 909.1's 8-foot limit for 2-inch
pipe, you bypass the common trap of creating an unvented, self-siphoning condition that permits
sewer gas infiltration.
Size of Trap (inches) Distance from Trap (feet)
1 1/4 5
1 1/2 6
2 8
3 12
4 16
Professional/Academic Intuition: The larger
the pipe, the longer the allowable trap arm;
a 2-inch trap strictly commands an 8-foot
maximum developed length.
Q4: A plumbing engineer is calculating the water supply demand for a new 45-unit residential
high-rise using the UPC Appendix M. Based on the principles of the Water Demand Calculator
(WDC), which conclusion is the MOST ACCURATE regarding its core methodology?
A) It applies Hunter's Curve to modern fixtures to increase peak flow estimates, requiring larger
diameter pipes to prevent stagnation. B) It calculates peak demand utilizing binomial probability
algorithms to account for the intermittent use of modern, high-efficiency fixtures, resulting in
smaller pipe diameters. C) It relies on continuous-flow probabilities to determine Water Supply
Fixture Units (WSFU), maintaining the 1940s sizing criteria for public-use buildings. D) It
mandates the use of 1/2-inch piping for all residential fixture branches regardless of the total
