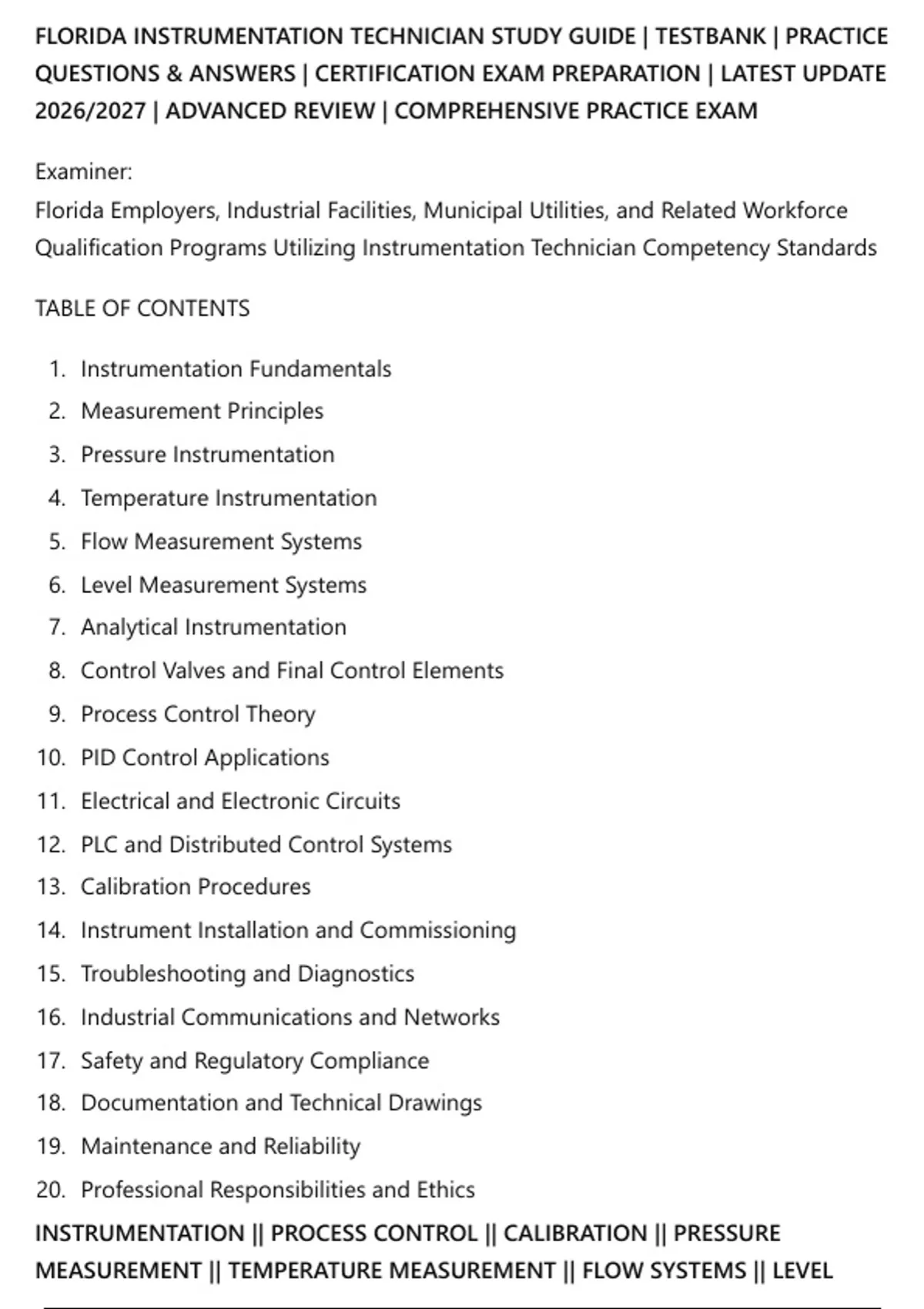

FLORIDA INSTRUMENTATION TECHNICIAN STUDY GUIDE | TESTBANK | PRACTICE
QUESTIONS & ANSWERS | CERTIFICATION EXAM PREPARATION | LATEST UPDATE
2026/2027 | ADVANCED REVIEW | COMPREHENSIVE PRACTICE EXAM
Examiner:
Florida Employers, Industrial Facilities, Municipal Utilities, and Related Workforce
Qualification Programs Utilizing Instrumentation Technician Competency Standards
TABLE OF CONTENTS
1. Instrumentation Fundamentals
2. Measurement Principles
3. Pressure Instrumentation
4. Temperature Instrumentation
5. Flow Measurement Systems
6. Level Measurement Systems
7. Analytical Instrumentation
8. Control Valves and Final Control Elements
9. Process Control Theory
10. PID Control Applications
11. Electrical and Electronic Circuits
12. PLC and Distributed Control Systems
13. Calibration Procedures
14. Instrument Installation and Commissioning
15. Troubleshooting and Diagnostics
16. Industrial Communications and Networks
17. Safety and Regulatory Compliance
18. Documentation and Technical Drawings
19. Maintenance and Reliability
20. Professional Responsibilities and Ethics
INSTRUMENTATION || PROCESS CONTROL || CALIBRATION || PRESSURE
MEASUREMENT || TEMPERATURE MEASUREMENT || FLOW SYSTEMS || LEVEL
,DETECTION || ANALYTICAL INSTRUMENTS || CONTROL VALVES || PID CONTROL ||
PLC SYSTEMS || DCS OPERATIONS || LOOP TUNING || TROUBLESHOOTING ||
INDUSTRIAL NETWORKS || ELECTRICAL TESTING || SAFETY COMPLIANCE ||
DOCUMENTATION || COMMISSIONING || RELIABILITY
QUESTION 1.
A differential pressure flow transmitter is calibrated for a flow range of 0–1000 GPM
using a square-root extraction function. During testing, the transmitter output
indicates 25% of flow. What percentage of differential pressure is being measured
across the primary element?
A. 6.25%
B. 25%
C. 50%
D. 75%
Correct Answer: A. 6.25%
Explanation: Differential pressure varies with the square of flow. Therefore, a flow
indication of 25% corresponds to a differential pressure of (0.25)² = 0.0625 or
6.25% of calibrated differential pressure. The other values do not account for the
square-law relationship governing differential pressure flow measurement.
────────────────────────────────────────
QUESTION 2.
A process vessel contains a corrosive liquid that frequently forms foam. Which level
measurement technology would generally provide the most reliable continuous
measurement under these conditions?
A. Sight glass
B. Guided wave radar
,C. Float-operated transmitter
D. Bubbling tube without compensation
Correct Answer: B. Guided wave radar
Explanation: Guided wave radar is relatively unaffected by vapor, foam, and
changing process conditions compared with many mechanical or pressure-based
systems. Sight glasses present maintenance and visibility concerns, float devices
can be affected by buildup, and bubbling systems require additional compensation
and maintenance in corrosive applications.
────────────────────────────────────────
QUESTION 3.
A control loop exhibits sustained oscillation after a proportional gain increase. Which
conclusion is most appropriate?
A. Integral action is excessive
B. The loop is critically damped
C. The proportional gain has approached or exceeded the stability limit
D. The transmitter span is too narrow
Correct Answer: C. The proportional gain has approached or exceeded the
stability limit
Explanation: Sustained oscillation following an increase in proportional gain
commonly indicates operation near or beyond ultimate gain. Critical damping
would not produce continuous oscillation. While integral action can contribute to
instability, the scenario specifically links the behavior to proportional gain
adjustment.
────────────────────────────────────────
QUESTION 4.
, A technician measures a 4–20 mA signal and obtains 12 mA. Assuming a linear range
of 0–300 psi, what process pressure is being transmitted?
A. 75 psi
B. 100 psi
C. 150 psi
D. 225 psi
Correct Answer: C. 150 psi
Explanation: Twelve milliamps is exactly halfway between 4 and 20 mA. Therefore,
the process variable is 50% of span. Fifty percent of a 0–300 psi range equals 150
psi. The other values represent incorrect percentages of span.
────────────────────────────────────────
QUESTION 5.
During calibration of a pressure transmitter, increasing-pressure readings differ
significantly from decreasing-pressure readings. Which condition is most likely
present?
A. Hysteresis
B. Ground fault
C. Quantization error
D. Excessive loop resistance
Correct Answer: A. Hysteresis
Explanation: Hysteresis occurs when instrument output depends on the direction of
input change. The discrepancy between upscale and downscale readings is a classic
