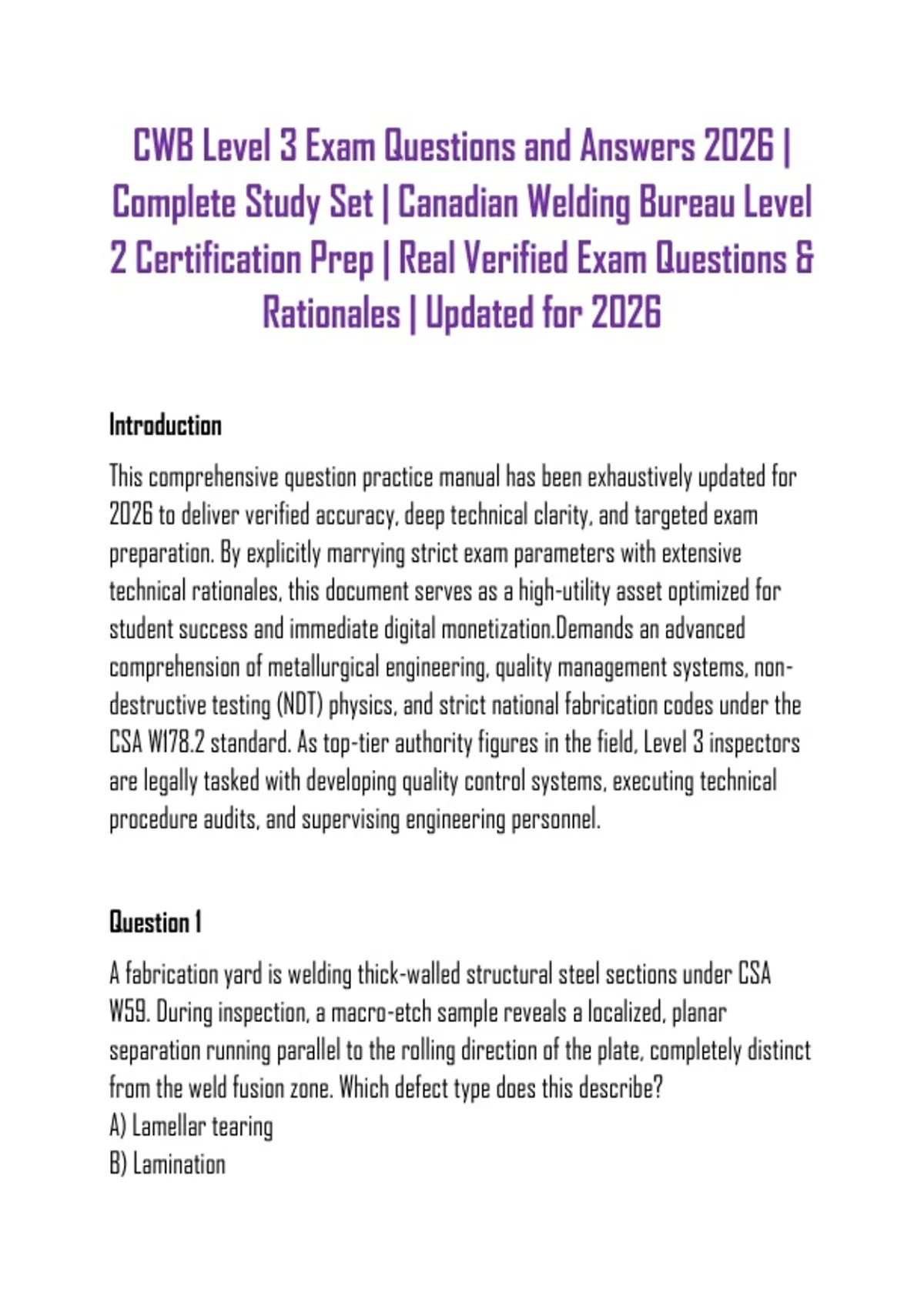

CWB Level 3 Exam Questions and Answers 2026 |
Complete Study Set | Canadian Welding Bureau Level
2 Certification Prep | Real Verified Exam Questions &
Rationales | Updated for 2026
Introduction
This comprehensive question practice manual has been exhaustively updated for
2026 to deliver verified accuracy, deep technical clarity, and targeted exam
preparation. By explicitly marrying strict exam parameters with extensive
technical rationales, this document serves as a high-utility asset optimized for
student success and immediate digital monetization.Demands an advanced
comprehension of metallurgical engineering, quality management systems, non-
destructive testing (NDT) physics, and strict national fabrication codes under the
CSA W178.2 standard. As top-tier authority figures in the field, Level 3 inspectors
are legally tasked with developing quality control systems, executing technical
procedure audits, and supervising engineering personnel.
Question 1
A fabrication yard is welding thick-walled structural steel sections under CSA
W59. During inspection, a macro-etch sample reveals a localized, planar
separation running parallel to the rolling direction of the plate, completely distinct
from the weld fusion zone. Which defect type does this describe?
A) Lamellar tearing
B) Lamination
,C) Hydrogen-induced underbead cracking
D) Lack of side-wall fusion
Correct Answer: B) Lamination
**Rationale: Laminations are base-metal defects caused by elongated internal
inclusions (such as manganese sulfides) flattened during the steel rolling process.
They run parallel to the plate surface and occur completely independently of the
welding process. Lamellar tearing (A) is a step-like cracking pattern triggered
specifically by high through-thickness shrinkage strains caused by welding. **
Question 2
Under the governing requirements of CSA W47.1, when a company employs a
"retained" Welding Engineer rather than a full-time designated engineer, what is
the maximum number of structural steel fabrication plants this engineer can
legally represent at one time?
A) Two
B) Three
C) Four
D) Five
Correct Answer: C) Four
**Rationale: CSA W47.1 specifies strict operational limits to ensure public safety
and administrative diligence. A retained Welding Engineer is permitted to provide
professional engineering services for a maximum of four certified companies or
individual plant divisions simultaneously. **
Question 3
,An inspector reviewing an Iron-Carbon (Fe-C) equilibrium phase diagram
observes the transformation occurring at exactly 727°C (1341°F) containing 0.76%
carbon. What is the technical name for this specific invariant reaction?
A) Peritectic
B) Eutectic
C) Eutectoid
D) Martensitic
Correct Answer: C) Eutectoid
**Rationale: The eutectoid reaction occurs in the solid state at 727°C, where
single-phase Austenite (\(\gamma \)) transforms under equilibrium cooling
conditions into a two-phase microstructural mixture of Ferrite (\(\alpha \)) and
Cementite (\(Fe_{3}C\)), collectively known as Pearlite. The eutectic reaction (B)
involves a liquid phase transforming into two solids. **
Question 4
When evaluating a structural steel connection subjected to cyclic loading under
CSA W59, what is the strict limitation regarding the depth of a surface-breaking
undercut oriented perpendicular to the primary tensile stress?
A) 0.5 mm
B) 1.0 mm
C) 1.5 mm
D) 2.0 mm
Correct Answer: A) 0.5 mm
**Rationale: For cyclically loaded connections, stress concentration factors are
critical. CSA W59 mandates that undercut perpendicular to tensile stress must
, not exceed 0.5 mm to prevent fatigue crack initiation. For static loading, the
permissible limit scales up to 1.0 mm for material under 25 mm thick. **
Question 5
During the qualification of a welding procedure for a structural project under CSA
W47.1, what specific variation in a procedure variable requires the complete re-
qualification of the Procedure Qualification Record (PQR) rather than a simple
data sheet revision?
A) A change from one shielding gas mixture to another within the same
classification
B) A change in the backing material thickness from 6 mm to 10 mm
C) A change from a low-hydrogen electrode to a non-low-hydrogen electrode
D) A minor increase in the welding travel speed within a pre-qualified range
Correct Answer: C) A change from a low-hydrogen electrode to a non-low-
hydrogen electrode
**Rationale: Changing from a low-hydrogen to a non-low-hydrogen electrode
fundamentally alters the risk of hydrogen-induced cracking (HIC). This constitutes
an essential variable change under CSA W47.1, invalidating the previous PQR and
demanding full empirical re-qualification testing. **
Question 6
Which non-destructive testing (NDT) methodology provides the highest probability
of detection (POD) for tight, planar, unfused boundaries oriented parallel to the
acoustic beam axis in heavy multi-pass electroslag welds?
A) Conventional Radiographic Testing (RT) with X-rays
