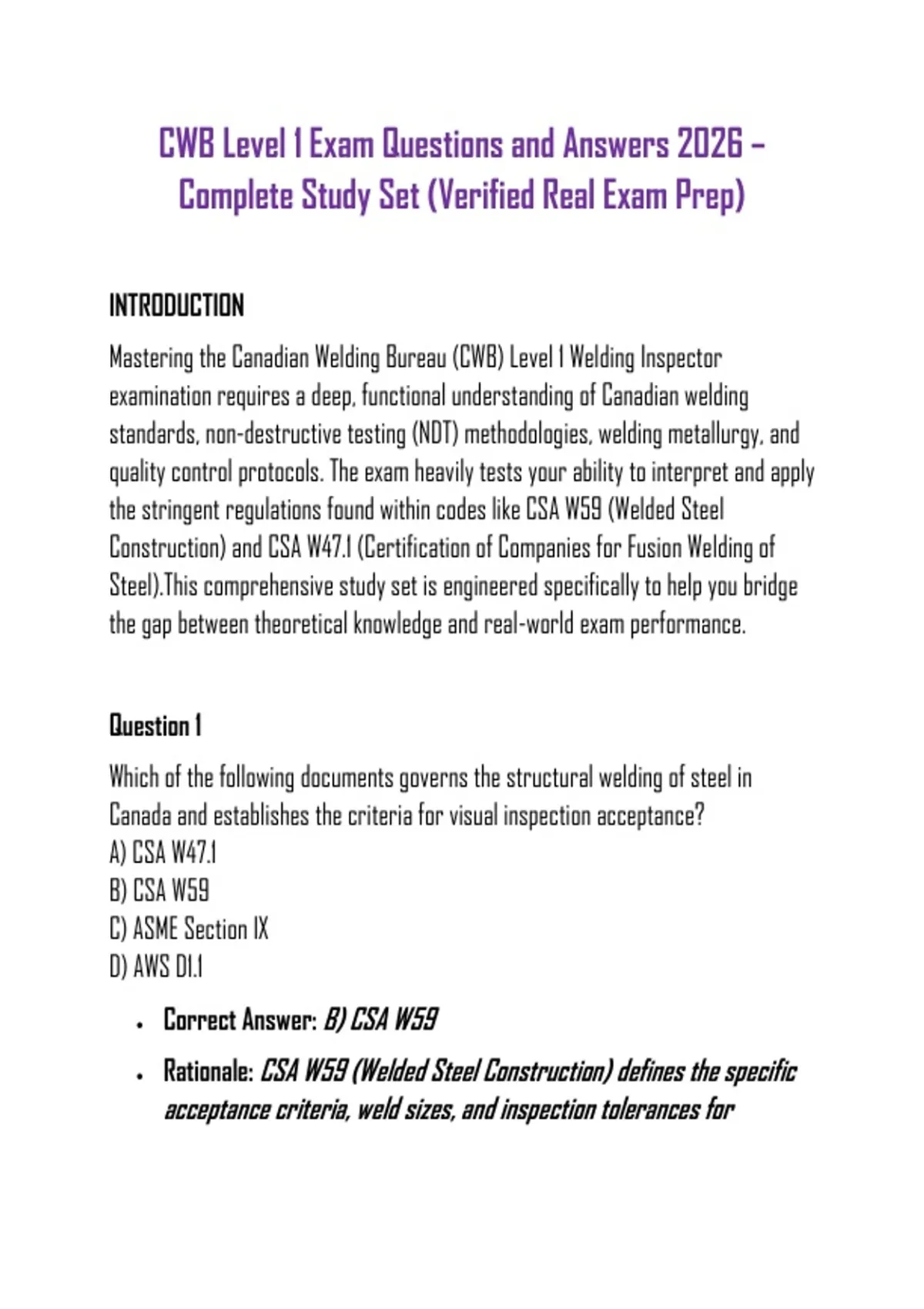

CWB Level 1 Exam Questions and Answers 2026 –
Complete Study Set (Verified Real Exam Prep)
INTRODUCTION
Mastering the Canadian Welding Bureau (CWB) Level 1 Welding Inspector
examination requires a deep, functional understanding of Canadian welding
standards, non-destructive testing (NDT) methodologies, welding metallurgy, and
quality control protocols. The exam heavily tests your ability to interpret and apply
the stringent regulations found within codes like CSA W59 (Welded Steel
Construction) and CSA W47.1 (Certification of Companies for Fusion Welding of
Steel).This comprehensive study set is engineered specifically to help you bridge
the gap between theoretical knowledge and real-world exam performance.
Question 1
Which of the following documents governs the structural welding of steel in
Canada and establishes the criteria for visual inspection acceptance?
A) CSA W47.1
B) CSA W59
C) ASME Section IX
D) AWS D1.1
Correct Answer: B) CSA W59
Rationale: CSA W59 (Welded Steel Construction) defines the specific
acceptance criteria, weld sizes, and inspection tolerances for
, structural steel in Canada. CSA W47.1 governs the certification of
companies, not the structural design or inspection criteria itself.
Question 2
What does a flag symbol placed at the junction of the reference line and the arrow
line indicate on a standard welding symbol?
A) The weld is to be made all around the joint.
B) The weld must be inspected using radiography.
C) The weld is a field weld to be made on-site.
D) The weld requires a backing bar.
Correct Answer: C) The weld is a field weld to be made on-site.
Rationale: According to standard welding symbology recognized by the
CWB, a flag pointing away from the weld arrow indicates a field weld,
meaning the weld is executed at the installation site rather than in the
fabrication shop.
Question 3
Which of the following electrode classifications belongs to the low-hydrogen
group, requiring controlled storage ovens to prevent moisture pickup?
A) E6010
B) E6011
C) E7014
D) E7018
Correct Answer: D) E7018
Rationale: The last digit "8" in E7018 indicates an iron powder low-
hydrogen coating. These electrodes must be kept in holding ovens to
, prevent moisture absorption, which can cause hydrogen-induced
cracking.
Question 4
What is the primary metallurgical purpose of preheating carbon and low-alloy
steels prior to structural welding operations?
A) To increase the deposition rate of the filler metal.
B) To slow down the cooling rate and prevent martensite formation.
C) To remove all mill scale and surface oxides from the groove face.
D) To reduce the total electrical current needed to maintain a stable arc.
Correct Answer: B) To slow down the cooling rate and prevent
martensite formation.
Rationale: Preheating reduces the thermal shock and slows the
cooling rate of the Heat-Affected Zone (HAZ). This prevents the
formation of brittle martensite, thereby minimizing the risk of
underbead hydrogen cracking.
Question 5
Which NDT method relies strictly on capillary action to find discontinuities that
break through the surface of non-porous materials?
A) Magnetic Particle Testing (MT)
B) Liquid Penetrant Testing (PT)
C) Ultrasonic Testing (UT)
D) Radiographic Testing (RT)
Correct Answer: B) Liquid Penetrant Testing (PT)
, Rationale: Liquid Penetrant Testing (PT) utilizes capillary action to
draw a liquid dye into surface-breaking flaws. It cannot detect
subsurface defects or be used on highly porous materials.
Question 6
Under CSA W59, what is the maximum allowable depth of undercut for dynamically
loaded (fatigue-critical) structures when the weld is transverse to the tensile
stress?
A) 0.25 mm
B) 0.5 mm
C) 1.0 mm
D) 2.0 mm
Correct Answer: A) 0.25 mm
Rationale: Dynamically loaded structural members have strict
undercut tolerances due to fatigue risks. CSA W59 limits undercut
transverse to tension to a maximum depth of 0.25 mm, compared to
1.0 mm for static structures.
Question 7
What type of defect is characterized by gas entrapped in the solidifying weld
metal, often resembling small spherical cavities?
A) Slag inclusion
B) Porosity
C) Cold lap
D) Lamination
Correct Answer: B) Porosity
