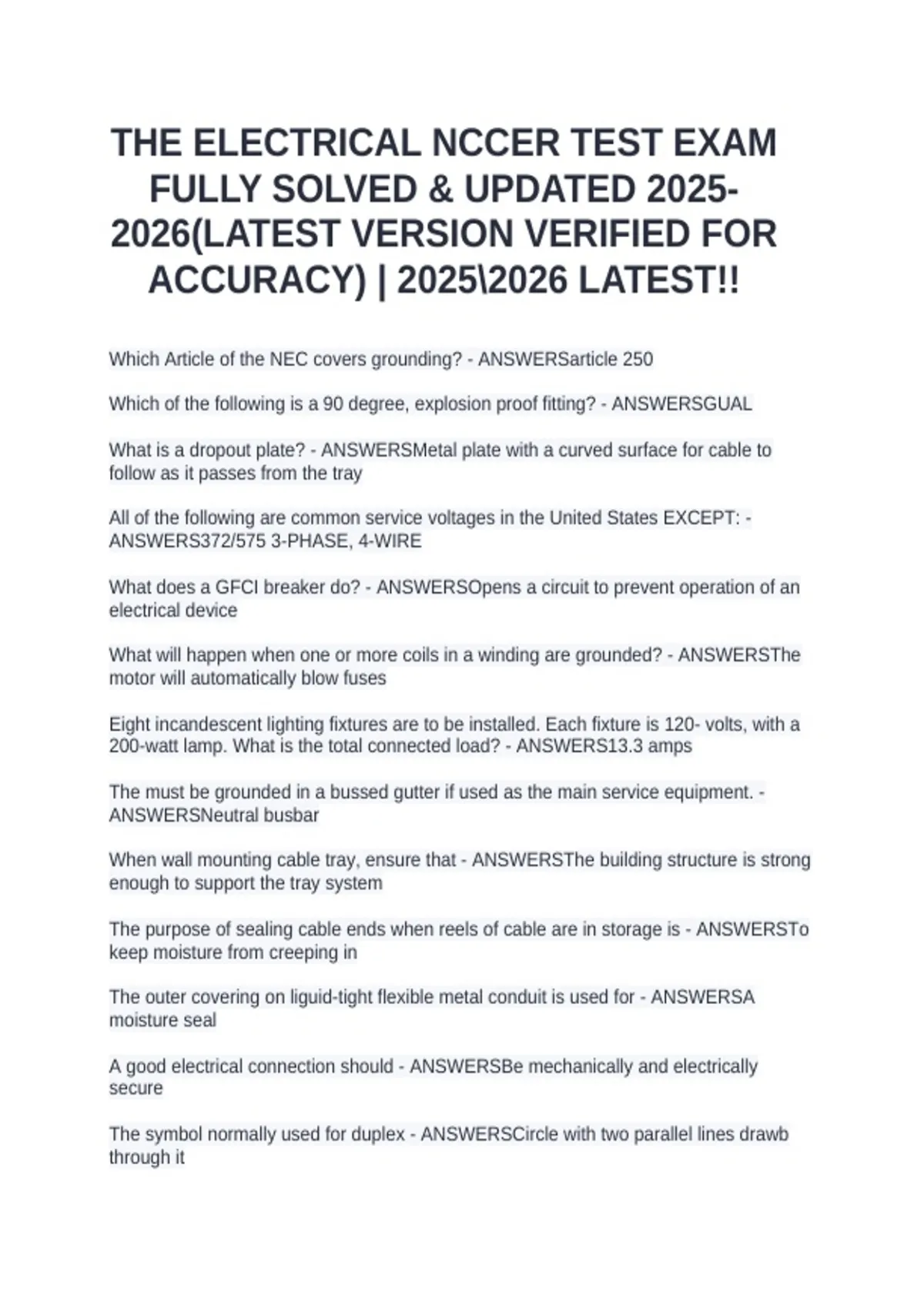

THE ELECTRICAL NCCER TEST EXAM
FULLY SOLVED & UPDATED 2025-
2026(LATEST VERSION VERIFIED FOR
ACCURACY) | 2025\2026 LATEST!!
Which Article of the NEC covers grounding? - ANSWERSarticle 250
Which of the following is a 90 degree, explosion proof fitting? - ANSWERSGUAL
What is a dropout plate? - ANSWERSMetal plate with a curved surface for cable to
follow as it passes from the tray
All of the following are common service voltages in the United States EXCEPT: -
ANSWERS372/575 3-PHASE, 4-WIRE
What does a GFCI breaker do? - ANSWERSOpens a circuit to prevent operation of an
electrical device
What will happen when one or more coils in a winding are grounded? - ANSWERSThe
motor will automatically blow fuses
Eight incandescent lighting fixtures are to be installed. Each fixture is 120- volts, with a
200-watt lamp. What is the total connected load? - ANSWERS13.3 amps
The must be grounded in a bussed gutter if used as the main service equipment. -
ANSWERSNeutral busbar
When wall mounting cable tray, ensure that - ANSWERSThe building structure is strong
enough to support the tray system
The purpose of sealing cable ends when reels of cable are in storage is - ANSWERSTo
keep moisture from creeping in
The outer covering on liguid-tight flexible metal conduit is used for - ANSWERSA
moisture seal
A good electrical connection should - ANSWERSBe mechanically and electrically
secure
The symbol normally used for duplex - ANSWERSCircle with two parallel lines drawb
through it
,Disconnecting means are covered in - ANSWERSNEC Section 110-22
In relation to switches, the term throw refers to the - ANSWERSNumber of internal
operations that a switch can perform
A 3-phase, 4-wire, 480v service requires ______ current transformer(s) - ANSWERS3
Services conductors and equipment are covered in - ANSWERSNEC Article 230
The NEC required that all receptacles installed on 25 amp and 20 amp branch circuits
be ______ receptacles - ANSWERSGrounding
A transformer with the primary of 400 turns and a secondary of 300 turns has a _____ -
ANSWERSStep-down turns ratio of 4:3
The circular mil is based on the - ANSWERSCross-sectional area of the wire
Of the termination classes listed below, ____ is the only one that provides a seal
against external elements. - ANSWERSClass 1
Unless otherwise noted. the calculations in AC circuits _____ values. - ANSWERSRms
When the coil turns are increased the _____ - ANSWERSInduced voltage is increased
As the temperature surrounding a self-regulating heating cable rises, the ____ -
ANSWERSResistance of the polymeric core increases
The motor type that has the highest starting torque is the ____ motor. -
ANSWERSCapacitor-start
For a given number of poles, the ____ determines the speed of an AC motor. -
ANSWERSFrequency
Both induction and synchronous motors operate on the principle of a rotating ____ field
- ANSWERSMagnetic
A transformer has 200 turns in the primary, 150 turns in the secondary, and 120VAC
applied to the primary. The voltage across the secondary is: - ANSWERS90Volts
The output capacity of a motor is rated in - ANSWERSHorsepower
The synchronous speed at which a pole, 60 Hz induction motor operates is rpm. -
ANSWERS1,800
The sine of 0 degree is - ANSWERS0
, Meters used in AC circuits indicate the - ANSWERSEffective
The component labeled 7 in figure 1 is a(n) - ANSWERSEnd seal
In an AC circuit containing resistance only _____ will flow if the resistance is 10 ohms
and the voltage is 120V. - ANSWERS12A
The _____ rotor types are generally rugged. - ANSWERSSquirrel cage
Proofs tests are made at_ of the original factory voltage. - ANSWERS60%
Which type of heating cable cannot be cut and terminated in the field? -
ANSWERSMineral insulated
The secondary of a CT under load should not be opened because of_. -
ANSWERSInduced high voltage
In a transformer ______ - ANSWERSElectromagnetic Induction Ocurs
When a ground rod is installed, the top of the rod must be positioned ______ grade. -
ANSWERSFlush with or below
When making offset bends, the two kicks must be made perfectly parallel or the
resulting offset will have a _____ - ANSWERSCrooked Bend
conduit that requires a 90 degree change in direction, except 42.All of the following
types of condulet may be used as a pulling point for _____ - ANSWERSC
To be effective, a grounding system must limit the voltage on the electrical system and
protect it from all of the following, except _____ - ANSWERSUndervoltage conditions
What is the MOST common service used in a temporary power panel? -
ANSWERS120/240 volt, 1-phase, 3-wire
What are the 2 MOST common types of overcurrent protective devices? -
ANSWERSCircuit breakers and fuses
What instrument is used to perform an insulation-resistance test on a 480- volt motor
winding? - ANSWERSMegohmmeter
Why is a seal installed in a run of conduit in a Class I location? - ANSWERSPrevent the
passage of explosive gases in the conduit
Which of the following is the correct formula for OHM's law? - ANSWERSI=E/R
