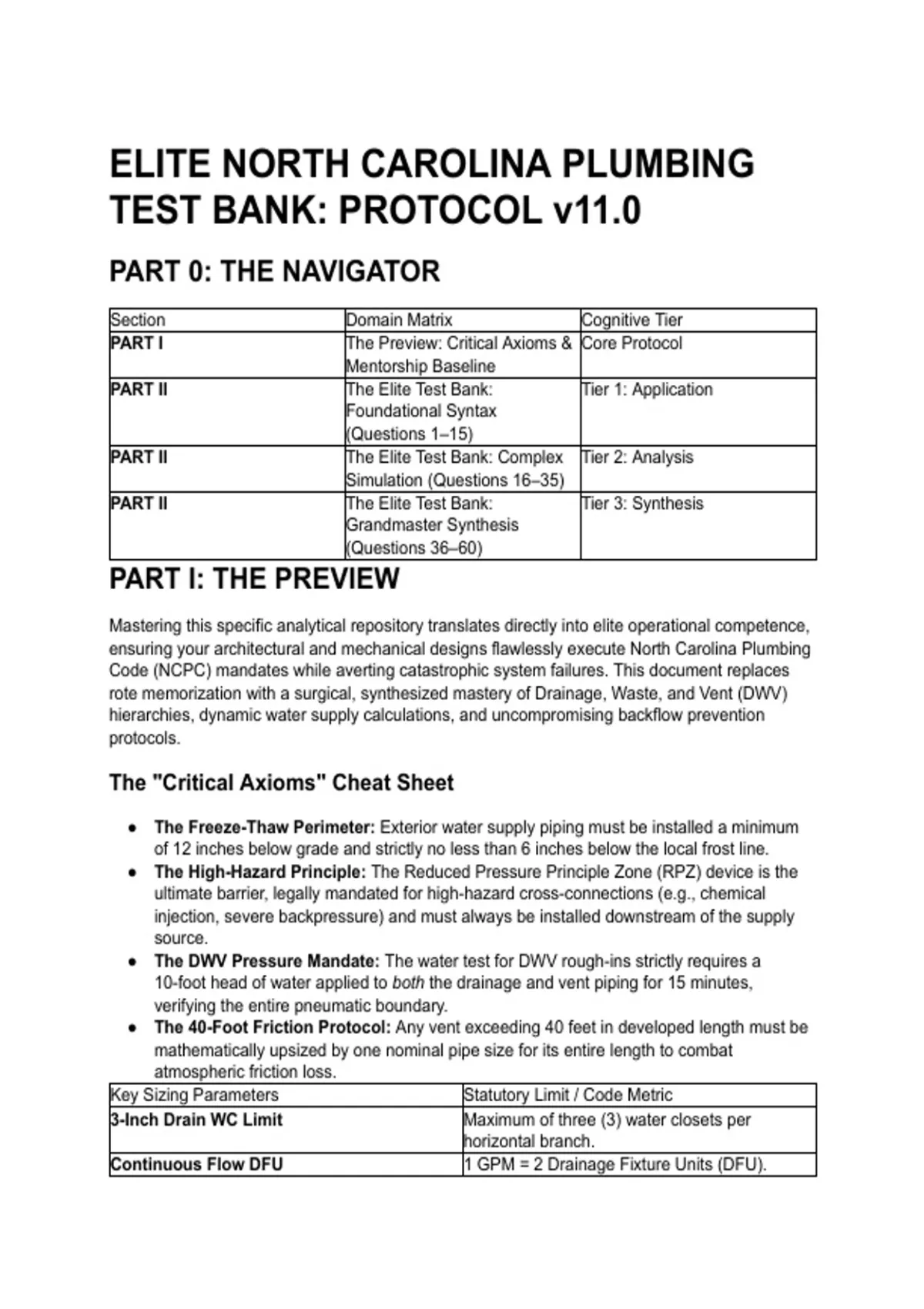

ELITE NORTH CAROLINA PLUMBING
TEST BANK: PROTOCOL v11.0
PART 0: THE NAVIGATOR
Section Domain Matrix Cognitive Tier
PART I The Preview: Critical Axioms & Core Protocol
Mentorship Baseline
PART II The Elite Test Bank: Tier 1: Application
Foundational Syntax
(Questions 1–15)
PART II The Elite Test Bank: Complex Tier 2: Analysis
Simulation (Questions 16–35)
PART II The Elite Test Bank: Tier 3: Synthesis
Grandmaster Synthesis
(Questions 36–60)
PART I: THE PREVIEW
Mastering this specific analytical repository translates directly into elite operational competence,
ensuring your architectural and mechanical designs flawlessly execute North Carolina Plumbing
Code (NCPC) mandates while averting catastrophic system failures. This document replaces
rote memorization with a surgical, synthesized mastery of Drainage, Waste, and Vent (DWV)
hierarchies, dynamic water supply calculations, and uncompromising backflow prevention
protocols.
The "Critical Axioms" Cheat Sheet
● The Freeze-Thaw Perimeter: Exterior water supply piping must be installed a minimum
of 12 inches below grade and strictly no less than 6 inches below the local frost line.
● The High-Hazard Principle: The Reduced Pressure Principle Zone (RPZ) device is the
ultimate barrier, legally mandated for high-hazard cross-connections (e.g., chemical
injection, severe backpressure) and must always be installed downstream of the supply
source.
● The DWV Pressure Mandate: The water test for DWV rough-ins strictly requires a
10-foot head of water applied to both the drainage and vent piping for 15 minutes,
verifying the entire pneumatic boundary.
● The 40-Foot Friction Protocol: Any vent exceeding 40 feet in developed length must be
mathematically upsized by one nominal pipe size for its entire length to combat
atmospheric friction loss.
Key Sizing Parameters Statutory Limit / Code Metric
3-Inch Drain WC Limit Maximum of three (3) water closets per
horizontal branch.
Continuous Flow DFU 1 GPM = 2 Drainage Fixture Units (DFU).
,Key Sizing Parameters Statutory Limit / Code Metric
Tracer Wire (Plastic Sewer) Minimum 14 AWG insulated copper, direct
burial listed.
Air Gap Minimum 2x the effective opening diameter, but never
less than 1 inch.
PART II: THE ELITE TEST BANK
TIER 1: FOUNDATIONAL SYNTAX & APPLICATION
Q1: A plumbing contractor is trenching a new exterior potable water supply line for a commercial
facility where the established frost line is 14 inches below grade. Based on the principles of the
North Carolina Plumbing Code, which trench depth configuration is the MOST ACCURATE? A)
The trench must be exactly 14 inches deep to align with the frost line. B) The trench must be 18
inches deep to satisfy the minimum grade requirement, ignoring the frost line. C) The trench
must be at least 20 inches deep. D) The trench must be exactly 12 inches deep, as exterior
supply lines are exempt from frost line calculations if insulated.
● The Answer: C (The trench must be at least 20 inches deep.)
● Distractor Analysis:
○ A is incorrect: Placing the pipe exactly on the frost line violates the requirement to
be completely below the freeze-thaw expansion zone.
○ B is incorrect: It satisfies the 12-inch minimum below grade but fails the frost line
mandate.
○ D is incorrect: Insulation does not exempt buried exterior pipes from trench depth
requirements under NCPC 305.4.
The Mentor's Analysis: Environmental physics dictate structural boundaries. When facing
exterior water service installations, the immediate priority is burying the line below the
freeze-thaw expansion zone. By utilizing the 6-inches below frost line statute, you bypass the
common trap of only satisfying the 12-inch minimum grade rule. Professional/Academic
Intuition: Exterior water supply piping must be installed at least 12 inches below grade AND at
least 6 inches below the frost line.
Q2: A crew is installing 4-inch PVC sewer piping from a residential structure to the municipal
tie-in. Based on NCPC administrative amendments, which action regarding pipe location
tracking is FIRST and MOST APPROPRIATE? A) Burying a highly visible metallic caution tape
6 inches above the pipe. B) Installing an insulated 14 AWG copper tracer wire adjacent to and
over the full length of the piping. C) Relying purely on GPS coordinates submitted to the local
inspector. D) Surrounding the pipe in a 4-inch envelope of magnetic sand.
● The Answer: B (Installing an insulated 14 AWG copper tracer wire adjacent to and over
the full length of the piping.)
● Distractor Analysis:
○ A is incorrect: Caution tape is standard practice in many utilities, but NC code
specifically mandates tracer wire for plastic sewer pipes.
○ C is incorrect: GPS mapping does not satisfy the physical tracing mandate.
○ D is incorrect: Magnetic sand is a non-standard, unapproved legacy concept.
The Mentor's Analysis: Non-metallic infrastructure disappears on standard municipal locators.
When facing underground plastic sewer routing, the immediate priority is permanent locatability.
By utilizing an insulated 14 AWG copper tracer wire, you bypass the common trap of relying on
secondary visual markers. Professional/Academic Intuition: Plastic sewer piping absolutely
, requires an insulated copper tracer wire (minimum 14 AWG) listed for direct burial.
Q3: A designer is calculating the drainage load for a single-family dwelling's master bathroom.
The design includes a 1.6 gpf private water closet. Based on Table 709.1 of the NCPC, what is
the MOST ACCURATE Drainage Fixture Unit (DFU) value assigned to this specific fixture? A) 1
DFU B) 2 DFU C) 3 DFU D) 4 DFU
● The Answer: C (3 DFU)
● Distractor Analysis:
○ A is incorrect: 1 DFU represents a lavatory, not a water closet.
○ B is incorrect: 2 DFU is standard for bathtubs and residential sinks.
○ D is incorrect: 4 DFU is assigned to public water closets or flushometer valves, not
private 1.6 gpf tanks.
The Mentor's Analysis: Fixture loads dictate the entire downstream system architecture. When
facing load calculations, the immediate priority is distinguishing between private and public use
classifications. By utilizing the 3 DFU metric for private WCs, you bypass the common trap of
over-sizing residential branch drains based on commercial values. Professional/Academic
Intuition: A private 1.6 gpf water closet is strictly calculated at 3 DFUs.
Q4: A commercial laundry facility discharges industrial waste into the public sewer. Based on
the principles of NCPC Chapter 3, which action is IMMEDIATELY required before connecting to
the municipal system? A) Installing a 6-inch backwater valve on the main building drain. B)
Obtaining determination from the code official that the waste will not damage the public sewer or
sewage treatment plant. C) Routing all waste through a 500-gallon grease interceptor. D)
Diluting the waste with a minimum of 50 gallons of potable water per minute.
● The Answer: B (Obtaining determination from the code official that the waste will not
damage the public sewer or sewage treatment plant.)
● Distractor Analysis:
○ A is incorrect: A backwater valve prevents backflow; it does not neutralize chemical
or industrial hazards.
○ C is incorrect: Grease interceptors are for culinary/fatty waste, not general industrial
manufacturing waste.
○ D is incorrect: Diluting waste with potable water is strictly prohibited as a method of
waste treatment.
The Mentor's Analysis: Municipal treatment plants utilize sensitive biological processes. When
facing industrial discharge, the immediate priority is chemical and physical verification. By
utilizing official jurisdictional review, you bypass the common trap of blindly assuming standard
interceptors solve toxic or thermal discharge issues. Professional/Academic Intuition:
Industrial waste must be mathematically and chemically verified by the authority having
jurisdiction before entering a public sewer.
Q5: An engineer is sizing a drainage system where a specialized piece of equipment discharges
at a continuous rate of 15 gallons per minute (gpm). Based on NCPC Section 709.3, which DFU
conversion is the MOST ACCURATE? A) 15 DFU B) 30 DFU C) 7.5 DFU D) 60 DFU
● The Answer: B (30 DFU)
● Distractor Analysis:
○ A is incorrect: This mistakenly assumes a 1:1 ratio between gpm and DFU.
○ C is incorrect: This reverses the ratio, cutting the load in half.
○ D is incorrect: This artificially inflates the load using an outdated commercial
multiplier.
The Mentor's Analysis: Continuous or semi-continuous flow completely alters pipe
hydrodynamics compared to intermittent fixture flushing. When facing fixed-flow discharge, the
TEST BANK: PROTOCOL v11.0
PART 0: THE NAVIGATOR
Section Domain Matrix Cognitive Tier
PART I The Preview: Critical Axioms & Core Protocol
Mentorship Baseline
PART II The Elite Test Bank: Tier 1: Application
Foundational Syntax
(Questions 1–15)
PART II The Elite Test Bank: Complex Tier 2: Analysis
Simulation (Questions 16–35)
PART II The Elite Test Bank: Tier 3: Synthesis
Grandmaster Synthesis
(Questions 36–60)
PART I: THE PREVIEW
Mastering this specific analytical repository translates directly into elite operational competence,
ensuring your architectural and mechanical designs flawlessly execute North Carolina Plumbing
Code (NCPC) mandates while averting catastrophic system failures. This document replaces
rote memorization with a surgical, synthesized mastery of Drainage, Waste, and Vent (DWV)
hierarchies, dynamic water supply calculations, and uncompromising backflow prevention
protocols.
The "Critical Axioms" Cheat Sheet
● The Freeze-Thaw Perimeter: Exterior water supply piping must be installed a minimum
of 12 inches below grade and strictly no less than 6 inches below the local frost line.
● The High-Hazard Principle: The Reduced Pressure Principle Zone (RPZ) device is the
ultimate barrier, legally mandated for high-hazard cross-connections (e.g., chemical
injection, severe backpressure) and must always be installed downstream of the supply
source.
● The DWV Pressure Mandate: The water test for DWV rough-ins strictly requires a
10-foot head of water applied to both the drainage and vent piping for 15 minutes,
verifying the entire pneumatic boundary.
● The 40-Foot Friction Protocol: Any vent exceeding 40 feet in developed length must be
mathematically upsized by one nominal pipe size for its entire length to combat
atmospheric friction loss.
Key Sizing Parameters Statutory Limit / Code Metric
3-Inch Drain WC Limit Maximum of three (3) water closets per
horizontal branch.
Continuous Flow DFU 1 GPM = 2 Drainage Fixture Units (DFU).
,Key Sizing Parameters Statutory Limit / Code Metric
Tracer Wire (Plastic Sewer) Minimum 14 AWG insulated copper, direct
burial listed.
Air Gap Minimum 2x the effective opening diameter, but never
less than 1 inch.
PART II: THE ELITE TEST BANK
TIER 1: FOUNDATIONAL SYNTAX & APPLICATION
Q1: A plumbing contractor is trenching a new exterior potable water supply line for a commercial
facility where the established frost line is 14 inches below grade. Based on the principles of the
North Carolina Plumbing Code, which trench depth configuration is the MOST ACCURATE? A)
The trench must be exactly 14 inches deep to align with the frost line. B) The trench must be 18
inches deep to satisfy the minimum grade requirement, ignoring the frost line. C) The trench
must be at least 20 inches deep. D) The trench must be exactly 12 inches deep, as exterior
supply lines are exempt from frost line calculations if insulated.
● The Answer: C (The trench must be at least 20 inches deep.)
● Distractor Analysis:
○ A is incorrect: Placing the pipe exactly on the frost line violates the requirement to
be completely below the freeze-thaw expansion zone.
○ B is incorrect: It satisfies the 12-inch minimum below grade but fails the frost line
mandate.
○ D is incorrect: Insulation does not exempt buried exterior pipes from trench depth
requirements under NCPC 305.4.
The Mentor's Analysis: Environmental physics dictate structural boundaries. When facing
exterior water service installations, the immediate priority is burying the line below the
freeze-thaw expansion zone. By utilizing the 6-inches below frost line statute, you bypass the
common trap of only satisfying the 12-inch minimum grade rule. Professional/Academic
Intuition: Exterior water supply piping must be installed at least 12 inches below grade AND at
least 6 inches below the frost line.
Q2: A crew is installing 4-inch PVC sewer piping from a residential structure to the municipal
tie-in. Based on NCPC administrative amendments, which action regarding pipe location
tracking is FIRST and MOST APPROPRIATE? A) Burying a highly visible metallic caution tape
6 inches above the pipe. B) Installing an insulated 14 AWG copper tracer wire adjacent to and
over the full length of the piping. C) Relying purely on GPS coordinates submitted to the local
inspector. D) Surrounding the pipe in a 4-inch envelope of magnetic sand.
● The Answer: B (Installing an insulated 14 AWG copper tracer wire adjacent to and over
the full length of the piping.)
● Distractor Analysis:
○ A is incorrect: Caution tape is standard practice in many utilities, but NC code
specifically mandates tracer wire for plastic sewer pipes.
○ C is incorrect: GPS mapping does not satisfy the physical tracing mandate.
○ D is incorrect: Magnetic sand is a non-standard, unapproved legacy concept.
The Mentor's Analysis: Non-metallic infrastructure disappears on standard municipal locators.
When facing underground plastic sewer routing, the immediate priority is permanent locatability.
By utilizing an insulated 14 AWG copper tracer wire, you bypass the common trap of relying on
secondary visual markers. Professional/Academic Intuition: Plastic sewer piping absolutely
, requires an insulated copper tracer wire (minimum 14 AWG) listed for direct burial.
Q3: A designer is calculating the drainage load for a single-family dwelling's master bathroom.
The design includes a 1.6 gpf private water closet. Based on Table 709.1 of the NCPC, what is
the MOST ACCURATE Drainage Fixture Unit (DFU) value assigned to this specific fixture? A) 1
DFU B) 2 DFU C) 3 DFU D) 4 DFU
● The Answer: C (3 DFU)
● Distractor Analysis:
○ A is incorrect: 1 DFU represents a lavatory, not a water closet.
○ B is incorrect: 2 DFU is standard for bathtubs and residential sinks.
○ D is incorrect: 4 DFU is assigned to public water closets or flushometer valves, not
private 1.6 gpf tanks.
The Mentor's Analysis: Fixture loads dictate the entire downstream system architecture. When
facing load calculations, the immediate priority is distinguishing between private and public use
classifications. By utilizing the 3 DFU metric for private WCs, you bypass the common trap of
over-sizing residential branch drains based on commercial values. Professional/Academic
Intuition: A private 1.6 gpf water closet is strictly calculated at 3 DFUs.
Q4: A commercial laundry facility discharges industrial waste into the public sewer. Based on
the principles of NCPC Chapter 3, which action is IMMEDIATELY required before connecting to
the municipal system? A) Installing a 6-inch backwater valve on the main building drain. B)
Obtaining determination from the code official that the waste will not damage the public sewer or
sewage treatment plant. C) Routing all waste through a 500-gallon grease interceptor. D)
Diluting the waste with a minimum of 50 gallons of potable water per minute.
● The Answer: B (Obtaining determination from the code official that the waste will not
damage the public sewer or sewage treatment plant.)
● Distractor Analysis:
○ A is incorrect: A backwater valve prevents backflow; it does not neutralize chemical
or industrial hazards.
○ C is incorrect: Grease interceptors are for culinary/fatty waste, not general industrial
manufacturing waste.
○ D is incorrect: Diluting waste with potable water is strictly prohibited as a method of
waste treatment.
The Mentor's Analysis: Municipal treatment plants utilize sensitive biological processes. When
facing industrial discharge, the immediate priority is chemical and physical verification. By
utilizing official jurisdictional review, you bypass the common trap of blindly assuming standard
interceptors solve toxic or thermal discharge issues. Professional/Academic Intuition:
Industrial waste must be mathematically and chemically verified by the authority having
jurisdiction before entering a public sewer.
Q5: An engineer is sizing a drainage system where a specialized piece of equipment discharges
at a continuous rate of 15 gallons per minute (gpm). Based on NCPC Section 709.3, which DFU
conversion is the MOST ACCURATE? A) 15 DFU B) 30 DFU C) 7.5 DFU D) 60 DFU
● The Answer: B (30 DFU)
● Distractor Analysis:
○ A is incorrect: This mistakenly assumes a 1:1 ratio between gpm and DFU.
○ C is incorrect: This reverses the ratio, cutting the load in half.
○ D is incorrect: This artificially inflates the load using an outdated commercial
multiplier.
The Mentor's Analysis: Continuous or semi-continuous flow completely alters pipe
hydrodynamics compared to intermittent fixture flushing. When facing fixed-flow discharge, the
