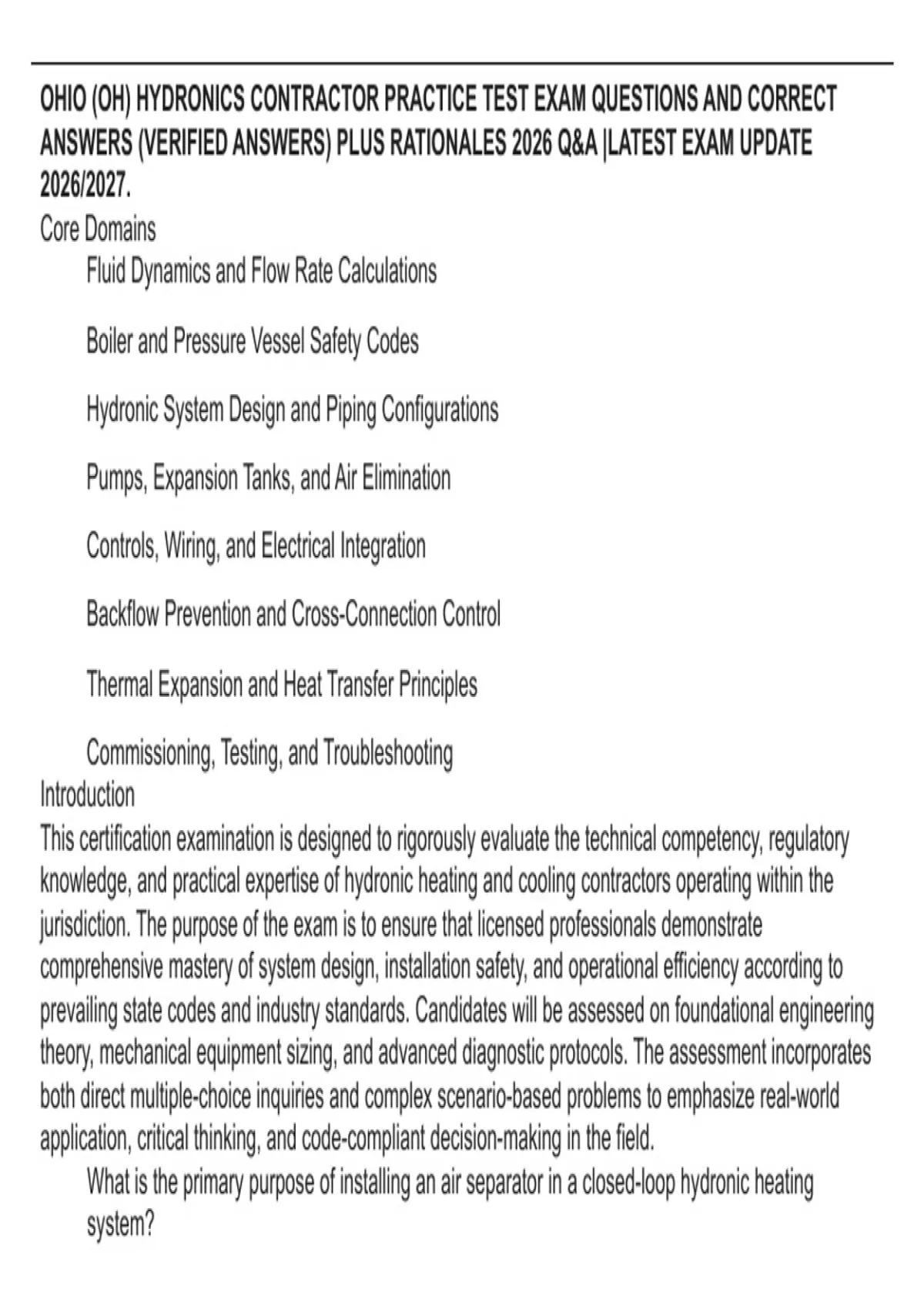

OHIO (OH) HYDRONICS CONTRACTOR PRACTICE TEST EXAM QUESTIONS AND CORRECT
ANSWERS (VERIFIED ANSWERS) PLUS RATIONALES 2026 Q&A |LATEST EXAM UPDATE
2026/2027.
Core Domains
Fluid Dynamics and Flow Rate Calculations
Boiler and Pressure Vessel Safety Codes
Hydronic System Design and Piping Configurations
Pumps, Expansion Tanks, and Air Elimination
Controls, Wiring, and Electrical Integration
Backflow Prevention and Cross-Connection Control
Thermal Expansion and Heat Transfer Principles
Commissioning, Testing, and Troubleshooting
Introduction
This certification examination is designed to rigorously evaluate the technical competency, regulatory
knowledge, and practical expertise of hydronic heating and cooling contractors operating within the
jurisdiction. The purpose of the exam is to ensure that licensed professionals demonstrate
comprehensive mastery of system design, installation safety, and operational efficiency according to
prevailing state codes and industry standards. Candidates will be assessed on foundational engineering
theory, mechanical equipment sizing, and advanced diagnostic protocols. The assessment incorporates
both direct multiple-choice inquiries and complex scenario-based problems to emphasize real-world
application, critical thinking, and code-compliant decision-making in the field.
What is the primary purpose of installing an air separator in a closed-loop hydronic heating
system?
, A. To increase overall system operating pressure
B. To continuously remove dissolved and entrained microbubbles from the circulating water
C. To chemically neutralize acidic boiler feed water
D. To regulate fluid velocity through the primary loop
🟢 B. To continuously remove dissolved and entrained microbubbles from the circulating water
🔴 RATIONALE: Air separators use mechanical design principles, such as coalescing media, to capture
and vent microbubbles from hydronic fluid, preventing noise, corrosion, and pump cavitation.
When calculating total dynamic head for a hydronic circulator pump, which component contributes
the most significant resistance in a properly designed closed loop?
A. The boiler heat exchanger pressure drop
B. The pipe friction loss through the longest equivalent circuit
C. The expansion tank pre-charge pressure
D. The automatic air vent restriction
🟢 B. The pipe friction loss through the longest equivalent circuit
🔴 RATIONALE: The longest circuit (critical path) dictates the maximum friction loss per foot of pipe
combined with fittings, which governs the primary head requirement for pump selection.
According to standard mechanical codes, where must a pressure relief valve be installed on a
residential hot water boiler?
A. On the return piping downstream of the circulator pump
B. Directly on the expansion tank shell
C. In the supply piping within the same room, without intervening valves
D. On the external flue gas vent connector
🟢 C. In the supply piping within the same room, without intervening valves
🔴 RATIONALE: Safety codes require the pressure relief valve to be connected directly to the boiler or
the heated water supply outlet without any isolation valves between the boiler and the relief device.
, Which of the following conditions is most likely to cause cavitation in a hydronic system circulator
pump?
A. Excessive system static fill pressure
B. Low fluid temperature at the pump inlet
C. Inadequate net positive suction head available relative to required levels
D. Oversized expansion tank volume
🟢 C. Inadequate net positive suction head available relative to required levels
🔴 RATIONALE: Cavitation occurs when the absolute pressure at the impeller inlet drops below the
vapor pressure of the liquid, causing vapor bubbles to form and violently collapse.
What is the typical factory pre-charge pressure for a standard diaphragm-type expansion tank used
in a residential two-story hydronic system with a 12 psi fill pressure?
A. 8 psi
B. 12 psi
C. 18 psi
D. 30 psi
🟢 B. 12 psi
🔴 RATIONALE: The expansion tank air pre-charge pressure must match the initial cold fill pressure of
the system to ensure correct fluid volume management and prevent premature diaphragm fatigue.
In a primary-secondary pumping arrangement, what is the maximum recommended distance
between the primary tees to prevent cross-flow interference?
A. 12 inches
B. No more than 4 pipe diameters apart
C. Exactly 10 feet
D. Equal to the height of the boiler riser
🟢 B. No more than 4 pipe diameters apart
🔴 RATIONALE: Placing primary tees close together (typically within 4 pipe diameters) minimizes
, pressure drop between the tees, ensuring that secondary circuit flows do not induce unintended flow in
the primary loop.
Which safety device must interrupt power to an oil-fired hydronic boiler burner if the flame fails to
ignite during a call for heat?
A. Low-water cut-off relay
B. Cadmium sulfide (cad cell) flame detector or primary control
C. Automatic water feeder solenoid
D. High-limit aquastat
🟢 B. Cadmium sulfide (cad cell) flame detector or primary control
🔴 RATIONALE: The cad cell or primary combustion control senses light inside the combustion chamber
and shuts down the oil burner if flame presence is not verified within safety timing limits.
When designing a snow-melting hydronic slab, what percentage of inhibited propylene glycol is
typically recommended to prevent freezing under extreme conditions?
A. 10 percent to 15 percent
B. 30 percent to 50 percent
C. 70 percent to 80 percent
D. 100 percent pure glycol
🟢 B. 30 percent to 50 percent
🔴 RATIONALE: A mixture of 30 to 50 percent propylene glycol provides adequate freeze protection
down to sub-zero temperatures while maintaining acceptable heat transfer and fluid viscosity
characteristics.
What is the primary function of a mixing valve in a radiant floor heating application?
A. To boost system water pressure above city main limits
B. To blend hot boiler water with cooler return water to protect the slab and floor covering
C. To act as a secondary expansion vessel
D. To purge air from manifold loops during startup
ANSWERS (VERIFIED ANSWERS) PLUS RATIONALES 2026 Q&A |LATEST EXAM UPDATE
2026/2027.
Core Domains
Fluid Dynamics and Flow Rate Calculations
Boiler and Pressure Vessel Safety Codes
Hydronic System Design and Piping Configurations
Pumps, Expansion Tanks, and Air Elimination
Controls, Wiring, and Electrical Integration
Backflow Prevention and Cross-Connection Control
Thermal Expansion and Heat Transfer Principles
Commissioning, Testing, and Troubleshooting
Introduction
This certification examination is designed to rigorously evaluate the technical competency, regulatory
knowledge, and practical expertise of hydronic heating and cooling contractors operating within the
jurisdiction. The purpose of the exam is to ensure that licensed professionals demonstrate
comprehensive mastery of system design, installation safety, and operational efficiency according to
prevailing state codes and industry standards. Candidates will be assessed on foundational engineering
theory, mechanical equipment sizing, and advanced diagnostic protocols. The assessment incorporates
both direct multiple-choice inquiries and complex scenario-based problems to emphasize real-world
application, critical thinking, and code-compliant decision-making in the field.
What is the primary purpose of installing an air separator in a closed-loop hydronic heating
system?
, A. To increase overall system operating pressure
B. To continuously remove dissolved and entrained microbubbles from the circulating water
C. To chemically neutralize acidic boiler feed water
D. To regulate fluid velocity through the primary loop
🟢 B. To continuously remove dissolved and entrained microbubbles from the circulating water
🔴 RATIONALE: Air separators use mechanical design principles, such as coalescing media, to capture
and vent microbubbles from hydronic fluid, preventing noise, corrosion, and pump cavitation.
When calculating total dynamic head for a hydronic circulator pump, which component contributes
the most significant resistance in a properly designed closed loop?
A. The boiler heat exchanger pressure drop
B. The pipe friction loss through the longest equivalent circuit
C. The expansion tank pre-charge pressure
D. The automatic air vent restriction
🟢 B. The pipe friction loss through the longest equivalent circuit
🔴 RATIONALE: The longest circuit (critical path) dictates the maximum friction loss per foot of pipe
combined with fittings, which governs the primary head requirement for pump selection.
According to standard mechanical codes, where must a pressure relief valve be installed on a
residential hot water boiler?
A. On the return piping downstream of the circulator pump
B. Directly on the expansion tank shell
C. In the supply piping within the same room, without intervening valves
D. On the external flue gas vent connector
🟢 C. In the supply piping within the same room, without intervening valves
🔴 RATIONALE: Safety codes require the pressure relief valve to be connected directly to the boiler or
the heated water supply outlet without any isolation valves between the boiler and the relief device.
, Which of the following conditions is most likely to cause cavitation in a hydronic system circulator
pump?
A. Excessive system static fill pressure
B. Low fluid temperature at the pump inlet
C. Inadequate net positive suction head available relative to required levels
D. Oversized expansion tank volume
🟢 C. Inadequate net positive suction head available relative to required levels
🔴 RATIONALE: Cavitation occurs when the absolute pressure at the impeller inlet drops below the
vapor pressure of the liquid, causing vapor bubbles to form and violently collapse.
What is the typical factory pre-charge pressure for a standard diaphragm-type expansion tank used
in a residential two-story hydronic system with a 12 psi fill pressure?
A. 8 psi
B. 12 psi
C. 18 psi
D. 30 psi
🟢 B. 12 psi
🔴 RATIONALE: The expansion tank air pre-charge pressure must match the initial cold fill pressure of
the system to ensure correct fluid volume management and prevent premature diaphragm fatigue.
In a primary-secondary pumping arrangement, what is the maximum recommended distance
between the primary tees to prevent cross-flow interference?
A. 12 inches
B. No more than 4 pipe diameters apart
C. Exactly 10 feet
D. Equal to the height of the boiler riser
🟢 B. No more than 4 pipe diameters apart
🔴 RATIONALE: Placing primary tees close together (typically within 4 pipe diameters) minimizes
, pressure drop between the tees, ensuring that secondary circuit flows do not induce unintended flow in
the primary loop.
Which safety device must interrupt power to an oil-fired hydronic boiler burner if the flame fails to
ignite during a call for heat?
A. Low-water cut-off relay
B. Cadmium sulfide (cad cell) flame detector or primary control
C. Automatic water feeder solenoid
D. High-limit aquastat
🟢 B. Cadmium sulfide (cad cell) flame detector or primary control
🔴 RATIONALE: The cad cell or primary combustion control senses light inside the combustion chamber
and shuts down the oil burner if flame presence is not verified within safety timing limits.
When designing a snow-melting hydronic slab, what percentage of inhibited propylene glycol is
typically recommended to prevent freezing under extreme conditions?
A. 10 percent to 15 percent
B. 30 percent to 50 percent
C. 70 percent to 80 percent
D. 100 percent pure glycol
🟢 B. 30 percent to 50 percent
🔴 RATIONALE: A mixture of 30 to 50 percent propylene glycol provides adequate freeze protection
down to sub-zero temperatures while maintaining acceptable heat transfer and fluid viscosity
characteristics.
What is the primary function of a mixing valve in a radiant floor heating application?
A. To boost system water pressure above city main limits
B. To blend hot boiler water with cooler return water to protect the slab and floor covering
C. To act as a secondary expansion vessel
D. To purge air from manifold loops during startup
