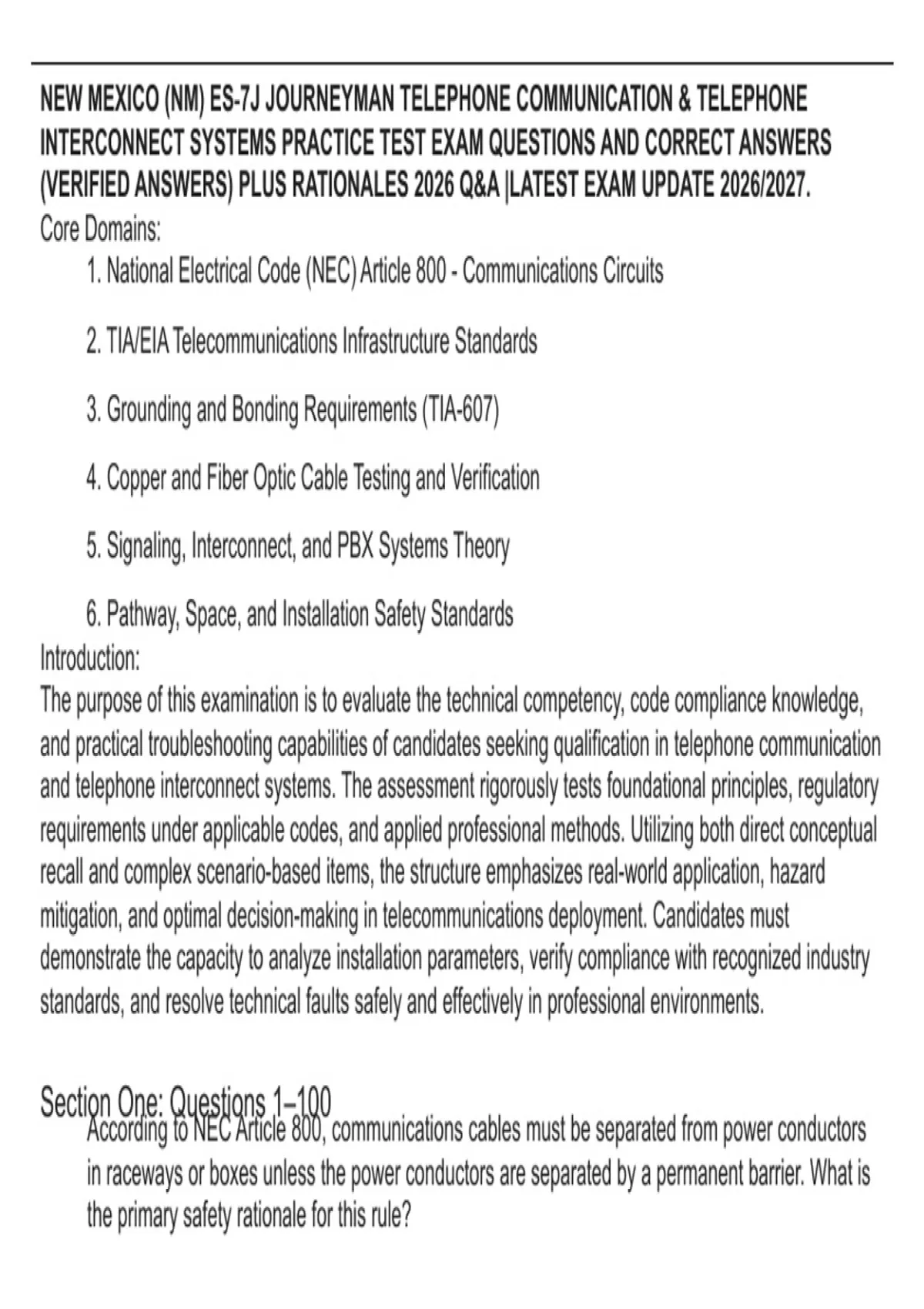

NEW MEXICO (NM) ES‑7J JOURNEYMAN TELEPHONE COMMUNICATION & TELEPHONE
INTERCONNECT SYSTEMS PRACTICE TEST EXAM QUESTIONS AND CORRECT ANSWERS
(VERIFIED ANSWERS) PLUS RATIONALES 2026 Q&A |LATEST EXAM UPDATE 2026/2027.
Core Domains:
1. National Electrical Code (NEC) Article 800 - Communications Circuits
2. TIA/EIA Telecommunications Infrastructure Standards
3. Grounding and Bonding Requirements (TIA-607)
4. Copper and Fiber Optic Cable Testing and Verification
5. Signaling, Interconnect, and PBX Systems Theory
6. Pathway, Space, and Installation Safety Standards
Introduction:
The purpose of this examination is to evaluate the technical competency, code compliance knowledge,
and practical troubleshooting capabilities of candidates seeking qualification in telephone communication
and telephone interconnect systems. The assessment rigorously tests foundational principles, regulatory
requirements under applicable codes, and applied professional methods. Utilizing both direct conceptual
recall and complex scenario-based items, the structure emphasizes real-world application, hazard
mitigation, and optimal decision-making in telecommunications deployment. Candidates must
demonstrate the capacity to analyze installation parameters, verify compliance with recognized industry
standards, and resolve technical faults safely and effectively in professional environments.
Section One: Questions 1–100
According to NEC Article 800, communications cables must be separated from power conductors
in raceways or boxes unless the power conductors are separated by a permanent barrier. What is
the primary safety rationale for this rule?
,A. To prevent excessive signal attenuation on the communications line.
B. To avoid induced voltage and hazardous electrical shock potentials from power lines.
C. To prevent crosstalk between adjacent telephone pairs.
D. To reduce capacitive coupling that distorts digital subscriber line signals.
🟢 B. To avoid induced voltage and hazardous electrical shock potentials from power lines.
🔴 RATIONALE: Physical and electrical separation prevents dangerous fault currents from light
and power circuits from energizing communications conductors, protecting personnel and terminal
equipment.
When terminating a Category 6 UTP cable using the T568B wiring standard, which color pair is
assigned to pins 7 and 8?
A. Blue and White/Blue
B. Green and White/Green
C. Brown and White/Brown
D. Orange and White/Orange
🟢 C. Brown and White/Brown
🔴 RATIONALE: Under T568B, the brown pair is assigned to pins 7 and 8, whereas pin
configurations for Orange are on 1/2 and Green are on 3/6.
Under TIA-568 standards, what is the maximum recommended horizontal cable length for
permanent links in a structured cabling system?
A. 90 meters
B. 100 meters
C. 50 meters
D. 150 meters
🟢 A. 90 meters
🔴 RATIONALE: The permanent link horizontal cable limit is 90 meters, which allows for an
,additional 10 meters of combined patch cords and equipment cords to meet the 100-meter channel
limit.
Which of the following color codes represents pair number 14 in a standard 25-pair telephone color
code binder?
A. Violet / Slate
B. Black / Brown
C. Black / Slate
D. Red / Brown
🟢 C. Black / Slate
🔴 RATIONALE: Pair 14 combines the 4th tip color (Black) with the 4th ring color of the secondary
group (Slate). Black is tip 11 through 15 when matched with Blue, Orange, Green, Brown, and
Slate rings.
What is the minimum bending radius for a 4-pair unshielded twisted pair (UTP) horizontal cable
during and after installation according to industry standards?
A. 1 inch
B. 2 times the cable diameter
C. 4 times the cable diameter
D. 10 times the cable diameter
🟢 C. 4 times the cable diameter
🔴 RATIONALE: Bending UTP cable past 4 times its outside diameter risks stretching the twisted
pairs, modifying the impedance, and degrading high-frequency performance.
A technician is installing a grounding electrode conductor for a telecommunications main grounding
busbar (TMGB). What is the minimum copper wire size typically required by TIA-607 for the
telecommunications bonding backbone (TBB)?
A. 14 AWG
, B. 10 AWG
C. 6 AWG
D. 2/0 AWG
🟢 C. 6 AWG
🔴 RATIONALE: TIA-607 specifies a minimum size of 6 AWG for the telecommunications bonding
backbone, scaling up depending on the size and requirements of the building infrastructure.
Which device is used to protect incoming telecommunications circuits from lightning strikes and
high-voltage power surges on aerial drop wires?
A. Isolation transformer
B. Gas tube or solid-state primary protector
C. Network interface module
D. Ring generator
🟢 B. Gas tube or solid-state primary protector
🔴 RATIONALE: Primary protectors meeting UL 497 must be installed on communications circuits
entering a building when exposed to accidental contact with power lines or lightning.
In traditional analog telephony, what is the standard DC loop voltage provided by the central office
battery when the telephone is on-hook (idle)?
A. -48 VDC
B. +12 VDC
C. 120 VAC
D. 5 VDC
🟢 A. -48 VDC
🔴 RATIONALE: Central office battery systems traditionally operate at nominal negative 48 volts
DC to mitigate electrolytic corrosion on underground copper cable pairs.
