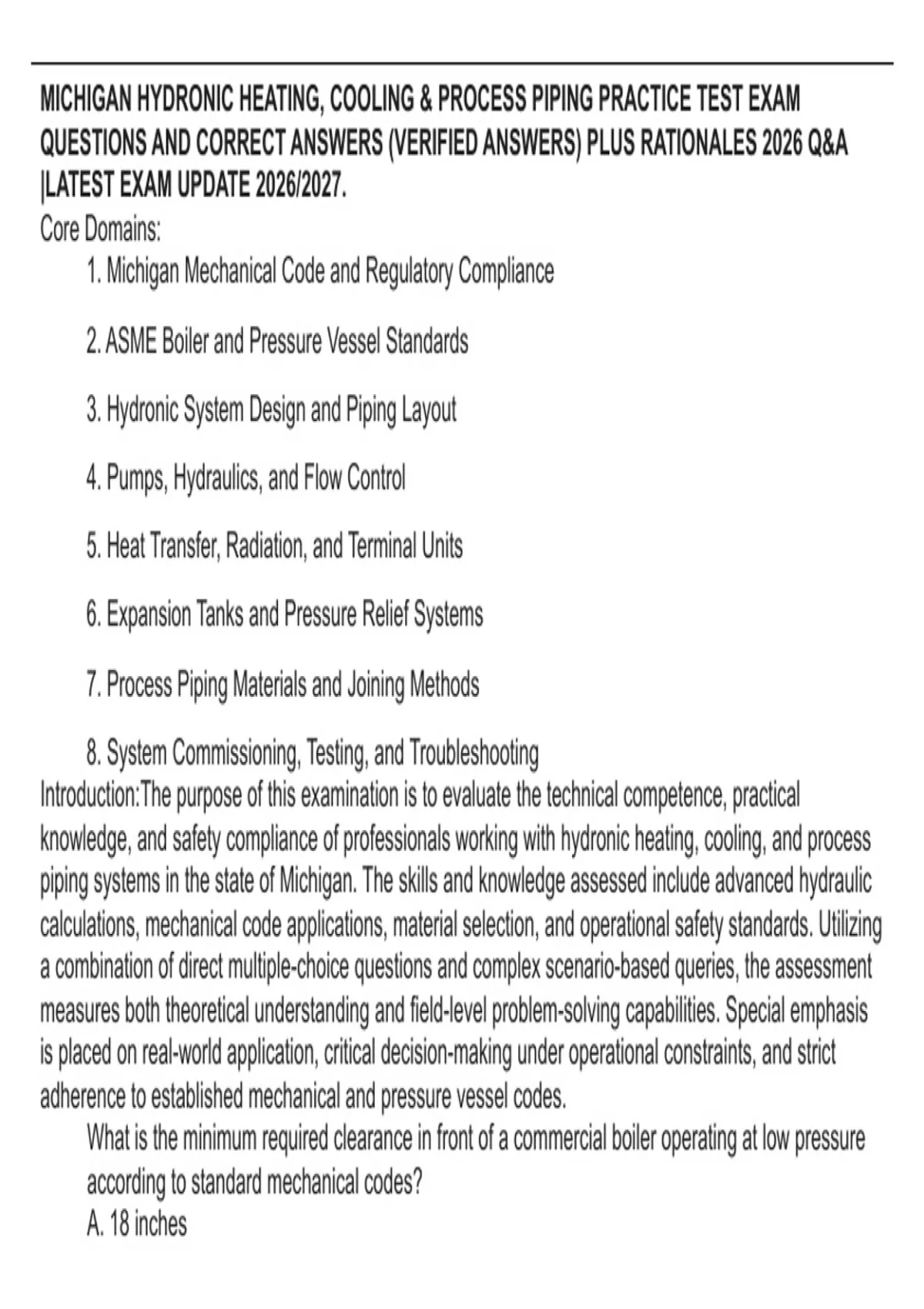

MICHIGAN HYDRONIC HEATING, COOLING & PROCESS PIPING PRACTICE TEST EXAM
QUESTIONS AND CORRECT ANSWERS (VERIFIED ANSWERS) PLUS RATIONALES 2026 Q&A
|LATEST EXAM UPDATE 2026/2027.
Core Domains:
1. Michigan Mechanical Code and Regulatory Compliance
2. ASME Boiler and Pressure Vessel Standards
3. Hydronic System Design and Piping Layout
4. Pumps, Hydraulics, and Flow Control
5. Heat Transfer, Radiation, and Terminal Units
6. Expansion Tanks and Pressure Relief Systems
7. Process Piping Materials and Joining Methods
8. System Commissioning, Testing, and Troubleshooting
Introduction:The purpose of this examination is to evaluate the technical competence, practical
knowledge, and safety compliance of professionals working with hydronic heating, cooling, and process
piping systems in the state of Michigan. The skills and knowledge assessed include advanced hydraulic
calculations, mechanical code applications, material selection, and operational safety standards. Utilizing
a combination of direct multiple-choice questions and complex scenario-based queries, the assessment
measures both theoretical understanding and field-level problem-solving capabilities. Special emphasis
is placed on real-world application, critical decision-making under operational constraints, and strict
adherence to established mechanical and pressure vessel codes.
What is the minimum required clearance in front of a commercial boiler operating at low pressure
according to standard mechanical codes?
A. 18 inches
,🟢 B. 36 inches
C. 48 inches
D. 60 inches
🔴 RATIONALE: Standard mechanical codes require a minimum of 36 inches of clear working
space in front of boiler access doors and primary controls to allow for safe operation, inspection,
and maintenance.
Which type of expansion tank is permanently pressurized with a bladder separating the system
water and the air cushion?
A. Conventional open tank
B. Compression tank without bladder
🟢 C. Diaphragm-type expansion tank
D. Gravity return tank
🔴 RATIONALE: Diaphragm or bladder-type expansion tanks feature a flexible membrane that
isolates the air charge from the water, preventing the air from dissolving into the water over time.
When sizing a circulator pump for a closed hydronic system, what primary system characteristic
must be determined alongside the design flow rate?
A. Total static height
🟢 B. Friction head loss of the piping circuit
C. Expansion volume
D. Ambient room temperature
🔴 RATIONALE: Pump head must overcome the hydraulic resistance or friction head loss through
the pipe, fittings, valves, and terminal units at the design flow rate.
According to standard installation practices, where should the air separator in a closed hydronic
heating system ideally be located?
,A. At the lowest point of the return main
🟢 B. At the point of lowest solubility, typically the highest temperature and lowest pressure point
C. Directly downstream of the expansion tank connection only
D. On the suction side of the boiler drain valve
🔴 RATIONALE: Air separators are most effective at the point of lowest solubility where water
temperature is highest and pressure is lowest, which is typically right at the boiler outlet before the
cooling effect of the system.
What is the primary purpose of installing a pressure-reducing valve (PRV) on a makeup water line
for a hydronic system?
A. To maintain a constant high operating pressure during a pump failure
🟢 B. To automatically feed water and maintain minimum static fill pressure
C. To prevent thermal shock in the boiler heat exchanger
D. To act as a secondary pressure relief device
🔴 RATIONALE: A pressure-reducing fill valve drops municipal water pressure down to the safe
static fill pressure required for the building height and system configuration.
Which piping arrangement utilizes a primary loop with multiple secondary loops connected via
closely spaced tees?
A. Series loop system
🟢 B. Primary-secondary pumping system
C. One-pipe distribution system
D. Reverse return system
🔴 RATIONALE: Primary-secondary piping decouples the hydraulic flows of the main loop and
secondary loops using closely spaced tees, preventing pressure interference between circuits.
, What is the maximum allowable working pressure for a standard low-pressure hot water heating
boiler under ASME rules?
A. 15 psi
🟢 B. 160 psi
C. 250 psi
D. 300 psi
🔴 RATIONALE: Low-pressure hot water boilers are constructed for pressures not exceeding 160
psi and temperatures not exceeding 250°F according to ASME Section IV.
In a closed chilled water system, why is glycol added to the water solution?
A. To increase heat capacity
🟢 B. To lower the freezing point and prevent freeze damage
C. To raise the boiling point above 300°F
D. To eliminate the need for an expansion tank
🔴 RATIONALE: Glycol-water mixtures are utilized when chillers or piping are exposed to ambient
conditions below freezing to prevent catastrophic pipe bursting.
Which joining method is most commonly specified for large-diameter carbon steel process piping in
industrial hydronic applications where welding is not permitted in confined spaces?
A. Push-fit fittings
🟢 B. Flanged joints
C. Compression fittings
D. Threaded brass unions
🔴 RATIONALE: Flanged connections allow for secure, high-pressure mechanical joining of large-
diameter carbon steel pipe without open-flame or hot-work requirements.
