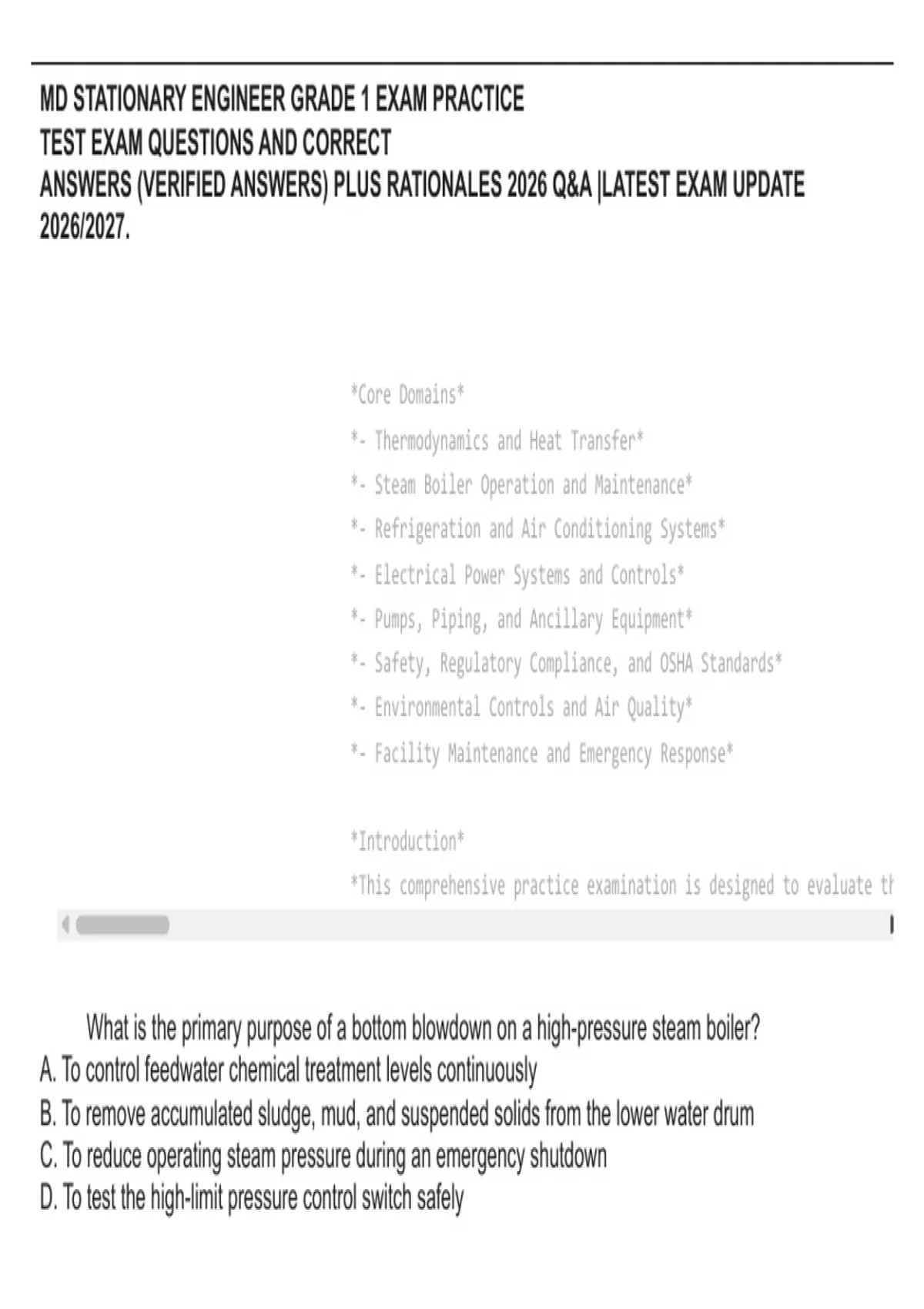

MD STATIONARY ENGINEER GRADE 1 EXAM PRACTICE
TEST EXAM QUESTIONS AND CORRECT
ANSWERS (VERIFIED ANSWERS) PLUS RATIONALES 2026 Q&A |LATEST EXAM UPDATE
2026/2027.
*Core Domains*
*- Thermodynamics and Heat Transfer*
*- Steam Boiler Operation and Maintenance*
*- Refrigeration and Air Conditioning Systems*
*- Electrical Power Systems and Controls*
*- Pumps, Piping, and Ancillary Equipment*
*- Safety, Regulatory Compliance, and OSHA Standards*
*- Environmental Controls and Air Quality*
*- Facility Maintenance and Emergency Response*
*Introduction*
*This comprehensive practice examination is designed to evaluate th
What is the primary purpose of a bottom blowdown on a high-pressure steam boiler?
A. To control feedwater chemical treatment levels continuously
B. To remove accumulated sludge, mud, and suspended solids from the lower water drum
C. To reduce operating steam pressure during an emergency shutdown
D. To test the high-limit pressure control switch safely
,🟢 B. To remove accumulated sludge, mud, and suspended solids from the lower water drum
🔴 RATIONALE: Bottom blowdowns are specifically designed to discharge heavy suspended solids,
sludge, and precipitated minerals that settle at the lowest point of the boiler shell or mud drum, preventing
scale buildup and tube damage.
A centrifugal pump is experiencing cavitation. Which of the following conditions is the most direct
cause?
A. Discharge valve is fully closed against a dead head
B. Fluid vapor pressure is higher than the suction pressure at the eye of the impeller
C. Motor rotation is reversed, spinning the impeller backward
D. Fluid viscosity is excessively high compared to the design specification
🟢 B. Fluid vapor pressure is higher than the suction pressure at the eye of the impeller
🔴 RATIONALE: Cavitation occurs when the local pressure at the suction eye drops below the vapor
pressure of the pumped liquid, causing vapor bubbles to form and violently collapse when reaching higher
pressure regions.
Under OSHA standards, what is the minimum required clearance space in front of electrical
equipment operating at 600 volts or less with exposed live parts?
A. 2.0 feet
B. 3.0 feet
C. 3.5 feet
D. 4.0 feet
🟢 B. 3.0 feet
🔴 RATIONALE: NFPA 70 and OSHA regulations mandate a minimum clear working distance of 3.0 feet
for dedicated equipment clearance in front of electrical panels operating up to 600V to ensure technician
safety during maintenance.
Which thermodynamic law states that entropy of an isolated system always increases over time?
A. Zeroth Law of Thermodynamics
B. First Law of Thermodynamics
,C. Second Law of Thermodynamics
D. Third Law of Thermodynamics
🟢 C. Second Law of Thermodynamics
🔴 RATIONALE: The second law establishes the concept of entropy, asserting that natural processes are
irreversible and isolated systems spontaneously evolve toward thermal equilibrium and maximum entropy.
When conducting a standard water column blowdown on an operating steam boiler, what is the
primary operational check being performed?
A. Testing the low-water cutoff electrical circuit continuity
B. Verifying that the gauge glass connections and water column piping are completely clear of sludge
C. Calibrating the electronic pressure transmitter zero point
D. Flushing the chemical feed injector line to prevent clogging
🟢 B. Verifying that the gauge glass connections and water column piping are completely clear of sludge
🔴 RATIONALE: Blowing down the water column ensures that the connecting piping remains free of
sediment, confirming that the water level visible in the gauge glass is an accurate representation of the
actual water level inside the boiler.
Which type of fire extinguisher is appropriate for a Class C electrical energized fire?
A. Water-based stored pressure extinguisher
B. Foam concentrate extinguisher
C. Carbon dioxide (CO2) extinguisher
D. Wet chemical kitchen-rated extinguisher
🟢 C. Carbon dioxide (CO2) extinguisher
🔴 RATIONALE: Carbon dioxide and dry chemical extinguishers are non-conductive and safe for use on
energized electrical equipment (Class C fires), whereas water and foam conduct electricity and present
shock hazards.
In a vapor-compression refrigeration cycle, where does the refrigerant undergo superheating?
A. Inside the condenser tubes as vapor condenses into liquid
B. As it passes through the expansion valve into the low-pressure evaporator
, C. Inside the evaporator coils and the suction line prior to entering the compressor
D. Directly at the compressor discharge port during high-load compression
🟢 C. Inside the evaporator coils and the suction line prior to entering the compressor
🔴 RATIONALE: Superheating occurs when the refrigerant vapor absorbs additional heat beyond its
saturation temperature, typically happening near the end of the evaporator and within the suction line to
protect the compressor from liquid slugging.
What is the primary function of an economizer installed in a large industrial boiler?
A. To preheat incoming combustion air using flue gas heat
B. To preheat boiler feedwater utilizing waste heat from exhaust flue gases
C. To condense water vapor in the flue gas to recover latent heat
D. To regulate superheater steam temperature under variable loads
🟢 B. To preheat boiler feedwater utilizing waste heat from exhaust flue gases
🔴 RATIONALE: An economizer extracts waste thermal energy from exiting flue gases to heat the
feedwater before it enters the boiler drum, thereby improving overall thermal efficiency and reducing fuel
consumption.
An induction motor is drawing excessive current and running hot. Testing reveals that one of the
three phase lines has been lost. What is this condition called?
A. Phase balancing
B. Single-phasing
C. Ground faulting
D. Harmonic distortion
🟢 B. Single-phasing
🔴 RATIONALE: Single-phasing occurs when a three-phase motor loses one supply phase, forcing the
remaining two phases to carry a higher load to maintain torque, which leads to overheating and motor
burnout if thermal protection fails.
Which water parameter is primarily controlled to prevent caustic embrittlement in high-pressure
steam boilers?
