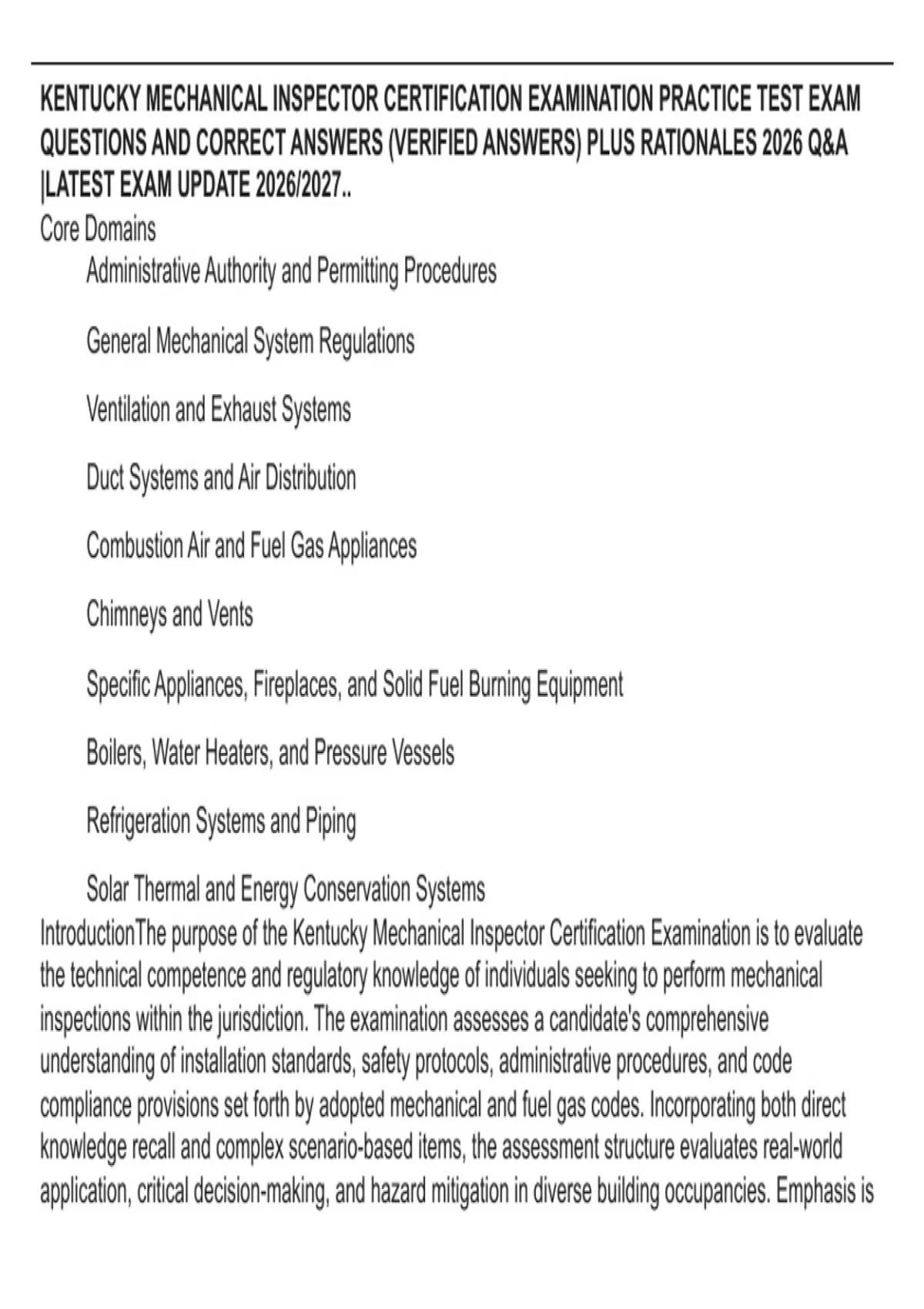

KENTUCKY MECHANICAL INSPECTOR CERTIFICATION EXAMINATION PRACTICE TEST EXAM
QUESTIONS AND CORRECT ANSWERS (VERIFIED ANSWERS) PLUS RATIONALES 2026 Q&A
|LATEST EXAM UPDATE 2026/2027..
Core Domains
Administrative Authority and Permitting Procedures
General Mechanical System Regulations
Ventilation and Exhaust Systems
Duct Systems and Air Distribution
Combustion Air and Fuel Gas Appliances
Chimneys and Vents
Specific Appliances, Fireplaces, and Solid Fuel Burning Equipment
Boilers, Water Heaters, and Pressure Vessels
Refrigeration Systems and Piping
Solar Thermal and Energy Conservation Systems
IntroductionThe purpose of the Kentucky Mechanical Inspector Certification Examination is to evaluate
the technical competence and regulatory knowledge of individuals seeking to perform mechanical
inspections within the jurisdiction. The examination assesses a candidate's comprehensive
understanding of installation standards, safety protocols, administrative procedures, and code
compliance provisions set forth by adopted mechanical and fuel gas codes. Incorporating both direct
knowledge recall and complex scenario-based items, the assessment structure evaluates real-world
application, critical decision-making, and hazard mitigation in diverse building occupancies. Emphasis is
,placed on the inspector's ability to interpret code intent, enforce minimum safety requirements, and
properly validate mechanical system integrity.
What is the minimum required thickness for galvanized steel sheets used in underground warm-air
heating ducts classified as Class 1 when the duct diameter exceeds 12 inches?
A. 0.019 inch
🟢 B. 0.022 inch
C. 0.028 inch
D. 0.034 inch
🔴 RATIONALE: According to the International Mechanical Code table for underground duct
construction, galvanized steel ducts exceeding 12 inches in diameter require a minimum sheet
metal thickness of 0.022 inch to withstand soil loads and prevent corrosion-induced collapse.
When an indirect waste pipe is connected to a potable water supply system, which of the following
protective devices is strictly required to prevent backflow?
A. Dual check valve
B. Atmospheric vacuum breaker
🟢 C. Reduced pressure principle backflow preventer
D. Standard swing check valve
🔴 RATIONALE: Connections between potable water and indirect waste or equipment prone to
contamination require high-hazard protection, specifically a reduced pressure principle backflow
preventer or an approved air gap.
In a commercial kitchen exhaust application, what is the minimum horizontal clearance required
between a grease duct termination and an exterior operable window or door?
A. 3 feet
B. 5 feet
🟢 C. 10 feet
, D. 15 feet
🔴 RATIONALE: Exhaust outlets from commercial grease ducts must terminate at least 10 feet
horizontally from openings into the building, public walkways, or neighboring property lines to
prevent smoke and grease vapor re-entry.
A mechanical ventilation system serving a public assembly occupancy must be designed to supply
outdoor air at a rate not less than how many cubic feet per minute (CFM) per person under
standard occupancy assumptions?
A. 5 CFM
B. 10 CFM
🟢 C. 15 CFM
D. 25 CFM
🔴 RATIONALE: Standard ventilation rate tables for places of public assembly in the mechanical
code require a minimum outdoor airflow rate of 15 CFM per occupant to maintain acceptable
indoor air quality.
What is the maximum allowable design working pressure for a residential fuel gas piping system
utilizing corrugated stainless steel tubing (CSST) without special high-pressure secondary listings?
A. 2 psi
🟢 B. 5 psi
C. 10 psi
D. 25 psi
🔴 RATIONALE: Standard residential CSST systems are typically listed and installed for operating
pressures up to 5 psi, whereas higher pressures necessitate specific industrial or commercial
classifications and additional regulatory approvals.
Which class of refrigerant is defined by safety standards as having higher flammability
characteristics, such as propane (R-290)?
