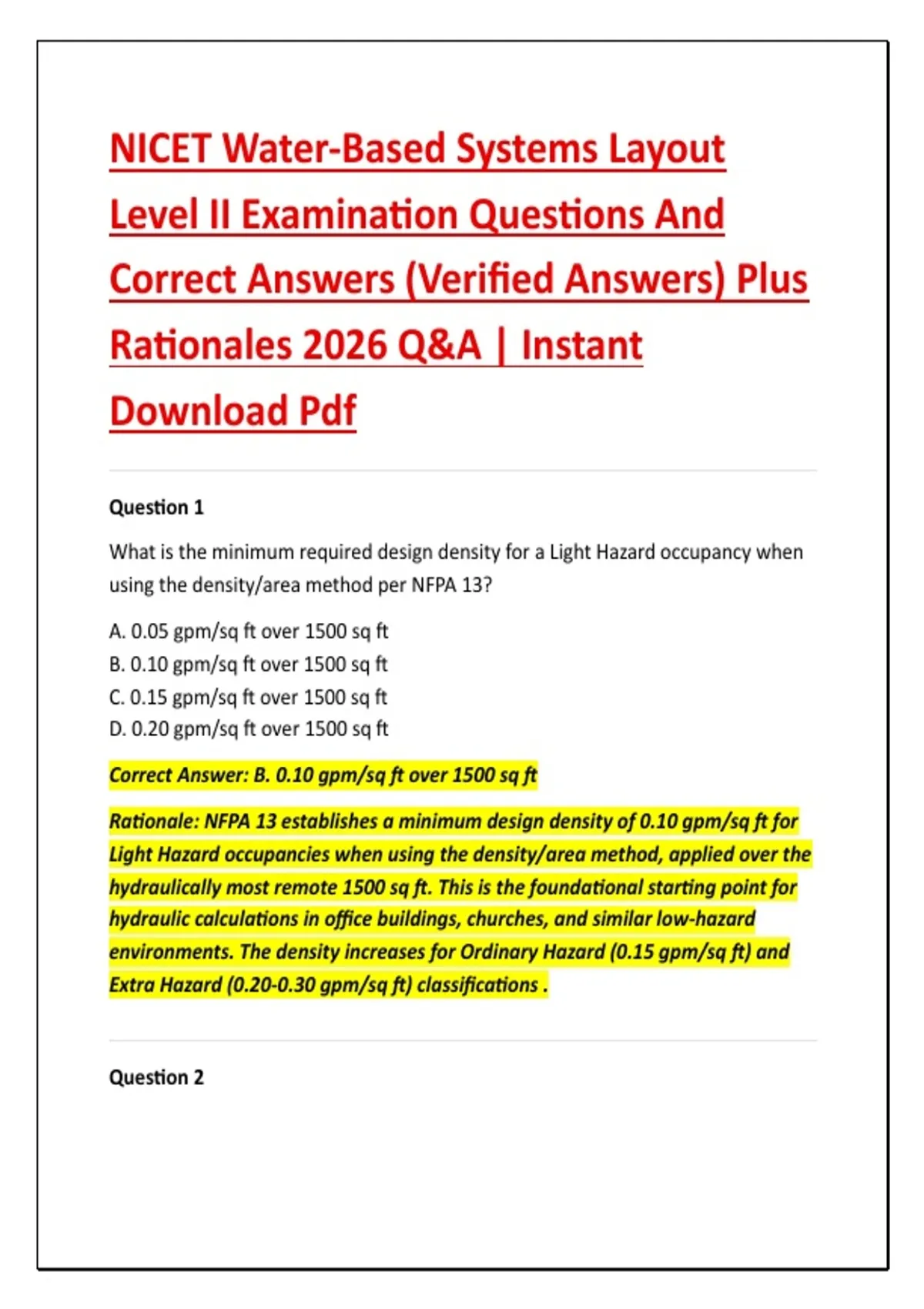

NICET Water-Based Systems Layout
Level II Examination Questions And
Correct Answers (Verified Answers) Plus
Rationales 2026 Q&A | Instant
Download Pdf
Question 1
What is the minimum required design density for a Light Hazard occupancy when
using the density/area method per NFPA 13?
A. 0.05 gpm/sq ft over 1500 sq ft
B. 0.10 gpm/sq ft over 1500 sq ft
C. 0.15 gpm/sq ft over 1500 sq ft
D. 0.20 gpm/sq ft over 1500 sq ft
Correct Answer: B. 0.10 gpm/sq ft over 1500 sq ft
Rationale: NFPA 13 establishes a minimum design density of 0.10 gpm/sq ft for
Light Hazard occupancies when using the density/area method, applied over the
hydraulically most remote 1500 sq ft. This is the foundational starting point for
hydraulic calculations in office buildings, churches, and similar low-hazard
environments. The density increases for Ordinary Hazard (0.15 gpm/sq ft) and
Extra Hazard (0.20-0.30 gpm/sq ft) classifications .
Question 2
,A technician is laying out a sprinkler system for an office building with primarily
non-combustible contents and low fuel load. What is the correct hazard
classification?
A. Ordinary Hazard Group 1
B. Light Hazard
C. Ordinary Hazard Group 2
D. Extra Hazard Group 1
Correct Answer: B. Light Hazard
Rationale: Light Hazard occupancies include offices, churches, schools, and
similar buildings where the quantity and combustibility of contents are low. This
classification is defined in NFPA 13 Section 5.2 and directly impacts the required
design density, sprinkler spacing, and system layout. Ordinary Hazard
occupancies involve moderate fuel loads such as manufacturing facilities, while
Extra Hazard involves high fuel loads or flammable materials .
Question 3
Which system configuration features branch lines that extend from a single cross
main with dead ends, providing only one flow path to each sprinkler?
A. Looped system
B. Gridded system
C. Tree system
D. Ring main system
Correct Answer: C. Tree system
Rationale: A tree system is the most basic sprinkler configuration, where branch
lines extend from a central cross main in a branching pattern resembling a tree.
This system has dead-end branch lines and provides a single flow path to each
sprinkler. While simpler and less expensive to install, tree systems typically
require larger pipe sizes and higher pressures than looped or gridded systems
,due to higher friction losses. Gridded and looped systems provide multiple flow
paths, reducing friction loss and improving hydraulic performance .
Question 4
Which type of sprinkler system is generally NOT appropriate for an unheated
warehouse in a cold climate subject to freezing temperatures?
A. Dry-pipe system
B. Wet-pipe system
C. Pre-action system
D. Deluge system
Correct Answer: B. Wet-pipe system
Rationale: Wet-pipe systems contain water in the piping at all times and will
freeze in unheated environments, causing pipe bursts and system failure. Dry-
pipe, pre-action, or deluge systems should be used in areas subject to freezing.
Dry-pipe systems maintain pressurized air or nitrogen in the piping, holding
water back at the dry valve. Pre-action systems are similar but require a
separate detection system to admit water. For unheated warehouses, a dry-pipe
system is the standard solution to prevent freeze damage .
Question 5
When performing preliminary hydraulic calculations, a Level II technician must
identify the most demanding area of operation. Where is this "hydraulically
remote area" typically located?
A. Adjacent to the riser
B. Farthest from the water supply
C. At the highest elevation only
D. Closest to the fire pump
Correct Answer: B. Farthest from the water supply
, Rationale: The hydraulically remote area is the area farthest from the water
supply that requires the greatest pressure to overcome friction loss and
elevation changes. This is typically the most distant area from the water source
and often at the highest elevation in the building. The remote area may not
always be the absolute farthest point if other factors such as elevation or
unusually high sprinkler demand create greater pressure requirements. Level II
technicians must be able to identify this area to begin hydraulic calculations
properly .
Question 6
What is the minimum spacing requirement between a standard spray sprinkler
and a wall per NFPA 13?
A. 2 inches
B. 4 inches
C. 6 inches
D. 12 inches
Correct Answer: B. 4 inches
Rationale: NFPA 13 requires a minimum distance of 4 inches between a standard
spray sprinkler and any wall. This requirement ensures the sprinkler's spray
pattern can properly develop and reach the wall area, preventing "shadowing"
effects that would leave wall surfaces unprotected. The maximum distance from
a wall is typically half the allowable sprinkler spacing, or 7.5 feet for Light
Hazard and 5 feet for Ordinary Hazard. These spacing rules are fundamental to
proper sprinkler layout and are a key responsibility of Level II technicians .
Question 7
A Level II technician is field-verifying an existing system and identifies a branch
line supporting three sprinklers in an Ordinary Hazard occupancy. The line is 1 inch
in diameter. Based on pipe schedule rules, is this acceptable?
