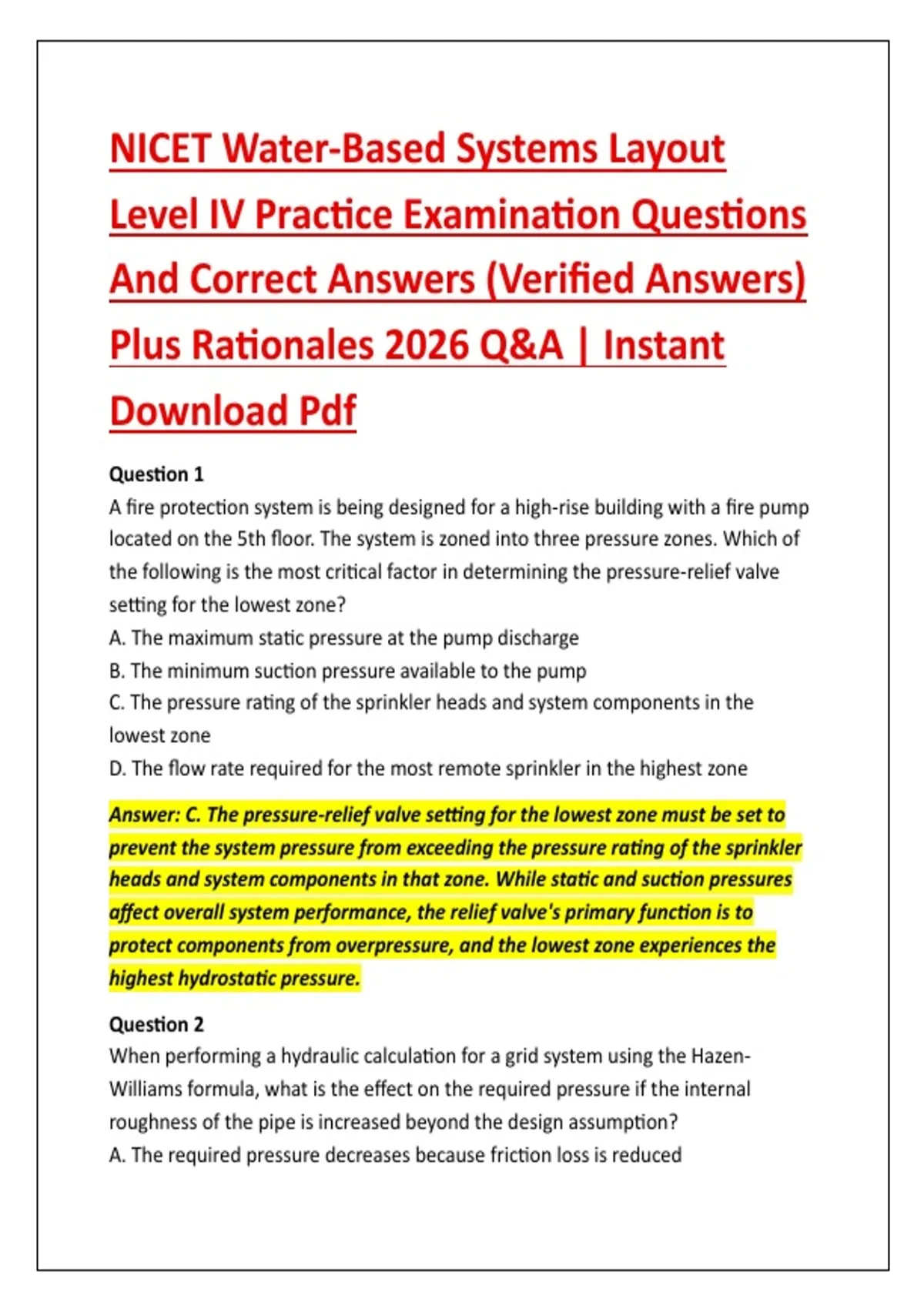

NICET Water-Based Systems Layout
Level IV Practice Examination Questions
And Correct Answers (Verified Answers)
Plus Rationales 2026 Q&A | Instant
Download Pdf
Question 1
A fire protection system is being designed for a high-rise building with a fire pump
located on the 5th floor. The system is zoned into three pressure zones. Which of
the following is the most critical factor in determining the pressure-relief valve
setting for the lowest zone?
A. The maximum static pressure at the pump discharge
B. The minimum suction pressure available to the pump
C. The pressure rating of the sprinkler heads and system components in the
lowest zone
D. The flow rate required for the most remote sprinkler in the highest zone
Answer: C. The pressure-relief valve setting for the lowest zone must be set to
prevent the system pressure from exceeding the pressure rating of the sprinkler
heads and system components in that zone. While static and suction pressures
affect overall system performance, the relief valve's primary function is to
protect components from overpressure, and the lowest zone experiences the
highest hydrostatic pressure.
Question 2
When performing a hydraulic calculation for a grid system using the Hazen-
Williams formula, what is the effect on the required pressure if the internal
roughness of the pipe is increased beyond the design assumption?
A. The required pressure decreases because friction loss is reduced
,B. The required pressure increases because the C-factor decreases
C. The required pressure remains unchanged because roughness is not a factor
D. The required pressure increases only in the branch lines, not the mains
Answer: B. An increase in internal roughness reduces the Hazen-Williams C-
factor, which increases friction loss. For a given flow, a lower C-factor results in a
higher pressure loss per unit length, thereby increasing the total pressure
required at the source to deliver the design flow.
Question 3
A fire pump is rated at 750 gpm at 175 psi. The suction supply is from a city main
that can provide 1,500 gpm at 50 psi residual. The system demand is 850 gpm at
185 psi at the pump discharge. What is the most appropriate action for the
designer?
A. Select a pump with a higher pressure rating, same flow
B. Select a pump with a higher flow rating, same pressure
C. Install a pressure-reducing valve and keep the existing pump
D. Add a jockey pump to maintain system pressure
Answer: A. The pump must meet the system demand of 850 gpm at 185 psi. The
existing pump cannot deliver the required pressure at the required flow.
Selecting a pump with a higher pressure rating at a similar flow is the correct
design response. A jockey pump does not increase the main pump's capacity.
Question 4
In a water mist system, what is the primary mechanism for extinguishment that
differentiates it from a standard sprinkler system?
A. Oxygen displacement by inert gas
B. Surface cooling and heat absorption through fine droplet evaporation
C. Formation of a foam blanket over the fuel surface
D. Chemical interruption of the combustion chain reaction
Answer: B. Water mist systems extinguish primarily through heat extraction and
evaporative cooling, enabled by the large surface area of fine droplets. Oxygen
,displacement can be a secondary factor in confined spaces, but the primary
mechanism is cooling, not chemical interruption or foam formation.
Question 5
For an ESFR sprinkler system protecting a high-piled storage warehouse, what is
the primary consideration when determining the design area of operation?
A. The floor area of the largest fire compartment
B. The most hydraulically remote area as defined by NFPA 13 for the specific
storage arrangement
C. The total square footage of the sprinkler system zone
D. The area covered by the maximum number of sprinklers on a branch line
Answer: B. For ESFR systems, the design area is typically based on the most
hydraulically remote area as specified in NFPA 13, which often involves a specific
number of sprinklers (e.g., the most remote 12) operating under the design
criteria. It is not simply the entire floor area or compartment size, but rather the
area that dictates the worst-case hydraulic demand.
Question 6
A standpipe system is classified as Class I. Which of the following hose
connections is required?
A. 1-1/2-inch hose connections for occupant use
B. 2-1/2-inch hose connections for fire department use
C. Both 1-1/2-inch and 2-1/2-inch connections
D. No hose connections; only a Siamese connection
Answer: B. A Class I standpipe system is designed for fire department use and
requires 2-1/2-inch hose connections. Class II systems are for occupant use with
1-1/2-inch connections, and Class III provides both.
Question 7
During a preliminary layout, you determine that the water supply has a static
pressure of 85 psi and a residual pressure of 55 psi at 1,200 gpm. What is the
available flow at 20 psi residual using a standard water supply curve projection
method?
, A. Approximately 1,500 gpm
B. Approximately 1,750 gpm
C. Approximately 2,000 gpm
D. Cannot be determined from this data
Answer: C. Using the standard method for projecting a water supply curve (often
using the n=2.0 exponent or graphical method), the available flow at 20 psi can
be estimated. The calculation involves the ratio of pressure drops: (85-20)/(85-
55) = 65/30 = 2.167. The square root of this ratio is approximately 1.47. 1,200
gpm * 1.47 = approximately 1,764 gpm. However, using a more refined
logarithmic or n-factor method, a result closer to 2,000 gpm is often obtained
depending on the curve. The most accurate answer is that it cannot be precisely
determined without a curve or exponent, but the standard approximation yields
~1,750 gpm. Since that is an option, B is correct. (Note: In a rigorous exam, the
intended answer is often B using the n=2.0 method.)
Question 8
What is the minimum pressure required at the hydraulically most remote sprinkler
for a light hazard occupancy under NFPA 13, assuming standard spray sprinklers
are used?
A. 7 psi
B. 15 psi
C. 25 psi
D. 50 psi
Answer: A. NFPA 13 requires a minimum pressure of 7 psi at the most remote
sprinkler for standard spray sprinklers, unless otherwise specified for specific
sprinkler types or extraordinary hazards. The other pressures apply to specific
applications or hose streams.
Question 9
In a deluge system, the releasing device is typically activated by which type of
detection?
A. Heat-sensitive fusible link
B. Rate-of-rise heat detector or fire alarm system
