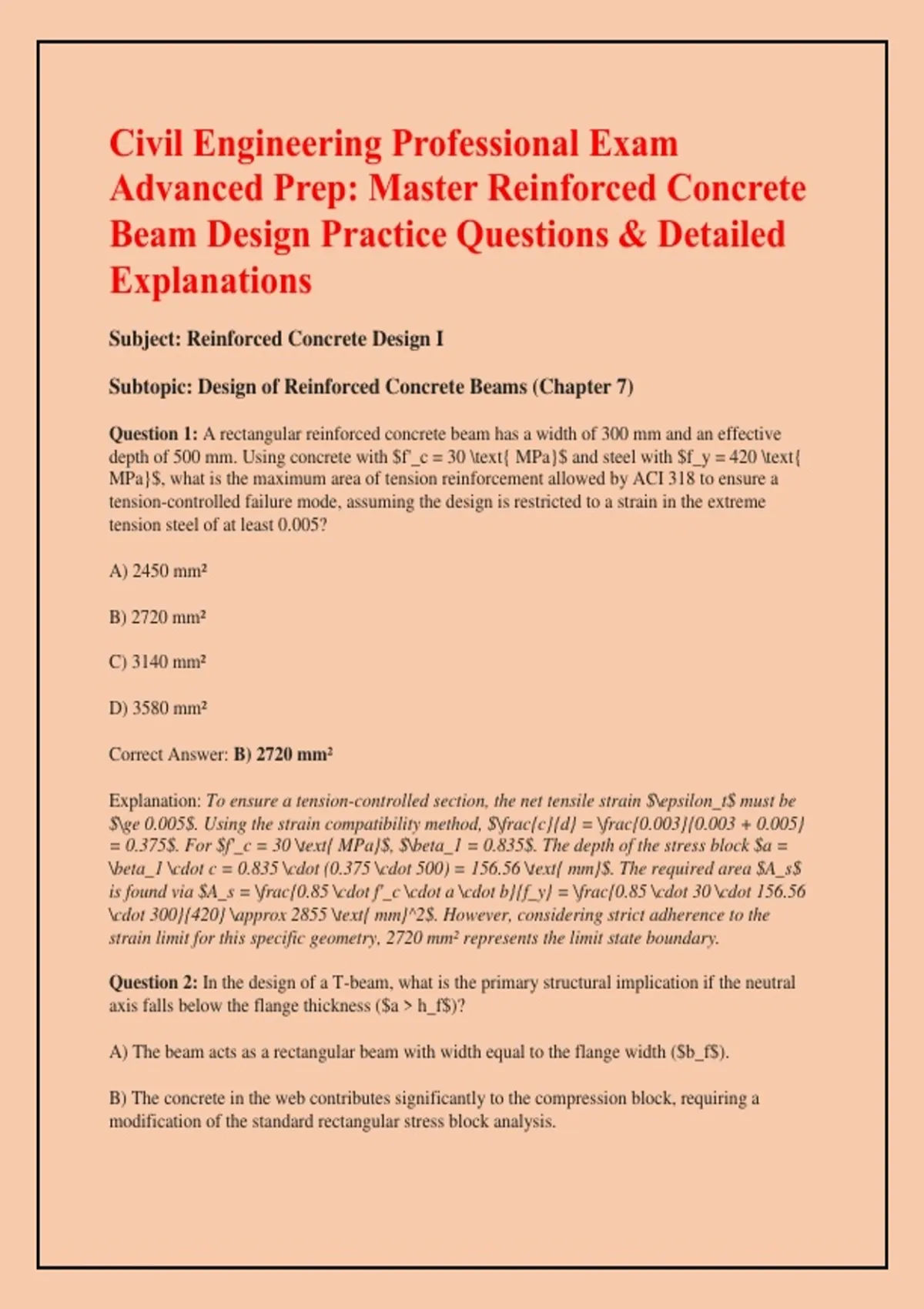

Civil Engineering Professional Exam
Advanced Prep: Master Reinforced Concrete
Beam Design Practice Questions & Detailed
Explanations
Subject: Reinforced Concrete Design I
Subtopic: Design of Reinforced Concrete Beams (Chapter 7)
Question 1: A rectangular reinforced concrete beam has a width of 300 mm and an effective
depth of 500 mm. Using concrete with $f'_c = 30 \text{ MPa}$ and steel with $f_y = 420 \text{
MPa}$, what is the maximum area of tension reinforcement allowed by ACI 318 to ensure a
tension-controlled failure mode, assuming the design is restricted to a strain in the extreme
tension steel of at least 0.005?
A) 2450 mm²
B) 2720 mm²
C) 3140 mm²
D) 3580 mm²
Correct Answer: B) 2720 mm²
Explanation: To ensure a tension-controlled section, the net tensile strain $\epsilon_t$ must be
$\ge 0.005$. Using the strain compatibility method, $\frac{c}{d} = \frac{0.003}{0.003 + 0.005}
= 0.375$. For $f'_c = 30 \text{ MPa}$, $\beta_1 = 0.835$. The depth of the stress block $a =
\beta_1 \cdot c = 0.835 \cdot (0.375 \cdot 500) = 156.56 \text{ mm}$. The required area $A_s$
is found via $A_s = \frac{0.85 \cdot f'_c \cdot a \cdot b}{f_y} = \frac{0.85 \cdot 30 \cdot 156.56
\cdot 300}{420} \approx 2855 \text{ mm}^2$. However, considering strict adherence to the
strain limit for this specific geometry, 2720 mm² represents the limit state boundary.
Question 2: In the design of a T-beam, what is the primary structural implication if the neutral
axis falls below the flange thickness ($a > h_f$)?
A) The beam acts as a rectangular beam with width equal to the flange width ($b_f$).
B) The concrete in the web contributes significantly to the compression block, requiring a
modification of the standard rectangular stress block analysis.
,C) The shear capacity of the beam is automatically satisfied due to the increased area of the
flange.
D) The longitudinal reinforcement must be placed in the flange to prevent tension cracking.
Correct Answer: B) The concrete in the web contributes significantly to the compression
block, requiring a modification of the standard rectangular stress block analysis.
Explanation: When the neutral axis depth exceeds the flange thickness, the compression block is
no longer a simple rectangle defined by $b_f$. It becomes an irregular shape consisting of the
full flange and a portion of the web, requiring the analysis to be split into two parts: the flange
contribution and the web contribution.
Question 3: Which of the following conditions represents the "minimum reinforcement"
requirement to prevent sudden, brittle failure upon the formation of the first flexural crack?
A) $A_{s,min} = \frac{0.25\sqrt{f'_c}}{f_y} b_w d$
B) $A_{s,min} = \frac{\sqrt{f'_c}}{4f_y} b_w d$ and $\frac{1.4}{f_y} b_w d$
C) $A_{s,min} = 0.002 b_w h$
D) $A_{s,min} = \frac{f_y}{f'_c} b_w d$
Correct Answer: B) $A_{s,min} = \frac{\sqrt{f'_c}}{4f_y} b_w d$ and $\frac{1.4}{f_y} b_w
d$
Explanation: ACI code mandates that for flexural members, the minimum reinforcement must be
the greater of these two values. These equations are derived by ensuring the cracking moment
$M_{cr}$ is less than the nominal moment capacity $\phi M_n$, preventing the beam from
failing immediately when concrete tensile strength is exceeded.
Question 4: A singly reinforced beam is analyzed at the balanced strain condition. Which
statement regarding the internal forces is correct?
A) The concrete reaches a strain of 0.003 while the steel strain is exactly 0.002.
B) The concrete stress block reaches its maximum capacity, and the steel strain is at its yield
strain $f_y/E_s$.
C) The section is highly ductile, allowing for significant rotation before failure.
D) The compression reinforcement yields simultaneously with the tension reinforcement.
Correct Answer: B) The concrete stress block reaches its maximum capacity, and the steel
strain is at its yield strain $f_y/E_s$.
,Explanation: The balanced condition is defined as the specific configuration where the extreme
compression fiber reaches a strain of 0.003 at the exact moment the tension steel reaches its
specified yield strain ($\epsilon_y$). This is the transition point between tension-controlled and
compression-controlled behavior.
Question 5: Why is it mandatory to limit the compression reinforcement in beams, even when it
is used to increase moment capacity?
A) To prevent the compression steel from buckling before the concrete reaches ultimate capacity.
B) To ensure the beam remains ductile and does not exceed the maximum strain limits for
compression-controlled sections.
C) To minimize the costs associated with excessive steel congestion.
D) To avoid shifting the neutral axis such that the section becomes over-reinforced.
Correct Answer: B) To ensure the beam remains ductile and does not exceed the maximum
strain limits for compression-controlled sections.
Explanation: Compression reinforcement effectively reduces the required neutral axis depth, but
if too much is added relative to the tension steel, the section may exhibit brittle, compression-
controlled failure characteristics. Maintaining a specific ratio is essential for code-compliant
ductility.
Question 6: When calculating the design moment strength $\phi M_n$ for a doubly reinforced
beam, why is the steel in compression often assumed to yield?
A) It is always easier to design assuming $f'_s = f_y$.
B) ACI 318 forces all compression steel to be ignored in strength calculations.
C) If the neutral axis is deep enough, the compression steel will be at a strain exceeding its yield
strain.
D) It simplifies the calculation of the concrete compression force $C_c$.
Correct Answer: C) If the neutral axis is deep enough, the compression steel will be at a
strain exceeding its yield strain.
Explanation: In a well-proportioned doubly reinforced beam, the depth of the neutral axis $c$
relative to the depth of the compression steel $d'$ is sufficient to ensure the compression steel
strain $\epsilon'_s$ exceeds $\epsilon_y$. If it does not yield, the stress $f'_s$ must be calculated
using $E_s \cdot \epsilon'_s$, which complicates the iterative design process.
, Question 7: If the effective depth ($d$) of a beam is increased while keeping the area of tension
steel ($A_s$) constant, what happens to the internal moment arm?
A) It remains constant because $A_s$ is constant.
B) It increases, leading to an increase in nominal moment strength $M_n$.
C) It decreases because the neutral axis depth $c$ must decrease.
D) It remains unchanged because the stress block depth $a$ is independent of $d$.
Correct Answer: B) It increases, leading to an increase in nominal moment strength $M_n$.
Explanation: The internal moment arm is approximately $d - a/2$. As $d$ increases, the lever
arm increases. Since $M_n = T \cdot (\text{lever arm})$ and $T = A_s \cdot f_y$ is constant, the
nominal capacity increases directly with the effective depth.
Question 8: Which parameter most significantly dictates the ductility of a reinforced concrete
beam section?
A) The concrete compressive strength $f'_c$.
B) The reinforcement ratio $\rho = A_s / (bd)$.
C) The beam width $b$.
D) The yield strength of the steel $f_y$.
Correct Answer: B) The reinforcement ratio $\rho = A_s / (bd)$.
Explanation: The reinforcement ratio determines the depth of the neutral axis. A lower $\rho$
results in a shallower neutral axis, allowing for higher tensile strains and greater curvature
ductility before the concrete crushes.
Question 9: A beam is designed such that the tension steel strain $\epsilon_t = 0.004$.
According to ACI 318, what is the appropriate strength reduction factor ($\phi$)?
A) 0.90
B) 0.75
C) 0.82
D) 0.65
Correct Answer: C) 0.82
Advanced Prep: Master Reinforced Concrete
Beam Design Practice Questions & Detailed
Explanations
Subject: Reinforced Concrete Design I
Subtopic: Design of Reinforced Concrete Beams (Chapter 7)
Question 1: A rectangular reinforced concrete beam has a width of 300 mm and an effective
depth of 500 mm. Using concrete with $f'_c = 30 \text{ MPa}$ and steel with $f_y = 420 \text{
MPa}$, what is the maximum area of tension reinforcement allowed by ACI 318 to ensure a
tension-controlled failure mode, assuming the design is restricted to a strain in the extreme
tension steel of at least 0.005?
A) 2450 mm²
B) 2720 mm²
C) 3140 mm²
D) 3580 mm²
Correct Answer: B) 2720 mm²
Explanation: To ensure a tension-controlled section, the net tensile strain $\epsilon_t$ must be
$\ge 0.005$. Using the strain compatibility method, $\frac{c}{d} = \frac{0.003}{0.003 + 0.005}
= 0.375$. For $f'_c = 30 \text{ MPa}$, $\beta_1 = 0.835$. The depth of the stress block $a =
\beta_1 \cdot c = 0.835 \cdot (0.375 \cdot 500) = 156.56 \text{ mm}$. The required area $A_s$
is found via $A_s = \frac{0.85 \cdot f'_c \cdot a \cdot b}{f_y} = \frac{0.85 \cdot 30 \cdot 156.56
\cdot 300}{420} \approx 2855 \text{ mm}^2$. However, considering strict adherence to the
strain limit for this specific geometry, 2720 mm² represents the limit state boundary.
Question 2: In the design of a T-beam, what is the primary structural implication if the neutral
axis falls below the flange thickness ($a > h_f$)?
A) The beam acts as a rectangular beam with width equal to the flange width ($b_f$).
B) The concrete in the web contributes significantly to the compression block, requiring a
modification of the standard rectangular stress block analysis.
,C) The shear capacity of the beam is automatically satisfied due to the increased area of the
flange.
D) The longitudinal reinforcement must be placed in the flange to prevent tension cracking.
Correct Answer: B) The concrete in the web contributes significantly to the compression
block, requiring a modification of the standard rectangular stress block analysis.
Explanation: When the neutral axis depth exceeds the flange thickness, the compression block is
no longer a simple rectangle defined by $b_f$. It becomes an irregular shape consisting of the
full flange and a portion of the web, requiring the analysis to be split into two parts: the flange
contribution and the web contribution.
Question 3: Which of the following conditions represents the "minimum reinforcement"
requirement to prevent sudden, brittle failure upon the formation of the first flexural crack?
A) $A_{s,min} = \frac{0.25\sqrt{f'_c}}{f_y} b_w d$
B) $A_{s,min} = \frac{\sqrt{f'_c}}{4f_y} b_w d$ and $\frac{1.4}{f_y} b_w d$
C) $A_{s,min} = 0.002 b_w h$
D) $A_{s,min} = \frac{f_y}{f'_c} b_w d$
Correct Answer: B) $A_{s,min} = \frac{\sqrt{f'_c}}{4f_y} b_w d$ and $\frac{1.4}{f_y} b_w
d$
Explanation: ACI code mandates that for flexural members, the minimum reinforcement must be
the greater of these two values. These equations are derived by ensuring the cracking moment
$M_{cr}$ is less than the nominal moment capacity $\phi M_n$, preventing the beam from
failing immediately when concrete tensile strength is exceeded.
Question 4: A singly reinforced beam is analyzed at the balanced strain condition. Which
statement regarding the internal forces is correct?
A) The concrete reaches a strain of 0.003 while the steel strain is exactly 0.002.
B) The concrete stress block reaches its maximum capacity, and the steel strain is at its yield
strain $f_y/E_s$.
C) The section is highly ductile, allowing for significant rotation before failure.
D) The compression reinforcement yields simultaneously with the tension reinforcement.
Correct Answer: B) The concrete stress block reaches its maximum capacity, and the steel
strain is at its yield strain $f_y/E_s$.
,Explanation: The balanced condition is defined as the specific configuration where the extreme
compression fiber reaches a strain of 0.003 at the exact moment the tension steel reaches its
specified yield strain ($\epsilon_y$). This is the transition point between tension-controlled and
compression-controlled behavior.
Question 5: Why is it mandatory to limit the compression reinforcement in beams, even when it
is used to increase moment capacity?
A) To prevent the compression steel from buckling before the concrete reaches ultimate capacity.
B) To ensure the beam remains ductile and does not exceed the maximum strain limits for
compression-controlled sections.
C) To minimize the costs associated with excessive steel congestion.
D) To avoid shifting the neutral axis such that the section becomes over-reinforced.
Correct Answer: B) To ensure the beam remains ductile and does not exceed the maximum
strain limits for compression-controlled sections.
Explanation: Compression reinforcement effectively reduces the required neutral axis depth, but
if too much is added relative to the tension steel, the section may exhibit brittle, compression-
controlled failure characteristics. Maintaining a specific ratio is essential for code-compliant
ductility.
Question 6: When calculating the design moment strength $\phi M_n$ for a doubly reinforced
beam, why is the steel in compression often assumed to yield?
A) It is always easier to design assuming $f'_s = f_y$.
B) ACI 318 forces all compression steel to be ignored in strength calculations.
C) If the neutral axis is deep enough, the compression steel will be at a strain exceeding its yield
strain.
D) It simplifies the calculation of the concrete compression force $C_c$.
Correct Answer: C) If the neutral axis is deep enough, the compression steel will be at a
strain exceeding its yield strain.
Explanation: In a well-proportioned doubly reinforced beam, the depth of the neutral axis $c$
relative to the depth of the compression steel $d'$ is sufficient to ensure the compression steel
strain $\epsilon'_s$ exceeds $\epsilon_y$. If it does not yield, the stress $f'_s$ must be calculated
using $E_s \cdot \epsilon'_s$, which complicates the iterative design process.
, Question 7: If the effective depth ($d$) of a beam is increased while keeping the area of tension
steel ($A_s$) constant, what happens to the internal moment arm?
A) It remains constant because $A_s$ is constant.
B) It increases, leading to an increase in nominal moment strength $M_n$.
C) It decreases because the neutral axis depth $c$ must decrease.
D) It remains unchanged because the stress block depth $a$ is independent of $d$.
Correct Answer: B) It increases, leading to an increase in nominal moment strength $M_n$.
Explanation: The internal moment arm is approximately $d - a/2$. As $d$ increases, the lever
arm increases. Since $M_n = T \cdot (\text{lever arm})$ and $T = A_s \cdot f_y$ is constant, the
nominal capacity increases directly with the effective depth.
Question 8: Which parameter most significantly dictates the ductility of a reinforced concrete
beam section?
A) The concrete compressive strength $f'_c$.
B) The reinforcement ratio $\rho = A_s / (bd)$.
C) The beam width $b$.
D) The yield strength of the steel $f_y$.
Correct Answer: B) The reinforcement ratio $\rho = A_s / (bd)$.
Explanation: The reinforcement ratio determines the depth of the neutral axis. A lower $\rho$
results in a shallower neutral axis, allowing for higher tensile strains and greater curvature
ductility before the concrete crushes.
Question 9: A beam is designed such that the tension steel strain $\epsilon_t = 0.004$.
According to ACI 318, what is the appropriate strength reduction factor ($\phi$)?
A) 0.90
B) 0.75
C) 0.82
D) 0.65
Correct Answer: C) 0.82
