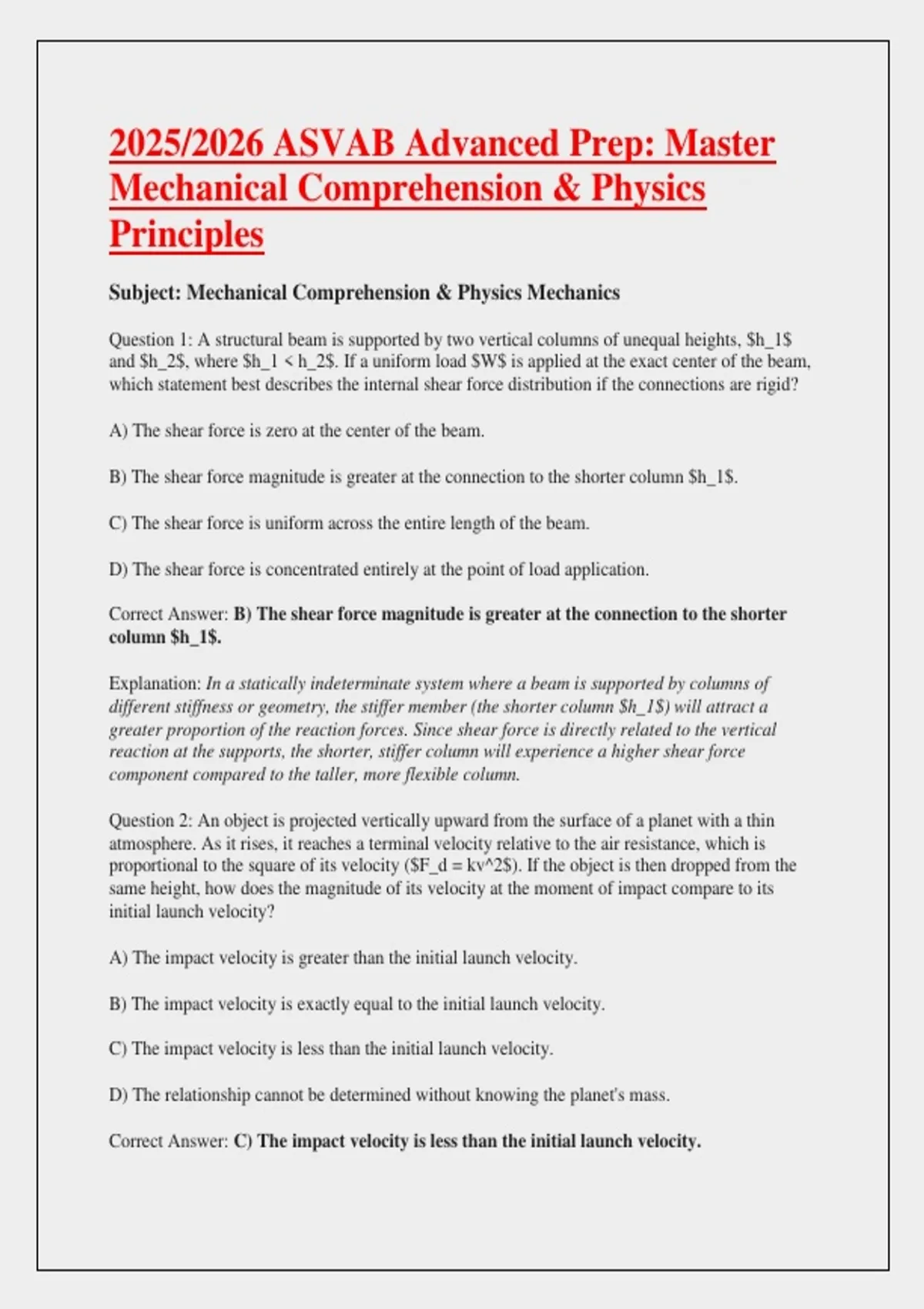

2025/2026 ASVAB Advanced Prep: Master
Mechanical Comprehension & Physics
Principles
Subject: Mechanical Comprehension & Physics Mechanics
Question 1: A structural beam is supported by two vertical columns of unequal heights, $h_1$
and $h_2$, where $h_1 < h_2$. If a uniform load $W$ is applied at the exact center of the beam,
which statement best describes the internal shear force distribution if the connections are rigid?
A) The shear force is zero at the center of the beam.
B) The shear force magnitude is greater at the connection to the shorter column $h_1$.
C) The shear force is uniform across the entire length of the beam.
D) The shear force is concentrated entirely at the point of load application.
Correct Answer: B) The shear force magnitude is greater at the connection to the shorter
column $h_1$.
Explanation: In a statically indeterminate system where a beam is supported by columns of
different stiffness or geometry, the stiffer member (the shorter column $h_1$) will attract a
greater proportion of the reaction forces. Since shear force is directly related to the vertical
reaction at the supports, the shorter, stiffer column will experience a higher shear force
component compared to the taller, more flexible column.
Question 2: An object is projected vertically upward from the surface of a planet with a thin
atmosphere. As it rises, it reaches a terminal velocity relative to the air resistance, which is
proportional to the square of its velocity ($F_d = kv^2$). If the object is then dropped from the
same height, how does the magnitude of its velocity at the moment of impact compare to its
initial launch velocity?
A) The impact velocity is greater than the initial launch velocity.
B) The impact velocity is exactly equal to the initial launch velocity.
C) The impact velocity is less than the initial launch velocity.
D) The relationship cannot be determined without knowing the planet's mass.
Correct Answer: C) The impact velocity is less than the initial launch velocity.
,Explanation: When the object is launched upward, it is decelerated by both gravity and air
resistance. When it falls, gravity accelerates it while air resistance opposes the motion. Because
air resistance acts to oppose the motion in both directions, and the total distance traveled is
fixed, the energy dissipated by non-conservative forces (air resistance) ensures that the object
cannot regain the kinetic energy lost during the upward journey, resulting in a lower impact
speed.
Question 3: A hydraulic system uses a master cylinder with a piston area of $0.05 \text{ m}^2$
and a slave cylinder with an area of $0.5 \text{ m}^2$. If a force of $200 \text{ N}$ is applied to
the master cylinder, and the system is 80% efficient due to internal friction, what is the force
output at the slave cylinder?
A) 2,000 N
B) 1,600 N
C) 1,000 N
D) 800 N
Correct Answer: B) 1,600 N
Explanation: According to Pascal's Law, the pressure $P = F_1/A_1 = F_2/A_2$. Theoretically,
$F_2 = F_1 \times (A_2/A_1) = 200 \times (0..05) = 2,000 \text{ N}$. Applying the 80%
efficiency factor, the actual force output is $2,000 \times 0.80 = 1,600 \text{ N}$.
Question 4: In a belt-drive system, if the driving pulley has a diameter of $10 \text{ cm}$ and
rotates at $1,200 \text{ RPM}$, and the driven pulley has a diameter of $30 \text{ cm}$, what is
the torque multiplication factor if the system has no slip?
A) 1:3
B) 3:1
C) 1:9
D) 9:1
Correct Answer: B) 3:1
Explanation: In a belt-driven system, the ratio of the diameters determines the speed and torque
relationship. The speed ratio is $d_1/d_2 = 10/30 = 1/3$. Since torque is inversely proportional
to the speed (assuming constant power transmission), the torque multiplication factor from the
driving pulley to the driven pulley is $d_2/d_1 = 30/10 = 3$. Thus, the torque is multiplied by a
factor of 3.
, Question 5: A block of mass $m$ sits on an inclined plane with an angle $\theta$. The
coefficient of static friction is $\mu_s$. If the incline angle is increased until the block just
begins to slide, what is the relationship between $\mu_s$ and $\theta$?
A) $\mu_s = \sin \theta$
B) $\mu_s = \cos \theta$
C) $\mu_s = \tan \theta$
D) $\mu_s = \cot \theta$
Correct Answer: C) $\mu_s = \tan \theta$
Explanation: At the point of impending motion, the force of static friction $f_s = \mu_s N$ is
equal to the component of gravity acting down the plane, $mg \sin \theta$. The normal force $N$
is equal to $mg \cos \theta$. Substituting these, $\mu_s (mg \cos \theta) = mg \sin \theta$.
Dividing both sides by $mg \cos \theta$ yields $\mu_s = \tan \theta$.
Question 6: A gear train consists of three gears in a line: Gear A (20 teeth), Gear B (40 teeth),
and Gear C (80 teeth). If Gear A rotates at 400 RPM, what is the rotational speed of Gear C?
A) 50 RPM
B) 100 RPM
C) 200 RPM
D) 800 RPM
Correct Answer: B) 100 RPM
Explanation: In a simple gear train, the intermediate gears (idlers) do not affect the total gear
ratio between the first and last gear. The ratio is determined solely by the input and output
gears: $(N_A / N_C) = (\text{Teeth}_C / \text{Teeth}_A)$. Thus, $\text{Speed}_C =
\text{Speed}_A \times (\text{Teeth}_A / \text{Teeth}_C) = 400 \times () = 100 \text{
RPM}$.
Question 7: A pendulum clock is calibrated to keep perfect time at sea level. If the clock is
moved to a high-altitude mountain peak, how will the timekeeping be affected, assuming the
pendulum length remains constant?
A) It will run fast because gravity is weaker.
B) It will run slow because gravity is weaker.
