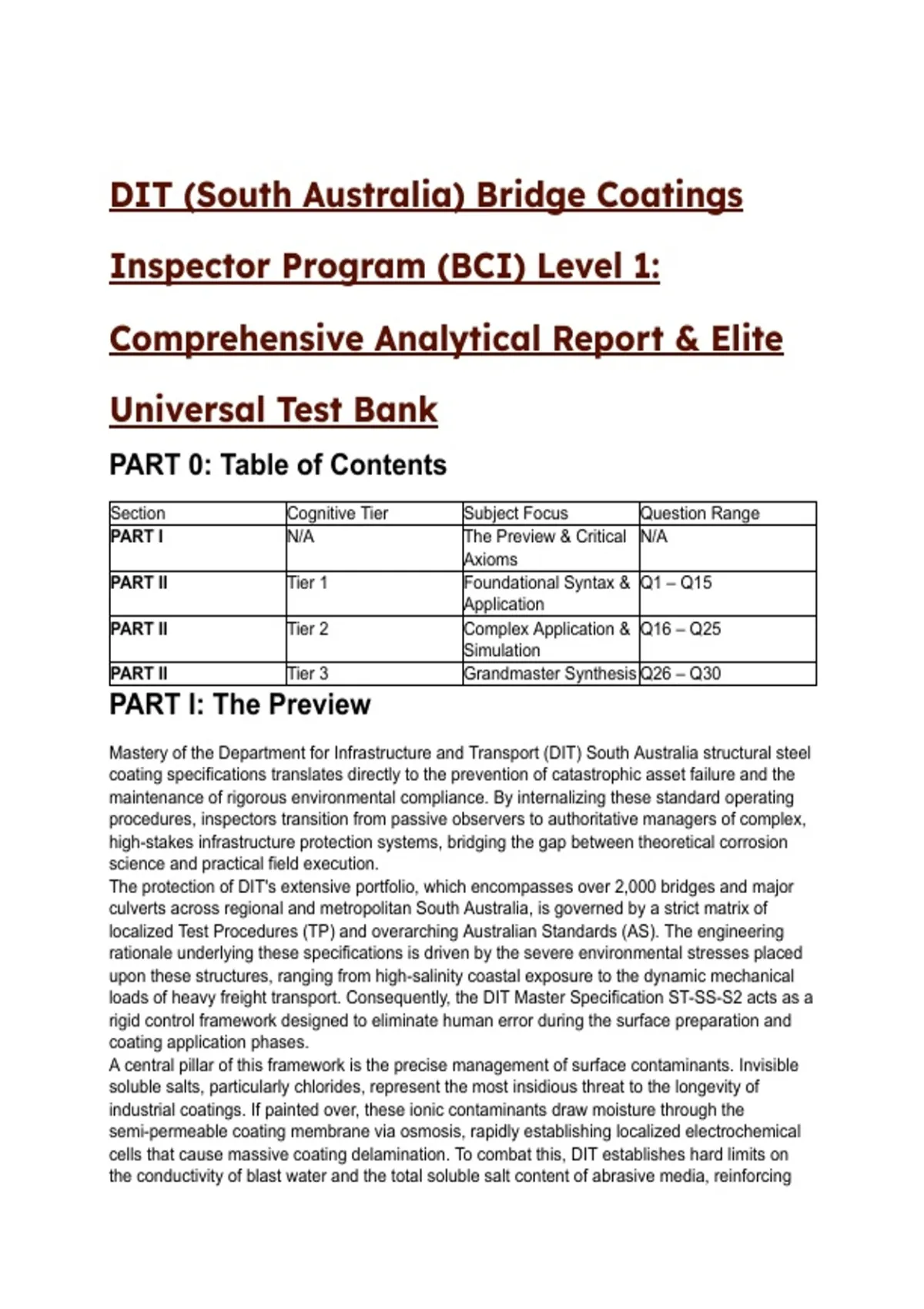

DIT (South Australia) Bridge Coatings
Inspector Program (BCI) Level 1:
Comprehensive Analytical Report & Elite
Universal Test Bank
PART 0: Table of Contents
Section Cognitive Tier Subject Focus Question Range
PART I N/A The Preview & Critical N/A
Axioms
PART II Tier 1 Foundational Syntax & Q1 – Q15
Application
PART II Tier 2 Complex Application & Q16 – Q25
Simulation
PART II Tier 3 Grandmaster Synthesis Q26 – Q30
PART I: The Preview
Mastery of the Department for Infrastructure and Transport (DIT) South Australia structural steel
coating specifications translates directly to the prevention of catastrophic asset failure and the
maintenance of rigorous environmental compliance. By internalizing these standard operating
procedures, inspectors transition from passive observers to authoritative managers of complex,
high-stakes infrastructure protection systems, bridging the gap between theoretical corrosion
science and practical field execution.
The protection of DIT's extensive portfolio, which encompasses over 2,000 bridges and major
culverts across regional and metropolitan South Australia, is governed by a strict matrix of
localized Test Procedures (TP) and overarching Australian Standards (AS). The engineering
rationale underlying these specifications is driven by the severe environmental stresses placed
upon these structures, ranging from high-salinity coastal exposure to the dynamic mechanical
loads of heavy freight transport. Consequently, the DIT Master Specification ST-SS-S2 acts as a
rigid control framework designed to eliminate human error during the surface preparation and
coating application phases.
A central pillar of this framework is the precise management of surface contaminants. Invisible
soluble salts, particularly chlorides, represent the most insidious threat to the longevity of
industrial coatings. If painted over, these ionic contaminants draw moisture through the
semi-permeable coating membrane via osmosis, rapidly establishing localized electrochemical
cells that cause massive coating delamination. To combat this, DIT establishes hard limits on
the conductivity of blast water and the total soluble salt content of abrasive media, reinforcing
,these thresholds with mandatory Hold Points that strictly prohibit the continuation of work
without explicit principal authorization.
Furthermore, metrological accuracy in the field is heavily regulated. The measurement of Dry
Film Thickness (DFT) is not a simple absolute reading; it is heavily influenced by the
peak-to-valley height of the blasted steel profile. To ensure statistical validity, DIT protocols
incorporate the ISO Guide to Uncertainty of Measurement, mandating specific percentage
buffers depending on the number of coats applied, thereby preventing the unwarranted rejection
of viable coating systems due to standard instrument scatter.
Standard / Procedure Technical Scope & Application Regulatory Threshold / Impact
AS 3894.1 Continuity testing via high Identifies pinholes in thick-film
voltage (brush) method. high-build coatings.
AS 3894.4 Assessment of degree of cure. Verifies chemical cross-linking
before top-coating or testing.
AS 3894.6 Determination of residual Swab testing for surface
contaminants. chlorides.
AS 4361.1 Guide to hazardous paint Mandates Emission Control
management. Level 1A for heavy metals.
TP800 Determination of Surface Measures peak-to-valley
Profile. anchor height using replica
tape.
TP801 Development of DFT Establishes 12% (single coat)
Requirements. and 8% (multi-coat) uncertainty.
TP913 Measurement of DFT on Dictates profile error deduction
Abrasive Blast Cleaned Steel. via zeroing on smooth steel.
The "Critical Axioms" Cheat Sheet
● Personnel Thresholds (ST-SS-S2): The Painting Quality Management Representative
(PQMR) must hold AMPP CIP Level 2. Level 1 is permissible ONLY with 10+ years of
experience and Principal approval via a 5-Business-Day Hold Point.
● Contaminant Limits: Water conductivity for blast cleaning must be less than 100 µS/cm.
Surface chloride ions must strictly remain below 10 µg/cm².
● DFT Uncertainty (TP801): The field uncertainty of measurement for a single applied coat
is 12%. For two or three-coat systems, the cumulative uncertainty drops to 8%.
● Control Gate Syntax: A "Hold Point" typically requires a 5-business-day review period
before sequential work can legally proceed. A "Witness Point" generally demands 24 to
48 hours' prior notification without halting progress indefinitely.
● Hazardous Abatement: The removal of heavy metal-containing paint (e.g., lead)
demands PCCP Class 5 accreditation and the implementation of Emission Control Level
1A.
PART II: THE ELITE TEST BANK
Q1: A principal contractor on a DIT bridge remediation project submits the credentials for their
proposed Painting Quality Management Representative (PQMR). The candidate holds an
AMPP CIP Level 1 qualification and has twelve years of documented experience in structural
steel coatings. Based on the principles of ST-SS-S2, which administrative action is MOST
ACCURATE? A) The candidate is automatically rejected because AMPP CIP Level 2 is the
, non-negotiable minimum standard for all DIT infrastructure projects. B) The candidate is
automatically approved because their field experience exceeds the baseline requirement for
Level 1 certification. C) The submission triggers a Hold Point requiring Principal approval after a
5-business-day review period. D) The submission triggers a Witness Point, allowing the
candidate to commence work provided the Principal is notified 48 hours in advance.
● The Answer: C (The submission triggers a Hold Point requiring Principal approval after a
5-business-day review period.)
● Distractor Analysis:
○ A is incorrect: While AMPP CIP Level 2 is the default specification requirement,
ST-SS-S2 explicitly contains a provision allowing an exception for Level 1
inspectors, provided they possess a minimum of 10 years of experience.
○ B is incorrect: Administrative approval is never automatic for specification
deviations. The substitution must be formally reviewed and authorized by the
Principal through established quality management channels.
○ D is incorrect: Personnel qualifications that deviate from the primary standard
constitute a Hold Point, not a Witness Point. A Witness Point merely requires
operational notification, whereas a Hold Point demands explicit contractual
authorization to proceed.
The Mentor's Analysis: Personnel competence forms the immutable foundation of quality
assurance in protective coatings. When evaluating PQMR credentials that fall below the default
Level 2 mandate, the administrative priority is invoking the designated Hold Point to
independently verify the validity of the candidate's experiential claims. By utilizing this 5-day
review protocol, the administrative authority bypasses the common trap of deploying
underqualified personnel to manage critical structural assets. Professional/Academic
Intuition: Exceptions to default personnel qualifications always trigger a formal Hold
Point, never automatic approval or a mere Witness Point.
Q2: Prior to the commencement of abrasive blast cleaning on a previously coated bridge
structure, the Contractor prepares the site and erects the associated containment systems.
Under ST-SS-S2, what is the FIRST required notification standard regarding the physical
commencement of the abrasive cleaning process? A) The Contractor must provide a 48-hour
notice constituting a Witness Point. B) The Contractor must submit a 5-business-day Hold Point
request to verify containment integrity. C) The Contractor must proceed immediately upon
approval of the Hazardous Paint Compliance Plan. D) The Contractor must issue a 24-hour
notice constituting a Witness Point.
● The Answer: A (The Contractor must provide a 48-hour notice constituting a Witness
Point.)
● Distractor Analysis:
○ B is incorrect: While the overarching Hazardous Paint Compliance Plan requires a
5-day Hold Point, the actual commencement of the physical cleaning process itself
is classified distinctly as a Witness Point.
○ C is incorrect: Approval of the overarching compliance plan (Hold Point 2.1b) does
not negate the requirement to notify the Principal immediately prior to the
commencement of physical works on site.
○ D is incorrect: DIT ST-SS-S2 explicitly specifies a 48-hour review period for the
cleaning process Witness Point, not 24 hours.
The Mentor's Analysis: Operational scheduling requires seamless, documented coordination
between the executing Contractor and the inspecting authority. When initiating physical surface
preparation, the immediate priority is satisfying the 48-hour Witness Point (WP 4.2). By utilizing
