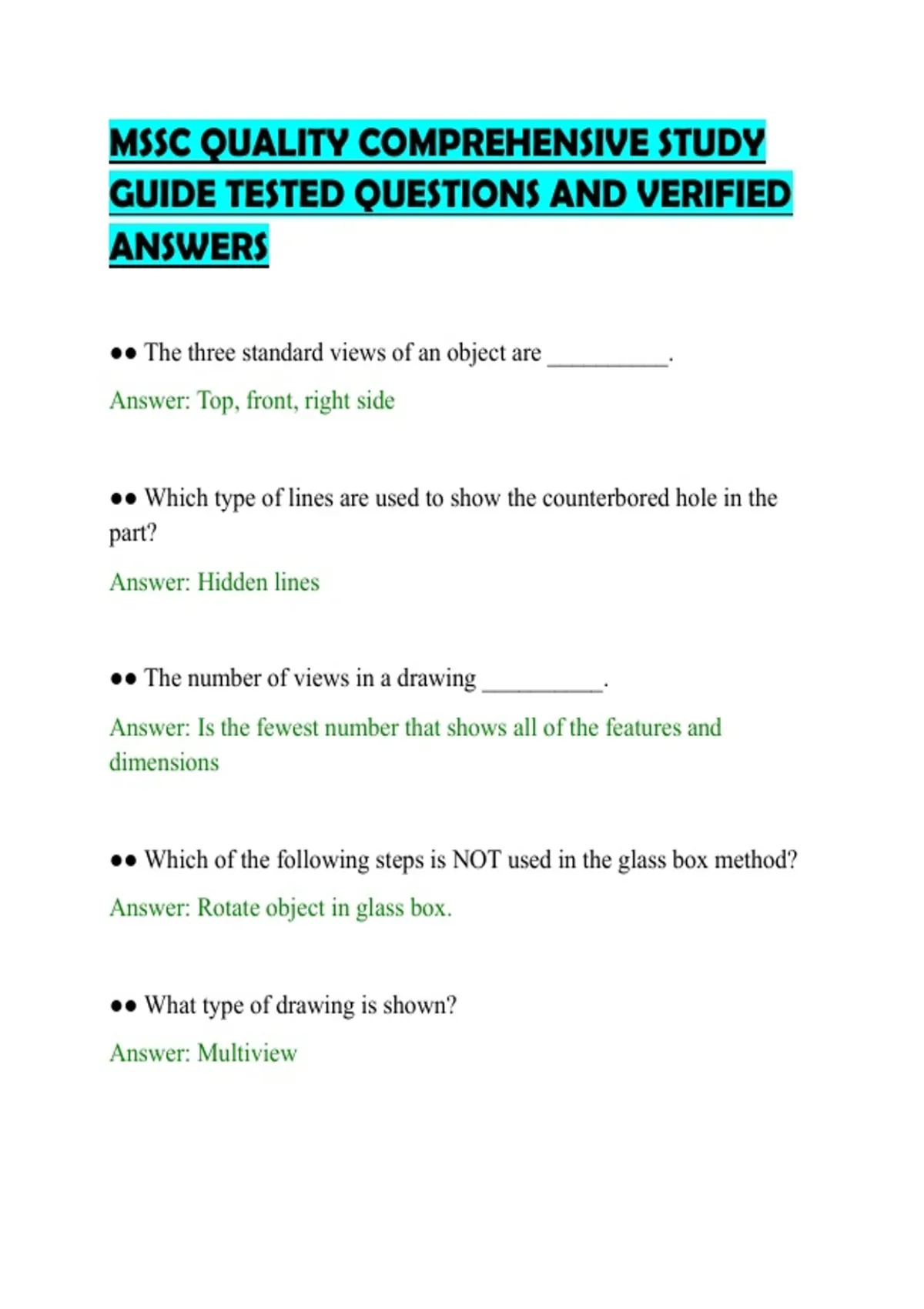

MSSC QUALITY COMPREHENSIVE STUDY
GUIDE TESTED QUESTIONS AND VERIFIED
ANSWERS
●● The three standard views of an object are __________.
Answer: Top, front, right side
●● Which type of lines are used to show the counterbored hole in the
part?
Answer: Hidden lines
●● The number of views in a drawing __________.
Answer: Is the fewest number that shows all of the features and
dimensions
●● Which of the following steps is NOT used in the glass box method?
Answer: Rotate object in glass box.
●● What type of drawing is shown?
Answer: Multiview
,●● The dimensions of raw material supplied by metal suppliers are
described by the __________.
Answer: Stock size
●● Which of these requires a computer?
Answer: CAD
●● An isometric drawing is a type of __________.
Answer: Pictorial drawing
●● In the graphic shown, the two circles are __________.
Answer: Concentric
●● Dimensions are used to specify the __________ and location of the
features of an object.
Answer: Size
●● What feature in the figure shown is a Chamfer?
Answer: D
●● A __________ dimension is described in inches per foot.
Answer: Shaft taper
,●● What is the order of precedence of lines in a drawing?
Answer: Object, Hidden, Center
●● Which of the following is not one of the six rules for dimensioning
an object?
Answer: Dimension hidden lines
●● Engineers sometimes use a __________ to measure angles on a
drawing.
Answer: Protractor
●● What dimension is indicated in this graphic?
Answer: Height
●● There are 60 minutes of arc in one __________.
Answer: Degree
●● In manufacturing, a blueprint is also called what?
Answer: A technical drawing
●● The distance across the flats of the hex head shown in the part
drawing is __________ inches.
Answer: 2 ¼
, ●● The length of the part shown in the drawing is __________ inches.
Answer: 9 ¾
●● Which type best describes the line indicated in the graphic?
Answer: Object Line
●● Which of the following bolts is a grade 2?
Answer: A
●● The hole shown in the graphic is a __________ hole.
Answer: Counterbore
●● What are the two types of assembly drawings?
Answer: Exploded and basic
●● A sectional view __________.
Answer: All of the above
●● Which of the following is not used to specify a threaded fastener?
Answer: Minor diameter
