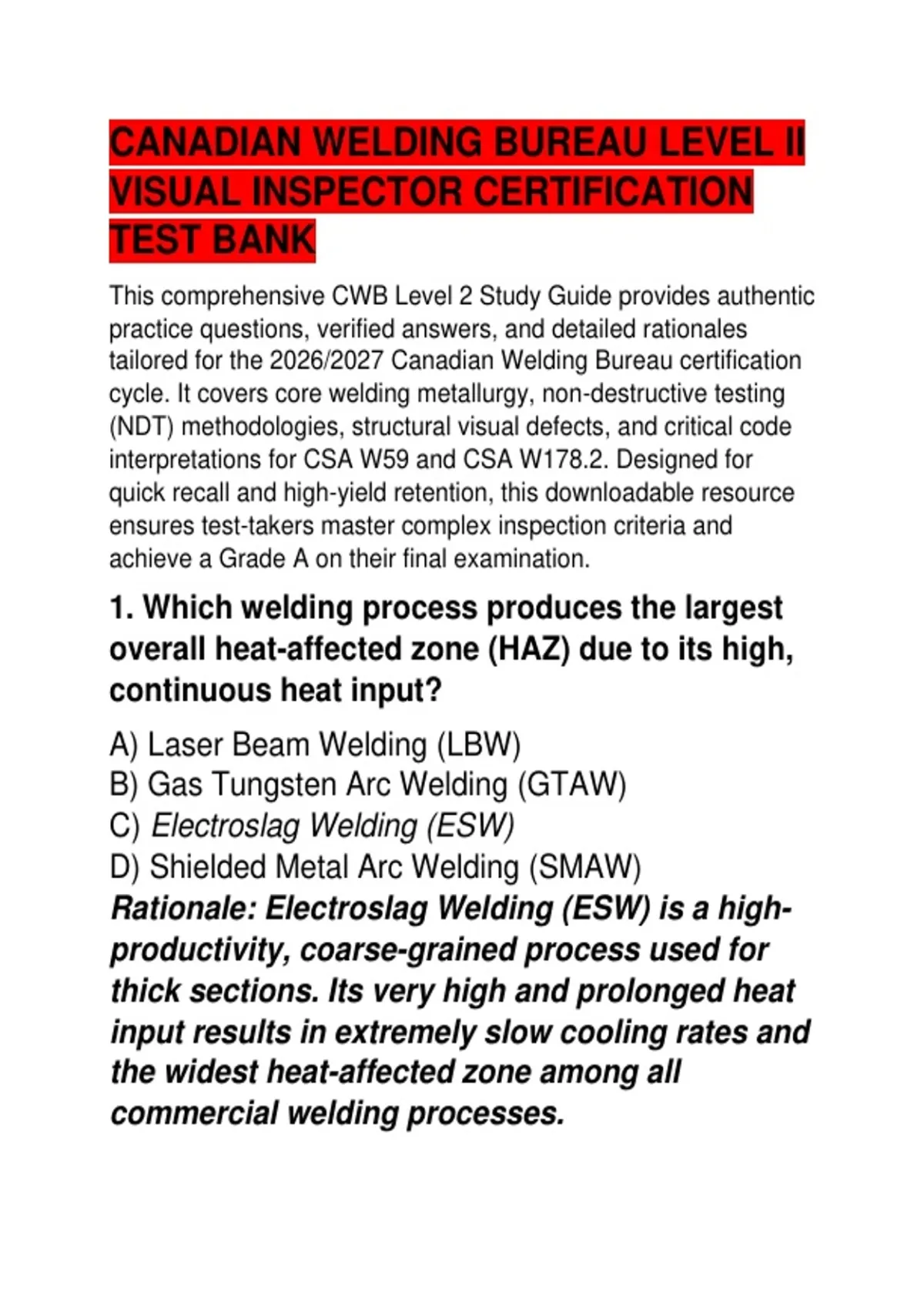

CANADIAN WELDING BUREAU LEVEL II
VISUAL INSPECTOR CERTIFICATION
TEST BANK
This comprehensive CWB Level 2 Study Guide provides authentic
practice questions, verified answers, and detailed rationales
tailored for the 2026/2027 Canadian Welding Bureau certification
cycle. It covers core welding metallurgy, non-destructive testing
(NDT) methodologies, structural visual defects, and critical code
interpretations for CSA W59 and CSA W178.2. Designed for
quick recall and high-yield retention, this downloadable resource
ensures test-takers master complex inspection criteria and
achieve a Grade A on their final examination.
1. Which welding process produces the largest
overall heat-affected zone (HAZ) due to its high,
continuous heat input?
A) Laser Beam Welding (LBW)
B) Gas Tungsten Arc Welding (GTAW)
C) Electroslag Welding (ESW)
D) Shielded Metal Arc Welding (SMAW)
Rationale: Electroslag Welding (ESW) is a high-
productivity, coarse-grained process used for
thick sections. Its very high and prolonged heat
input results in extremely slow cooling rates and
the widest heat-affected zone among all
commercial welding processes.
,2. What type of destructive test is specifically
used to evaluate the tensile strength of a
completed butt weld across its entire cross-
section?
A) All-weld-metal tensile test
B) Longitudinal bend test
C) Transverse weld tension test
D) Charpy V-notch impact test
Rationale: A transverse weld tension test is
pulled perpendicular to the axis of the weld,
evaluating the joint efficiency and ensuring the
tensile strength of both the weld metal and heat-
affected zone meets or exceeds the minimum
specified tensile strength of the base metal.
3. Chromium carbide precipitation (sensitization)
occurs when austenitic stainless steels are
exposed to what critical temperature range?
A) 150°C to 300°C
B) 425°C to 870°C
C) 950°C to 1100°C
D) 1200°C to 1350°C
Rationale: Heating austenitic stainless steel
between 425°C and 870°C causes carbon to
diffuse to grain boundaries and react with
chromium to form chromium carbides. This
,depletes the adjacent areas of chromium,
rendering the material highly susceptible to
intergranular corrosion.
4. Which thermal cutting process produces the
narrowest heat-affected zone (HAZ) and lowest
distortion when cutting 12.5 mm carbon steel?
A) Oxy-fuel Gas Cutting (OFC)
B) Plasma Arc Cutting (PAC)
C) Air Carbon Arc Gouging (CAC-A)
D) Laser Beam Cutting (LBC)
Rationale: Laser Beam Cutting (LBC) utilizes a
highly focused, high-power-density energy
source. This localizes the melting and vaporizing
sequence, resulting in an exceptionally narrow
kerf, minimal distortion, and the smallest HAZ
compared to arc or oxy-fuel cutting methods.
5. Which of the following solid-state welding
processes can be uniquely and successfully
performed outside of Earth's atmospheric
conditions?
A) Friction Stir Welding (FSW)
B) Explosion Welding (EXW)
C) Diffusion Welding (DFW)
D) Forge Welding (FOW)
, Rationale: Diffusion Welding (DFW) relies on
high pressure, elevated temperature, and
microscopic surface contact over time. Because
it requires a vacuum environment to prevent
oxidation during diffusion, it is perfectly suited
for and naturally enhanced by the vacuum of
outer space.
6. According to CSA W59, what is the primary
risk associated with welding over heavy scale,
rust, or moisture on the base metal surface?
A) Porosity and hydrogen-induced cracking
B) Excessive reinforcement
C) Severe copper contamination
D) Accelerated grain growth
Rationale: Surface contaminants like rust, scale,
and moisture break down in the presence of the
welding arc into oxygen and hydrogen gases.
This leads to severe atmospheric porosity and
spikes the risk of underbead hydrogen-induced
cold cracking.
7. In carbon-manganese steels, which
microstructure represents the hardest, most
brittle transformation product, requiring careful
preheating to avoid?
