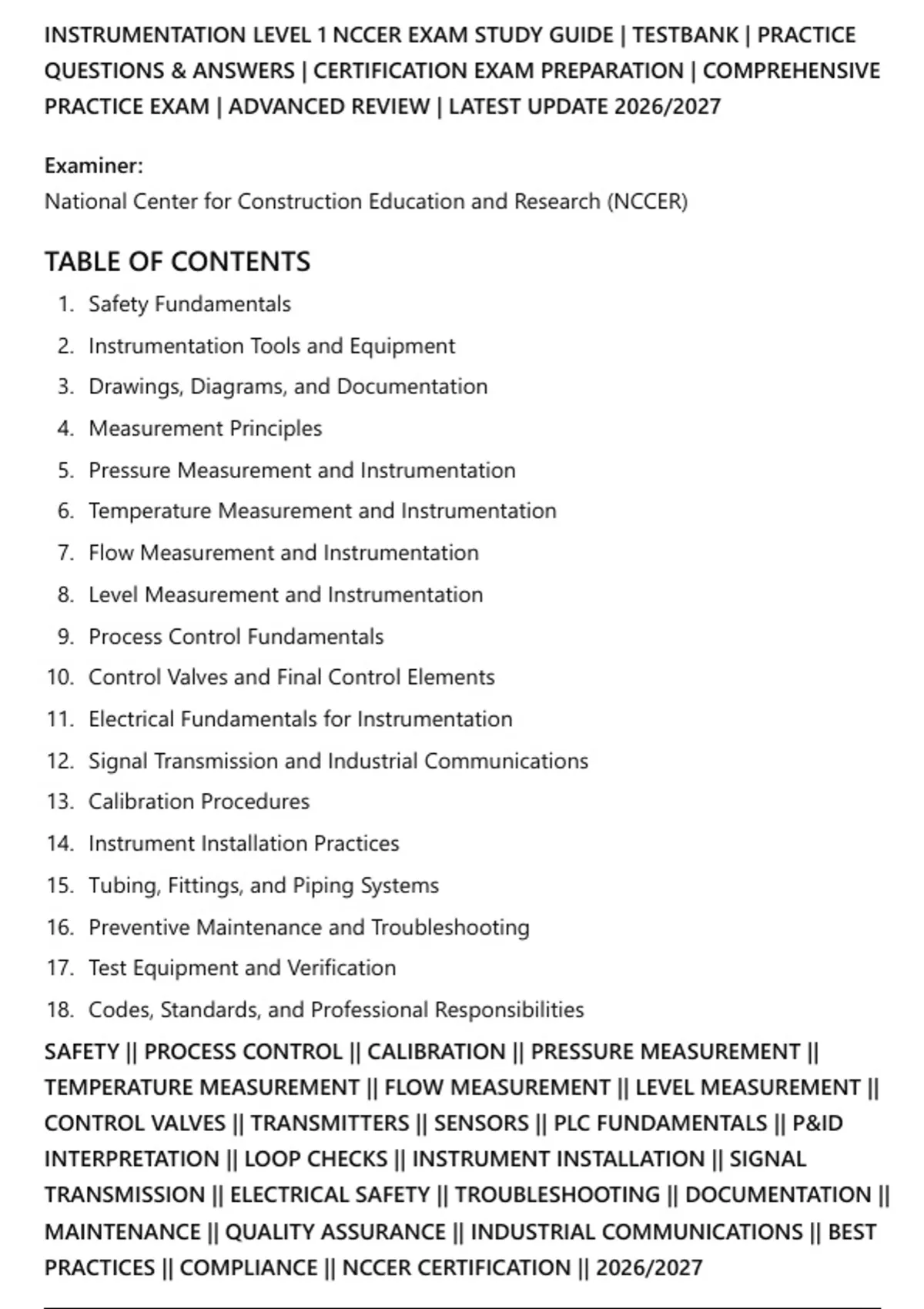

INSTRUMENTATION LEVEL 1 NCCER EXAM STUDY GUIDE | TESTBANK | PRACTICE
QUESTIONS & ANSWERS | CERTIFICATION EXAM PREPARATION | COMPREHENSIVE
PRACTICE EXAM | ADVANCED REVIEW | LATEST UPDATE 2026/2027
Examiner:
National Center for Construction Education and Research (NCCER)
TABLE OF CONTENTS
1. Safety Fundamentals
2. Instrumentation Tools and Equipment
3. Drawings, Diagrams, and Documentation
4. Measurement Principles
5. Pressure Measurement and Instrumentation
6. Temperature Measurement and Instrumentation
7. Flow Measurement and Instrumentation
8. Level Measurement and Instrumentation
9. Process Control Fundamentals
10. Control Valves and Final Control Elements
11. Electrical Fundamentals for Instrumentation
12. Signal Transmission and Industrial Communications
13. Calibration Procedures
14. Instrument Installation Practices
15. Tubing, Fittings, and Piping Systems
16. Preventive Maintenance and Troubleshooting
17. Test Equipment and Verification
18. Codes, Standards, and Professional Responsibilities
SAFETY || PROCESS CONTROL || CALIBRATION || PRESSURE MEASUREMENT ||
TEMPERATURE MEASUREMENT || FLOW MEASUREMENT || LEVEL MEASUREMENT ||
CONTROL VALVES || TRANSMITTERS || SENSORS || PLC FUNDAMENTALS || P&ID
INTERPRETATION || LOOP CHECKS || INSTRUMENT INSTALLATION || SIGNAL
TRANSMISSION || ELECTRICAL SAFETY || TROUBLESHOOTING || DOCUMENTATION ||
MAINTENANCE || QUALITY ASSURANCE || INDUSTRIAL COMMUNICATIONS || BEST
PRACTICES || COMPLIANCE || NCCER CERTIFICATION || 2026/2027
,QUESTION 1.
During calibration of a differential pressure transmitter installed on a critical process
line, the technician observes a consistent positive error across the entire calibrated
range. Which action is most appropriate before making span adjustments?
A. Verify and correct the zero setting after isolating process pressure.
B. Replace the impulse tubing immediately.
C. Increase the transmitter damping value.
D. Reconfigure the controller output scaling.
Correct Answer: A. Verify and correct the zero setting after isolating process
pressure.
Explanation: A uniform offset throughout the calibration range commonly indicates
a zero error rather than a span error. Zero should be verified under proper isolation
conditions before any span adjustment is attempted. Replacing tubing, increasing
damping, or modifying controller scaling would not correct a transmitter calibration
offset.
────────────────────────────────────────
QUESTION 2.
A technician reviewing a P&ID identifies an instrument bubble labeled "FIT-204." What
is the primary function of this instrument?
A. Flow indicator switch
B. Flow indicating transmitter
C. Flow integrating totalizer
D. Flow isolation transmitter
Correct Answer: B. Flow indicating transmitter.
Explanation: According to common ISA instrument identification practices, "F"
represents flow, "I" indicates indication, and "T" denotes a transmitter. The device
both measures flow and transmits the measurement while providing indication. The
remaining options do not correctly interpret the instrument designation.
,────────────────────────────────────────
QUESTION 3.
A process requires reliable pressure measurement despite frequent vibration from
nearby rotating equipment. Which installation practice most effectively improves long-
term measurement reliability?
A. Increase transmitter output to 24 mA.
B. Mount the transmitter directly on unsupported tubing.
C. Install suitable vibration isolation and adequately support impulse lines.
D. Eliminate all impulse tubing regardless of process conditions.
Correct Answer: C. Install suitable vibration isolation and adequately support
impulse lines.
Explanation: Proper mechanical support and vibration isolation reduce fatigue,
prevent leaks, and improve measurement stability. Increasing signal output is
impossible in a standard 4–20 mA loop, while unsupported mounting increases
failure risk. Eliminating impulse tubing is not feasible for many pressure applications.
────────────────────────────────────────
QUESTION 4.
A 4–20 mA transmitter produces an output of 12 mA. Assuming proper calibration and
linear operation, approximately what percentage of span is being measured?
A. 25%
B. 40%
C. 75%
D. 50%
Correct Answer: D. 50%.
Explanation: The usable signal span is 16 mA. An output of 12 mA is 8 mA above the
4 mA live zero, representing 8/16 or 50 percent of the calibrated span. The
remaining values do not correctly reflect the proportional relationship.
────────────────────────────────────────
, QUESTION 5.
Following replacement of a temperature transmitter, the displayed process
temperature fluctuates significantly while the actual process remains stable. Which
troubleshooting step should be performed first?
A. Replace the control valve actuator.
B. Verify wiring integrity and shielding of the signal circuit.
C. Reduce process operating pressure.
D. Reprogram the distributed control system without testing.
Correct Answer: B. Verify wiring integrity and shielding of the signal circuit.
Explanation: Signal instability after transmitter replacement frequently results from
wiring problems, grounding issues, or electrical interference. These causes should be
investigated before modifying process equipment or control system programming.
Replacing unrelated equipment would not address the likely fault.
────────────────────────────────────────
QUESTION 6.
When installing stainless steel instrument tubing with compression fittings, what
practice best minimizes future leakage?
A. Tighten each fitting according to manufacturer specifications without
overtightening.
B. Apply thread sealant to compression ferrules.
C. Reuse damaged ferrules whenever possible.
D. Tighten until tubing visibly deforms.
Correct Answer: A. Tighten each fitting according to manufacturer specifications
without overtightening.
Explanation: Compression fittings are designed to seal through controlled ferrule
deformation achieved by specified tightening procedures. Excessive tightening
damages components, while thread sealant and reused damaged ferrules
compromise sealing performance.
────────────────────────────────────────
