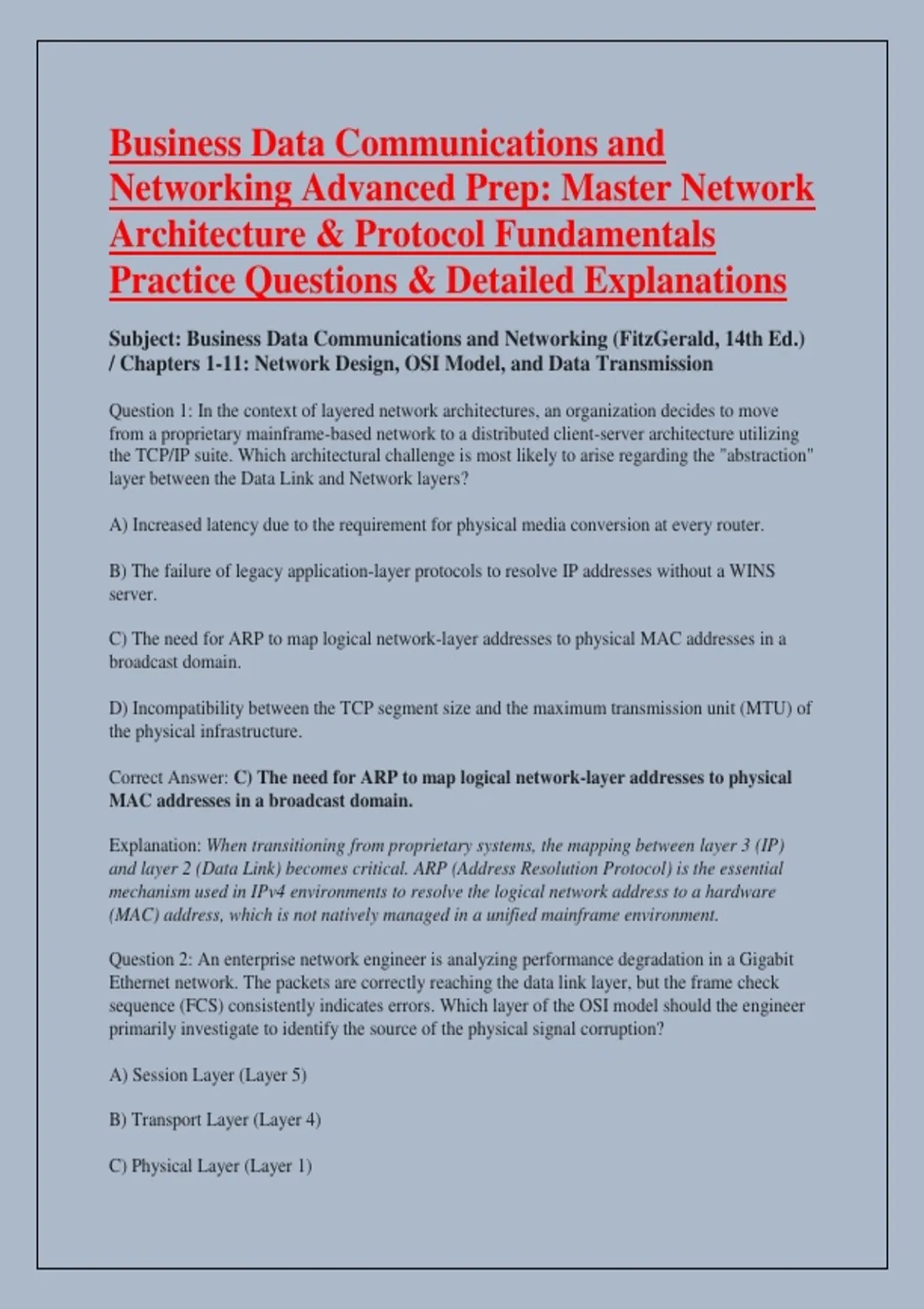

Business Data Communications and
Networking Advanced Prep: Master Network
Architecture & Protocol Fundamentals
Practice Questions & Detailed Explanations
Subject: Business Data Communications and Networking (FitzGerald, 14th Ed.)
/ Chapters 1-11: Network Design, OSI Model, and Data Transmission
Question 1: In the context of layered network architectures, an organization decides to move
from a proprietary mainframe-based network to a distributed client-server architecture utilizing
the TCP/IP suite. Which architectural challenge is most likely to arise regarding the "abstraction"
layer between the Data Link and Network layers?
A) Increased latency due to the requirement for physical media conversion at every router.
B) The failure of legacy application-layer protocols to resolve IP addresses without a WINS
server.
C) The need for ARP to map logical network-layer addresses to physical MAC addresses in a
broadcast domain.
D) Incompatibility between the TCP segment size and the maximum transmission unit (MTU) of
the physical infrastructure.
Correct Answer: C) The need for ARP to map logical network-layer addresses to physical
MAC addresses in a broadcast domain.
Explanation: When transitioning from proprietary systems, the mapping between layer 3 (IP)
and layer 2 (Data Link) becomes critical. ARP (Address Resolution Protocol) is the essential
mechanism used in IPv4 environments to resolve the logical network address to a hardware
(MAC) address, which is not natively managed in a unified mainframe environment.
Question 2: An enterprise network engineer is analyzing performance degradation in a Gigabit
Ethernet network. The packets are correctly reaching the data link layer, but the frame check
sequence (FCS) consistently indicates errors. Which layer of the OSI model should the engineer
primarily investigate to identify the source of the physical signal corruption?
A) Session Layer (Layer 5)
B) Transport Layer (Layer 4)
C) Physical Layer (Layer 1)
,D) Network Layer (Layer 3)
Correct Answer: C) Physical Layer (Layer 1)
Explanation: The Frame Check Sequence (FCS) field is part of the Ethernet frame structure in
the Data Link layer. If the FCS is failing, it implies that bits were altered in transit due to issues
like electromagnetic interference, cable attenuation, or faulty transceivers, which are physical
layer phenomena.
Question 3: Why does a network using a CSMA/CD protocol experience a theoretical throughput
"ceiling" as the number of nodes increases on a single shared-medium segment?
A) The overhead generated by the re-transmission of collisions increases exponentially as the
network utilization nears 50-60%.
B) MAC addresses must be re-initialized every time a packet is dropped.
C) Each additional node adds a fixed propagation delay that forces the TCP window size to zero.
D) Layer 2 switches are forced to route packets through a central hub, creating a bottleneck.
Correct Answer: A) The overhead generated by the re-transmission of collisions increases
exponentially as the network utilization nears 50-60%.
Explanation: Carrier Sense Multiple Access with Collision Detection (CSMA/CD) relies on
nodes "listening" to the cable. As more nodes attempt to talk, the probability of simultaneous
transmission increases. This leads to collisions, requiring back-off algorithms and
retransmissions, which consume bandwidth, eventually degrading total throughput.
Question 4: In a high-availability network design, what is the fundamental difference between a
Link Aggregation Group (LAG/LACP) and redundant Layer 3 paths configured with OSPF?
A) LAG provides path redundancy only, while OSPF provides bandwidth aggregation.
B) LAG operates at Layer 2 to aggregate physical ports, while OSPF operates at Layer 3 to
determine optimal logical routing paths.
C) OSPF is restricted to wireless media, whereas LAG is restricted to fiber optic media.
D) LAG creates a loop that must be managed by STP, whereas OSPF eliminates the need for
STP.
Correct Answer: B) LAG operates at Layer 2 to aggregate physical ports, while OSPF
operates at Layer 3 to determine optimal logical routing paths.
,Explanation: LAG (IEEE 802.3ad) allows multiple physical links to be treated as a single logical
pipe at Layer 2 to increase throughput. OSPF is a dynamic routing protocol at Layer 3 that
manages logical paths and converges on new routes if a link fails.
Question 5: Which modulation technique is most susceptible to noise interference when
comparing multi-level signal states (e.g., QAM-256 vs. BPSK)?
A) BPSK (Binary Phase Shift Keying)
B) QAM-256 (Quadrature Amplitude Modulation)
C) FSK (Frequency Shift Keying)
D) OOK (On-Off Keying)
Correct Answer: B) QAM-256 (Quadrature Amplitude Modulation)
Explanation: In QAM-256, the signal uses 256 distinct combinations of phase and amplitude.
Because the signal states are very close to one another in the constellation diagram, any small
amount of noise can easily cause a state to be misidentified as another, leading to bit errors
compared to simpler modulation like BPSK.
Question 6: When troubleshooting a VPN connection that establishes a tunnel but fails to pass
application traffic, where should an engineer look for issues concerning Maximum Segment Size
(MSS) clamping?
A) The Transport Layer (Layer 4)
B) The Application Layer (Layer 7)
C) The Session Layer (Layer 5)
D) The Network Layer (Layer 3)
Correct Answer: A) The Transport Layer (Layer 4)
Explanation: MSS clamping specifically relates to TCP segments. When VPN overhead consumes
part of the MTU, the payload must be reduced. This is a function of the Transport layer to ensure
segments fit within the negotiated tunnel parameters.
Question 7: What is the primary purpose of a "VLAN" (Virtual Local Area Network) within a
modern enterprise network topology?
A) To increase the overall bandwidth of a single physical switch port.
, B) To logically segment broadcast domains at the Data Link layer, enhancing security and
reducing traffic congestion.
C) To bypass the need for an IP router when communicating across different subnets.
D) To encrypt data packets at the physical layer before they are transmitted.
Correct Answer: B) To logically segment broadcast domains at the Data Link layer,
enhancing security and reducing traffic congestion.
Explanation: VLANs allow a network administrator to create separate logical networks on a
single physical switch. This limits the "blast radius" of broadcast traffic and prevents users in
different departments from accessing each other's traffic at Layer 2.
Question 8: An enterprise uses a star topology for its internal local area network. What is the
single point of failure in this design?
A) The client workstations.
B) The central hub or switch.
C) The individual network interface cards (NICs) of the devices.
D) The local power supply of the workstations.
Correct Answer: B) The central hub or switch.
Explanation: In a star topology, all devices connect to a central node. If that central node fails,
the entire network connected to that switch loses its ability to communicate.
Question 9: Why is the "TCP Three-Way Handshake" considered a critical mechanism for
reliable delivery in connection-oriented communications?
A) It ensures that the encryption keys have been exchanged successfully.
B) It confirms that both the sender and receiver are ready to communicate and establishes initial
sequence numbers to track packet delivery.
C) It automatically increases the available bandwidth for the session.
D) It converts the data into a format readable by the application layer.
Correct Answer: B) It confirms that both the sender and receiver are ready to communicate
and establishes initial sequence numbers to track packet delivery.
