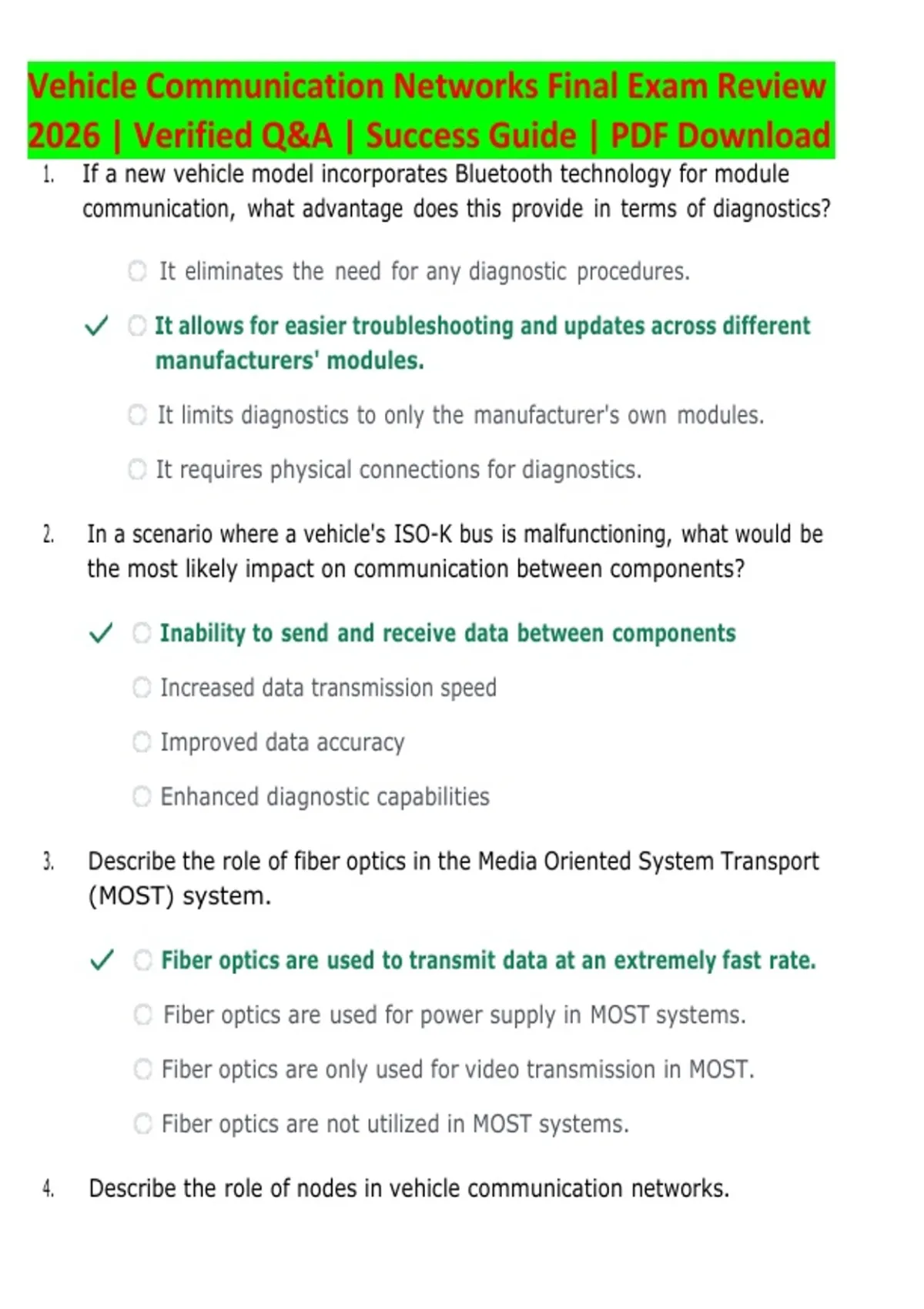

Vehicle Communication Networks Final Exam Review
2026 | Verified Q&A | Success Guide | PDF Download
1. If a new vehicle model incorporates Bluetooth technology for module
communication, what advantage does this provide in terms of diagnostics?
It eliminates the need for any diagnostic procedures.
It allows for easier troubleshooting and updates across different
manufacturers' modules.
It limits diagnostics to only the manufacturer's own modules.
It requires physical connections for diagnostics.
2. In a scenario where a vehicle's ISO-K bus is malfunctioning, what would be
the most likely impact on communication between components?
Inability to send and receive data between components
Increased data transmission speed
Improved data accuracy
Enhanced diagnostic capabilities
3. Describe the role of fiber optics in the Media Oriented System Transport
(MOST) system.
Fiber optics are used to transmit data at an extremely fast rate.
Fiber optics are used for power supply in MOST systems.
Fiber optics are only used for video transmission in MOST.
Fiber optics are not utilized in MOST systems.
4. Describe the role of nodes in vehicle communication networks.
, Nodes are the individual computers or devices connected to the
data bus that communicate with each other.
Nodes are the protocols used for communication in vehicle networks.
Nodes are the physical connections between the computers in the
network.
Nodes are the diagnostic tools used to assess vehicle communication.
5. What type of medium does the Media Oriented System Transport (MOST) use
for data transmission?
Wireless signals
Copper wires
Fiber optics
Coaxial cables
6. In a scenario where a vehicle's multiplexing (MUX) wiring system fails, what
would be the most likely consequence for module communication?
Modules would be unable to communicate with each other.
Modules would operate independently without issues.
Modules would only communicate with the central control unit.
Modules would communicate at a slower speed.
7. Describe the primary function of the ISO 9141-2 protocol in vehicle
communication.
ISO 9141-2 is used for real-time data transmission in vehicle control
systems.
ISO 9141-2 is used for vehicle-to-vehicle communication.
, ISO 9141-2 is primarily used for diagnostic communication between
the vehicle and diagnostic tools.
ISO 9141-2 is a protocol for multimedia communication in vehicles.
8. What is the primary purpose of a scan tool in the context of CAN bus
diagnostics?
To adjust fuel injection timing.
To reset the vehicle's odometer.
To measure vehicle speed.
To access the central gateway module for the bus network.
9. If a technician is using a vehicle equipped with ISO 9141-2 and encounters a
communication error, what diagnostic approach should they take?
Reprogram the vehicle's multimedia system.
Increase the baud rate of the communication.
Replace the vehicle's engine control unit.
Check the connection between the diagnostic tool and the vehicle's
OBD port.
10. Describe the primary advantage of using fiber optics in the MOST
communication system.
The primary advantage is compatibility with older systems.
The primary advantage is lower cost compared to copper wiring.
The primary advantage is ease of installation in vehicles.
The primary advantage is the high bandwidth and speed of data
transmission.
