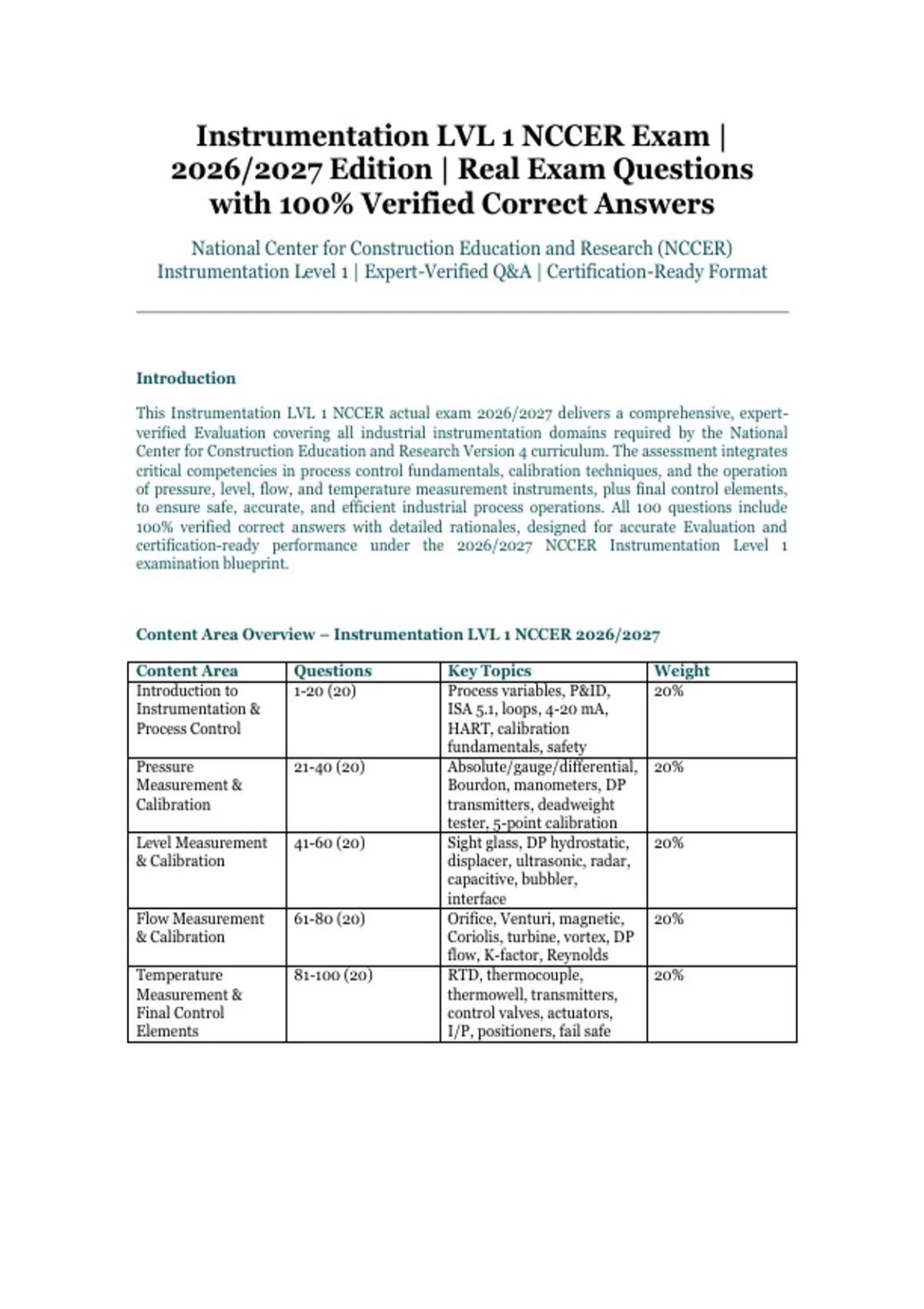

Instrumentation LVL 1 NCCER Exam |
2026/2027 Edition | Real Exam Questions
with 100% Verified Correct Answers
National Center for Construction Education and Research (NCCER)
Instrumentation Level 1 | Expert-Verified Q&A | Certification-Ready Format
Introduction
This Instrumentation LVL 1 NCCER actual exam 2026/2027 delivers a comprehensive, expert-
verified Evaluation covering all industrial instrumentation domains required by the National
Center for Construction Education and Research Version 4 curriculum. The assessment integrates
critical competencies in process control fundamentals, calibration techniques, and the operation
of pressure, level, flow, and temperature measurement instruments, plus final control elements,
to ensure safe, accurate, and efficient industrial process operations. All 100 questions include
100% verified correct answers with detailed rationales, designed for accurate Evaluation and
certification-ready performance under the 2026/2027 NCCER Instrumentation Level 1
examination blueprint.
Content Area Overview – Instrumentation LVL 1 NCCER 2026/2027
Content Area Questions Key Topics Weight
Introduction to 1-20 (20) Process variables, P&ID, 20%
Instrumentation & ISA 5.1, loops, 4-20 mA,
Process Control HART, calibration
fundamentals, safety
Pressure 21-40 (20) Absolute/gauge/differential, 20%
Measurement & Bourdon, manometers, DP
Calibration transmitters, deadweight
tester, 5-point calibration
Level Measurement 41-60 (20) Sight glass, DP hydrostatic, 20%
& Calibration displacer, ultrasonic, radar,
capacitive, bubbler,
interface
Flow Measurement 61-80 (20) Orifice, Venturi, magnetic, 20%
& Calibration Coriolis, turbine, vortex, DP
flow, K-factor, Reynolds
Temperature 81-100 (20) RTD, thermocouple, 20%
Measurement & thermowell, transmitters,
Final Control control valves, actuators,
Elements I/P, positioners, fail safe
,Examination Questions – 100 Verified Questions | Instrumentation LVL 1 NCCER
2026/2027
Domain: Introduction to Instrumentation & Process Control
20% – Questions 1-20
1. Which four variables constitute the primary process variables in industrial
instrumentation?
A. Pressure, level, flow, temperature
B. Voltage, current, resistance, power
C. Speed, torque, vibration, humidity
D. pH, conductivity, density, viscosity
Correct Answer: A
Rationale: The NCCER Level 1 core identifies pressure, level, flow, and temperature as the
four primary measured process variables.
2. Instrumentation is best defined as:
A. Carpentry tools
B. The science of automated measurement and control of process variables
C. Electrical power distribution
D. Manual valve operation only
Correct Answer: B
Rationale: Instrumentation encompasses sensors, transmitters, controllers, and final
elements used to measure and automatically control industrial processes.
3. The three essential elements of a basic feedback control loop are:
A. Pump, motor, tank
B. Measurement, comparison/controller, correction/final element
C. Wire, conduit, junction box
D. Input, output, ground
Correct Answer: B
Rationale: A feedback loop consists of a measurement transmitter, a controller that compares
PV to SP, and a final control element that corrects the process.
4. In ISA-5.1 P&ID symbology, a circle with the letters PT inside represents:
A. Pressure transmitter
B. Pneumatic timer
C. Position transducer
D. Process turbine
Correct Answer: A
Rationale: Per ISA-5.1, first letter P = Pressure, second letter T = Transmitter – PT is a
pressure transmitter.
5. The industry standard analog signal range for process instrumentation
transmission is:
A. 0-10 VDC only
B. 4-20 mA DC
C. 0-5 VAC
, D. 120 VAC
Correct Answer: B
Rationale: 4-20 mA current loop is the NCCER / ISA standard with live zero at 4 mA enabling
loop break detection.
6. The primary advantage of a live zero at 4 mA versus 0 mA is:
A. Higher power
B. Distinguishes between zero measurement and broken loop / loss of signal
C. Faster response
D. Lower cost wire
Correct Answer: B
Rationale: Live zero allows fault detection – 0 mA indicates open loop failure, while 4 mA
represents true 0% process variable.
7. HART communication superimposed on 4-20 mA provides:
A. AC power only
B. Digital bidirectional communication for configuration, diagnostics, and multivariable data
C. Video signal
D. Pneumatic control
Correct Answer: B
Rationale: HART – Highway Addressable Remote Transducer – enables digital data over
analog 4-20 mA wiring per ISA standards.
8. Calibration is defined as:
A. Replacing an instrument
B. Comparing instrument output to a traceable standard and adjusting to minimize error
C. Painting the instrument
D. Increasing range arbitrarily
Correct Answer: B
Rationale: NCCER calibration proven methodology: compare to NIST-traceable standard,
document as-found/as-left, adjust to within tolerance.
9. Accuracy versus precision: accuracy refers to:
A. Repeatability only
B. Closeness to true value, while precision is repeatability
C. Speed of response
D. Physical size
Correct Answer: B
Rationale: Accuracy = closeness to true value; precision = repeatability / consistency – both
required for quality measurement.
10. Which document provides standardized instrument symbols and identification
for P&IDs in North America?
A. NFPA 70
B. ISA-5.1 / ANSI/ISA-5.1-2026/2027
C. AWS D1.1
D. API 650
