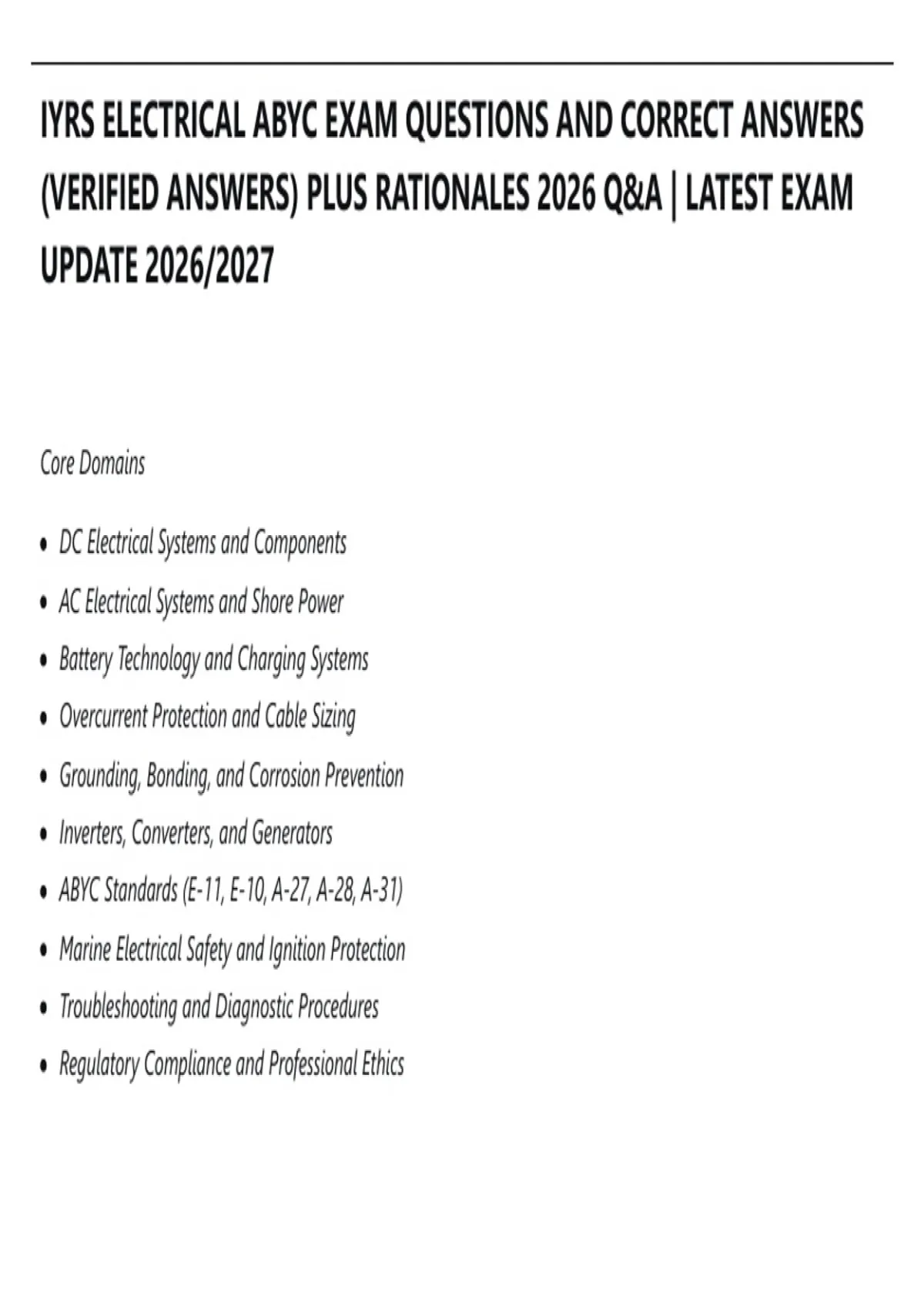

IYRS ELECTRICAL ABYC EXAM QUESTIONS AND CORRECT ANSWERS
(VERIFIED ANSWERS) PLUS RATIONALES 2026 Q&A | LATEST EXAM
UPDATE 2026/2027
Core Domains
DC Electrical Systems and Components
AC Electrical Systems and Shore Power
Battery Technology and Charging Systems
Overcurrent Protection and Cable Sizing
Grounding, Bonding, and Corrosion Prevention
Inverters, Converters, and Generators
ABYC Standards (E-11, E-10, A-27, A-28, A-31)
Marine Electrical Safety and Ignition Protection
Troubleshooting and Diagnostic Procedures
Regulatory Compliance and Professional Ethics
,Introduction
This comprehensive examination assesses the knowledge and skills required for marine electrical certification,
focusing on the safe design, installation, and maintenance of electrical systems on recreational vessels. Candidates
will demonstrate mastery of ABYC standards including E-11 for AC and DC electrical systems, E-10 for storage
batteries, and A-31 for battery chargers and inverters. The exam features multiple-choice questions that evaluate
both theoretical understanding and practical application in real-world marine environments. Questions emphasize
safety protocols, proper installation techniques, troubleshooting methodologies, and regulatory compliance.
Successful candidates will possess the critical thinking skills necessary to make sound technical decisions that
ensure vessel safety and system reliability.
SECTION ONE: QUESTIONS 1–100
1. When installing an inverter in a split bus application, what is the critical requirement for proper system
configuration?
A. Provide an isolated hot bus and an isolated neutral bus
B. Connect the neutral bus to the DC grounding system
C. Bond the hot bus to the AC grounding conductor
D. Tie the neutral bus directly to the vessel's bonding system
🟢 A. Provide an isolated hot bus and an isolated neutral bus
,🔴 RATIONALE: In split bus applications, inverters must have both the hot and neutral buses isolated to prevent
backfeeding and ensure proper transfer switching. This isolation prevents unintended parallel paths between AC
and DC systems and is required by ABYC standards for inverter installations .
2. What is the minimum ampacity circuit breaker required to protect a 120V water heater circuit with a 1600-
watt heating element?
A. 10 amps
B. 15 amps
C. 20 amps
D. 25 amps
🟢 B. 15 amps
🔴 RATIONALE: Using Ohm's Law (I = P/E), 1600W ÷ 120V = 13.33 amps. The next standard circuit breaker size
above the calculated load is 15 amps, which provides adequate protection while allowing for normal operation .
3. What is the primary by-product of excessive electrical resistance in a marine electrical circuit?
A. Voltage drop
B. Heat
C. Electromagnetic interference
D. Circuit oscillation
, 🟢 B. Heat
🔴 RATIONALE: Excessive resistance in electrical circuits generates heat through I²R losses. This heat can
damage insulation, create fire hazards, and degrade connections over time. Heat is the primary indicator of
poor connections or undersized conductors in marine electrical systems .
4. What tool is the industry standard for tracing shorted and open circuits in marine electrical systems?
A. Multimeter
B. Gauss meter
C. Time Domain Reflectometer (TDR)
D. Clamp meter
🟢 C. Time Domain Reflectometer (TDR)
🔴 RATIONALE: A TDR sends a pulse down the conductor and analyzes reflected signals to locate faults
precisely. This technology has become the tool of choice for identifying shorts, opens, and other cable faults in
marine electrical systems .
5. According to ABYC, what is the maximum number of terminals that may be attached to any one terminal
stud?
