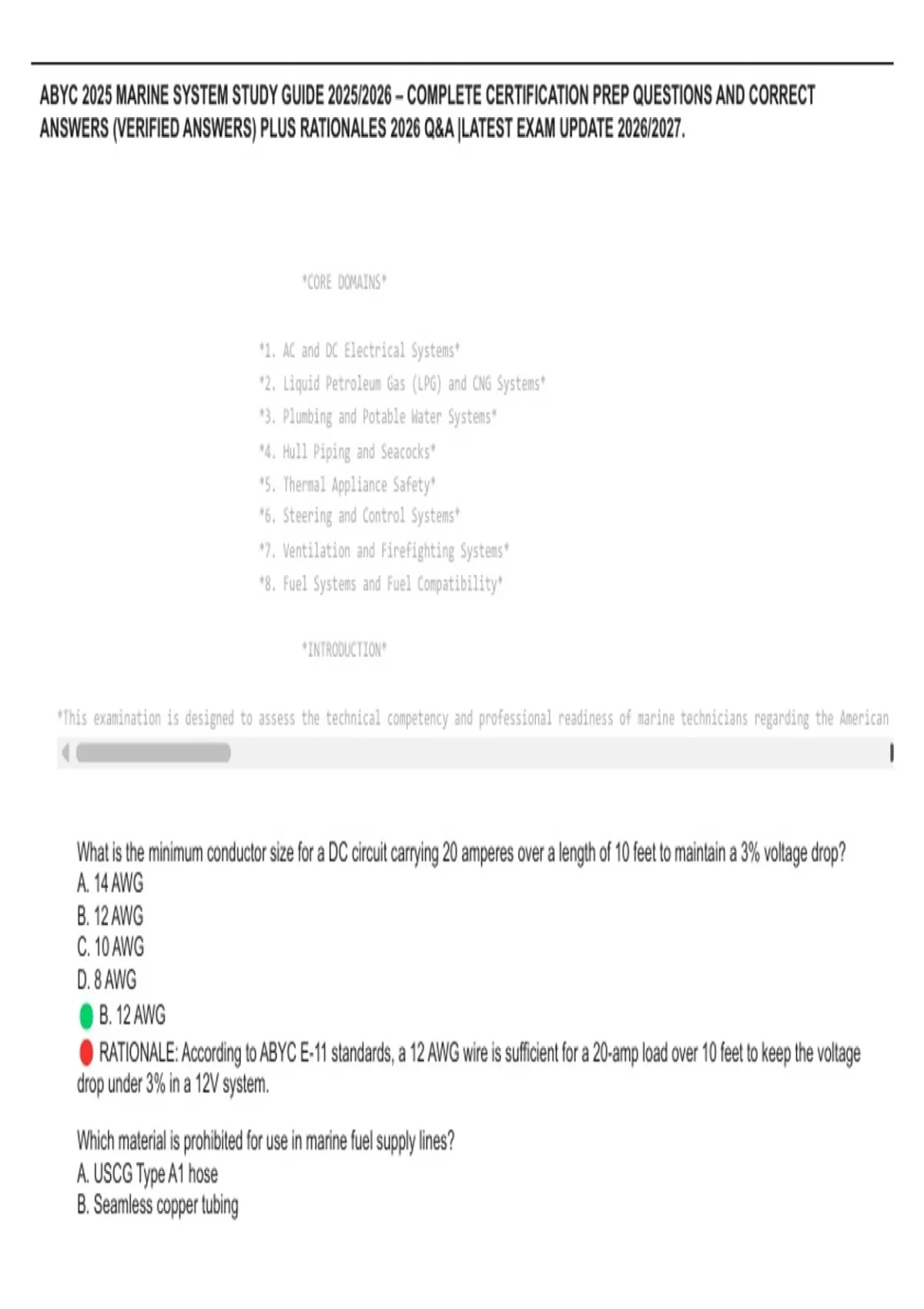

ABYC 2025 MARINE SYSTEM STUDY GUIDE 2025/2026 – COMPLETE CERTIFICATION PREP QUESTIONS AND CORRECT
ANSWERS (VERIFIED ANSWERS) PLUS RATIONALES 2026 Q&A |LATEST EXAM UPDATE 2026/2027.
*CORE DOMAINS*
*1. AC and DC Electrical Systems*
*2. Liquid Petroleum Gas (LPG) and CNG Systems*
*3. Plumbing and Potable Water Systems*
*4. Hull Piping and Seacocks*
*5. Thermal Appliance Safety*
*6. Steering and Control Systems*
*7. Ventilation and Firefighting Systems*
*8. Fuel Systems and Fuel Compatibility*
*INTRODUCTION*
*This examination is designed to assess the technical competency and professional readiness of marine technicians regarding the American
What is the minimum conductor size for a DC circuit carrying 20 amperes over a length of 10 feet to maintain a 3% voltage drop?
A. 14 AWG
B. 12 AWG
C. 10 AWG
D. 8 AWG
🟢 B. 12 AWG
🔴 RATIONALE: According to ABYC E-11 standards, a 12 AWG wire is sufficient for a 20-amp load over 10 feet to keep the voltage
drop under 3% in a 12V system.
Which material is prohibited for use in marine fuel supply lines?
A. USCG Type A1 hose
B. Seamless copper tubing
,C. Plastic/polyethylene pipe
D. USCG Type A2 hose
🟢 C. Plastic/polyethylene pipe
🔴 RATIONALE: Standard plastic or polyethylene pipe lacks the fire resistance and permeation ratings required for marine fuel
systems by ABYC H-24 and H-33.
When installing a seacock on a through-hull fitting below the waterline, what must be true?
A. It must be made of plastic to prevent galvanic corrosion
B. It must be permanently attached to the hull or backing block
C. It must be accessible only with specialized tools
D. It must be closed at all times when the engine is running
🟢 B. It must be permanently attached to the hull or backing block
🔴 RATIONALE: ABYC H-27 requires that seacocks be securely mounted to the hull or a structural member to prevent mechanical
strain on the through-hull fitting.
What is the primary purpose of a galvanic isolator in an AC shore power system?
A. To block high-voltage surges from the dock
B. To prevent the flow of low-voltage DC galvanic currents
C. To convert AC power to DC power for battery charging
D. To provide an emergency ground path for AC faults
🟢 B. To prevent the flow of low-voltage DC galvanic currents
🔴 RATIONALE: Galvanic isolators are designed to interrupt the galvanic path created by the green safety ground wire between boats
and the shore, preventing stray current corrosion.
How should a portable fire extinguisher be mounted on a vessel?
A. Inside a locked cabinet for security
B. Under the galley sink near the stove
C. In an accessible, bracketed location
D. Inside the engine compartment
🟢 C. In an accessible, bracketed location
🔴 RATIONALE: ABYC A-4 requires fire extinguishers to be readily accessible and securely mounted in a bracket to prevent
movement in heavy seas.
What is the maximum allowable voltage drop for a panelboard feeder circuit?
A. 1%
B. 3%
, C. 5%
D. 10%
🟢 B. 3%
🔴 RATIONALE: ABYC E-11 specifies that the maximum voltage drop for critical circuits, including panelboard feeders, is 3%.
In a gasoline engine compartment, how often must the powered ventilation system be operated?
A. Only after fueling
B. Only when the engine is running
C. Before starting the engine
D. Continuously while the vessel is moored
🟢 C. Before starting the engine
🔴 RATIONALE: ABYC H-2 requires the ventilation system to be run for at least four minutes before engine ignition to clear any
accumulated fuel vapors.
Which type of battery is most susceptible to hydrogen gas emission during charging?
A. AGM
B. Gel cell
C. Flooded lead-acid
D. Lithium iron phosphate
🟢 C. Flooded lead-acid
🔴 RATIONALE: Flooded lead-acid batteries emit hydrogen gas during the normal charging process, requiring proper ventilation.
What is the minimum height of a vented loop above the waterline?
A. 6 inches
B. 9 inches
C. 12 inches
D. 15 inches
🟢 B. 9 inches
🔴 RATIONALE: ABYC H-27 mandates that vented loops be located at least 9 inches above the waterline at all angles of heel to
prevent siphoning.
When testing an AC shore power system, what instrument is used to check for polarity?
A. Clamp-on ammeter
B. Multimeter
C. Polarity tester
D. Hydrometer
