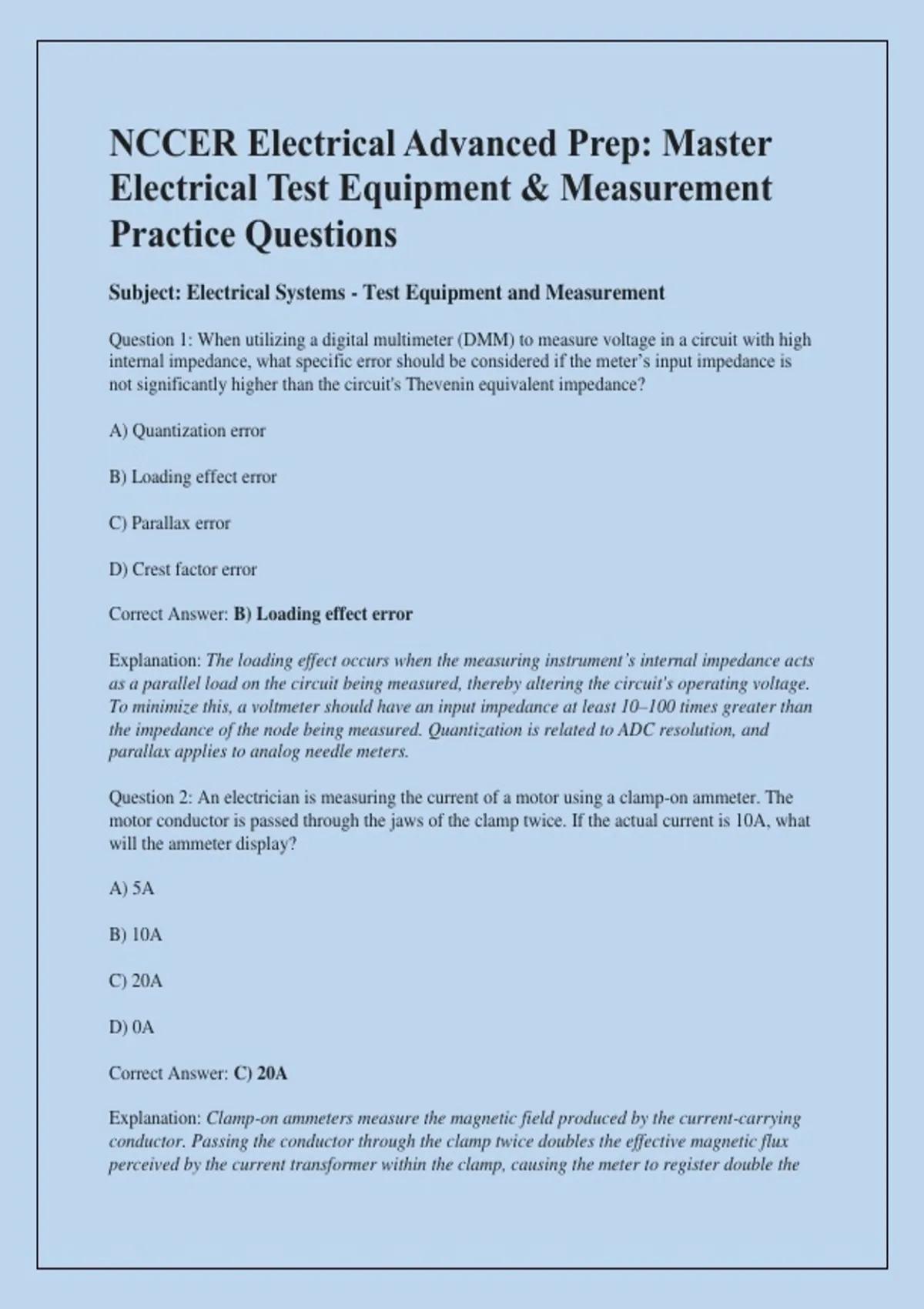

NCCER Electrical Advanced Prep: Master
Electrical Test Equipment & Measurement
Practice Questions
Subject: Electrical Systems - Test Equipment and Measurement
Question 1: When utilizing a digital multimeter (DMM) to measure voltage in a circuit with high
internal impedance, what specific error should be considered if the meter’s input impedance is
not significantly higher than the circuit's Thevenin equivalent impedance?
A) Quantization error
B) Loading effect error
C) Parallax error
D) Crest factor error
Correct Answer: B) Loading effect error
Explanation: The loading effect occurs when the measuring instrument’s internal impedance acts
as a parallel load on the circuit being measured, thereby altering the circuit's operating voltage.
To minimize this, a voltmeter should have an input impedance at least 10–100 times greater than
the impedance of the node being measured. Quantization is related to ADC resolution, and
parallax applies to analog needle meters.
Question 2: An electrician is measuring the current of a motor using a clamp-on ammeter. The
motor conductor is passed through the jaws of the clamp twice. If the actual current is 10A, what
will the ammeter display?
A) 5A
B) 10A
C) 20A
D) 0A
Correct Answer: C) 20A
Explanation: Clamp-on ammeters measure the magnetic field produced by the current-carrying
conductor. Passing the conductor through the clamp twice doubles the effective magnetic flux
perceived by the current transformer within the clamp, causing the meter to register double the
,actual current. This technique is sometimes used to increase the sensitivity of an ammeter when
measuring very low currents.
Question 3: When measuring resistance on a live circuit, what is the most likely consequence if
the ohmmeter function is used instead of a voltmeter?
A) The measurement will be accurate.
B) The meter may be damaged, and the reading will be meaningless.
C) The circuit breaker will immediately trip.
D) The meter will display the voltage divided by the resistance.
Correct Answer: B) The meter may be damaged, and the reading will be meaningless.
Explanation: An ohmmeter works by injecting a small internal current into the component and
measuring the resulting voltage drop. If the circuit is live, the external voltage will be applied to
the meter’s internal circuitry, likely destroying the meter’s protection fuses or sensitive
electronic components. Ohmmeters are designed for use on de-energized circuits only.
Question 4: You are measuring a high-frequency PWM signal generated by a Variable
Frequency Drive (VFD). Why is a standard RMS-responding multimeter often insufficient for
this task?
A) It cannot handle the voltage magnitude.
B) It lacks the sampling rate and bandwidth required for non-sinusoidal waveforms, leading to
inaccurate RMS readings.
C) It cannot measure frequency.
D) It only measures peak-to-peak voltage.
Correct Answer: B) It lacks the sampling rate and bandwidth required for non-sinusoidal
waveforms, leading to inaccurate RMS readings.
Explanation: Standard RMS multimeters often use "Average-Responding, RMS-Calibrated"
circuitry, which assumes a pure sine wave. VFD outputs are high-frequency, non-sinusoidal
square waves. An instrument designated as "True RMS" with sufficient bandwidth is required to
capture the harmonic content and provide an accurate RMS measurement.
Question 5: What is the primary purpose of using a "Megohmmeter" (Insulation Resistance
Tester) rather than a standard DMM for testing motor winding integrity to ground?
A) To test for continuity in the windings.
,B) To check for low resistance shorts between turns.
C) To measure the insulation's ability to withstand high voltage and detect leakage currents in the
M$\Omega$ or G$\Omega$ range.
D) To measure the inductive reactance of the windings.
Correct Answer: C) To measure the insulation's ability to withstand high voltage and detect
leakage currents in the M$\Omega$ or G$\Omega$ range.
Explanation: Standard DMMs use low-voltage test signals (typically <9V) which cannot stress
the insulation enough to detect microscopic breakdown paths. A megohmmeter applies a
significantly higher DC voltage (e.g., 500V or 1000V) to stress the dielectric material, allowing
the measurement of insulation resistance under realistic stress conditions.
Question 6: In a three-phase circuit, a technician uses a "Phase Sequence Indicator." If the
indicator shows that the phases are L1-L3-L2 instead of the expected L1-L2-L3, what will be the
effect on a connected 3-phase induction motor?
A) The motor will not start.
B) The motor will run at a higher RPM.
C) The motor will rotate in the opposite direction.
D) The motor will experience a phase imbalance but rotate correctly.
Correct Answer: C) The motor will rotate in the opposite direction.
Explanation: The direction of rotation of a 3-phase motor is determined by the phase sequence of
the supply voltage. Swapping any two leads (changing the sequence from ABC to ACB) reverses
the rotating magnetic field, which in turn reverses the direction of rotation of the rotor.
Question 7: A Wheatstone bridge is being used to measure an unknown resistor $R_x$. When
the bridge is balanced, which of the following conditions is true?
A) The current through the galvanometer is maximum.
B) The potential difference between the two sensing nodes is zero.
C) The total resistance of the bridge is zero.
D) The unknown resistance is equal to the voltage source.
Correct Answer: B) The potential difference between the two sensing nodes is zero.
, Explanation: The Wheatstone bridge operates on the principle of a null detector. When the
bridge is balanced, the ratio of resistances in opposite arms is equal, resulting in equal
potentials at the sensing nodes. Consequently, no current flows through the central
galvanometer.
Question 8: When using an oscilloscope to view a signal, if the vertical scale is set to 5V/div and
the signal spans 4 divisions from peak to peak, what is the peak-to-peak voltage?
A) 5V
B) 10V
C) 20V
D) 25V
Correct Answer: C) 20V
Explanation: The peak-to-peak voltage is calculated by multiplying the number of vertical
divisions by the volts-per-division setting: $4 \text{ divisions} \times 5 \text{ V/div} = 20 \text{
V}$.
Question 9: What is the primary safety hazard when using a test instrument with a CAT IV rating
in a CAT II environment?
A) There is no hazard; CAT IV is always better.
B) The instrument is overly sensitive and may provide false readings.
C) The instrument is physically larger and harder to use.
D) The instrument lacks the necessary internal arc-flash protection required for high-energy CAT
IV environments (though it is safe in CAT II).
Correct Answer: D) The instrument lacks the necessary internal arc-flash protection
required for high-energy CAT IV environments (though it is safe in CAT II).
Explanation: Safety ratings (CAT I through IV) define the instrument's ability to withstand
voltage transients (spikes). CAT IV is designed for the service entrance where energy levels are
highest. While using a higher-rated meter in a lower-rated environment is fine, using a lower-
rated meter in a high-energy environment is dangerous.
Question 10: To determine the power factor of an AC circuit, which two measurements are most
essential if a power factor meter is unavailable?
A) Resistance and Capacitance
