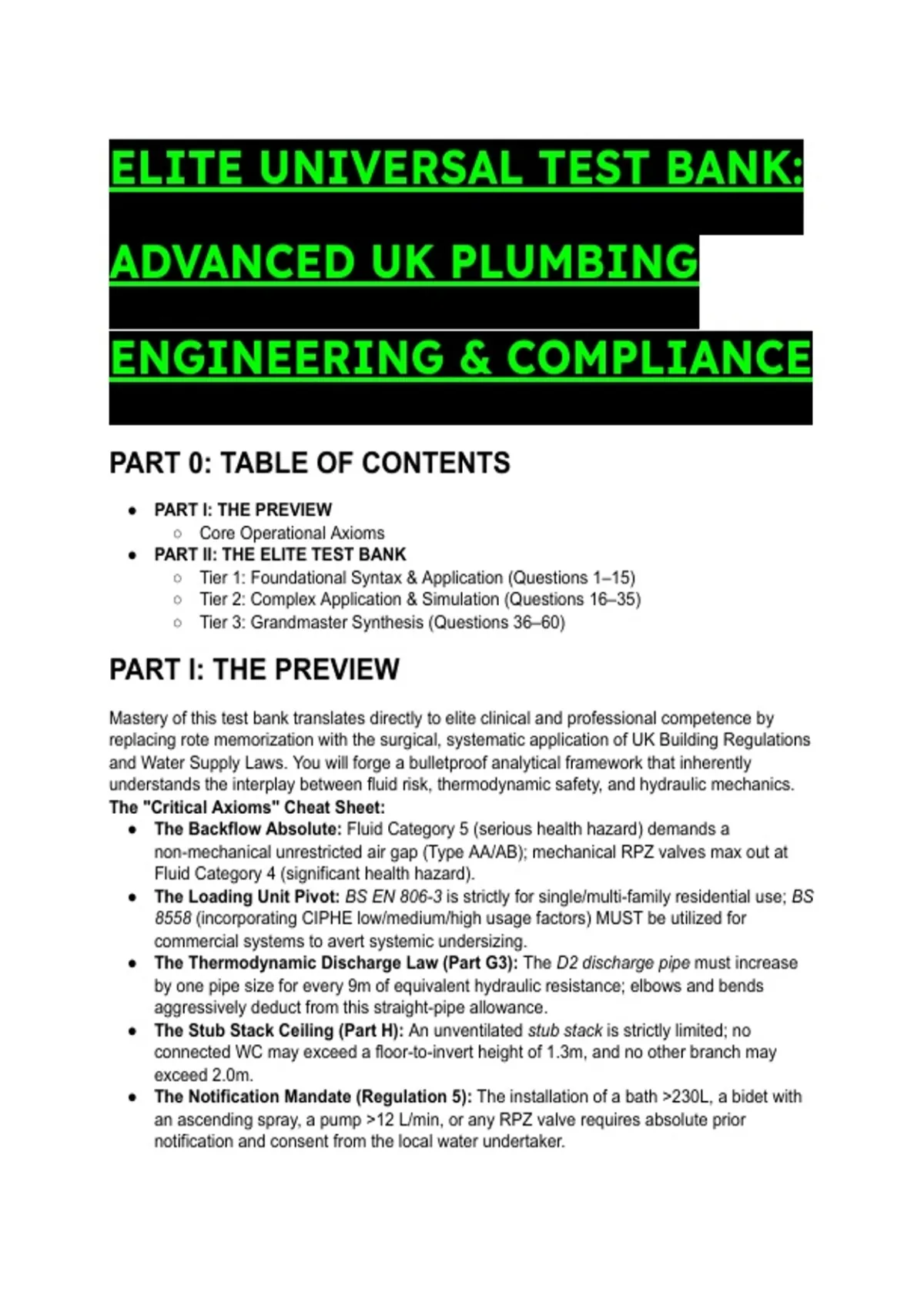

ELITE UNIVERSAL TEST BANK:
ADVANCED UK PLUMBING
ENGINEERING & COMPLIANCE
PART 0: TABLE OF CONTENTS
● PART I: THE PREVIEW
○ Core Operational Axioms
● PART II: THE ELITE TEST BANK
○ Tier 1: Foundational Syntax & Application (Questions 1–15)
○ Tier 2: Complex Application & Simulation (Questions 16–35)
○ Tier 3: Grandmaster Synthesis (Questions 36–60)
PART I: THE PREVIEW
Mastery of this test bank translates directly to elite clinical and professional competence by
replacing rote memorization with the surgical, systematic application of UK Building Regulations
and Water Supply Laws. You will forge a bulletproof analytical framework that inherently
understands the interplay between fluid risk, thermodynamic safety, and hydraulic mechanics.
The "Critical Axioms" Cheat Sheet:
● The Backflow Absolute: Fluid Category 5 (serious health hazard) demands a
non-mechanical unrestricted air gap (Type AA/AB); mechanical RPZ valves max out at
Fluid Category 4 (significant health hazard).
● The Loading Unit Pivot: BS EN 806-3 is strictly for single/multi-family residential use; BS
8558 (incorporating CIPHE low/medium/high usage factors) MUST be utilized for
commercial systems to avert systemic undersizing.
● The Thermodynamic Discharge Law (Part G3): The D2 discharge pipe must increase
by one pipe size for every 9m of equivalent hydraulic resistance; elbows and bends
aggressively deduct from this straight-pipe allowance.
● The Stub Stack Ceiling (Part H): An unventilated stub stack is strictly limited; no
connected WC may exceed a floor-to-invert height of 1.3m, and no other branch may
exceed 2.0m.
● The Notification Mandate (Regulation 5): The installation of a bath >230L, a bidet with
an ascending spray, a pump >12 L/min, or any RPZ valve requires absolute prior
notification and consent from the local water undertaker.
,PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: A plumbing engineer is installing a ground-floor water closet (WC) with an outlet greater
than 80mm connecting to an unventilated branch discharge pipe. Based on the principles of
Building Regulations Part H, what is the MAXIMUM allowable length for this branch pipe? A) 10
meters B) 6 meters C) 15 meters D) 3 meters
● The Answer: C (15 meters)
● Distractor Analysis:
○ A is incorrect: 10 meters is an arbitrary novice assumption not supported by Part H
parameters.
○ B is incorrect: 6 meters applies to a single WC on a ventilated branch or older
legacy codes, not the absolute max for an unventilated 100mm pipe.
○ D is incorrect: 3 meters is the maximum unventilated branch length for a 40mm
washbasin, not a WC.
The Mentor's Analysis: Building Regulations Part H (Table 2) strictly caps unventilated branch
pipes for WCs with outlets >80mm at 15 meters, utilizing a minimum 100mm pipe diameter with
a gradient between 18mm to 90mm per meter.
Appliance Max Branch Length Min Pipe Dia. Gradient
WC (>80mm) 15m 100mm 18mm - 90mm/m
Washbasin 3m 40mm 18mm - 44mm/m
Professional/Academic Intuition: Mass requires momentum; cap unventilated 100mm WC
branches at 15 meters to prevent induced siphonage.
Q2: When calculating domestic water consumption for a new dwelling in England, a developer
opts for the fittings approach under Building Regulations Part G. What is the MAXIMUM
permissible flow rate for a shower to comply with the standard 125 litres/person/day target? A)
12 l/min B) 10 l/min C) 8 l/min D) 6 l/min
● The Answer: B (10 l/min)
● Distractor Analysis:
○ A is incorrect: 12 l/min exceeds the statutory limit and would require the complex
calculator method to offset the excess consumption elsewhere.
○ C is incorrect: 8 l/min is the maximum allowable flow rate for sink taps, not showers.
○ D is incorrect: 6 l/min is the maximum allowable flow rate for basin taps.
The Mentor's Analysis: The fittings approach provides hard-deck maximums to bypass the
complex Water Efficiency Calculator. Showers are strictly capped at 10 l/min to automatically
meet the 125 l/p/d baseline. Professional/Academic Intuition: In the fittings approach,
showers max at 10 l/min, sinks at 8 l/min, and basins at 6 l/min.
Q3: According to the Water Supply (Water Fittings) Regulations 1999, which of the following
operations IMMEDIATELY triggers a Regulation 5 notification to the water undertaker? A)
Replacing an existing washbasin with an identical model. B) Installing a pump drawing 10 litres
per minute. C) Installing a bath with a capacity of 210 litres. D) Installing a bidet with an
ascending spray.
● The Answer: D (Installing a bidet with an ascending spray.)
● Distractor Analysis:
○ A is incorrect: Routine replacement of standard fittings by an approved contractor is
, exempt from notification.
○ B is incorrect: Pumps only trigger notification if they draw more than 12 litres per
minute.
○ C is incorrect: Baths only trigger notification if their capacity, measured to the center
line of the overflow, exceeds 230 litres.
The Mentor's Analysis: Ascending spray bidets present a severe back-siphonage risk (Fluid
Category 5) directly into submerged anatomy, making notification non-negotiable under
Regulation 5. Professional/Academic Intuition: If a fitting submerges the inlet in biological
waste or holds massive volume (>230L, >12 L/min), notify the undertaker.
Q4: A commercial premises uses an automated chemical dispenser classified as a significant
health hazard due to low-toxicity chemicals. Which Fluid Category and backflow device is the
MOST APPROPRIATE? A) Fluid Category 3; Double Check Valve B) Fluid Category 4;
Reduced Pressure Zone (RPZ) Valve C) Fluid Category 5; Type AB Air Gap D) Fluid Category
2; Single Check Valve
● The Answer: B (Fluid Category 4; Reduced Pressure Zone (RPZ) Valve)
● Distractor Analysis:
○ A is incorrect: Category 3 applies to slight health hazards (e.g., domestic washing
machines), which under-protects against a significant hazard.
○ C is incorrect: Category 5 requires an air gap and applies to serious health hazards
(pathogens/faecal matter), which is an over-specification here.
○ D is incorrect: Category 2 is for aesthetic changes (temperature/taste), not chemical
toxicity.
The Mentor's Analysis: The phrasing "significant health hazard" is the statutory definition of
Fluid Category 4, which is the exact operational threshold for an RPZ valve.
Professional/Academic Intuition: Category 3 is slight (Double Check), Category 4 is
significant (RPZ), Category 5 is serious (Air Gap).
Q5: Under Building Regulations Part G3 for unvented hot water storage systems, what is the
FIRST strict requirement for the primary discharge pipe (D1) connecting the temperature relief
valve to the tundish? A) It must be fabricated exclusively from cross-linked polyethylene (PE-X).
B) It must have a vertical drop of at least 300mm. C) It must be made of metal and not less than
the nominal outlet size of the safety device. D) It must feature an air admittance valve.
● The Answer: C (It must be made of metal and not less than the nominal outlet size of the
safety device.)
● Distractor Analysis:
○ A is incorrect: Plastic (PE-X) is permissible for the secondary D2 pipe if BS 7291
compliant, but D1 must be metal.
○ B is incorrect: The 300mm vertical drop requirement applies to the D2 pipe
immediately below the tundish, not the D1 pipe.
○ D is incorrect: Air admittance valves manage DWV negative pressure, not
thermodynamic relief discharge.
The Mentor's Analysis: D1 captures water directly at 100°C. Therefore, Part G3 dictates it
must be metal and must strictly match the valve's outlet diameter to prevent back-pressure.
Professional/Academic Intuition: D1 is the metal conduit of raw thermal energy; D2 is the
managed, observable exit route.
Q6: When utilizing BS EN 806-3 for domestic pipe sizing, one Loading Unit (LU) is universally
equivalent to which draw-off flow rate? A) 0.5 l/s B) 0.1 l/s C) 1.0 l/s D) 0.2 l/s
● The Answer: B (0.1 l/s)
● Distractor Analysis:
