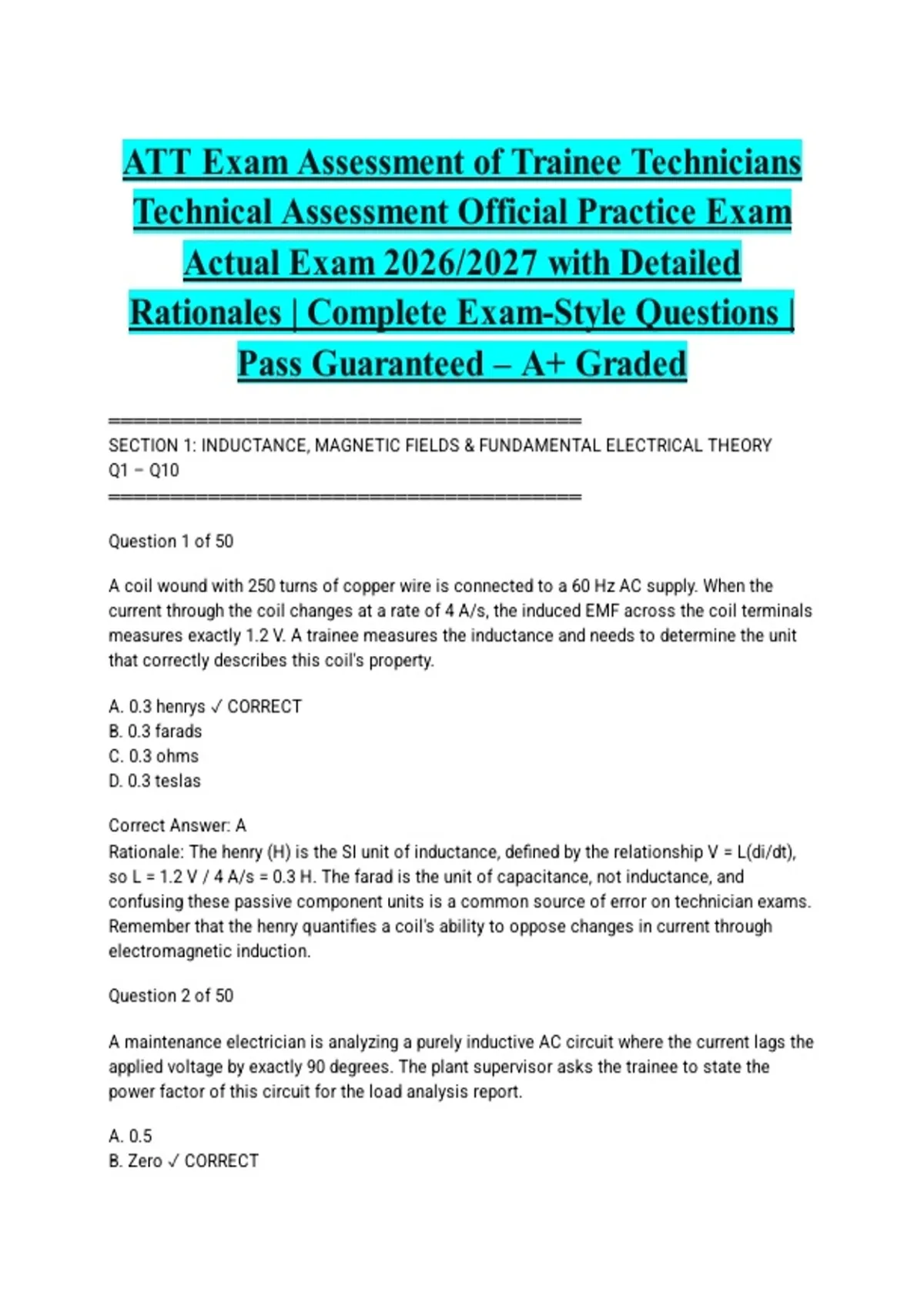

ATT Exam Assessment of Trainee Technicians
Technical Assessment Official Practice Exam
Actual Exam 2026/2027 with Detailed
Rationales | Complete Exam-Style Questions |
Pass Guaranteed – A+ Graded
══════════════════════════════════════
SECTION 1: INDUCTANCE, MAGNETIC FIELDS & FUNDAMENTAL ELECTRICAL THEORY
Q1 – Q10
══════════════════════════════════════
Question 1 of 50
A coil wound with 250 turns of copper wire is connected to a 60 Hz AC supply. When the
current through the coil changes at a rate of 4 A/s, the induced EMF across the coil terminals
measures exactly 1.2 V. A trainee measures the inductance and needs to determine the unit
that correctly describes this coil's property.
A. 0.3 henrys ✓ CORRECT
B. 0.3 farads
C. 0.3 ohms
D. 0.3 teslas
Correct Answer: A
Rationale: The henry (H) is the SI unit of inductance, defined by the relationship V = L(di/dt),
so L = 1.2 V / 4 A/s = 0.3 H. The farad is the unit of capacitance, not inductance, and
confusing these passive component units is a common source of error on technician exams.
Remember that the henry quantifies a coil's ability to oppose changes in current through
electromagnetic induction.
Question 2 of 50
A maintenance electrician is analyzing a purely inductive AC circuit where the current lags the
applied voltage by exactly 90 degrees. The plant supervisor asks the trainee to state the
power factor of this circuit for the load analysis report.
A. 0.5
B. Zero ✓ CORRECT
,C. 0.866
D. Unity
Correct Answer: B
Rationale: In a purely inductive circuit, the 90-degree phase angle between voltage and current
produces a power factor of cos 90° = 0, meaning no real power is delivered to the load
despite current flow. Selecting unity power factor confuses the circuit with a purely resistive
load where voltage and current are in phase. On the ATT exam, recall that ELI the ICE man
reminds you that voltage leads current in an inductive circuit, resulting in zero power factor.
Question 3 of 50
A maintenance technician is troubleshooting an RL series circuit containing a 30 Ω resistor
and a 40 Ω inductive reactance. The circuit is energized from a 120 V AC source. The trainee
needs to calculate the total impedance to determine if the circuit breaker rating is
appropriate.
A. 70 Ω
B. 10 Ω
C. 50 Ω ✓ CORRECT
D. 1200 Ω
Correct Answer: C
Rationale: In an RL series circuit, impedance is calculated using the Pythagorean theorem Z =
√(R² + XL²), which yields √(30² + 40²) = √2500 = 50 Ω. Simply adding the resistance and
inductive reactance arithmetically gives 70 Ω, which is a common trap that ignores the
90-degree phase relationship between resistive and reactive components. Always sketch the
impedance triangle first to avoid confusing series addition with vector addition.
Question 4 of 50
A technician is analyzing the magnetic field around a current-carrying conductor in a motor
stator winding. Using the right-hand rule, the trainee must determine the direction of the
magnetic flux when conventional current flows upward through a vertical conductor.
A. Clockwise around the conductor when viewed from above
B. Radially outward from the conductor surface
C. Parallel to the conductor in the same direction as current flow
D. Counter-clockwise around the conductor when viewed from above ✓ CORRECT
Correct Answer: D
Rationale: The right-hand rule for a straight conductor states that grasping the conductor with
the thumb pointing in the direction of conventional current causes the fingers to curl in the
direction of magnetic flux, which is counter-clockwise when viewed from above. Viewing
, from below reverses the apparent rotation direction, making that choice a perspective trap.
Trainees should physically practice the right-hand grip rule, as motor and generator theory
questions on the ATT exam rely heavily on this fundamental principle.
Question 5 of 50
A 0.5 H inductor carries a steady DC current of 4 A. The circuit breaker suddenly opens,
causing the current to collapse to zero in 20 milliseconds. A trainee calculates the average
induced EMF across the inductor terminals during this switching event.
A. 100 V ✓ CORRECT
B. 80 V
C. 0.01 V
D. 200 V
Correct Answer: A
Rationale: The average induced EMF is calculated using V = L(ΔI/Δt), which gives 0.5 H × (4 A
/ 0.020 s) = 100 V, demonstrating the inductor's property of generating a high voltage when
current is rapidly interrupted. Multiplying 0.5 × 4 × 0.020 to get 0.04 V or similar errors result
from misunderstanding the time rate of change relationship. On the ATT exam, remember that
inductors oppose changes in current, and rapid switching events produce dangerously high
induced voltages that can damage insulation and contacts.
Question 6 of 50
A 5 H inductor and a 10 H inductor are connected in series aiding, with a mutual inductance
of 2 H between them. A trainee calculates the total equivalent inductance for the circuit
diagram.
A. 15 H
B. 19 H ✓ CORRECT
C. 13 H
D. 7 H
Correct Answer: B
Rationale: For series-aiding inductors, the total equivalent inductance is Leq = L1 + L2 + 2M,
which gives 5 + 10 + 2(2) = 19 H, accounting for the mutual flux that reinforces the
self-induced flux. Using 5 + 10 + 2 = 17 H or simply adding 5 + 10 = 15 H ignores the proper
coefficient of 2 in the mutual inductance term. On the ATT exam, carefully note whether the
connection is series-aiding or series-opposing, as the sign before 2M changes accordingly.
Question 7 of 50
