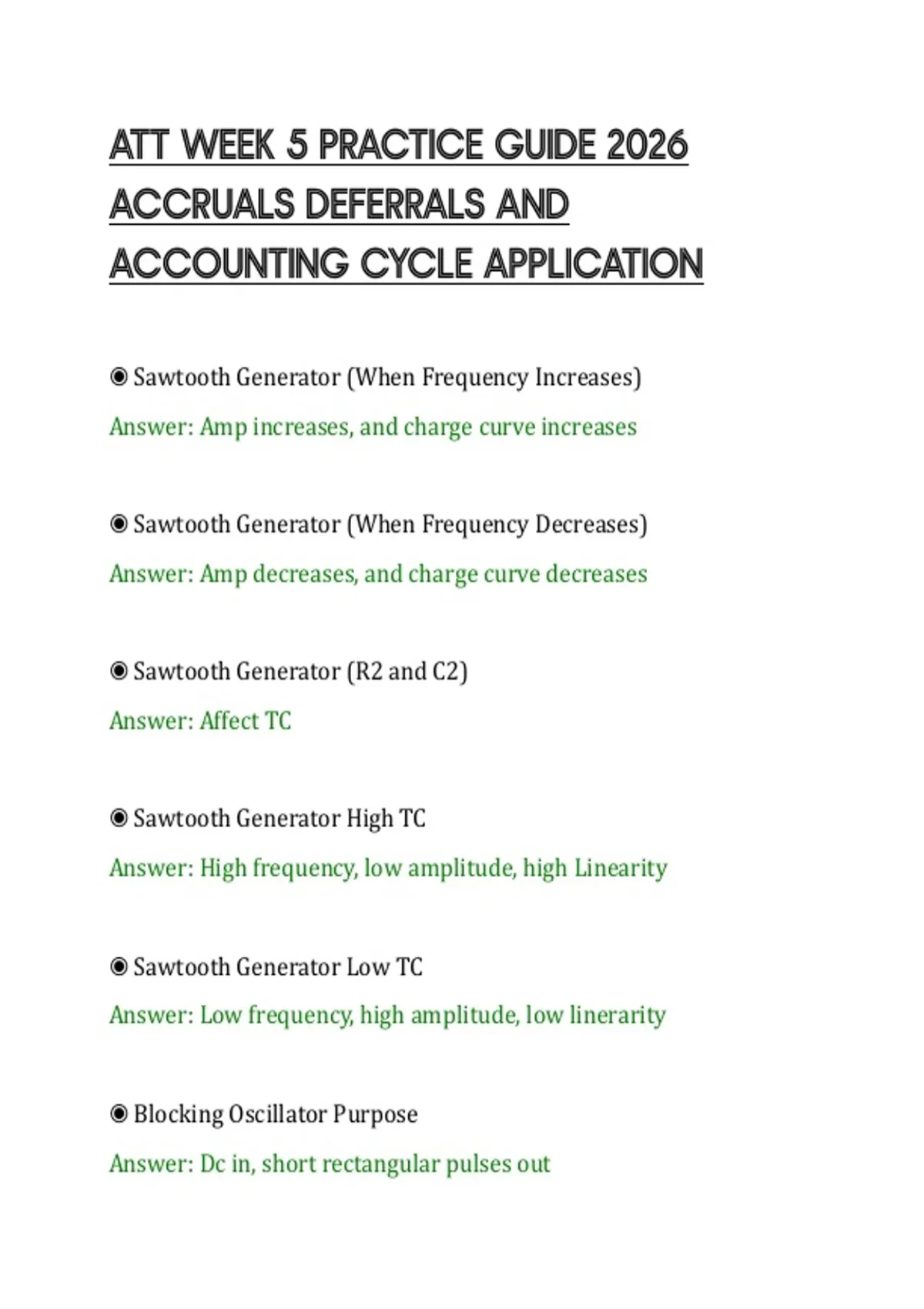

ATT WEEK 5 PRACTICE GUIDE 2026 ACCRUALS DEFERRALS AND ACCOUNTING CYCLE APPLICATION

ATT WEEK 5 PRACTICE GUIDE 2026
ACCRUALS DEFERRALS AND
ACCOUNTING CYCLE APPLICATION

◉ Sawtooth Generator (When Frequency Increases)
Answer: Amp increases, and charge curve increases


◉ Sawtooth Generator (When Frequency Decreases)
Answer: Amp decreases, and charge curve decreases


◉ Sawtooth Generator (R2 and C2)
Answer: Affect TC


◉ Sawtooth Generator High TC
Answer: High frequency, low amplitude, high Linearity


◉ Sawtooth Generator Low TC
Answer: Low frequency, high amplitude, low linerarity


◉ Blocking Oscillator Purpose
Answer: Dc in, short rectangular pulses out

, ◉ A Blocking Oscillator is
Answer: any oscillator that cuts off oscillations at a predetermined
time


◉ Free Running Means
Answer: No input is required


◉ Free Running Oscillator (Vcc determines)
Answer: Amplitude


◉ Free Running Oscillator (D1)
Answer: Prevents inductive kickback


◉ Inductive Kickback
Answer: Spike in voltage from collapse of magnetic field


◉ Triggered Blocking Oscillator Needs
Answer: An input signal


◉ Purpose of Triggered Blocking Oscillator
Answer: Improves shape of input pulses
