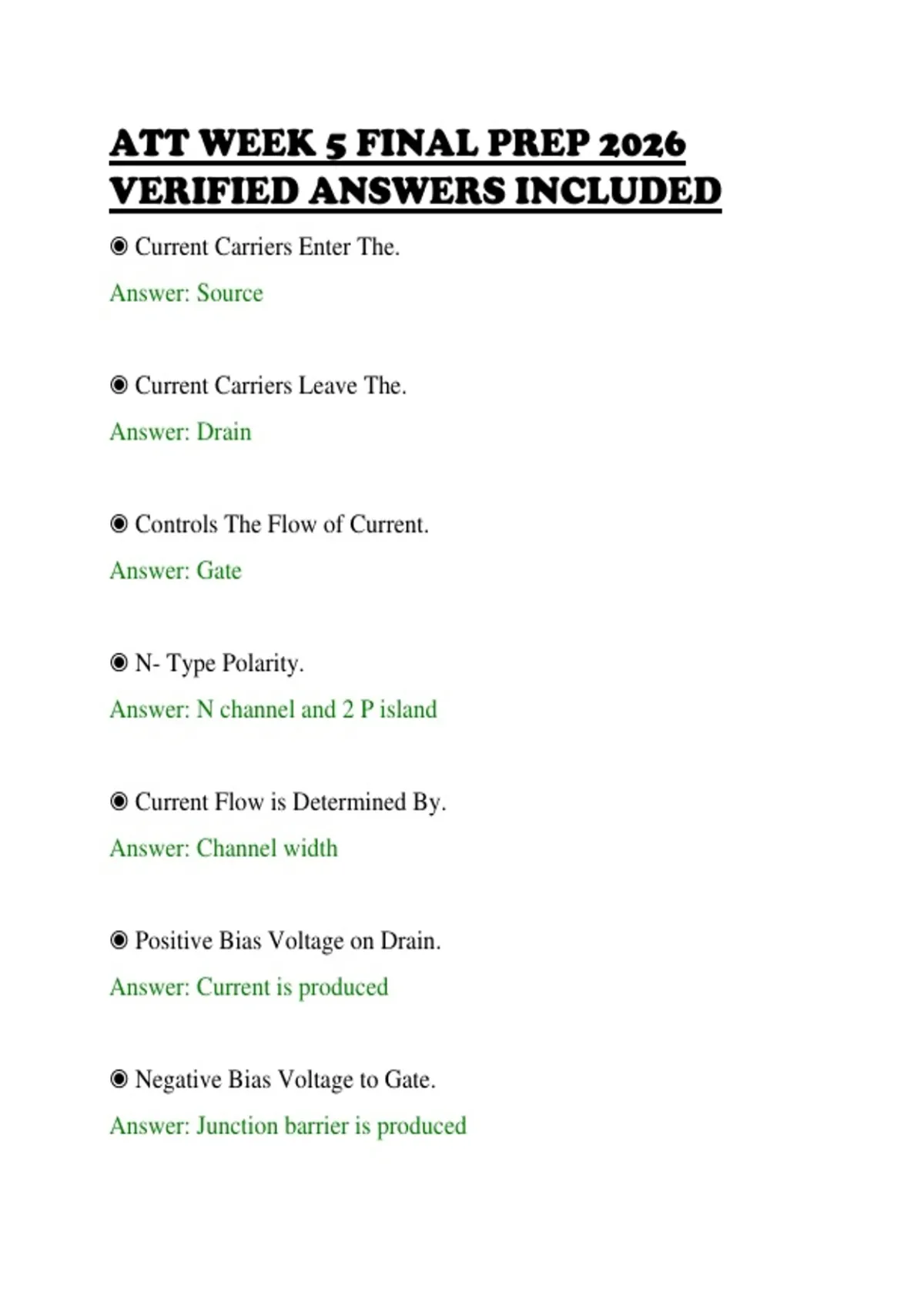

ATT WEEK 5 FINAL PREP 2026 VERIFIED ANSWERS INCLUDED

Content preview

ATT WEEK 5 FINAL PREP 2026
VERIFIED ANSWERS INCLUDED
◉ Current Carriers Enter The.
Answer: Source


◉ Current Carriers Leave The.
Answer: Drain


◉ Controls The Flow of Current.
Answer: Gate


◉ N- Type Polarity.
Answer: N channel and 2 P island


◉ Current Flow is Determined By.
Answer: Channel width


◉ Positive Bias Voltage on Drain.
Answer: Current is produced


◉ Negative Bias Voltage to Gate.
Answer: Junction barrier is produced

,◉ Large Increase in Gate Voltage.
Answer: Cut off


◉ Large Decrease in Gate Voltage.
Answer: Saturation


◉ A Forward Bias Gate Causes.
Answer: Damage to components


◉ A Small Reverse Bias in the Gate Controls.
Answer: A large drain current


◉ Class A.
Answer: Mid point


◉ Class B.
Answer: Cut off


◉ Class C.
Answer: Below


◉ Gate Biasing Sources Polarity.
Answer: + drain, - gate

, ◉ Gate Biasing Disadvatage.
Answer: Unstable


◉ Self Biasing Sources Polarity.
Answer: + drain


◉ Self Biasing Gate Must Be.
Answer: Less positive then source


◉ Voltage Divider Bias is.
Answer: A combination of Gate and Self Biasing


◉ Most Common FET.
Answer: Amplifier


◉ Difference between Bipolar and FET.
Answer: FET has more resistance


◉ Transconductance (Gm).
Answer: Amount of control of input (voltage) over output (current)


◉ Comparing Input and Output.
