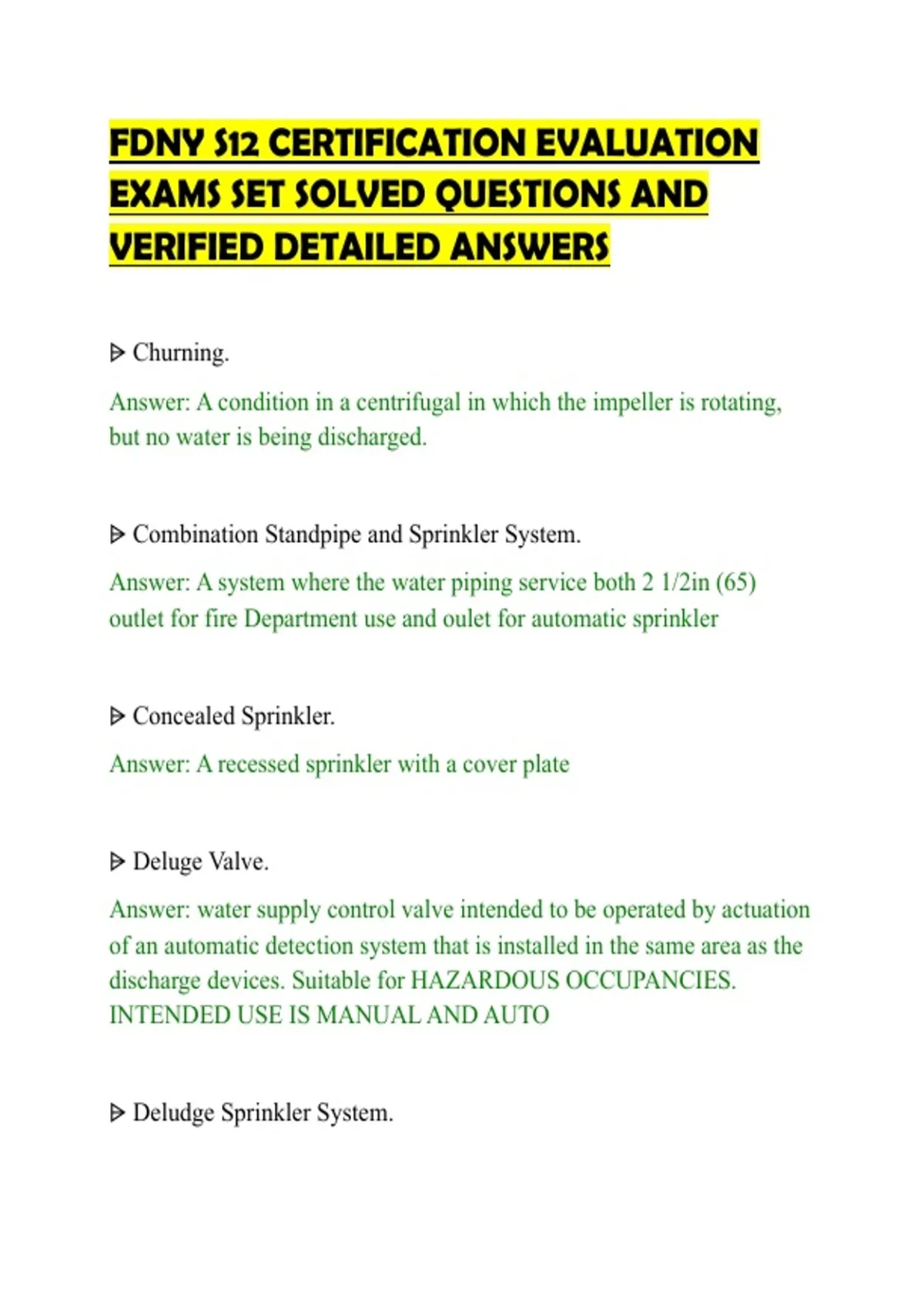

FDNY S12 CERTIFICATION EVALUATION
EXAMS SET SOLVED QUESTIONS AND
VERIFIED DETAILED ANSWERS
⩥ Churning.
Answer: A condition in a centrifugal in which the impeller is rotating,
but no water is being discharged.
⩥ Combination Standpipe and Sprinkler System.
Answer: A system where the water piping service both 2 1/2in (65)
outlet for fire Department use and oulet for automatic sprinkler
⩥ Concealed Sprinkler.
Answer: A recessed sprinkler with a cover plate
⩥ Deluge Valve.
Answer: water supply control valve intended to be operated by actuation
of an automatic detection system that is installed in the same area as the
discharge devices. Suitable for HAZARDOUS OCCUPANCIES.
INTENDED USE IS MANUAL AND AUTO
⩥ Deludge Sprinkler System.
,Answer: A sprinkler system employing open sprinklers that are attached
to a piping system that is connected to a water supply through a VALVE
that is opened of a DETECTION SYSTEM installed in the same area as
the sprinklers
⩥ Dry Pipe Sprinkler System.
Answer: A sprinkler system employing automatic sprinklers that are
attached to a piping system containing air or nitrogen under pressure.
The release of the air or nitrogen,(as from the opening of a sprinkler)
results in the water pressure opening a valve known as a dry pipe valve,
resulting in the flow of water into the piping system and out of the fused
sprinklers heads.
⩥ Dry Sprinkler.
Answer: A sprinkler secured in an extension nipple that has a seal at the
inlet to prevent water from entering the nipple until the sprinkler
operates. May be configured with an upright, pendent or sidewall
sprinkler. AUTO/NON_AUTO
⩥ Dry Standpipe.
Answer: A standpipe system designed to have piping contain water only
when the system is being utilized (NO AUTOMATIC WATER SUPPLY)
⩥ Fire Department Connection.
, Answer: A connection, normally on the exterior of the building.
(FORMERLY KNOW AS SIAMESE CONNECTION)
⩥ Fire Hose.
Answer: A flexible conduit constructed of one or more reinforcements
(JACKETS),
⩥ Fire Hydrant.
Answer: A valve connection on a water supply system having one or
more outlets and that is used to supply hose and fire department pumps
with water.
⩥ Bulb Sprinkler.
Answer: A sprinkler operated by heat breaking a glass bulb filled with a
non-freezing liquid with diamiter that vary from 3mm for quick response
sprinklers to 5mm for standard response sprinklers.
⩥ Hose Connection.
Answer: a combination of equipment provided for connection of a hose
to the standpipe system that includes a hose valve with a threaded outlet.
⩥ Hose Station.
Answer: a combination of a hose rack, hose nozzle, hose, and hose
connection.
