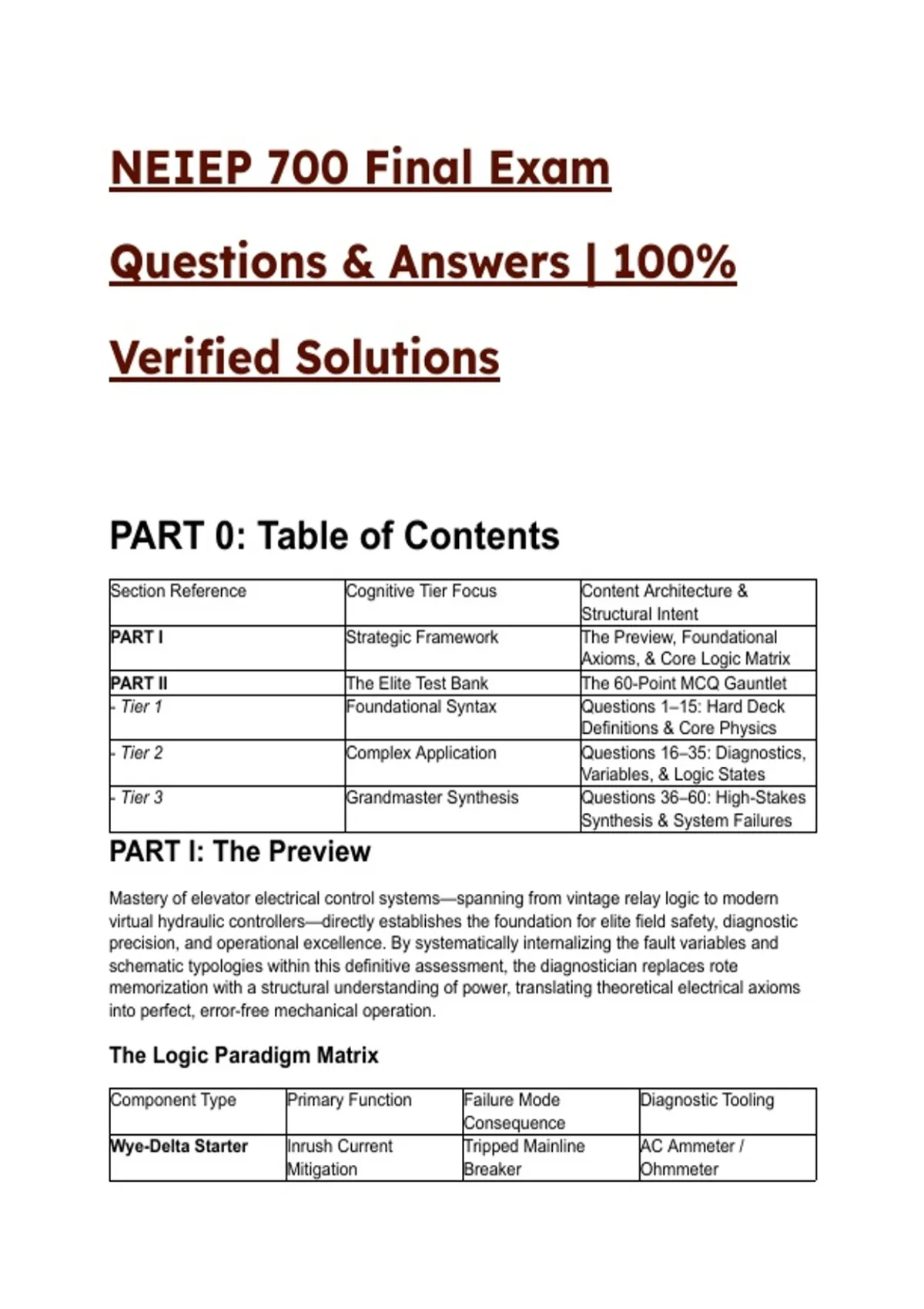

NEIEP 700 Final Exam
Questions & Answers | 100%
Verified Solutions
PART 0: Table of Contents
Section Reference Cognitive Tier Focus Content Architecture &
Structural Intent
PART I Strategic Framework The Preview, Foundational
Axioms, & Core Logic Matrix
PART II The Elite Test Bank The 60-Point MCQ Gauntlet
- Tier 1 Foundational Syntax Questions 1–15: Hard Deck
Definitions & Core Physics
- Tier 2 Complex Application Questions 16–35: Diagnostics,
Variables, & Logic States
- Tier 3 Grandmaster Synthesis Questions 36–60: High-Stakes
Synthesis & System Failures
PART I: The Preview
Mastery of elevator electrical control systems—spanning from vintage relay logic to modern
virtual hydraulic controllers—directly establishes the foundation for elite field safety, diagnostic
precision, and operational excellence. By systematically internalizing the fault variables and
schematic typologies within this definitive assessment, the diagnostician replaces rote
memorization with a structural understanding of power, translating theoretical electrical axioms
into perfect, error-free mechanical operation.
The Logic Paradigm Matrix
Component Type Primary Function Failure Mode Diagnostic Tooling
Consequence
Wye-Delta Starter Inrush Current Tripped Mainline AC Ammeter /
Mitigation Breaker Ohmmeter
,Component Type Primary Function Failure Mode Diagnostic Tooling
Consequence
Shading Coil Magnetic Flux Severe Relay Chatter / Visual Inspection /
Sustainment AC Hum Auditory
Selsyn Motor Synchronous Position Floor Stop Inaccuracy / Oscilloscope /
Tracking Selector Desync Voltmeter
Shunt Trip Breaker Mainline Fire Safety Total Power Loss / Multimeter (Voltage
Isolation Code Violation check)
Pico Fuse Solid-State Board Logic Gate Incineration Multimeter (Continuity)
Protection
● The "Critical Axioms" Cheat Sheet
○ Absolute Circuit Isolation: Power must be strictly removed, and one component
lead isolated, prior to initiating any resistance measurements to prevent false
parallel readings through adjacent logic board traces.
○ Surgical Amperage Metering: Ammeters must absolutely never be connected in
parallel across a voltage source; this establishes a dead short, bypassing circuit
resistance and initiating catastrophic internal meter failure.
○ Alternating Current Physics: Alternating current relays fundamentally rely on
shading coils to mitigate the hum and physical chatter induced by inherent
zero-crossing AC cycle reversal.
○ Solid State and Capacitance Safety: The discharging of high-voltage capacitors
strictly requires a 10k ohm resistor to safely bleed residual energy; direct shorting
induces explosive thermal events.
○ Schematic Navigation Doctrine: Straight-line wiring diagrams remain the
universal industry standard for tracking the sequence of operations, flattening
complex physical wire harnesses into readable electrical logic sequences.
PART II: The Elite Test Bank
Tier 1 - Foundational Syntax & Application
Q1: A diagnostician is tracing an unfamiliar logic sequence to locate a suspected open contact
in the primary safety string. Based on the principles of circuit tracing and controller
documentation, which format is the MOST APPROPRIATE tooling standard for this task? A) An
architectural hoistway elevation blueprint detailing floor heights B) A physical point-to-point
wiring harness diagram tracking physical cable routing C) A straight-line wiring diagram D) A
three-dimensional isometric component rendering for the machine room
● The Answer: C (A straight-line wiring diagram).
● Distractor Analysis:
○ A is incorrect: Architectural elevations illustrate physical building geometry and
structural placement, offering absolutely no data regarding electrical sequence of
operations or relay logic pathways.
○ B is incorrect: Point-to-point diagrams track physical wire routing through the
controller cabinet, which visually tangles the circuit and obscures the underlying
logic flow necessary for troubleshooting.
○ D is incorrect: Isometric renderings assist mechanics in assembling physical
machinery, lacking the schematic representation required to trace electron flow.
, The Mentor's Analysis: Effective troubleshooting fundamentally requires visualizing logical
states rather than physical wire routing. When tracing an open contact in a vast array of
interconnected components, the immediate priority is isolating the affected sub-circuit logically
before attempting to find it physically. By utilizing a straight-line wiring diagram, the diagnostician
bypasses the trap of visual overload, reading the circuit from positive to negative exactly as the
current flows. Professional/Academic Intuition: Straight-line diagrams are the absolute
diagnostic map; they flatten chaotic physical reality into purely logical sequences of
cause and effect.
Q2: When analyzing the electromechanical actuation of a standard plug-type controller
component, a technician observes that applying voltage causes the internal mechanism to
forcefully snap shut. Based on the principles of relay logic physics, which underlying force is
PRIMARILY responsible for the actuation of this component? A) The residual capacitance
stored within the copper winding discharging across the gap B) The electromagnetic induction
transferring alternating current to adjacent circuits C) The magnetic field generated by the coil
pulling the relay's armature D) The thermal expansion of an internal bimetallic strip responding
to line current
● The Answer: C (The magnetic field generated by the coil pulling the relay's armature).
● Distractor Analysis:
○ A is incorrect: Capacitance stores electrical charge on logic boards; it does not
exert the mechanical kinetic pull required to move a heavy brass and silver
armature assembly.
○ B is incorrect: Induction bleeding into adjacent circuits constitutes electrical
crosstalk or transformer action, not the primary kinetic actuating force of a
directional relay.
○ D is incorrect: Thermal expansion mechanisms apply to overcurrent heaters
designed to trip under load, entirely unrelated to standard, instantaneous relay
armature actuation.
The Mentor's Analysis: Electromechanical relay mechanics operate exclusively on the
conversion of electrical potential into magnetic force. When diagnosing an unresponsive or
sluggish armature, the immediate priority is verifying continuous coil integrity to ensure optimal
magnetic flux generation. By focusing on the magnetic field, the technician bypasses the
common novice error of replacing mechanically sound relays that are merely suffering from low
voltage or open copper windings. Professional/Academic Intuition: A continuous coil is the
heart of the relay; without a robust magnetic field, mechanical actuation remains
physically impossible.
Q3: A modern elevator controller registers a hall call but does not immediately reverse direction
to answer it, instead continuing its current upward trajectory until the highest registered cab and
hall calls are cleared. Based on the principles of elevator dispatching logic, which system
terminology is MOST ACCURATE in describing this behavior? A) Single Automatic Push Button
(SAPB) protocol B) Synchronous Selsyn Dispatching logic C) Selective collective control D)
Mechanical Stepper Routing matrix
● The Answer: C (Selective collective control).
● Distractor Analysis:
○ A is incorrect: SAPB systems only register and answer one specific call at a time,
entirely locking out all other inputs until the current passenger has completed their
ride.
○ B is incorrect: Selsyn dispatching refers to the mechanical position selector tracking
the physical car in the hoistway, not the logical call-answering software algorithm.
Questions & Answers | 100%
Verified Solutions
PART 0: Table of Contents
Section Reference Cognitive Tier Focus Content Architecture &
Structural Intent
PART I Strategic Framework The Preview, Foundational
Axioms, & Core Logic Matrix
PART II The Elite Test Bank The 60-Point MCQ Gauntlet
- Tier 1 Foundational Syntax Questions 1–15: Hard Deck
Definitions & Core Physics
- Tier 2 Complex Application Questions 16–35: Diagnostics,
Variables, & Logic States
- Tier 3 Grandmaster Synthesis Questions 36–60: High-Stakes
Synthesis & System Failures
PART I: The Preview
Mastery of elevator electrical control systems—spanning from vintage relay logic to modern
virtual hydraulic controllers—directly establishes the foundation for elite field safety, diagnostic
precision, and operational excellence. By systematically internalizing the fault variables and
schematic typologies within this definitive assessment, the diagnostician replaces rote
memorization with a structural understanding of power, translating theoretical electrical axioms
into perfect, error-free mechanical operation.
The Logic Paradigm Matrix
Component Type Primary Function Failure Mode Diagnostic Tooling
Consequence
Wye-Delta Starter Inrush Current Tripped Mainline AC Ammeter /
Mitigation Breaker Ohmmeter
,Component Type Primary Function Failure Mode Diagnostic Tooling
Consequence
Shading Coil Magnetic Flux Severe Relay Chatter / Visual Inspection /
Sustainment AC Hum Auditory
Selsyn Motor Synchronous Position Floor Stop Inaccuracy / Oscilloscope /
Tracking Selector Desync Voltmeter
Shunt Trip Breaker Mainline Fire Safety Total Power Loss / Multimeter (Voltage
Isolation Code Violation check)
Pico Fuse Solid-State Board Logic Gate Incineration Multimeter (Continuity)
Protection
● The "Critical Axioms" Cheat Sheet
○ Absolute Circuit Isolation: Power must be strictly removed, and one component
lead isolated, prior to initiating any resistance measurements to prevent false
parallel readings through adjacent logic board traces.
○ Surgical Amperage Metering: Ammeters must absolutely never be connected in
parallel across a voltage source; this establishes a dead short, bypassing circuit
resistance and initiating catastrophic internal meter failure.
○ Alternating Current Physics: Alternating current relays fundamentally rely on
shading coils to mitigate the hum and physical chatter induced by inherent
zero-crossing AC cycle reversal.
○ Solid State and Capacitance Safety: The discharging of high-voltage capacitors
strictly requires a 10k ohm resistor to safely bleed residual energy; direct shorting
induces explosive thermal events.
○ Schematic Navigation Doctrine: Straight-line wiring diagrams remain the
universal industry standard for tracking the sequence of operations, flattening
complex physical wire harnesses into readable electrical logic sequences.
PART II: The Elite Test Bank
Tier 1 - Foundational Syntax & Application
Q1: A diagnostician is tracing an unfamiliar logic sequence to locate a suspected open contact
in the primary safety string. Based on the principles of circuit tracing and controller
documentation, which format is the MOST APPROPRIATE tooling standard for this task? A) An
architectural hoistway elevation blueprint detailing floor heights B) A physical point-to-point
wiring harness diagram tracking physical cable routing C) A straight-line wiring diagram D) A
three-dimensional isometric component rendering for the machine room
● The Answer: C (A straight-line wiring diagram).
● Distractor Analysis:
○ A is incorrect: Architectural elevations illustrate physical building geometry and
structural placement, offering absolutely no data regarding electrical sequence of
operations or relay logic pathways.
○ B is incorrect: Point-to-point diagrams track physical wire routing through the
controller cabinet, which visually tangles the circuit and obscures the underlying
logic flow necessary for troubleshooting.
○ D is incorrect: Isometric renderings assist mechanics in assembling physical
machinery, lacking the schematic representation required to trace electron flow.
, The Mentor's Analysis: Effective troubleshooting fundamentally requires visualizing logical
states rather than physical wire routing. When tracing an open contact in a vast array of
interconnected components, the immediate priority is isolating the affected sub-circuit logically
before attempting to find it physically. By utilizing a straight-line wiring diagram, the diagnostician
bypasses the trap of visual overload, reading the circuit from positive to negative exactly as the
current flows. Professional/Academic Intuition: Straight-line diagrams are the absolute
diagnostic map; they flatten chaotic physical reality into purely logical sequences of
cause and effect.
Q2: When analyzing the electromechanical actuation of a standard plug-type controller
component, a technician observes that applying voltage causes the internal mechanism to
forcefully snap shut. Based on the principles of relay logic physics, which underlying force is
PRIMARILY responsible for the actuation of this component? A) The residual capacitance
stored within the copper winding discharging across the gap B) The electromagnetic induction
transferring alternating current to adjacent circuits C) The magnetic field generated by the coil
pulling the relay's armature D) The thermal expansion of an internal bimetallic strip responding
to line current
● The Answer: C (The magnetic field generated by the coil pulling the relay's armature).
● Distractor Analysis:
○ A is incorrect: Capacitance stores electrical charge on logic boards; it does not
exert the mechanical kinetic pull required to move a heavy brass and silver
armature assembly.
○ B is incorrect: Induction bleeding into adjacent circuits constitutes electrical
crosstalk or transformer action, not the primary kinetic actuating force of a
directional relay.
○ D is incorrect: Thermal expansion mechanisms apply to overcurrent heaters
designed to trip under load, entirely unrelated to standard, instantaneous relay
armature actuation.
The Mentor's Analysis: Electromechanical relay mechanics operate exclusively on the
conversion of electrical potential into magnetic force. When diagnosing an unresponsive or
sluggish armature, the immediate priority is verifying continuous coil integrity to ensure optimal
magnetic flux generation. By focusing on the magnetic field, the technician bypasses the
common novice error of replacing mechanically sound relays that are merely suffering from low
voltage or open copper windings. Professional/Academic Intuition: A continuous coil is the
heart of the relay; without a robust magnetic field, mechanical actuation remains
physically impossible.
Q3: A modern elevator controller registers a hall call but does not immediately reverse direction
to answer it, instead continuing its current upward trajectory until the highest registered cab and
hall calls are cleared. Based on the principles of elevator dispatching logic, which system
terminology is MOST ACCURATE in describing this behavior? A) Single Automatic Push Button
(SAPB) protocol B) Synchronous Selsyn Dispatching logic C) Selective collective control D)
Mechanical Stepper Routing matrix
● The Answer: C (Selective collective control).
● Distractor Analysis:
○ A is incorrect: SAPB systems only register and answer one specific call at a time,
entirely locking out all other inputs until the current passenger has completed their
ride.
○ B is incorrect: Selsyn dispatching refers to the mechanical position selector tracking
the physical car in the hoistway, not the logical call-answering software algorithm.
