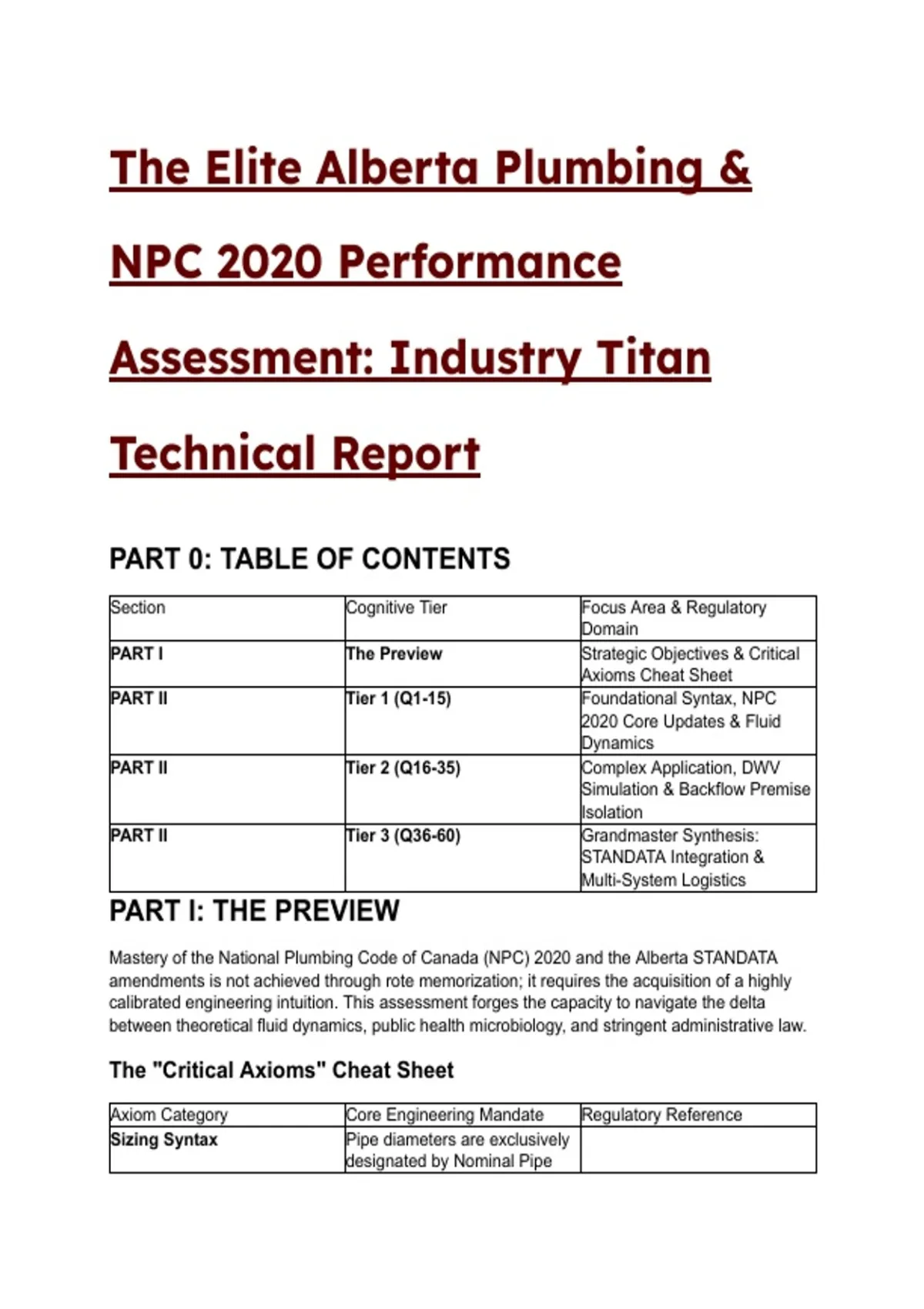

The Elite Alberta Plumbing &
NPC 2020 Performance
Assessment: Industry Titan
Technical Report
PART 0: TABLE OF CONTENTS
Section Cognitive Tier Focus Area & Regulatory
Domain
PART I The Preview Strategic Objectives & Critical
Axioms Cheat Sheet
PART II Tier 1 (Q1-15) Foundational Syntax, NPC
2020 Core Updates & Fluid
Dynamics
PART II Tier 2 (Q16-35) Complex Application, DWV
Simulation & Backflow Premise
Isolation
PART II Tier 3 (Q36-60) Grandmaster Synthesis:
STANDATA Integration &
Multi-System Logistics
PART I: THE PREVIEW
Mastery of the National Plumbing Code of Canada (NPC) 2020 and the Alberta STANDATA
amendments is not achieved through rote memorization; it requires the acquisition of a highly
calibrated engineering intuition. This assessment forges the capacity to navigate the delta
between theoretical fluid dynamics, public health microbiology, and stringent administrative law.
The "Critical Axioms" Cheat Sheet
Axiom Category Core Engineering Mandate Regulatory Reference
Sizing Syntax Pipe diameters are exclusively
designated by Nominal Pipe
,Axiom Category Core Engineering Mandate Regulatory Reference
Size (NPS). Legacy sizes (e.g.,
2.5-inch) are eliminated.
Thermal Violence Hot water generation must
reach 60°C (Legionella control);
terminal discharge capped at
49°C (residential) or 43°C
(healthcare).
DWV Expansion Plastic DWV systems utilizing
alternate storey riser clamps
require an engineered
expansion joint on alternate
floors.
Backflow Firewall Severe hazards (e.g.,
chemicals, hospitals, rainwater)
strictly require a Reduced
Pressure Principle (RP)
assembly or Air Gap.
Hazard Defense Cleanouts in healthcare or labs
must be elevated a minimum of
150 mm above the flood level
rim of the fixture.
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: Under the NPC 2020, an installer is roughing in a drainage trap for a residential clothes
washer that does not discharge into a laundry tray. To properly manage the hydraulic load, what
is the MINIMUM acceptable dimension for the trap and its vertical standpipe? A) NPS 1.5 trap
with a 400 mm standpipe B) NPS 1.5 trap with a 600 mm standpipe C) NPS 2 trap with a 600
mm standpipe D) NPS 2 trap with a 450 mm standpipe
● The Answer: C (NPS 2 trap with a 600 mm standpipe)
● Distractor Analysis:
○ A is incorrect: NPS 1.5 is a legacy standard that violates current NPC 2020 flow
load parameters, and 400 mm is insufficient length.
○ B is incorrect: While the 600 mm standpipe length is technically correct, an NPS 1.5
trap will be overwhelmed by modern washing machine pump velocities.
○ D is incorrect: The trap is correctly sized, but the standpipe fails the 600 mm
minimum vertical drop requirement measured from the trap weir.
The Mentor's Analysis: Modern washing machines eject greywater at velocities that instantly
overwhelm legacy plumbing diameters, causing suds-backing and catastrophic overflow. The
immediate priority is establishing an adequate hydraulic buffer. By utilizing an NPS 2 trap paired
with a minimum 600 mm standpipe, you bypass the common trap of localized flooding during
the spin cycle. Professional/Academic Intuition: Velocity dictates volume; always default
to NPS 2 for mechanical discharge points.
Q2: A commercial retrofit requires routing vent piping for a battery of wall-hung urinals. The
contractor proposes using Type M copper tube for the vent lines located below the flood level
, rim. Based on NPC 2020 material compatibility rules, which conclusion is the MOST
ACCURATE? A) Acceptable, provided the copper is wrapped in a dielectric sleeve. B)
Acceptable, provided the urinals utilize an automated direct flush valve. C) Prohibited; Type K
copper is the minimum standard for acidic waste venting. D) Prohibited; copper tube is
expressly forbidden below the flood level rim of urinals.
● The Answer: D (Prohibited; copper tube is expressly forbidden below the flood level rim
of urinals)
● Distractor Analysis:
○ A is incorrect: Dielectric sleeving mitigates external galvanic corrosion, not internal
chemical degradation from uric acid.
○ B is incorrect: Automated flush frequency dilutes the waste but does not negate the
code prohibition; uric acid concentrates during dormant hours.
○ C is incorrect: The prohibition applies universally to all copper alloys in this specific
application, regardless of wall thickness (Type K, L, or M).
The Mentor's Analysis: Uric salts and acids aggressively attack copper alloys, eventually
neutralizing the pipe wall and leading to structural failure and sewer gas leaks. When facing
material selection for urinal drainage or venting, the immediate priority is absolute chemical
resistance. By utilizing inert polymers (PVC) or coated cast iron, you bypass the common trap of
chronic, behind-the-wall rot. Professional/Academic Intuition: Uric acid defeats copper;
never use copper below the flood rim of a urinal.
Q3: A healthcare facility is overhauling its domestic hot water system. To mathematically
balance the competing biological risks of Legionella proliferation against the physical risk of
patient scalding, which systemic temperature calibration is MANDATORY? A) Generation at
49°C; terminal discharge at 49°C B) Generation at 60°C; terminal discharge at 43°C C)
Generation at 55°C; terminal discharge at 49°C D) Generation at 60°C; terminal discharge at
60°C
● The Answer: B (Generation at 60°C; terminal discharge at 43°C)
● Distractor Analysis:
○ A is incorrect: Generating water at 49°C creates an optimal incubation environment
for Legionella pneumophila colonies.
○ C is incorrect: A 49°C terminal discharge is the maximum allowable for residential
units, but healthcare and senior facilities require a stricter 43°C limit.
○ D is incorrect: Discharging water at 60°C creates an immediate third-degree
scalding hazard, violating basic life-safety axioms.
The Mentor's Analysis: High-performance water systems face dual threats: biological
amplification and thermal trauma. The immediate priority is thermal sterilization followed by
point-of-use mechanical tempering. By utilizing a master thermostatic mixing valve (B125
standard), you bypass the common trap of solving a biological risk by creating a thermal liability.
Professional/Academic Intuition: Sterilize the system at the source (60°C); protect the
human at the terminus (43°C).
Q4: Under Alberta STANDATA 20-PCB-005, a residential basement floor drain requires trap
seal replenishment. If this drain is rendered physically inaccessible by the installation of a heavy
mechanical appliance, which action is MOST APPROPRIATE? A) Periodic manual
replenishment of the trap seal by the homeowner. B) Installation of an automated trap seal
primer or ASSE 1072 barrier device. C) Routing a 1/2-inch condensate line directly into the trap
arm. D) Sealing the floor drain permanently with a mechanical test plug.
● The Answer: B (Installation of an automated trap seal primer or ASSE 1072 barrier
device)
