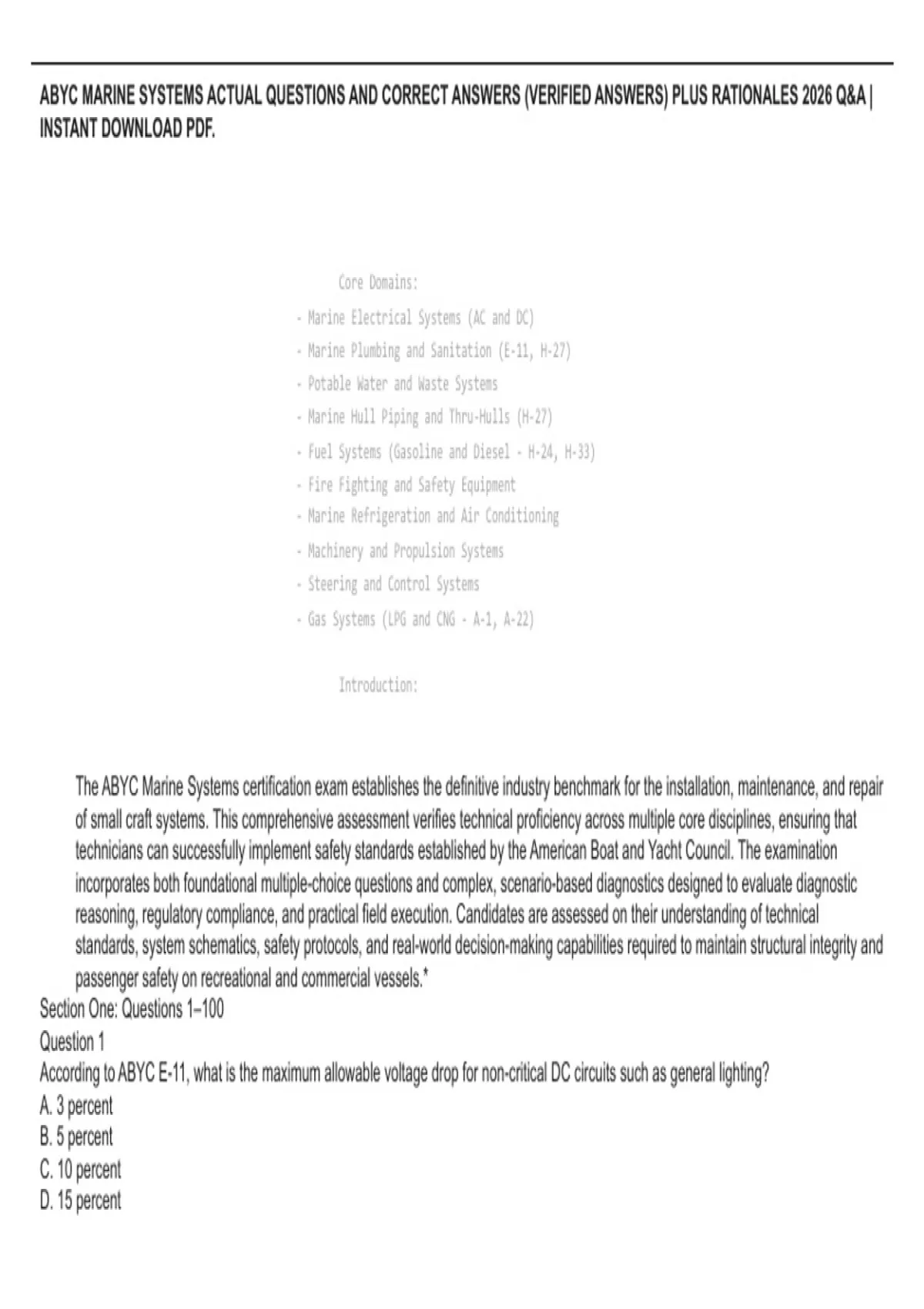

ABYC MARINE SYSTEMS ACTUAL QUESTIONS AND CORRECT ANSWERS (VERIFIED ANSWERS) PLUS RATIONALES 2026 Q&A |
INSTANT DOWNLOAD PDF.
Core Domains:
- Marine Electrical Systems (AC and DC)
- Marine Plumbing and Sanitation (E-11, H-27)
- Potable Water and Waste Systems
- Marine Hull Piping and Thru-Hulls (H-27)
- Fuel Systems (Gasoline and Diesel - H-24, H-33)
- Fire Fighting and Safety Equipment
- Marine Refrigeration and Air Conditioning
- Machinery and Propulsion Systems
- Steering and Control Systems
- Gas Systems (LPG and CNG - A-1, A-22)
Introduction:
The ABYC Marine Systems certification exam establishes the definitive industry benchmark for the installation, maintenance, and repair
of small craft systems. This comprehensive assessment verifies technical proficiency across multiple core disciplines, ensuring that
technicians can successfully implement safety standards established by the American Boat and Yacht Council. The examination
incorporates both foundational multiple-choice questions and complex, scenario-based diagnostics designed to evaluate diagnostic
reasoning, regulatory compliance, and practical field execution. Candidates are assessed on their understanding of technical
standards, system schematics, safety protocols, and real-world decision-making capabilities required to maintain structural integrity and
passenger safety on recreational and commercial vessels.*
Section One: Questions 1–100
Question 1
According to ABYC E-11, what is the maximum allowable voltage drop for non-critical DC circuits such as general lighting?
A. 3 percent
B. 5 percent
C. 10 percent
D. 15 percent
,🟢 C. 10 percent
🔴 RATIONALE: ABYC E-11 states that a maximum of 10% voltage drop is permitted for non-critical circuits. Critical circuits, such as
navigation lights, bilge pumps, and electronics, are strictly limited to a 3% maximum voltage drop to ensure proper operational reliability under
load.
Question 2
When installing a fuel tank in a gasoline-powered vessel, what is the minimum distance required between the fuel tank and any dry-stack
exhaust component?
A. 6 inches
B. 12 inches
C. 18 inches
D. 24 inches
🟢 C. 18 inches
🔴 RATIONALE: ABYC H-24 requires a minimum clearance of 18 inches between a gasoline fuel tank and any dry-stack exhaust or heat-
producing component, unless an effective thermal barrier is installed to prevent excessive radiant heat transfer to the fuel system.
Question 3
A technician is installing an AC shore power system with an isolation transformer. Where must the metallic shield of the isolation transformer
be connected?
A. To the vessel's DC grounding bus
B. To the shore power green grounding wire
C. To the engine negative terminal only
D. To the transformer core only
🟢 B. To the shore power green grounding wire
🔴 RATIONALE: ABYC E-11 dictates that the shield of an isolation transformer must be connected directly to the shore side safety grounding
conductor (green wire) to safely redirect any primary winding faults back to the shore grounding source without transferring stray currents to
the boat's grounding system.
Question 4
What type of valve is required by ABYC H-27 on all thru-hull fittings below the maximum heel waterline?
A. Gate valve
B. Seacock
C. Globe valve
D. Check valve
🟢 B. Seacock
🔴 RATIONALE: ABYC H-27 explicitly mandates that all thru-hull connections positioned below the maximum heeled waterline must be
equipped with a seacock operated by an integrated lever mechanism, securely attached directly to the hull or reinforcing pad to withstand
mechanical stress.
, Question 5
An LPG locker installed on a sailboat must vent to the outside of the vessel. Where must the drain/vent line exit the hull?
A. Above the companionway sliding hatch
B. Below the water line to prevent fumes from escaping into the air
C. Above the waterline, at least two feet away from any hull opening that can be closed
D. Directly into the bilge where the bilge pump can clear the vapors
🟢 C. Above the waterline, at least two feet away from any hull opening that can be closed
🔴 RATIONALE: LPG vapors are heavier than air and will sink. ABYC A-1 requires the locker drain to discharge overboard, above the
waterline, and at least two feet horizontally from any opening (such as ports, hatches, or companionways) that could allow the gas to enter
the vessel’s interior.
Question 6
What is the minimum diameter required for a fuel tank vent line on a diesel fuel system according to ABYC H-33?
A. 1/4 inch
B. 3/8 inch
C. 5/16 inch
D. 9/16 inch
🟢 D. 9/16 inch
🔴 RATIONALE: ABYC H-33 specifies that fuel tank vent lines must have a minimum inside diameter of 5/16 inch for gasoline, but for diesel
systems or larger tanks, standard practice and generic venting rules dictate a minimum nominal inside diameter of 9/16 inch to facilitate high-
volume fueling without backup.
Question 7
Which of the following materials is prohibited for use as a fuel system line inside the engine compartment of a gasoline boat?
A. Seamless copper tubing
B. USCG Type A1 hose
C. Clear PVC reinforced tubing
D. Nickel-copper alloy tubing
🟢 C. Clear PVC reinforced tubing
🔴 RATIONALE: ABYC H-24 and USCG regulations strictly prohibit the use of unapproved plastics or unrated clear PVC for fuel distribution
lines inside an engine space due to low fire-resistance ratings. Lines must withstand a 2.5-minute fire test, matching USCG Type A1
requirements.
Question 8
What color is designated for the DC grounding conductor in an insulated two-wire DC system?
A. Green or green with a yellow stripe
B. Black
C. White
D. Red
