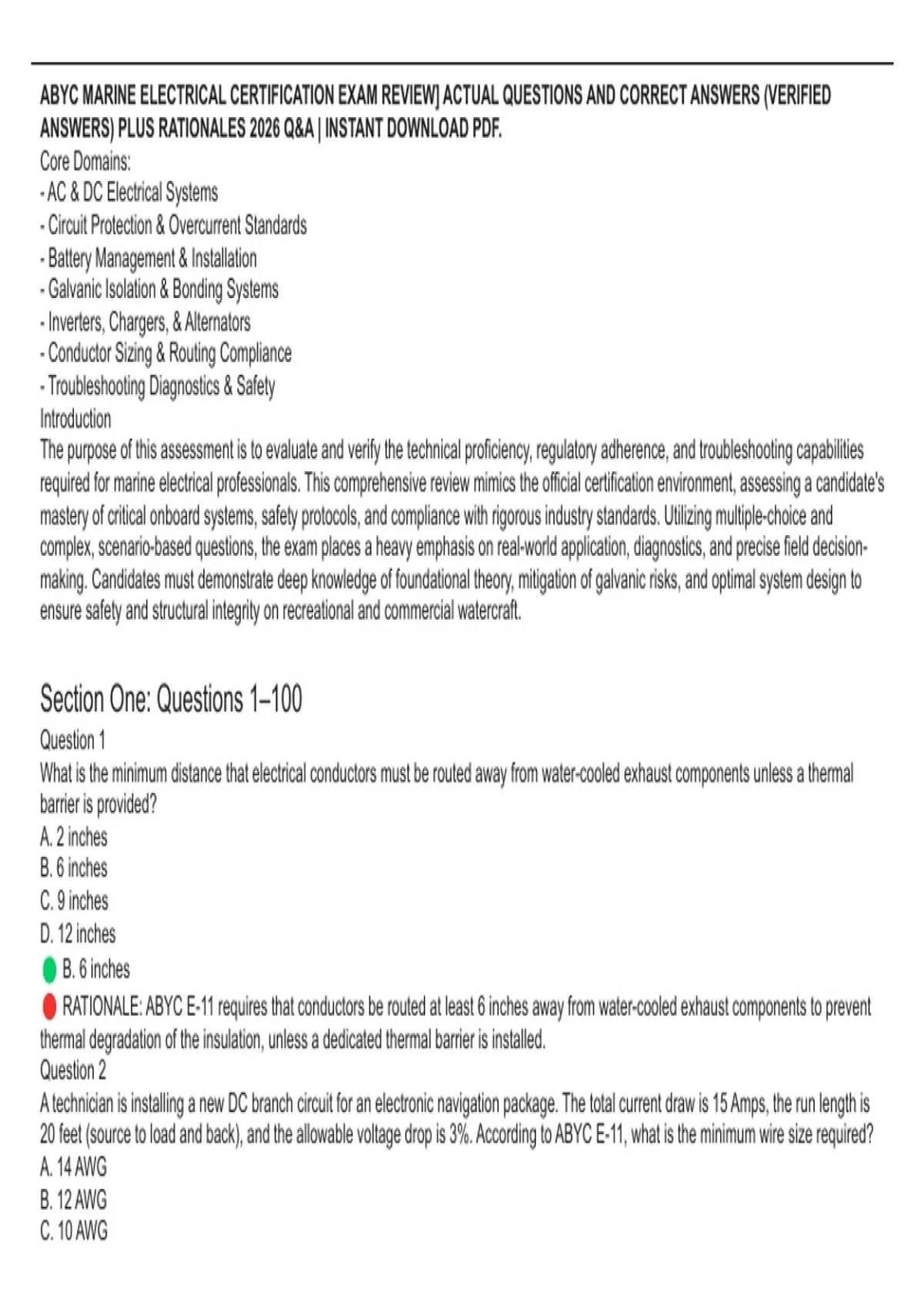

ABYC MARINE ELECTRICAL CERTIFICATION EXAM REVIEW] ACTUAL QUESTIONS AND CORRECT ANSWERS (VERIFIED
ANSWERS) PLUS RATIONALES 2026 Q&A | INSTANT DOWNLOAD PDF.
Core Domains:
- AC & DC Electrical Systems
- Circuit Protection & Overcurrent Standards
- Battery Management & Installation
- Galvanic Isolation & Bonding Systems
- Inverters, Chargers, & Alternators
- Conductor Sizing & Routing Compliance
- Troubleshooting Diagnostics & Safety
Introduction
The purpose of this assessment is to evaluate and verify the technical proficiency, regulatory adherence, and troubleshooting capabilities
required for marine electrical professionals. This comprehensive review mimics the official certification environment, assessing a candidate's
mastery of critical onboard systems, safety protocols, and compliance with rigorous industry standards. Utilizing multiple-choice and
complex, scenario-based questions, the exam places a heavy emphasis on real-world application, diagnostics, and precise field decision-
making. Candidates must demonstrate deep knowledge of foundational theory, mitigation of galvanic risks, and optimal system design to
ensure safety and structural integrity on recreational and commercial watercraft.
Section One: Questions 1–100
Question 1
What is the minimum distance that electrical conductors must be routed away from water-cooled exhaust components unless a thermal
barrier is provided?
A. 2 inches
B. 6 inches
C. 9 inches
D. 12 inches
🟢 B. 6 inches
🔴 RATIONALE: ABYC E-11 requires that conductors be routed at least 6 inches away from water-cooled exhaust components to prevent
thermal degradation of the insulation, unless a dedicated thermal barrier is installed.
Question 2
A technician is installing a new DC branch circuit for an electronic navigation package. The total current draw is 15 Amps, the run length is
20 feet (source to load and back), and the allowable voltage drop is 3%. According to ABYC E-11, what is the minimum wire size required?
A. 14 AWG
B. 12 AWG
C. 10 AWG
,D. 8 AWG
🟢 C. 10 AWG
🔴 RATIONALE: Navigational electronics are considered critical "critical loads" requiring a maximum 3% voltage drop. Utilizing the ABYC
DC wire sizing calculations for a 300 amp-feet factor (15A x 20ft), 10 AWG is the minimum size required to stay within the 3% threshold.
Question 3
Which of the following is true regarding the installation of an ungrounded DC conductor in an engine space?
A. The insulation must be rated for at least 60°C.
B. The insulation must be rated for at least 75°C.
C. The insulation must be rated for at least 105°C.
D. The insulation must be rated for at least 200°C.
🟢 C. 105°C
🔴 RATIONALE: ABYC standards specify that conductors routed through engine spaces must have insulation rated for at least 105°C
(221°F) to withstand the elevated ambient temperatures common in internal combustion environments.
Question 4
What is the maximum allowable distance for an overcurrent protection device (OCPD) from a DC power source if the conductor is
connected directly to a battery terminal and contained in a sheath?
A. 7 inches
B. 40 inches
C. 72 inches
D. 84 inches
🟢 C. 72 inches
🔴 RATIONALE: Under ABYC E-11, if the conductor is contained within a protective sleeve or sheath and connected directly to the battery
terminal, the distance to the main overcurrent protection device can be extended up to 72 inches.
Question 5
When testing an AC shore power system for a suspected neutral-to-ground fault onboard the vessel, what is the correct state of the shore
power cord and the boat's main AC breaker?
A. Cord plugged in, main breaker ON.
B. Cord unplugged, main breaker ON.
C. Cord unplugged, main breaker OFF.
D. Cord plugged in, main breaker OFF.
🟢 B. Cord unplugged, main breaker ON.
🔴 RATIONALE: To safely test for an onboard neutral-to-ground bond without external interference, the shore power cord must be
completely disconnected from the pedestal, and the vessel's main distribution breakers should be turned ON to complete the internal circuit
paths being checked with an ohmmeter.
Question 6
, An AC grounding conductor (green) must be connected to which of the following system components onboard?
A. Connected to the AC neutral at the main distribution panel only.
B. Connected to the engine negative terminal or main DC ground bus.
C. Left completely isolated from all DC grounding networks.
D. Tied directly to the shore-side neutral at the isolation transformer output only.
🟢 B. Connected to the engine negative terminal or main DC ground bus.
🔴 RATIONALE: ABYC E-11 dictates that the AC green grounding system must be connected to the engine negative terminal or the main
DC ground bus to establish a common ground plane, ensuring fault currents return safely to trip overcurrent devices.
Question 7
What type of battery installation requires a dedicated, vapor-tight ventilation system or natural ventilation layout discharging directly to the
exterior of the vessel?
A. Sealed AGM batteries
B. Lithium Iron Phosphate (LiFePO4) batteries
C. Flooded lead-acid batteries
D. Sealed Gel cell batteries
🟢 C. Flooded lead-acid batteries
🔴 RATIONALE: Flooded lead-acid batteries vent significant volumes of explosive hydrogen gas during heavy bulk and absorption charging
cycles, necessitating dedicated ventilation paths to the outside environment to prevent accumulation.
Question 8
What is the maximum number of terminals or ring lugs that may be attached to any single terminal stud on an electrical distribution panel or
component?
A. 2
B. 3
C. 4
D. 5
🟢 C. 4
🔴 RATIONALE: ABYC standards limit the number of connection lugs on a single terminal stud to a maximum of 4 to ensure physical
connection stability and prevent thread stripping or excessive electrical resistance.
Question 9
A multi-engine vessel is configured with separate starting batteries for each engine. What is the requirement regarding the DC grounding
paths for these systems?
A. Each engine must have an isolated ground completely separated from the other.
B. The negative terminals of all propulsion and house battery banks must be tied to a common ground.
C. Only the house bank and starboard engine should share a common negative bus.
D. A high-resistance resistor must separate the separate engine negative circuits.
