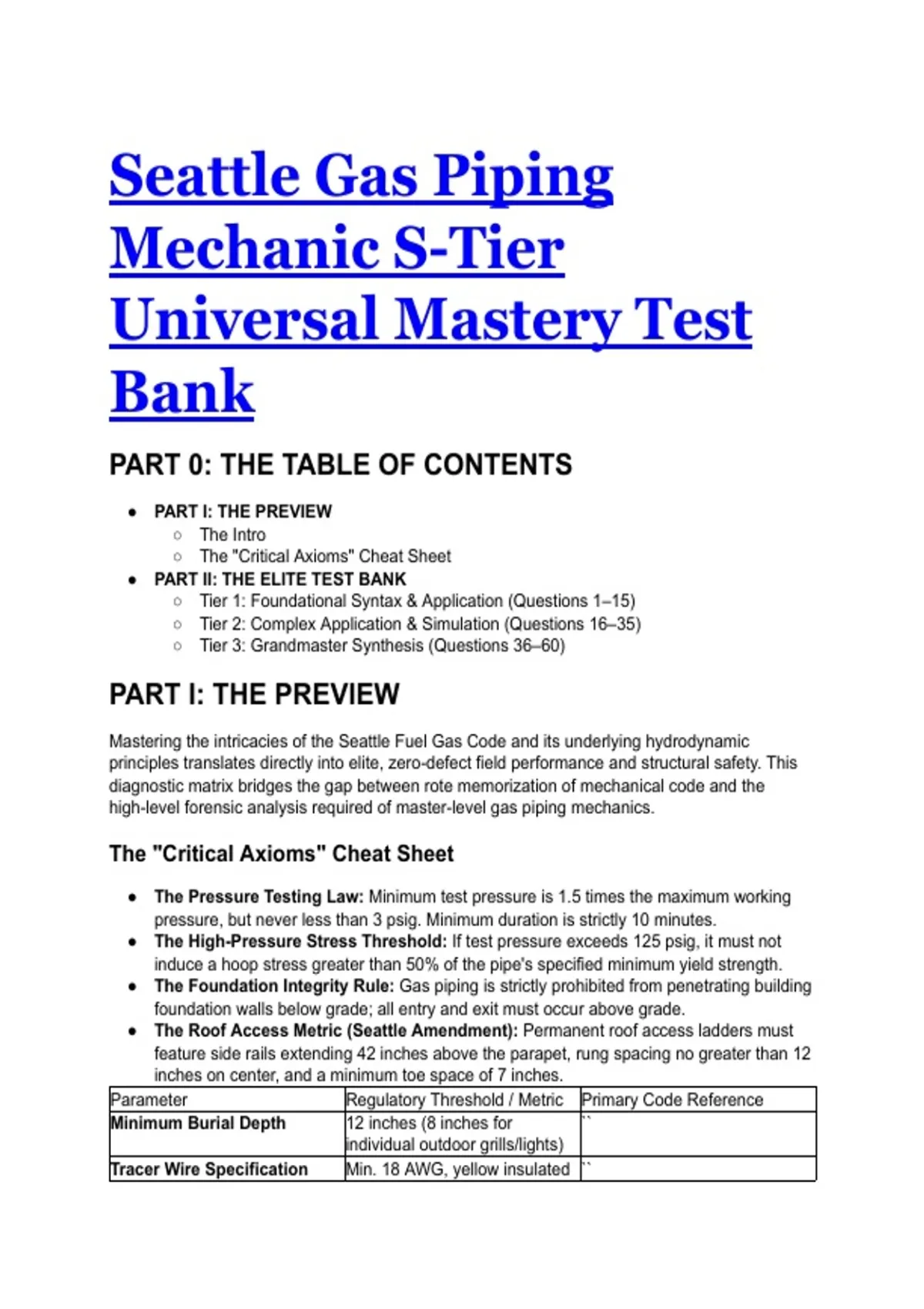

Seattle Gas Piping
Mechanic S-Tier
Universal Mastery Test
Bank
PART 0: THE TABLE OF CONTENTS
● PART I: THE PREVIEW
○ The Intro
○ The "Critical Axioms" Cheat Sheet
● PART II: THE ELITE TEST BANK
○ Tier 1: Foundational Syntax & Application (Questions 1–15)
○ Tier 2: Complex Application & Simulation (Questions 16–35)
○ Tier 3: Grandmaster Synthesis (Questions 36–60)
PART I: THE PREVIEW
Mastering the intricacies of the Seattle Fuel Gas Code and its underlying hydrodynamic
principles translates directly into elite, zero-defect field performance and structural safety. This
diagnostic matrix bridges the gap between rote memorization of mechanical code and the
high-level forensic analysis required of master-level gas piping mechanics.
The "Critical Axioms" Cheat Sheet
● The Pressure Testing Law: Minimum test pressure is 1.5 times the maximum working
pressure, but never less than 3 psig. Minimum duration is strictly 10 minutes.
● The High-Pressure Stress Threshold: If test pressure exceeds 125 psig, it must not
induce a hoop stress greater than 50% of the pipe's specified minimum yield strength.
● The Foundation Integrity Rule: Gas piping is strictly prohibited from penetrating building
foundation walls below grade; all entry and exit must occur above grade.
● The Roof Access Metric (Seattle Amendment): Permanent roof access ladders must
feature side rails extending 42 inches above the parapet, rung spacing no greater than 12
inches on center, and a minimum toe space of 7 inches.
Parameter Regulatory Threshold / Metric Primary Code Reference
Minimum Burial Depth 12 inches (8 inches for ``
individual outdoor grills/lights)
Tracer Wire Specification Min. 18 AWG, yellow insulated ``
,Parameter Regulatory Threshold / Metric Primary Code Reference
copper, direct burial
H2S Copper Limit \le 0.3 grains per 100 cubic feet [span_25](start_span)[span_25]
(end_span)
Test Gauge Resolution Maximum scale cannot exceed [span_38](start_span)[span_38]
5x the target test pressure (end_span)
CSST Bonding (Legacy) Min. 6 AWG Copper, Maximum [span_41](start_span)[span_41]
75 feet length (end_span)
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: An applicant is sitting for the Seattle Gas Piping Mechanic License examination. Based on
the administrative rules governing the certification process established by the Seattle
Department of Construction & Inspections (SDCI), which parameter regarding the testing
environment is the MOST ACCURATE? A) The examination is a closed-book evaluation
requiring rote memorization of all pipe sizing tables. B) The examination lasts exactly 60
minutes and includes questions on boiler operation. C) The examination allows an open-book
format, specifically requiring a printed copy of the International Fuel Gas Code with Seattle
amendments, with a total duration of 120 minutes. D) The examination permits the use of
electronic, tablet-based code books to quickly reference local amendments.
● The Answer: C (The examination allows an open-book format, specifically requiring a
printed copy of the International Fuel Gas Code with Seattle amendments, with a total
duration of 120 minutes.)
● Distractor Analysis:
○ A is incorrect: The SDCI officially administers an open-book examination for gas
piping mechanics.
○ B is incorrect: While standard trade license exams run 60 minutes, the gas piping
mechanic test is explicitly extended to 120 minutes.
○ D is incorrect: Electronic copies of the code are strictly forbidden during the online
exam; physical printed copies are mandated.
The Mentor's Analysis: Administrative mastery is the gateway to technical execution. When
preparing for licensure, the immediate priority is understanding the structural constraints of the
assessment. By utilizing a physical, deeply indexed text, the practitioner bypasses the common
trap of relying on prohibited digital search functions. Professional/Academic Intuition: The
Seattle Gas Piping exam is a 120-minute, open-book gauntlet that strictly requires physical,
analog reference materials.
Q2: A technician is preparing to conduct an air pressure test on a newly installed residential fuel
gas piping system designed to operate at 0.5 psig. According to the Seattle Fuel Gas Code,
which combination of test pressure and duration is the ABSOLUTE MINIMUM acceptable
standard? A) 0.75 psig for 15 minutes. B) 1.5 psig for 24 hours. C) 3.0 psig for 10 minutes. D)
5.0 psig for 30 minutes.
● The Answer: C (3.0 psig for 10 minutes.)
● Distractor Analysis:
○ A is incorrect: While 1.5 times the 0.5 psig working pressure is 0.75 psig, the code
explicitly mandates a hard floor of 3.0 psig regardless of the design pressure.
○ B is incorrect: 24 hours is the maximum duration the code requires testing to not
, exceed, but it is not the baseline minimum.
○ D is incorrect: 5.0 psig exceeds the minimum requirement and represents an
arbitrary inflation of the standard.
The Mentor's Analysis: Pneumatic testing validates the structural integrity of joints before
volatile hydrocarbons are introduced. When verifying a low-pressure residential system, the
immediate priority is establishing a definitive leak-free baseline. By utilizing the 3 psig/10-minute
floor, the practitioner bypasses the common trap of testing at inadequately low pressures that
fail to expose micro-leaks. Professional/Academic Intuition: The test pressure must be at
least 1.5x the working pressure, but the absolute statutory floor is 3 psig held for a minimum of
10 minutes.
Q3: During the pneumatic pressure test of a newly installed commercial manifold, an inspector
notes that the mechanical analog gauge utilized by the installing contractor registers a
maximum scale of 30 psig. The required test pressure for this specific piping section is 5 psig.
Based on the Seattle Fuel Gas Code requirements for test pressure measurement, what is the
MOST ACCURATE conclusion? A) The test is invalid because the gauge's highest end of the
scale exceeds five times the required test pressure. B) The test is valid because the 30 psig
gauge is robust enough to prevent blowout from over-pressurization. C) The test is invalid
because analog gauges are prohibited; only digital manometers may be used. D) The test is
valid, provided the gauge is calibrated annually by an approved agency.
● The Answer: A (The test is invalid because the gauge's highest end of the scale exceeds
five times the required test pressure.)
● Distractor Analysis:
○ B is incorrect: While preventing blowout is important, a gauge scaled too high loses
the granular resolution necessary to detect minute pressure drops.
○ C is incorrect: Mechanical analog gauges are explicitly permitted by the code,
provided their range is correctly scaled.
○ D is incorrect: Calibration is necessary, but it does not supersede the strict
mathematical limitation on the gauge's scale range.
The Mentor's Analysis: Measurement resolution dictates the validity of leak detection. When
selecting testing instrumentation, the immediate priority is ensuring the required test pressure
registers near the middle of the gauge's sweep. By utilizing a gauge scaled no higher than 5
times the test pressure, the practitioner bypasses the trap of using blunt instruments to detect
microscopic failures. Professional/Academic Intuition: The maximum scale of a mechanical
test gauge must never exceed 500% of the target test pressure.
Q4: A commercial piping installation in an industrial treatment plant utilizes unlined, semirigid
copper tubing. The utility gas supply is later analyzed and found to contain an average of 0.5
grains of hydrogen sulfide per 100 standard cubic feet of gas. According to the materials
standards in the fuel gas code, what is the IMMEDIATE structural implication? A) The
installation is fully compliant, as copper is highly resistant to sulfide stress cracking. B) The
tubing must be purged with inert nitrogen quarterly to scrub the sulfide accumulation. C) The
installation is strictly prohibited, as copper and brass cannot be used when hydrogen sulfide
exceeds 0.3 grains per 100 cubic feet. D) The installation is compliant only if the copper is
wrapped in an approved yellow polyethylene tape.
● The Answer: C (The installation is strictly prohibited, as copper and brass cannot be
used when hydrogen sulfide exceeds 0.3 grains per 100 cubic feet.)
● Distractor Analysis:
○ A is incorrect: Copper is chemically reactive to hydrogen sulfide, causing internal
flaking and the creation of copper oxides that will clog appliance orifices.
, ○ B is incorrect: Intermittent inert purging cannot reverse or prevent the continuous
chemical erosion caused by sour gas.
○ D is incorrect: Exterior polyethylene wrapping protects against environmental
moisture and soil corrosivity, not internal chemical degradation from the gas stream
itself.
The Mentor's Analysis: Chemical compatibility between the transport medium and the vessel
is non-negotiable. When facing "sour gas" containing elevated hydrogen sulfide, the immediate
priority is selecting inert materials like black steel or polyethylene. By utilizing the 0.3-grain
threshold, the practitioner bypasses the trap of internal particulate shedding (flaking) that
destroys downstream mechanical valves. Professional/Academic Intuition: Hydrogen sulfide
concentrations exceeding 0.3 grains per 100 cubic feet rapidly degrade unprotected copper and
brass tubing.
Q5: A technician is routing Corrugated Stainless Steel Tubing (CSST) through the attic of a
residential structure. The CSST utilized features an older, non-arc-resistant jacket. Based on the
bonding requirements of the Seattle Fuel Gas Code, which action is MANDATORY? A) The
CSST must be bonded utilizing a copper jumper no smaller than 6 AWG, connecting the gas
piping system to the grounding electrode system, with a length not exceeding 75 feet. B) The
CSST is considered inherently bonded by its connection to the grounding conductor of the
appliance it serves. C) The CSST must be bonded utilizing an 8 AWG aluminum wire directly to
the nearest cold-water pipe. D) Non-arc-resistant CSST is currently prohibited in residential
attics and must be replaced entirely with rigid black steel.
● The Answer: A (The CSST must be bonded utilizing a copper jumper no smaller than 6
AWG, connecting the gas piping system to the grounding electrode system, with a length
not exceeding 75 feet.)
● Distractor Analysis:
○ B is incorrect: This is the specific exception granted only to modern
arc-resistant-jacketed CSST, which dissipates electrical transients inherently.
○ C is incorrect: The code explicitly demands a minimum 6 AWG copper wire (or
equivalent), not 8 AWG, and requires direct routing to the grounding electrode
system.
○ D is incorrect: Non-arc-resistant CSST is not universally prohibited; it simply
requires aggressive, external equipotential bonding to prevent lightning-induced
arcing.
The Mentor's Analysis: CSST is highly susceptible to perforation from lightning-induced
electrical transients. When routing non-arc-resistant variants, the immediate priority is creating a
low-impedance path to ground. By utilizing a 6 AWG copper bonding jumper under 75 feet in
length, the practitioner bypasses the catastrophic trap of arc-induced gas leaks and subsequent
deflagration. Professional/Academic Intuition: Legacy CSST requires manual equipotential
bonding (6 AWG copper, max 75 feet); arc-resistant CSST relies on the appliance grounding
conductor.
Q6: A contractor is trenching a new underground service line using polyethylene (PE) plastic
pipe. To ensure future locatability, the code dictates the installation of a tracer wire. Which
specification for the tracer wire is MOST ACCURATE? A) It must be a bare, uninsulated 12
AWG aluminum wire wrapped directly around the PE pipe. B) It must be a yellow insulated
copper wire, not less than 18 AWG, suitable for direct burial, and terminate above ground. C) It
must be an energized 120V circuit buried 6 inches directly above the plastic gas line. D) Tracer
wires are obsolete; modern PE pipe must rely solely on metallic warning tape buried 12 inches
below grade.
Mechanic S-Tier
Universal Mastery Test
Bank
PART 0: THE TABLE OF CONTENTS
● PART I: THE PREVIEW
○ The Intro
○ The "Critical Axioms" Cheat Sheet
● PART II: THE ELITE TEST BANK
○ Tier 1: Foundational Syntax & Application (Questions 1–15)
○ Tier 2: Complex Application & Simulation (Questions 16–35)
○ Tier 3: Grandmaster Synthesis (Questions 36–60)
PART I: THE PREVIEW
Mastering the intricacies of the Seattle Fuel Gas Code and its underlying hydrodynamic
principles translates directly into elite, zero-defect field performance and structural safety. This
diagnostic matrix bridges the gap between rote memorization of mechanical code and the
high-level forensic analysis required of master-level gas piping mechanics.
The "Critical Axioms" Cheat Sheet
● The Pressure Testing Law: Minimum test pressure is 1.5 times the maximum working
pressure, but never less than 3 psig. Minimum duration is strictly 10 minutes.
● The High-Pressure Stress Threshold: If test pressure exceeds 125 psig, it must not
induce a hoop stress greater than 50% of the pipe's specified minimum yield strength.
● The Foundation Integrity Rule: Gas piping is strictly prohibited from penetrating building
foundation walls below grade; all entry and exit must occur above grade.
● The Roof Access Metric (Seattle Amendment): Permanent roof access ladders must
feature side rails extending 42 inches above the parapet, rung spacing no greater than 12
inches on center, and a minimum toe space of 7 inches.
Parameter Regulatory Threshold / Metric Primary Code Reference
Minimum Burial Depth 12 inches (8 inches for ``
individual outdoor grills/lights)
Tracer Wire Specification Min. 18 AWG, yellow insulated ``
,Parameter Regulatory Threshold / Metric Primary Code Reference
copper, direct burial
H2S Copper Limit \le 0.3 grains per 100 cubic feet [span_25](start_span)[span_25]
(end_span)
Test Gauge Resolution Maximum scale cannot exceed [span_38](start_span)[span_38]
5x the target test pressure (end_span)
CSST Bonding (Legacy) Min. 6 AWG Copper, Maximum [span_41](start_span)[span_41]
75 feet length (end_span)
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: An applicant is sitting for the Seattle Gas Piping Mechanic License examination. Based on
the administrative rules governing the certification process established by the Seattle
Department of Construction & Inspections (SDCI), which parameter regarding the testing
environment is the MOST ACCURATE? A) The examination is a closed-book evaluation
requiring rote memorization of all pipe sizing tables. B) The examination lasts exactly 60
minutes and includes questions on boiler operation. C) The examination allows an open-book
format, specifically requiring a printed copy of the International Fuel Gas Code with Seattle
amendments, with a total duration of 120 minutes. D) The examination permits the use of
electronic, tablet-based code books to quickly reference local amendments.
● The Answer: C (The examination allows an open-book format, specifically requiring a
printed copy of the International Fuel Gas Code with Seattle amendments, with a total
duration of 120 minutes.)
● Distractor Analysis:
○ A is incorrect: The SDCI officially administers an open-book examination for gas
piping mechanics.
○ B is incorrect: While standard trade license exams run 60 minutes, the gas piping
mechanic test is explicitly extended to 120 minutes.
○ D is incorrect: Electronic copies of the code are strictly forbidden during the online
exam; physical printed copies are mandated.
The Mentor's Analysis: Administrative mastery is the gateway to technical execution. When
preparing for licensure, the immediate priority is understanding the structural constraints of the
assessment. By utilizing a physical, deeply indexed text, the practitioner bypasses the common
trap of relying on prohibited digital search functions. Professional/Academic Intuition: The
Seattle Gas Piping exam is a 120-minute, open-book gauntlet that strictly requires physical,
analog reference materials.
Q2: A technician is preparing to conduct an air pressure test on a newly installed residential fuel
gas piping system designed to operate at 0.5 psig. According to the Seattle Fuel Gas Code,
which combination of test pressure and duration is the ABSOLUTE MINIMUM acceptable
standard? A) 0.75 psig for 15 minutes. B) 1.5 psig for 24 hours. C) 3.0 psig for 10 minutes. D)
5.0 psig for 30 minutes.
● The Answer: C (3.0 psig for 10 minutes.)
● Distractor Analysis:
○ A is incorrect: While 1.5 times the 0.5 psig working pressure is 0.75 psig, the code
explicitly mandates a hard floor of 3.0 psig regardless of the design pressure.
○ B is incorrect: 24 hours is the maximum duration the code requires testing to not
, exceed, but it is not the baseline minimum.
○ D is incorrect: 5.0 psig exceeds the minimum requirement and represents an
arbitrary inflation of the standard.
The Mentor's Analysis: Pneumatic testing validates the structural integrity of joints before
volatile hydrocarbons are introduced. When verifying a low-pressure residential system, the
immediate priority is establishing a definitive leak-free baseline. By utilizing the 3 psig/10-minute
floor, the practitioner bypasses the common trap of testing at inadequately low pressures that
fail to expose micro-leaks. Professional/Academic Intuition: The test pressure must be at
least 1.5x the working pressure, but the absolute statutory floor is 3 psig held for a minimum of
10 minutes.
Q3: During the pneumatic pressure test of a newly installed commercial manifold, an inspector
notes that the mechanical analog gauge utilized by the installing contractor registers a
maximum scale of 30 psig. The required test pressure for this specific piping section is 5 psig.
Based on the Seattle Fuel Gas Code requirements for test pressure measurement, what is the
MOST ACCURATE conclusion? A) The test is invalid because the gauge's highest end of the
scale exceeds five times the required test pressure. B) The test is valid because the 30 psig
gauge is robust enough to prevent blowout from over-pressurization. C) The test is invalid
because analog gauges are prohibited; only digital manometers may be used. D) The test is
valid, provided the gauge is calibrated annually by an approved agency.
● The Answer: A (The test is invalid because the gauge's highest end of the scale exceeds
five times the required test pressure.)
● Distractor Analysis:
○ B is incorrect: While preventing blowout is important, a gauge scaled too high loses
the granular resolution necessary to detect minute pressure drops.
○ C is incorrect: Mechanical analog gauges are explicitly permitted by the code,
provided their range is correctly scaled.
○ D is incorrect: Calibration is necessary, but it does not supersede the strict
mathematical limitation on the gauge's scale range.
The Mentor's Analysis: Measurement resolution dictates the validity of leak detection. When
selecting testing instrumentation, the immediate priority is ensuring the required test pressure
registers near the middle of the gauge's sweep. By utilizing a gauge scaled no higher than 5
times the test pressure, the practitioner bypasses the trap of using blunt instruments to detect
microscopic failures. Professional/Academic Intuition: The maximum scale of a mechanical
test gauge must never exceed 500% of the target test pressure.
Q4: A commercial piping installation in an industrial treatment plant utilizes unlined, semirigid
copper tubing. The utility gas supply is later analyzed and found to contain an average of 0.5
grains of hydrogen sulfide per 100 standard cubic feet of gas. According to the materials
standards in the fuel gas code, what is the IMMEDIATE structural implication? A) The
installation is fully compliant, as copper is highly resistant to sulfide stress cracking. B) The
tubing must be purged with inert nitrogen quarterly to scrub the sulfide accumulation. C) The
installation is strictly prohibited, as copper and brass cannot be used when hydrogen sulfide
exceeds 0.3 grains per 100 cubic feet. D) The installation is compliant only if the copper is
wrapped in an approved yellow polyethylene tape.
● The Answer: C (The installation is strictly prohibited, as copper and brass cannot be
used when hydrogen sulfide exceeds 0.3 grains per 100 cubic feet.)
● Distractor Analysis:
○ A is incorrect: Copper is chemically reactive to hydrogen sulfide, causing internal
flaking and the creation of copper oxides that will clog appliance orifices.
, ○ B is incorrect: Intermittent inert purging cannot reverse or prevent the continuous
chemical erosion caused by sour gas.
○ D is incorrect: Exterior polyethylene wrapping protects against environmental
moisture and soil corrosivity, not internal chemical degradation from the gas stream
itself.
The Mentor's Analysis: Chemical compatibility between the transport medium and the vessel
is non-negotiable. When facing "sour gas" containing elevated hydrogen sulfide, the immediate
priority is selecting inert materials like black steel or polyethylene. By utilizing the 0.3-grain
threshold, the practitioner bypasses the trap of internal particulate shedding (flaking) that
destroys downstream mechanical valves. Professional/Academic Intuition: Hydrogen sulfide
concentrations exceeding 0.3 grains per 100 cubic feet rapidly degrade unprotected copper and
brass tubing.
Q5: A technician is routing Corrugated Stainless Steel Tubing (CSST) through the attic of a
residential structure. The CSST utilized features an older, non-arc-resistant jacket. Based on the
bonding requirements of the Seattle Fuel Gas Code, which action is MANDATORY? A) The
CSST must be bonded utilizing a copper jumper no smaller than 6 AWG, connecting the gas
piping system to the grounding electrode system, with a length not exceeding 75 feet. B) The
CSST is considered inherently bonded by its connection to the grounding conductor of the
appliance it serves. C) The CSST must be bonded utilizing an 8 AWG aluminum wire directly to
the nearest cold-water pipe. D) Non-arc-resistant CSST is currently prohibited in residential
attics and must be replaced entirely with rigid black steel.
● The Answer: A (The CSST must be bonded utilizing a copper jumper no smaller than 6
AWG, connecting the gas piping system to the grounding electrode system, with a length
not exceeding 75 feet.)
● Distractor Analysis:
○ B is incorrect: This is the specific exception granted only to modern
arc-resistant-jacketed CSST, which dissipates electrical transients inherently.
○ C is incorrect: The code explicitly demands a minimum 6 AWG copper wire (or
equivalent), not 8 AWG, and requires direct routing to the grounding electrode
system.
○ D is incorrect: Non-arc-resistant CSST is not universally prohibited; it simply
requires aggressive, external equipotential bonding to prevent lightning-induced
arcing.
The Mentor's Analysis: CSST is highly susceptible to perforation from lightning-induced
electrical transients. When routing non-arc-resistant variants, the immediate priority is creating a
low-impedance path to ground. By utilizing a 6 AWG copper bonding jumper under 75 feet in
length, the practitioner bypasses the catastrophic trap of arc-induced gas leaks and subsequent
deflagration. Professional/Academic Intuition: Legacy CSST requires manual equipotential
bonding (6 AWG copper, max 75 feet); arc-resistant CSST relies on the appliance grounding
conductor.
Q6: A contractor is trenching a new underground service line using polyethylene (PE) plastic
pipe. To ensure future locatability, the code dictates the installation of a tracer wire. Which
specification for the tracer wire is MOST ACCURATE? A) It must be a bare, uninsulated 12
AWG aluminum wire wrapped directly around the PE pipe. B) It must be a yellow insulated
copper wire, not less than 18 AWG, suitable for direct burial, and terminate above ground. C) It
must be an energized 120V circuit buried 6 inches directly above the plastic gas line. D) Tracer
wires are obsolete; modern PE pipe must rely solely on metallic warning tape buried 12 inches
below grade.
