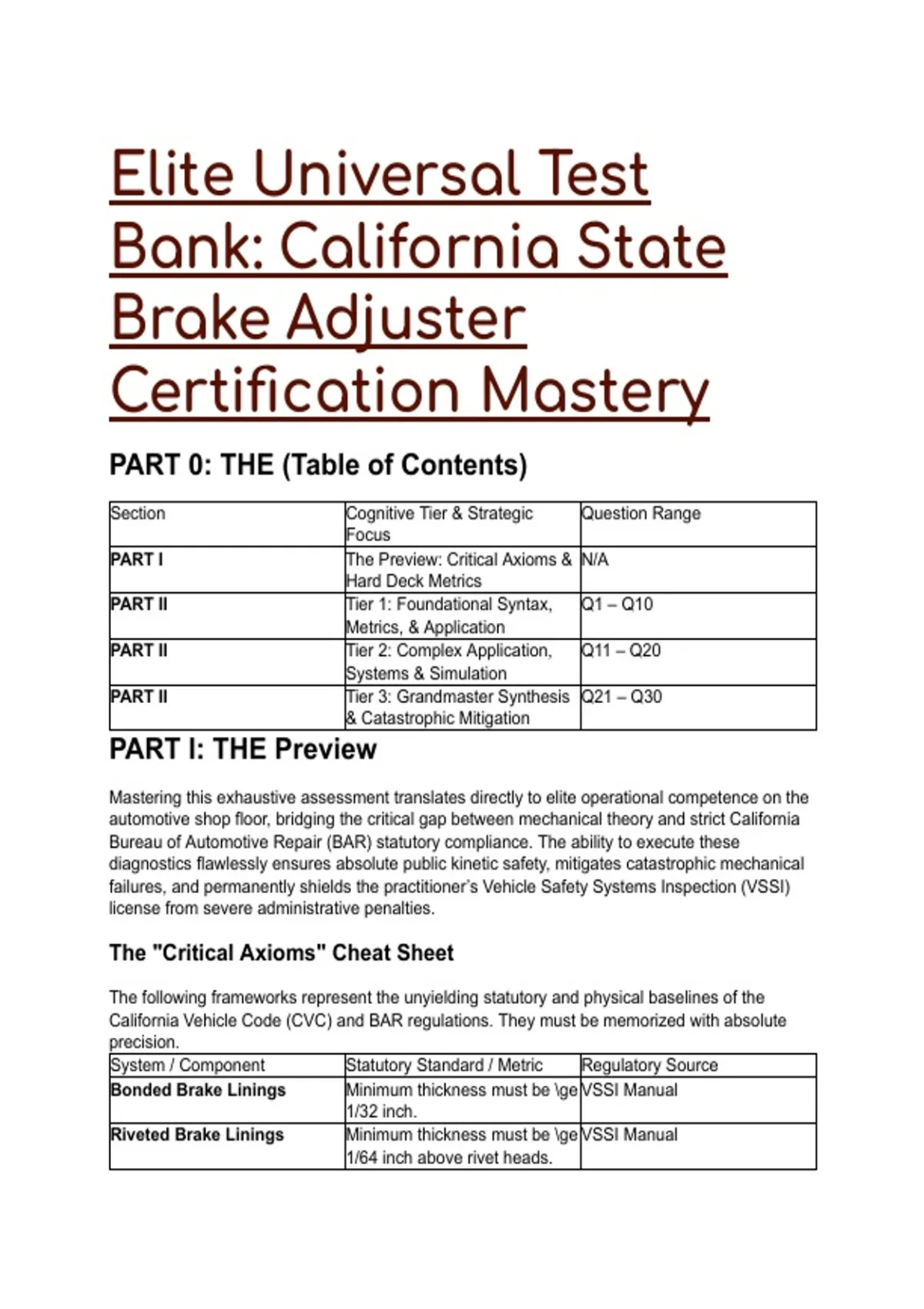

Elite Universal Test
Bank: California State
Brake Adjuster
Certification Mastery
PART 0: THE (Table of Contents)
Section Cognitive Tier & Strategic Question Range
Focus
PART I The Preview: Critical Axioms & N/A
Hard Deck Metrics
PART II Tier 1: Foundational Syntax, Q1 – Q10
Metrics, & Application
PART II Tier 2: Complex Application, Q11 – Q20
Systems & Simulation
PART II Tier 3: Grandmaster Synthesis Q21 – Q30
& Catastrophic Mitigation
PART I: THE Preview
Mastering this exhaustive assessment translates directly to elite operational competence on the
automotive shop floor, bridging the critical gap between mechanical theory and strict California
Bureau of Automotive Repair (BAR) statutory compliance. The ability to execute these
diagnostics flawlessly ensures absolute public kinetic safety, mitigates catastrophic mechanical
failures, and permanently shields the practitioner’s Vehicle Safety Systems Inspection (VSSI)
license from severe administrative penalties.
The "Critical Axioms" Cheat Sheet
The following frameworks represent the unyielding statutory and physical baselines of the
California Vehicle Code (CVC) and BAR regulations. They must be memorized with absolute
precision.
System / Component Statutory Standard / Metric Regulatory Source
Bonded Brake Linings Minimum thickness must be \ge VSSI Manual
1/32 inch.
Riveted Brake Linings Minimum thickness must be \ge VSSI Manual
1/64 inch above rivet heads.
,System / Component Statutory Standard / Metric Regulatory Source
Air Compressor Governor Cut-in \ge 85 psi; Cut-out CVC 26503, 26504
between 130 and 150 psi.
Air Safety Valve Must blow off at exactly 150 CVC 26503
psi.
Vacuum Warning Device Must trigger at 8 inches of CVC 26521
mercury (Hg) or less.
Type 30 Standard Stroke Maximum applied stroke limit is FMCSA/CVSA
2.0 inches.
Type 30 Long Stroke (LS) Maximum applied stroke limit is FMCSA/CVSA
2.5 inches.
Light Vehicle Stopping Must stop within 20 feet from CVC 26454
20 mph (Passenger <10).
Heavy Combination Stopping Must stop within 40 feet from CVC 26454
20 mph (Most combinations).
Breakaway Trailer Brakes Must automatically apply and CVC 26304
hold for \ge 15 minutes.
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: A licensed VSSI Technician is inspecting the front disc brakes of a 2018 passenger vehicle
equipped with bonded brake pad linings. The manufacturer’s specific service limits are
unavailable in the shop’s primary information system. Based on the California BAR VSSI
manual standards, which specific physical threshold establishes the absolute minimum legal
thickness for these friction linings before mandatory rejection occurs? A) The lining must be
greater than or equal to 1/64 inch thick. B) The lining must be greater than or equal to 2/32 inch
thick to account for thermal expansion and standard shop safety margins. C) The lining must be
greater than or equal to 1/32 inch thick. D) The lining must be replaced immediately if the
acoustic wear indicator is within 1/8 inch of the rotor surface.
● The Answer: C (The lining must be greater than or equal to 1/32 inch thick.)
● Distractor Analysis:
○ A is incorrect: The 1/64 inch limit is the minimum clearance threshold exclusively
reserved for riveted linings, and it must be measured from the top of the rivet head,
not from the backing plate. Applying this to a bonded pad guarantees catastrophic
metal-on-metal failure.
○ B is incorrect: While 2/32 inch or 3/32 inch are ubiquitous internal dealership
recommendations for preventive upselling, they do not represent the statutory
minimum failure threshold dictated by the BAR. Rejecting a vehicle at 2/32 inch is a
regulatory violation.
○ D is incorrect: Acoustic or electronic wear indicators vary wildly across global
manufacturers and are frequently damaged or corroded. The physical micrometer
measurement of the friction material itself is the sole legal standard when OEM
specifications are missing.
The Mentor's Analysis: Statutory limits completely supersede corporate shop policies when
certifying a vehicle for the state. When manufacturer specifications are absent, the immediate
, priority is defaulting to the BAR’s universal hard-deck mechanical measurements. By utilizing
the 1/32 inch bonded rule, the technician bypasses the common trap of failing a legally
compliant brake pad based on subjective visual thinness or profitability motives.
Professional/Academic Intuition: Bonded linings require thirty-seconds (1/32); Riveted
linings require sixty-fourths (1/64). The practitioner must commit this numerical pairing
to permanent memory.
Q2: During a commercial fleet safety inspection, an adjuster measures the applied pushrod
stroke on a standard Type 30 clamp-type air brake chamber. The pneumatic system pressure is
stabilized at 95 psi. At what exact linear measurement does this specific pneumatic chamber
enter a legally out-of-adjustment state under CVSA and federal guidelines? A) Any
measurement exceeding 1.75 inches. B) Any measurement exceeding 2.0 inches. C) Any
measurement exceeding 2.5 inches. D) Any measurement exceeding 1.375 (1-3/8) inches.
● The Answer: B (Any measurement exceeding 2.0 inches.)
● Distractor Analysis:
○ A is incorrect: The 1.75 inch (1-3/4 inch) limit is the absolute maximum stroke
allowed for a standard Type 20 chamber, which possesses a significantly smaller
internal diaphragm volume than a Type 30.
○ C is incorrect: The 2.5 inch limit applies exclusively to the Type 30 Long Stroke (LS)
chamber. These are identifiable by specific visual markers, such as square air ports
or specialized trapezoidal tags. Applying an LS tolerance to a standard chamber
allows the pushrod to bottom out, resulting in total loss of braking force.
○ D is incorrect: The 1.375 inch metric is the out-of-service limit for a Type 24
standard chamber, which exerts less mechanical leverage than the larger Type 30
variant.
The Mentor's Analysis: Pneumatic chamber volume directly dictates pushrod travel tolerance
and kinetic leverage. When inspecting foundation air brakes, the immediate priority is physically
identifying whether the exterior chamber housing denotes a standard or long-stroke variant
before applying a rigid measurement standard. By utilizing the 2.0-inch Type 30 limit, the
inspector bypasses the fatal trap of misidentifying a standard chamber as an LS variant and
certifying a dangerously loose brake system. Professional/Academic Intuition: An inspector
must never assume an LS chamber exists simply based on size; the square port or
trapezoidal tag must be visually verified. If it is a standard 30, exactly 2.0 inches is the
absolute mechanical ceiling.
Q3: A heavy-duty straight truck equipped with a vacuum-assisted power brake system is
undergoing certification. The technician connects a calibrated vacuum test gauge to the intake
manifold source and begins systematically depleting the atmospheric vacuum reserve with the
engine turned off. According to California Vehicle Code (CVC) Section 26521, at what precise
threshold MUST the audible or visible low-vacuum warning device activate? A) When the
vacuum drops to 60 psi. B) When the vacuum drops to 15 inches of mercury (Hg) and less. C)
When the vacuum drops to 8 inches of mercury (Hg) and less. D) When the vacuum drops to
exactly 10 percent of actual system capacity.
● The Answer: C (When the vacuum drops to 8 inches of mercury (Hg) and less.)
● Distractor Analysis:
○ A is incorrect: The 60 psi threshold is the mandatory low-pressure warning trigger
for pneumatic air brake systems. Vacuum is measured in inches of mercury, making
psi a contextually inappropriate and physically impossible metric here.
○ B is incorrect: Producing at least 15 inches of mercury is the normal operating
baseline that a healthy engine manifold vacuum system must reach during initial
