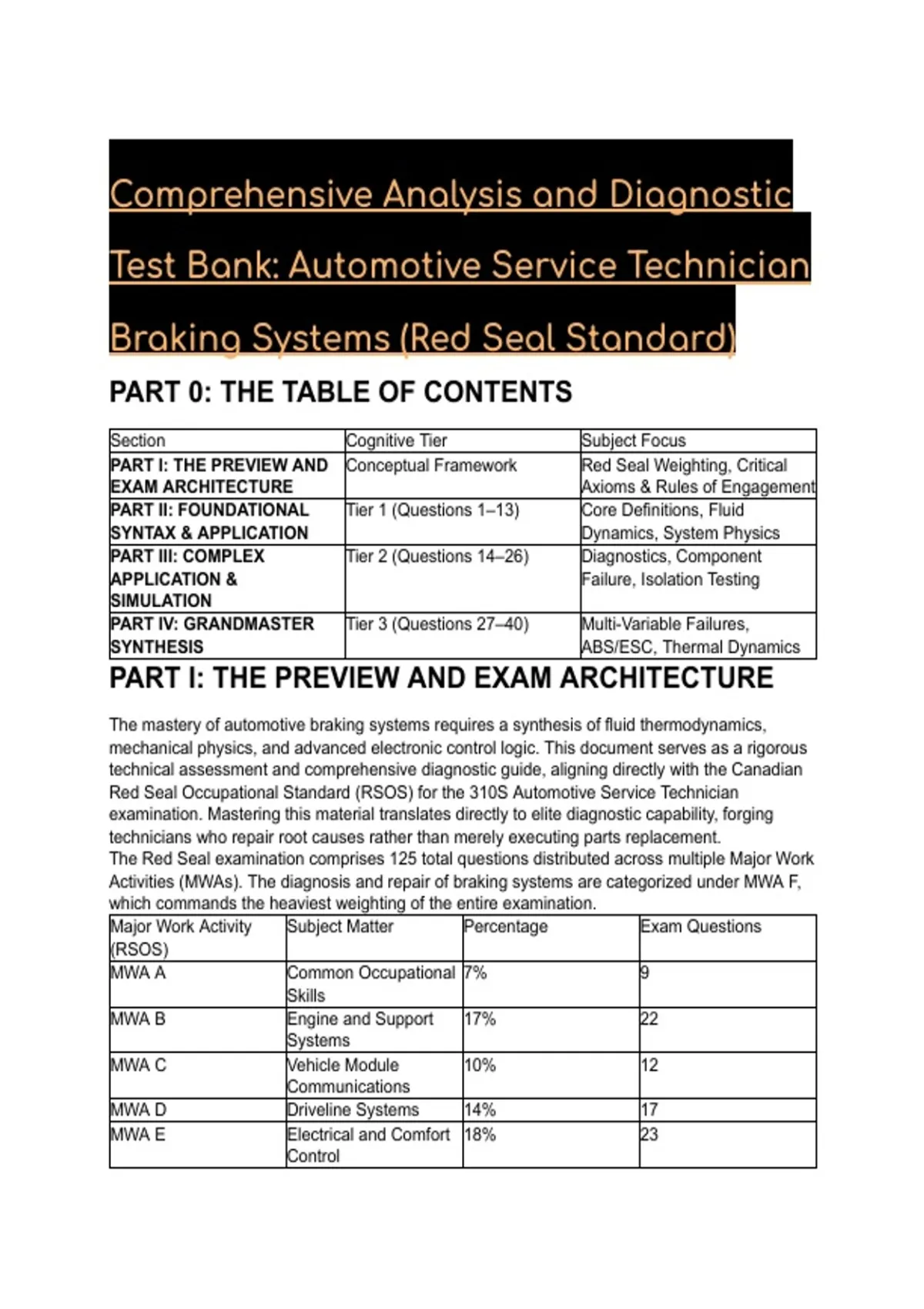

Comprehensive Analysis and Diagnostic
Test Bank: Automotive Service Technician
Braking Systems (Red Seal Standard)
PART 0: THE TABLE OF CONTENTS
Section Cognitive Tier Subject Focus
PART I: THE PREVIEW AND Conceptual Framework Red Seal Weighting, Critical
EXAM ARCHITECTURE Axioms & Rules of Engagement
PART II: FOUNDATIONAL Tier 1 (Questions 1–13) Core Definitions, Fluid
SYNTAX & APPLICATION Dynamics, System Physics
PART III: COMPLEX Tier 2 (Questions 14–26) Diagnostics, Component
APPLICATION & Failure, Isolation Testing
SIMULATION
PART IV: GRANDMASTER Tier 3 (Questions 27–40) Multi-Variable Failures,
SYNTHESIS ABS/ESC, Thermal Dynamics
PART I: THE PREVIEW AND EXAM ARCHITECTURE
The mastery of automotive braking systems requires a synthesis of fluid thermodynamics,
mechanical physics, and advanced electronic control logic. This document serves as a rigorous
technical assessment and comprehensive diagnostic guide, aligning directly with the Canadian
Red Seal Occupational Standard (RSOS) for the 310S Automotive Service Technician
examination. Mastering this material translates directly to elite diagnostic capability, forging
technicians who repair root causes rather than merely executing parts replacement.
The Red Seal examination comprises 125 total questions distributed across multiple Major Work
Activities (MWAs). The diagnosis and repair of braking systems are categorized under MWA F,
which commands the heaviest weighting of the entire examination.
Major Work Activity Subject Matter Percentage Exam Questions
(RSOS)
MWA A Common Occupational 7% 9
Skills
MWA B Engine and Support 17% 22
Systems
MWA C Vehicle Module 10% 12
Communications
MWA D Driveline Systems 14% 17
MWA E Electrical and Comfort 18% 23
Control
,Major Work Activity Subject Matter Percentage Exam Questions
(RSOS)
MWA F Steering, Suspension, 19% - 21% 23 - 26
Braking, Control
Systems
MWA G Restraint Systems and 8% 10
Body Components
MWA H Hybrid and Electric 7% 9
Vehicle (EV) Systems
● The "Critical Axioms" Cheat Sheet:
○ Pascal’s Law: Pressure exerted anywhere in a confined, incompressible fluid is
transmitted equally in all directions. This is the absolute foundation of hydraulic
braking force multiplication.
○ The Hygroscopic Rule: DOT 3, DOT 4, and DOT 5.1 are glycol-based and absorb
water. Moisture absorption directly lowers the wet boiling point, leading to fluid
vaporization and a catastrophic spongy pedal. DOT 5 is silicone-based and strictly
hydrophobic.
○ Hydraulic Isolation: A sinking pedal with no external leaks universally dictates a
master cylinder internal primary seal failure.
○ The Duo-Servo Principle: In a duo-servo drum brake, the primary shoe (front)
uses rotational force to exponentially energize the secondary shoe (rear) against
the anchor pin, multiplying the stopping force.
○ The Compensating Port Mandate: The master cylinder compensating port must
be open when the pedal is released to allow expanding, heated brake fluid to vent
back into the reservoir.
PART II: FOUNDATIONAL SYNTAX & APPLICATION
The evolution of automotive braking relies fundamentally on the principles of fluid
thermodynamics and hydraulic valving. The fluid itself is a highly engineered component
subjected to extreme thermal loads. Brake fluid degrades over time, absorbing moisture through
the microscopic pores in rubber brake hoses. This moisture radically alters the Equilibrium
Reflux Boiling Point (ERBP).
Brake Fluid Base Chemistry Dry Boiling Point Wet Boiling Point
Specification
DOT 3 Glycol-based 257 °C 157 °C
(Hygroscopic)
DOT 4 Glycol-based 263 °C 162 °C
(Hygroscopic)
DOT 5 Silicone-based 260 °C 180 °C
(Hydrophobic)
DOT 5.1 Glycol-based 270 °C 183 °C
(Hygroscopic)
Beyond the fluid, foundational system mechanics rely on specialized valving. Quick take-up
master cylinders are engineered to overcome the excessive clearance created by low-drag
caliper seals, pushing a high volume of fluid at low pressure before transitioning to high
pressure. Metering valves manage front-to-rear timing , while proportioning valves mitigate
, weight transfer physics during heavy deceleration.
Q1: A vehicle’s service manual specifies the use of DOT 3 brake fluid. The technician notes that
the vehicle is utilized for heavy towing in mountainous terrain. Based on the principles of
hydraulic fluid thermodynamics, which action regarding brake fluid is the MOST ACCURATE?
A) Flush the system and install DOT 5 fluid to maximize the high-temperature stability required
for heavy towing. B) Top off the existing DOT 3 system with DOT 5.1 fluid to incrementally
increase the overall boiling point. C) Flush the system and replace the fluid with DOT 4 or DOT
5.1 to achieve a higher wet boiling point and resist vaporization. D) Continue using DOT 3, but
bleed the system monthly to maintain its dry boiling point properties.
● The Answer: C (Flush the system and replace the fluid with DOT 4 or DOT 5.1 to achieve
a higher wet boiling point and resist vaporization.)
● Distractor Analysis:
○ A is incorrect: DOT 5 is silicone-based and cannot be used in systems designed for
glycol-based fluids, as it lacks compatibility with the ABS/ESC valving and original
EPDM rubber seals.
○ B is incorrect: While DOT 5.1 is compatible with DOT 3, simply topping off
contaminated, moisture-laden fluid does not safely raise the system's wet boiling
point to a reliable standard.
○ D is incorrect: Fluid naturally absorbs moisture through microscopic pores in brake
hoses. Bleeding the calipers monthly does not remove moisture absorbed
throughout the entire reservoir and hydraulic circuit.
The Mentor's Analysis: Under extreme thermal loads, such as towing on gradients, brake fluid
can boil. When fluid boils, it turns into a compressible gas, resulting in total hydraulic failure.
Upgrading to a compatible glycol-based DOT 4 or 5.1 fluid provides a higher wet boiling point.
By utilizing an engineered fluid upgrade, you bypass the common trap of localized fluid
vaporization. Professional/Academic Intuition: Never mix silicone-based DOT 5 into a
glycol-based DOT 3/4/5.1 system; compatibility is determined by base chemistry, not numerical
sequence.
Q2: A vehicle equipped with a quick take-up master cylinder is undergoing a routine hydraulic
inspection. Based on the mechanical design of this component, what is the PRIMARY function
of the quick take-up valve? A) To rapidly engage the ABS pump during a panic stop by
bypassing the primary hydraulic circuit. B) To supply a large volume of low-pressure fluid initially
to overcome the retraction of low-drag caliper seals. C) To increase the overall hydraulic
pressure sent to the rear drum brakes to prevent front-end nose dive. D) To draw fluid quickly
from the reservoir to cool the master cylinder bore during repetitive heavy braking.
● The Answer: B (To supply a large volume of low-pressure fluid initially to overcome the
retraction of low-drag caliper seals.)
● Distractor Analysis:
○ A is incorrect: The quick take-up valve operates purely on mechanical fluid
displacement, not electronic ABS intervention.
○ C is incorrect: Balancing pressure between the front and rear is the function of the
proportioning valve, not the master cylinder.
○ D is incorrect: Fluid movement into the bore is for hydraulic application and
compensation, not for thermal cooling.
The Mentor's Analysis: Low-drag calipers utilize square-cut seals that retract the piston further
than standard calipers to improve fuel economy. This creates excessive pad-to-rotor clearance.
The quick take-up (or step-bore) master cylinder pushes a high volume of fluid at low pressure
during the initial pedal stroke to close this gap instantly, before transitioning to a high-pressure,
Test Bank: Automotive Service Technician
Braking Systems (Red Seal Standard)
PART 0: THE TABLE OF CONTENTS
Section Cognitive Tier Subject Focus
PART I: THE PREVIEW AND Conceptual Framework Red Seal Weighting, Critical
EXAM ARCHITECTURE Axioms & Rules of Engagement
PART II: FOUNDATIONAL Tier 1 (Questions 1–13) Core Definitions, Fluid
SYNTAX & APPLICATION Dynamics, System Physics
PART III: COMPLEX Tier 2 (Questions 14–26) Diagnostics, Component
APPLICATION & Failure, Isolation Testing
SIMULATION
PART IV: GRANDMASTER Tier 3 (Questions 27–40) Multi-Variable Failures,
SYNTHESIS ABS/ESC, Thermal Dynamics
PART I: THE PREVIEW AND EXAM ARCHITECTURE
The mastery of automotive braking systems requires a synthesis of fluid thermodynamics,
mechanical physics, and advanced electronic control logic. This document serves as a rigorous
technical assessment and comprehensive diagnostic guide, aligning directly with the Canadian
Red Seal Occupational Standard (RSOS) for the 310S Automotive Service Technician
examination. Mastering this material translates directly to elite diagnostic capability, forging
technicians who repair root causes rather than merely executing parts replacement.
The Red Seal examination comprises 125 total questions distributed across multiple Major Work
Activities (MWAs). The diagnosis and repair of braking systems are categorized under MWA F,
which commands the heaviest weighting of the entire examination.
Major Work Activity Subject Matter Percentage Exam Questions
(RSOS)
MWA A Common Occupational 7% 9
Skills
MWA B Engine and Support 17% 22
Systems
MWA C Vehicle Module 10% 12
Communications
MWA D Driveline Systems 14% 17
MWA E Electrical and Comfort 18% 23
Control
,Major Work Activity Subject Matter Percentage Exam Questions
(RSOS)
MWA F Steering, Suspension, 19% - 21% 23 - 26
Braking, Control
Systems
MWA G Restraint Systems and 8% 10
Body Components
MWA H Hybrid and Electric 7% 9
Vehicle (EV) Systems
● The "Critical Axioms" Cheat Sheet:
○ Pascal’s Law: Pressure exerted anywhere in a confined, incompressible fluid is
transmitted equally in all directions. This is the absolute foundation of hydraulic
braking force multiplication.
○ The Hygroscopic Rule: DOT 3, DOT 4, and DOT 5.1 are glycol-based and absorb
water. Moisture absorption directly lowers the wet boiling point, leading to fluid
vaporization and a catastrophic spongy pedal. DOT 5 is silicone-based and strictly
hydrophobic.
○ Hydraulic Isolation: A sinking pedal with no external leaks universally dictates a
master cylinder internal primary seal failure.
○ The Duo-Servo Principle: In a duo-servo drum brake, the primary shoe (front)
uses rotational force to exponentially energize the secondary shoe (rear) against
the anchor pin, multiplying the stopping force.
○ The Compensating Port Mandate: The master cylinder compensating port must
be open when the pedal is released to allow expanding, heated brake fluid to vent
back into the reservoir.
PART II: FOUNDATIONAL SYNTAX & APPLICATION
The evolution of automotive braking relies fundamentally on the principles of fluid
thermodynamics and hydraulic valving. The fluid itself is a highly engineered component
subjected to extreme thermal loads. Brake fluid degrades over time, absorbing moisture through
the microscopic pores in rubber brake hoses. This moisture radically alters the Equilibrium
Reflux Boiling Point (ERBP).
Brake Fluid Base Chemistry Dry Boiling Point Wet Boiling Point
Specification
DOT 3 Glycol-based 257 °C 157 °C
(Hygroscopic)
DOT 4 Glycol-based 263 °C 162 °C
(Hygroscopic)
DOT 5 Silicone-based 260 °C 180 °C
(Hydrophobic)
DOT 5.1 Glycol-based 270 °C 183 °C
(Hygroscopic)
Beyond the fluid, foundational system mechanics rely on specialized valving. Quick take-up
master cylinders are engineered to overcome the excessive clearance created by low-drag
caliper seals, pushing a high volume of fluid at low pressure before transitioning to high
pressure. Metering valves manage front-to-rear timing , while proportioning valves mitigate
, weight transfer physics during heavy deceleration.
Q1: A vehicle’s service manual specifies the use of DOT 3 brake fluid. The technician notes that
the vehicle is utilized for heavy towing in mountainous terrain. Based on the principles of
hydraulic fluid thermodynamics, which action regarding brake fluid is the MOST ACCURATE?
A) Flush the system and install DOT 5 fluid to maximize the high-temperature stability required
for heavy towing. B) Top off the existing DOT 3 system with DOT 5.1 fluid to incrementally
increase the overall boiling point. C) Flush the system and replace the fluid with DOT 4 or DOT
5.1 to achieve a higher wet boiling point and resist vaporization. D) Continue using DOT 3, but
bleed the system monthly to maintain its dry boiling point properties.
● The Answer: C (Flush the system and replace the fluid with DOT 4 or DOT 5.1 to achieve
a higher wet boiling point and resist vaporization.)
● Distractor Analysis:
○ A is incorrect: DOT 5 is silicone-based and cannot be used in systems designed for
glycol-based fluids, as it lacks compatibility with the ABS/ESC valving and original
EPDM rubber seals.
○ B is incorrect: While DOT 5.1 is compatible with DOT 3, simply topping off
contaminated, moisture-laden fluid does not safely raise the system's wet boiling
point to a reliable standard.
○ D is incorrect: Fluid naturally absorbs moisture through microscopic pores in brake
hoses. Bleeding the calipers monthly does not remove moisture absorbed
throughout the entire reservoir and hydraulic circuit.
The Mentor's Analysis: Under extreme thermal loads, such as towing on gradients, brake fluid
can boil. When fluid boils, it turns into a compressible gas, resulting in total hydraulic failure.
Upgrading to a compatible glycol-based DOT 4 or 5.1 fluid provides a higher wet boiling point.
By utilizing an engineered fluid upgrade, you bypass the common trap of localized fluid
vaporization. Professional/Academic Intuition: Never mix silicone-based DOT 5 into a
glycol-based DOT 3/4/5.1 system; compatibility is determined by base chemistry, not numerical
sequence.
Q2: A vehicle equipped with a quick take-up master cylinder is undergoing a routine hydraulic
inspection. Based on the mechanical design of this component, what is the PRIMARY function
of the quick take-up valve? A) To rapidly engage the ABS pump during a panic stop by
bypassing the primary hydraulic circuit. B) To supply a large volume of low-pressure fluid initially
to overcome the retraction of low-drag caliper seals. C) To increase the overall hydraulic
pressure sent to the rear drum brakes to prevent front-end nose dive. D) To draw fluid quickly
from the reservoir to cool the master cylinder bore during repetitive heavy braking.
● The Answer: B (To supply a large volume of low-pressure fluid initially to overcome the
retraction of low-drag caliper seals.)
● Distractor Analysis:
○ A is incorrect: The quick take-up valve operates purely on mechanical fluid
displacement, not electronic ABS intervention.
○ C is incorrect: Balancing pressure between the front and rear is the function of the
proportioning valve, not the master cylinder.
○ D is incorrect: Fluid movement into the bore is for hydraulic application and
compensation, not for thermal cooling.
The Mentor's Analysis: Low-drag calipers utilize square-cut seals that retract the piston further
than standard calipers to improve fuel economy. This creates excessive pad-to-rotor clearance.
The quick take-up (or step-bore) master cylinder pushes a high volume of fluid at low pressure
during the initial pedal stroke to close this gap instantly, before transitioning to a high-pressure,
