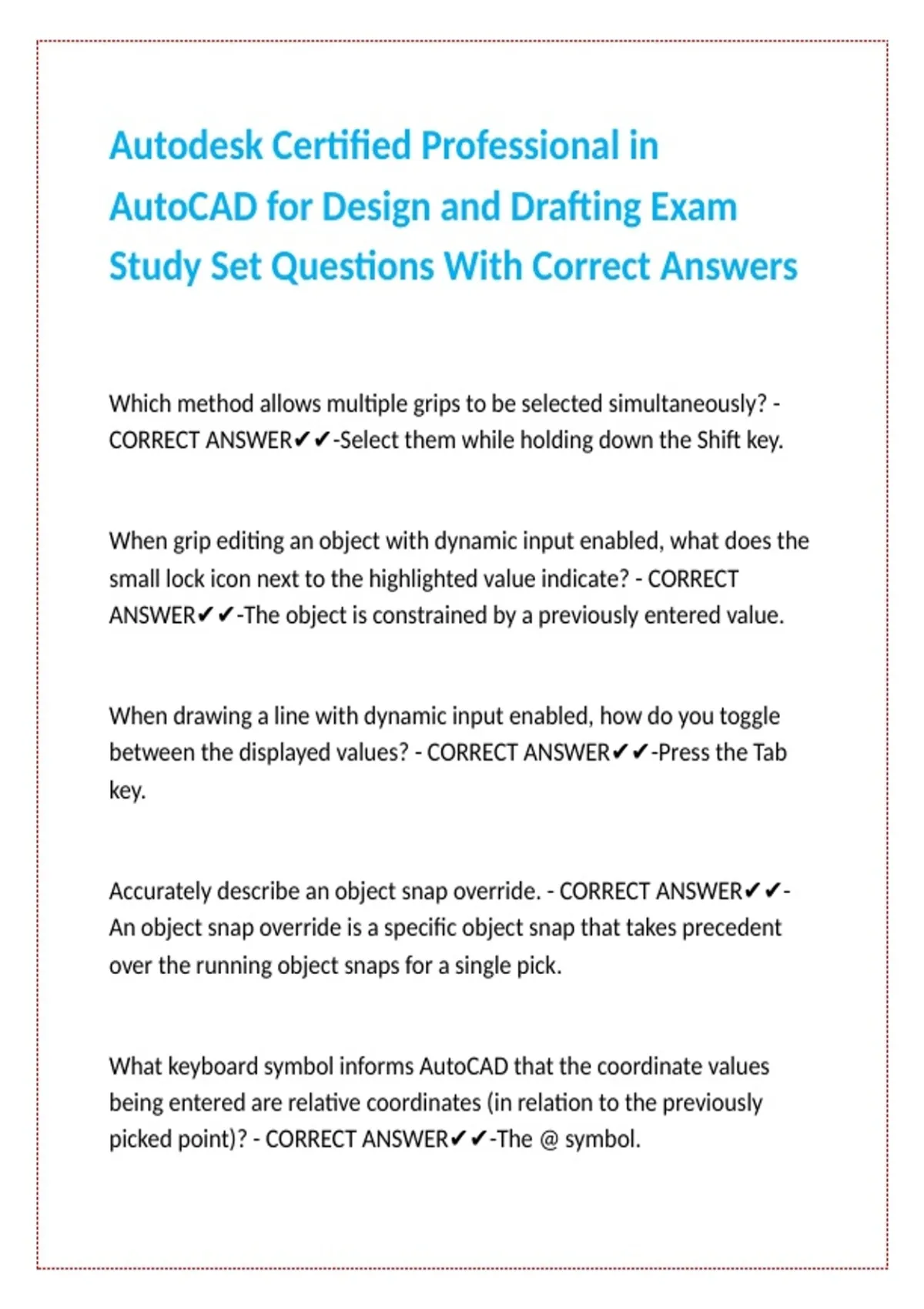

Autodesk Certified Professional in
AutoCAD for Design and Drafting Exam
Study Set Questions With Correct Answers
Which method allows multiple grips to be selected simultaneously? -
| | | | | | | | | |
CORRECT ANSWER✔✔-Select them while holding down the Shift key.
| | | | | | | |
When grip editing an object with dynamic input enabled, what does the
| | | | | | | | | | | |
small lock icon next to the highlighted value indicate? - CORRECT
| | | | | | | | | | |
ANSWER✔✔-The object is constrained by a previously entered value.
| | | | | | | |
When drawing a line with dynamic input enabled, how do you toggle
| | | | | | | | | | | |
between the displayed values? - CORRECT ANSWER✔✔-Press the Tab
| | | | | | | | |
key.
Accurately describe an object snap override. - CORRECT ANSWER✔✔-
| | | | | | | |
An object snap override is a specific object snap that takes precedent
| | | | | | | | | | | |
over the running object snaps for a single pick.
| | | | | | | |
What keyboard symbol informs AutoCAD that the coordinate values
| | | | | | | | |
being entered are relative coordinates (in relation to the previously
| | | | | | | | | |
picked point)? - CORRECT ANSWER✔✔-The @ symbol.
| | | | | |
,What workflow should be used to apply a page setup to the current
| | | | | | | | | | | | |
layout? - CORRECT ANSWER✔✔-Select the page setup in the Page Setup
| | | | | | | | | |
|Manager and set it current. | | | |
What step should be taken to ensure that a viewport's scale is not
| | | | | | | | | | | | |
impacted by Zoom or Pan? - CORRECT ANSWER✔✔-Lock the viewport.
| | | | | | | | |
What are two valid clipping objects when clipping a viewport? -
| | | | | | | | | | |
CORRECT ANSWER✔✔-• An ellipse. | | |
• A closed polyline.
| | |
How can model space be excluded from the default sheet list in the
| | | | | | | | | | | | |
PUBLISH command? - CORRECT ANSWER✔✔-Deselect the Include
| | | | | | |
Model When Adding Sheets option.
| | | |
Why is it good practice to select Set Default Plotter to None when
| | | | | | | | | | | | |
creating an eTransmittal package? - CORRECT ANSWER✔✔-To avoid
| | | | | | | |
potential plotter issues for the recipient.
| | | | |
How is the sort order of sheets in a sheet set determined? - CORRECT
| | | | | | | | | | | | | |
ANSWER✔✔-Sheets are sorted manually using the drag-and-drop | | | | | | |
method.
, After changing sheet set properties, what step is required to update all
| | | | | | | | | | | |
sheets in the set to reflect the changed property? - CORRECT
| | | | | | | | | | |
ANSWER✔✔-Right-click on the Sheet Set and choose Resave All Sheets. | | | | | | | | |
When layer properties are overridden within a viewport, how is this
| | | | | | | | | | |
indicated in the Layer Properties Manager? - CORRECT ANSWER✔✔-The
| | | | | | | |
|layer name and specific property overrides are shown with a blue
| | | | | | | | | | |
background color. |
When do results of a layer properties filter become visible? - CORRECT
| | | | | | | | | | | |
ANSWER✔✔-In real time as the filter is being defined. | | | | | | | |
When a new user coordinate system is created with a new base point
| | | | | | | | | | | | |
and rotation, which of the following should be expected? (Drawing
| | | | | | | | | |
settings are not impacted by creating a new user coordinate system that
| | | | | | | | | | |
is rotated at 45 degrees.) - CORRECT ANSWER✔✔-The orientation of
| | | | | | | | | | |
the cursor crosshairs are reoriented to align with the new UCS's
| | | | | | | | | | |
rotation.
What occurs if no objects are selected in the Properties palette? -
| | | | | | | | | | | |
CORRECT ANSWER✔✔-General drawing properties are shown.
| | | | |
When using the MEASUREGEOM command's Quick Mode, what does an
| | | | | | | | |
orange box in a corner indicate? - CORRECT ANSWER✔✔-The lines
| | | | | | | | | | |
creating the corner are at a right angle.
| | | | | | |
