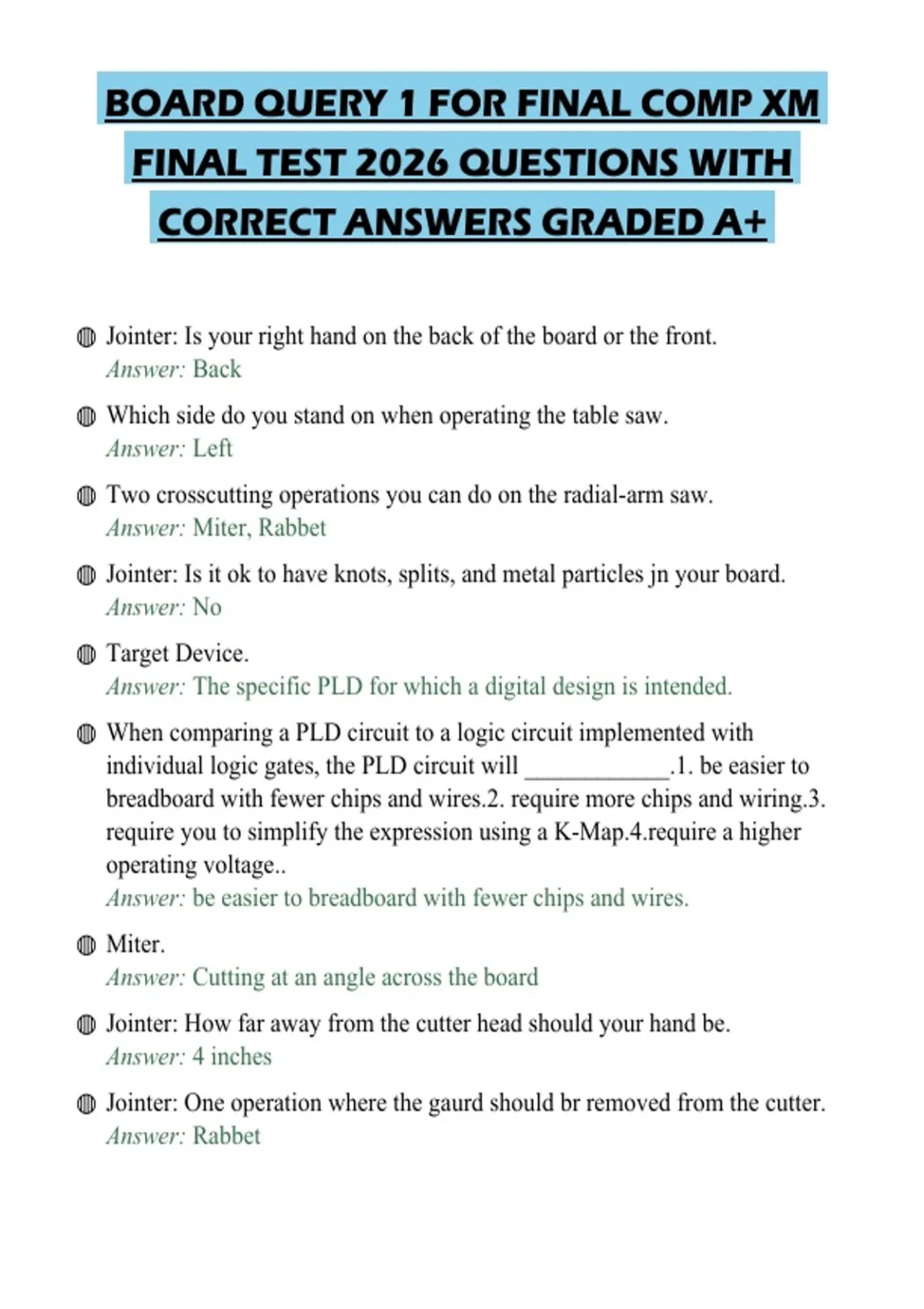

BOARD QUERY 1 FOR FINAL COMP XM
FINAL TEST 2026 QUESTIONS WITH
CORRECT ANSWERS GRADED A+
◍ Jointer: Is your right hand on the back of the board or the front.
Answer: Back
◍ Which side do you stand on when operating the table saw.
Answer: Left
◍ Two crosscutting operations you can do on the radial-arm saw.
Answer: Miter, Rabbet
◍ Jointer: Is it ok to have knots, splits, and metal particles jn your board.
Answer: No
◍ Target Device.
Answer: The specific PLD for which a digital design is intended.
◍ When comparing a PLD circuit to a logic circuit implemented with
individual logic gates, the PLD circuit will ____________.1. be easier to
breadboard with fewer chips and wires.2. require more chips and wiring.3.
require you to simplify the expression using a K-Map.4.require a higher
operating voltage..
Answer: be easier to breadboard with fewer chips and wires.
◍ Miter.
Answer: Cutting at an angle across the board
◍ Jointer: How far away from the cutter head should your hand be.
Answer: 4 inches
◍ Jointer: One operation where the gaurd should br removed from the cutter.
Answer: Rabbet
,◍ Name three processes for simplifying circuits 1.Boolean Algebra, Boolean
Equations, Karnaugh maps2.Boolean Geometry, Demorgans Theroem,
Break the bar change the sign3.Karnaugh Mapping, Demorgans Theorem,
Boolean algebra4.Simplify terms, karnaugh mapping, looping like terms.
Answer: Karnaugh Mapping, Demorgans Theorem, Boolean algebra
◍ FPGA.
Answer: Field Programmable Gate Array - essentially a PLD
◍ Conventional Current.
Answer: The direction of current flow associated with positive charge in
motion. The current flow direction is from a positive to negative potential,
which is in the opposite direction of electron flow.
◍ Dado.
Answer: A cut you make on the table saw that uses several blades together
to make a groove in the board
◍ LED.
Answer: Light-emitting diode. An electronic device that conducts current in
one direction only and illuminates when it is conducting.
◍ Digital Waveform.
Answer: A series of logic 1s and 0s plotted as a function of time.
◍ How are the Q and Q' outputs of a flip flop affected by setting the active low
asynchronous RESET input to a logic zero?1. Q = 1 and Q' = 0 2. Q = 0 and
Q' =13. invalid4. No change..
Answer: Q = 0 and Q' =1
◍ Widest board you can put through the planer.
Answer: 24 inches
◍ Table saw: to loosen the arbor nut do you pull it toward you or push it away.
Answer: Pull towards you
◍ Soldering Iron.
Answer: Tool with an internal heating element used to heat surfaces being
, soldered to the point where the solder becomes molten.
◍ Can you make minor adjustments to the jointer while it is running.
Answer: No
◍ In a parallel circuit, you measure 1.5 mAmps flowing through a 600 Ω
resistor. What is the voltage drop across the resistor? Use Ohms law..
Answer: 900 m Volts
◍ Table saw: do the teeth on the blade point at you or away from you.
Answer: Towards you
◍ Irregular.
Answer: A cut on the band saw that is not straight but is at an angle and or
curved
◍ Frequency.
Answer: The number of cycles per unit time of a periodic waveform
◍ Planer: What makes the infeed rollers differemt from the outfeed rollers.
Answer: Indeed have grooves
◍ Rabbet.
Answer: When you cut a groove at the end of the board
◍ Thickest board you can put through the planer.
Answer: 8 inches
◍ Table saw: What do you always use when ripping a board.
Answer: A fence
◍ Distributive Property.
Answer: Full name: distributive property of multiplication over addition.
The property that allows us to distribute ("multiply through") an AND
across several OR functions. For example, a(b+c)=ab+ac.
◍ Crosscut.
Answer: Cutting across the grain of the wood using the miter gauge
◍ 1's Complement.
