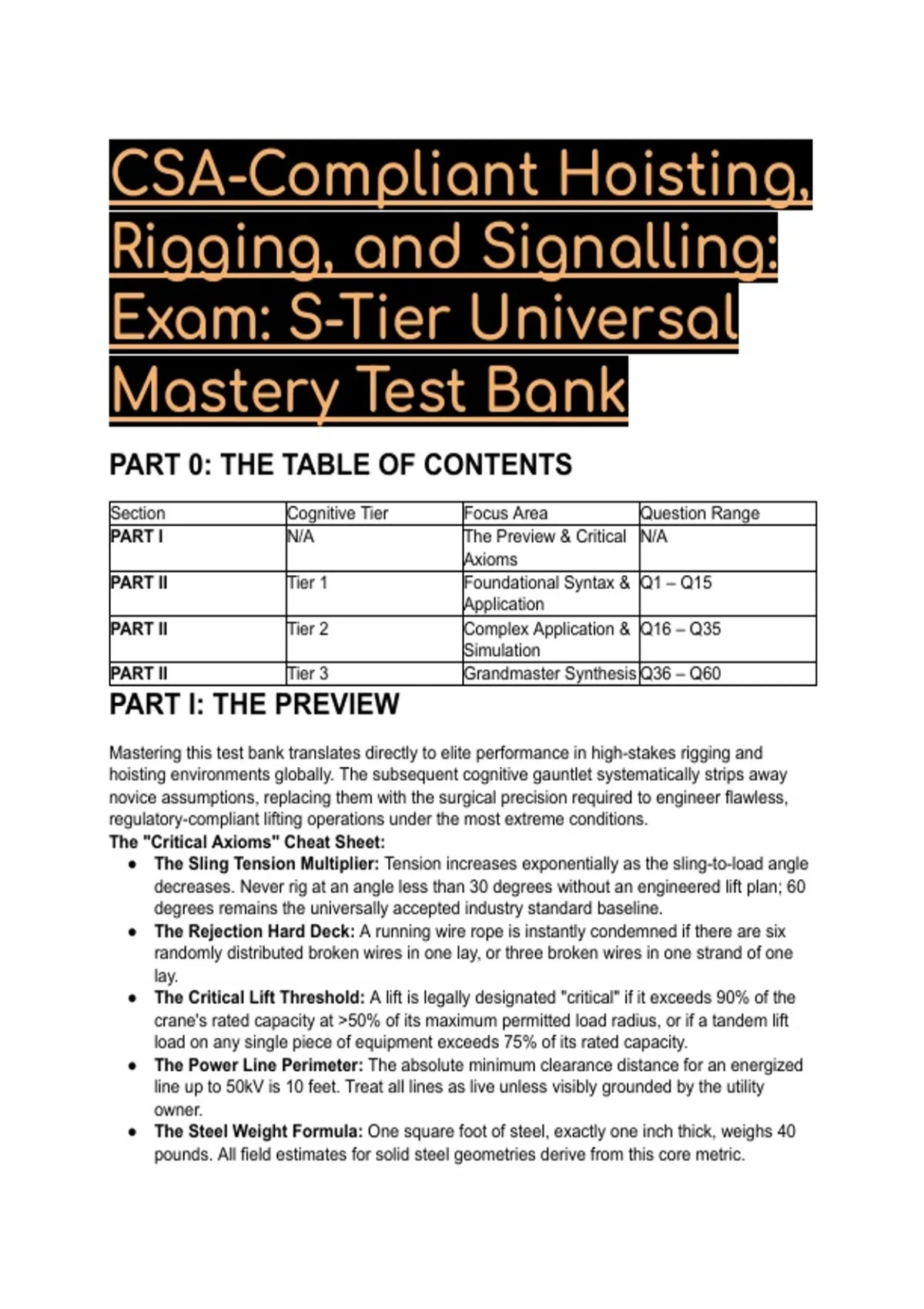

CSA-Compliant Hoisting,
Rigging, and Signalling:
Exam: S-Tier Universal
Mastery Test Bank
PART 0: THE TABLE OF CONTENTS
Section Cognitive Tier Focus Area Question Range
PART I N/A The Preview & Critical N/A
Axioms
PART II Tier 1 Foundational Syntax & Q1 – Q15
Application
PART II Tier 2 Complex Application & Q16 – Q35
Simulation
PART II Tier 3 Grandmaster Synthesis Q36 – Q60
PART I: THE PREVIEW
Mastering this test bank translates directly to elite performance in high-stakes rigging and
hoisting environments globally. The subsequent cognitive gauntlet systematically strips away
novice assumptions, replacing them with the surgical precision required to engineer flawless,
regulatory-compliant lifting operations under the most extreme conditions.
The "Critical Axioms" Cheat Sheet:
● The Sling Tension Multiplier: Tension increases exponentially as the sling-to-load angle
decreases. Never rig at an angle less than 30 degrees without an engineered lift plan; 60
degrees remains the universally accepted industry standard baseline.
● The Rejection Hard Deck: A running wire rope is instantly condemned if there are six
randomly distributed broken wires in one lay, or three broken wires in one strand of one
lay.
● The Critical Lift Threshold: A lift is legally designated "critical" if it exceeds 90% of the
crane's rated capacity at >50% of its maximum permitted load radius, or if a tandem lift
load on any single piece of equipment exceeds 75% of its rated capacity.
● The Power Line Perimeter: The absolute minimum clearance distance for an energized
line up to 50kV is 10 feet. Treat all lines as live unless visibly grounded by the utility
owner.
● The Steel Weight Formula: One square foot of steel, exactly one inch thick, weighs 40
pounds. All field estimates for solid steel geometries derive from this core metric.
,PART II: THE ELITE TEST BANK
Q1: A heavy industrial site requires the installation of a permanently guided mechanical
winching mechanism for a water control gate. The lift director references CSA Z150 to formulate
the safety protocols. Based on the principles of regulatory scoping, which conclusion is the
MOST ACCURATE? A) The operation must utilize CSA Z150.3 because the winching
mechanism operates on an articulating pivot. B) CSA Z150 requires a minimum 5-ton capacity
to apply to stationary winches. C) Permanently guided loads are explicitly excluded from the
scope of CSA Z150. D) CSA Z150 only applies to tower cranes, rendering the standards
obsolete for ground-mounted winches.
● The Answer: C (Permanently guided loads are explicitly excluded from the scope of CSA
Z150.)
● Distractor Analysis:
○ A is incorrect: CSA Z150.3 applies to commercial truck-mounted articulating boom
cranes, not permanently guided structural winches.
○ B is incorrect: The scope of CSA Z150 is dictated by equipment configuration
(mobile base, boom, tackle), not an arbitrary 5-ton capacity floor.
○ D is incorrect: CSA Z150 governs mobile cranes, while CSA Z248 strictly governs
tower cranes.
The Mentor's Analysis: Regulatory compliance begins with absolute jurisdictional accuracy.
When establishing hoisting protocols, the immediate priority is verifying the equipment
architecture matches the standard. By utilizing Scope Exclusions, the practitioner bypasses the
common trap of misapplying mobile crane safety codes to permanently guided structural
mechanisms. Professional/Academic Intuition: If the load is physically constrained by
permanent structural rails or guides, mobile crane hoisting standards do not apply.
Q2: During a pre-shift inspection, a rigger assesses a 6-strand running wire rope. The rigger
identifies four randomly distributed broken wires within a single rope lay, none of which are in
the same strand. Based on CSA and OSHA rejection criteria, which action is the MOST
ACCURATE? A) Remove the rope from service immediately because it exceeds the absolute
three-wire safety limit. B) Keep the rope in service, as the threshold for removal is six randomly
distributed broken wires in one lay. C) Continue operations but mathematically derate the
Working Load Limit (WLL) by 50% to account for structural loss. D) Weld the broken wire ends
to prevent further unstranding and proceed under a critical lift plan.
● The Answer: B (Keep the rope in service, as the threshold for removal is six randomly
distributed broken wires in one lay.)
● Distractor Analysis:
○ A is incorrect: The removal limit is three broken wires concentrated in one strand in
one lay, or six randomly distributed across the entire lay.
○ C is incorrect: Wire ropes are never mathematically derated for broken wires; they
either pass inspection or are permanently removed.
○ D is incorrect: Welding broken wires destroys the metallurgical heat-treatment of the
high-carbon steel and is strictly prohibited.
The Mentor's Analysis: Prematurely condemning hardware halts production, while ignoring
wear triggers fatalities. When inspecting running ropes, the immediate priority is quantifying
breaks per lay and per strand. By utilizing the 6-and-3 Rule, the practitioner bypasses the
common trap of panicking over minor, acceptable fatigue. Professional/Academic Intuition:
, For running ropes, the absolute limit is 6 random breaks per lay, or 3 breaks concentrated in a
single strand.
Q3: An operator is executing a blind lift and relies entirely on a designated signaller. The
signaller extends their right arm horizontally to the side and points their thumb downward while
repeatedly opening and closing their fingers. Which mechanical action is being requested? A)
Lower the boom and lower the load simultaneously. B) Retract the telescopic boom slowly. C)
Lower the boom and raise the load simultaneously. D) Initiate an emergency stop immediately.
● The Answer: C (Lower the boom and raise the load simultaneously.)
● Distractor Analysis:
○ A is incorrect: Lowering the load requires the index finger pointing down, not a
pumping motion of the fingers with a downward thumb.
○ B is incorrect: Retracting the boom requires both fists in front of the body with
thumbs pointing inward toward each other.
○ D is incorrect: An emergency stop requires both arms extended horizontally with
palms down, swinging back and forth.
The Mentor's Analysis: Complex spatial maneuvering requires simultaneous mechanical
commands. When navigating tight horizontal clearances, the immediate priority is coordinating
boom angle with hoist line payout. By utilizing the Simultaneous Command Signal, the
practitioner bypasses the common trap of moving the load out of the vertical plane during a
boom adjustment. Professional/Academic Intuition: A downward thumb commands the boom;
the flexing fingers command the hoist. Together, they keep the load horizontally level.
Q4: A rigging crew is preparing to lift an irregularly shaped generator using a 4-leg bridle hitch.
The center of gravity is slightly offset. When calculating the required sling capacity, which
mathematical assumption is the MOST ACCURATE? A) Divide the total load weight by 4,
assuming all legs will dynamically balance and bear equal tension. B) Divide the total load
weight by 3, as one leg will remain entirely slack during the hoist. C) Base the capacity
calculation strictly on a 2-leg bridle hitch configuration. D) Multiply the Working Load Limit by the
total length of all four legs to determine the net lifting capability.
● The Answer: C (Base the capacity calculation strictly on a 2-leg bridle hitch
configuration.)
● Distractor Analysis:
○ A is incorrect: Rigid loads on 4-leg slings rarely distribute weight evenly due to
micro-variations in leg length, hook height, and center of gravity.
○ B is incorrect: It is physically standard for exactly two legs to take the entire load
while the other two merely balance the rigid object.
○ D is incorrect: This is a fabricated calculation that conflates length with multiplier
limits.
The Mentor's Analysis: Geometry dictates that three points define a plane, but rigid loads on
four points behave unpredictably. When calculating multi-leg slings, the immediate priority is
planning for worst-case asymmetrical load distribution. By utilizing the Two-Leg Assumption, the
practitioner bypasses the common trap of overloading individual sling legs on a rigid 4-point
pick. Professional/Academic Intuition: Always calculate the WLL of a 3-leg or 4-leg bridle
hitch as if only two legs are supporting the entire dead weight of the load.
Q5: An engineering team plans to lift personnel using a crane-suspended basket. The crane's
rated capacity at the required radius is 15,000 lbs. According to CSA Z150 protocols for
personnel lifting, what is the MAXIMUM permissible total weight of the loaded personnel
basket? A) 15,000 lbs B) 7,500 lbs C) 3,000 lbs D) 1,500 lbs
● The Answer: C (3,000 lbs)
