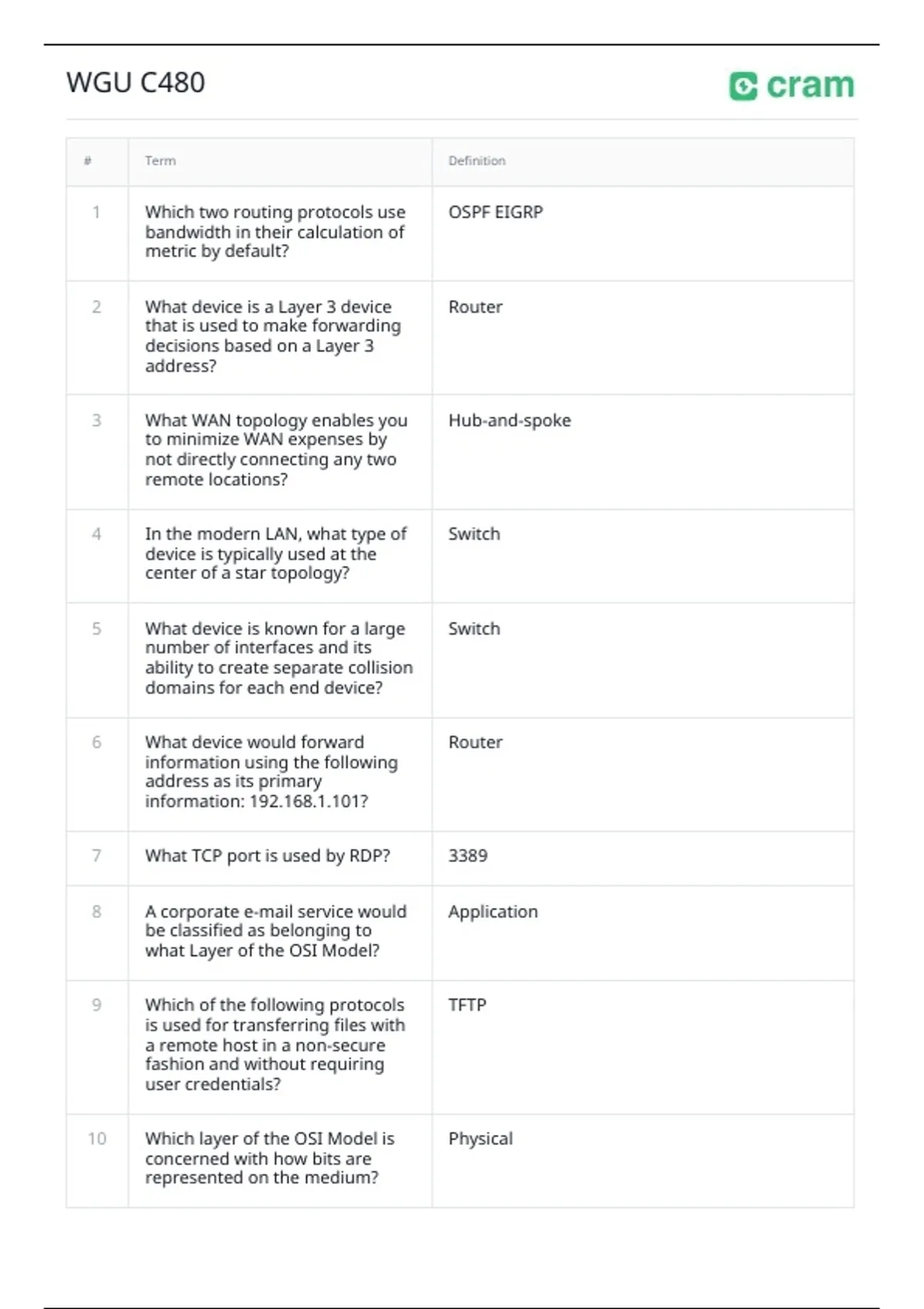

WGU C480
# Term Definition
1 Which two routing protocols use OSPF EIGRP
bandwidth in their calculation of
metric by default?
2 What device is a Layer 3 device Router
that is used to make forwarding
decisions based on a Layer 3
address?
3 What WAN topology enables you Hub-and-spoke
to minimize WAN expenses by
not directly connecting any two
remote locations?
4 In the modern LAN, what type of Switch
device is typically used at the
center of a star topology?
5 What device is known for a large Switch
number of interfaces and its
ability to create separate collision
domains for each end device?
6 What device would forward Router
information using the following
address as its primary
information: 192.168.1.101?
7 What TCP port is used by RDP? 3389
8 A corporate e-mail service would Application
be classified as belonging to
what Layer of the OSI Model?
9 Which of the following protocols TFTP
is used for transferring files with
a remote host in a non-secure
fashion and without requiring
user credentials?
10 Which layer of the OSI Model is Physical
concerned with how bits are
represented on the medium?
, WGU C480
# Term Definition
11 Internet Protocol (IP) resides at Layer 3 Network
what layer of the OSI Model?
12 An Ethernet workgroup switch Layer 2
resides at which layer of the OSI
Model?
13 Which of the following protocols FTP
is used for transferring files with
a remote host in a non-secure
fashion?
14 Which of the following are MAC LLC
sublayers of the Data Link Layer
(that is, Layer 2) of the OSI
Model?
15 What is the common UDP port 67
(that is, "well-known" port) used
by a DHCP server?
16 Which of the following manages Intermediate distribution frames
and interconnects the cables
between end user devices and an
MDF?
17 A location within a building wiring closet
where network cables terminate
is commonly called a(n)
__________.
18 A DHCP reservation involves the DHCPDISCOVER
exchange of four messages
between a DHCP client and a
DHCP server. What is the first of
these messages?
19 Which of the following can often Firewall VPN concentrator Router
be categorized as an encryption
device (that is, a device capable
of participating in an encrypted
session)?
# Term Definition
1 Which two routing protocols use OSPF EIGRP
bandwidth in their calculation of
metric by default?
2 What device is a Layer 3 device Router
that is used to make forwarding
decisions based on a Layer 3
address?
3 What WAN topology enables you Hub-and-spoke
to minimize WAN expenses by
not directly connecting any two
remote locations?
4 In the modern LAN, what type of Switch
device is typically used at the
center of a star topology?
5 What device is known for a large Switch
number of interfaces and its
ability to create separate collision
domains for each end device?
6 What device would forward Router
information using the following
address as its primary
information: 192.168.1.101?
7 What TCP port is used by RDP? 3389
8 A corporate e-mail service would Application
be classified as belonging to
what Layer of the OSI Model?
9 Which of the following protocols TFTP
is used for transferring files with
a remote host in a non-secure
fashion and without requiring
user credentials?
10 Which layer of the OSI Model is Physical
concerned with how bits are
represented on the medium?
, WGU C480
# Term Definition
11 Internet Protocol (IP) resides at Layer 3 Network
what layer of the OSI Model?
12 An Ethernet workgroup switch Layer 2
resides at which layer of the OSI
Model?
13 Which of the following protocols FTP
is used for transferring files with
a remote host in a non-secure
fashion?
14 Which of the following are MAC LLC
sublayers of the Data Link Layer
(that is, Layer 2) of the OSI
Model?
15 What is the common UDP port 67
(that is, "well-known" port) used
by a DHCP server?
16 Which of the following manages Intermediate distribution frames
and interconnects the cables
between end user devices and an
MDF?
17 A location within a building wiring closet
where network cables terminate
is commonly called a(n)
__________.
18 A DHCP reservation involves the DHCPDISCOVER
exchange of four messages
between a DHCP client and a
DHCP server. What is the first of
these messages?
19 Which of the following can often Firewall VPN concentrator Router
be categorized as an encryption
device (that is, a device capable
of participating in an encrypted
session)?
