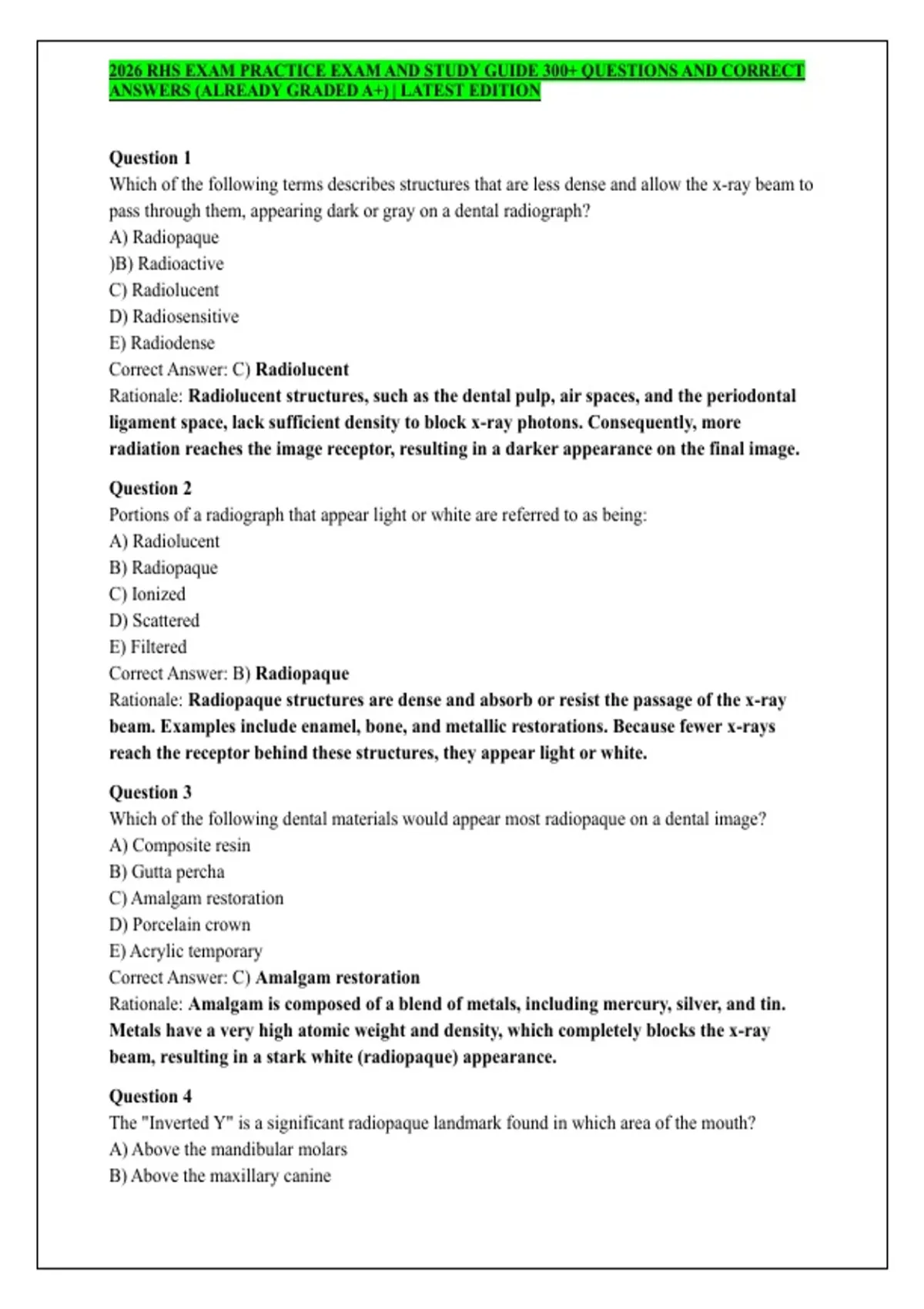

2026 RHS EXAM PRACTICE EXAM AND STUDY GUIDE 300+ QUESTIONS AND CORRECT
ANSWERS (ALREADY GRADED A+) | LATEST EDITION
Question 1
Which of the following terms describes structures that are less dense and allow the x-ray beam to
pass through them, appearing dark or gray on a dental radiograph?
A) Radiopaque
)B) Radioactive
C) Radiolucent
D) Radiosensitive
E) Radiodense
Correct Answer: C) Radiolucent
Rationale: Radiolucent structures, such as the dental pulp, air spaces, and the periodontal
ligament space, lack sufficient density to block x-ray photons. Consequently, more
radiation reaches the image receptor, resulting in a darker appearance on the final image.
Question 2
Portions of a radiograph that appear light or white are referred to as being:
A) Radiolucent
B) Radiopaque
C) Ionized
D) Scattered
E) Filtered
Correct Answer: B) Radiopaque
Rationale: Radiopaque structures are dense and absorb or resist the passage of the x-ray
beam. Examples include enamel, bone, and metallic restorations. Because fewer x-rays
reach the receptor behind these structures, they appear light or white.
Question 3
Which of the following dental materials would appear most radiopaque on a dental image?
A) Composite resin
B) Gutta percha
C) Amalgam restoration
D) Porcelain crown
E) Acrylic temporary
Correct Answer: C) Amalgam restoration
Rationale: Amalgam is composed of a blend of metals, including mercury, silver, and tin.
Metals have a very high atomic weight and density, which completely blocks the x-ray
beam, resulting in a stark white (radiopaque) appearance.
Question 4
The "Inverted Y" is a significant radiopaque landmark found in which area of the mouth?
A) Above the mandibular molars
B) Above the maxillary canine
, 2
C) Below the mandibular incisors
D) Near the mental foramen
E) Inside the maxillary tuberosity
Correct Answer: B) Above the maxillary canine
Rationale: The Inverted Y represents the radiographic intersection of the lateral wall of the
nasal cavity and the anterior-medial wall of the maxillary sinus. It is a key landmark for
identifying the maxillary canine region.
Question 5
How does the maxillary sinus typically appear on a periapical radiograph of the maxillary
molars?
A) As a radiopaque line
B) As a radiolucent area with a radiopaque floor
C) As a solid white circle
D) As a dark gray vertical band
E) It is not visible on periapical images
Correct Answer: B) As a radiolucent area with a radiopaque floor
Rationale: The sinus is a large, air-filled cavity. Air is not dense, so the cavity appears
radiolucent (dark). However, the bony wall or "floor" of the sinus is dense bone, which
appears as a thin radiopaque (white) outline.
Question 6
Which radiographic view is designed to expose the entire tooth from the crown to the apex,
including the surrounding bone?
A) Bitewing
B) Panoramic
C) Cephalometric
D) Periapical
E) Occlusal
Correct Answer: D) Periapical
Rationale: Periapical images are essential for evaluating the health of the root apex and the
surrounding supportive structures (periodontal ligament and alveolar bone).
Question 7
Small passageways through bone that contain blood vessels and nerves supplying the teeth are
called:
A) Nutrient canals
B) Mandibular canals
C) Trabecular patterns
D) Sinus septa
E) Foramina
, 3
Correct Answer: A) Nutrient canals
Rationale: Nutrient canals appear as thin radiolucent lines in the maxilla and mandible.
They are most commonly seen in the anterior mandible where the bone is thinner.
Question 8
The radiopaque band that extends downward and forward from the ramus on the internal surface
of the mandible is the:
A) External oblique ridge
B) Internal oblique ridge
C) Mandibular canal
D) Genial tubercle
E) Mental ridge
Correct Answer: B) Internal oblique ridge
Rationale: The internal oblique ridge (or mylohyoid ridge) is a linear prominence of bone.
When both ridges are visible, the internal oblique ridge is typically positioned inferior to
the external oblique ridge.
Question 9
The mandibular canal is radiographically characterized as:
A) A thick white line
B) A radiolucent band outlined by two thin radiopaque lines
C) A dark circle near the premolars
D) A radiopaque area in the ramus
E) A series of small white dots
Correct Answer: B) A radiolucent band outlined by two thin radiopaque lines
Rationale: The canal itself is a hollow tube for the inferior alveolar nerve and vessels
(radiolucent), but it is encased in a thin layer of cortical bone, which appears as the
radiopaque "walls" of the canal.
Question 10
Which of the following is the hardest calcified tissue in the human body and appears radiopaque?
A) Dentin
B) Cementum
C) Alveolar bone
D) Enamel
E) Pulp
Correct Answer: D) Enamel
Rationale: Enamel is the most highly mineralized tissue in the body, making it the most
radiopaque natural component of the tooth structure.
, 4
Question 11
The junction between the enamel and the underlying hard tissue of the tooth is the:
A) Cementoenamel junction
B) Dentinoenamel junction
C) Pulpal border
D) Periodontal space
E) Alveolar crest
Correct Answer: B) Dentinoenamel junction
Rationale: The Dentinoenamel Junction (DEJ) appears as a distinct line where the very
radiopaque enamel meets the slightly less radiopaque dentin.
Question 12
On a radiograph, the dental pulp appears ________ because it is ________.
A) Radiopaque; highly mineralized
B) Radiolucent; composed of soft tissue
C) Radiopaque; dense
D) Radiolucent; made of metal
E) White; air-filled
Correct Answer: B) Radiolucent; composed of soft tissue
Rationale: The pulp chamber and canals contain blood vessels and nerves. These soft tissues
do not block x-ray photons, allowing them to pass through to the receptor and create a
dark area.
Question 13
Which structure attaches the tooth to the jaw and appears as a thin radiolucent line around the
root?
A) Alveolar ridge
B) Periodontal ligament
C) Lamina dura
D) Cementum
E) Nutrient canal
Correct Answer: B) Periodontal ligament
Rationale: The periodontal ligament (PDL) is soft connective tissue. In a healthy state, it
appears as a continuous, thin dark line between the root and the dense lamina dura of the
bone.
Question 14
X-rays are a form of ________ radiation used to produce dental images.
A) Particulate
B) Electromagnetic
C) Thermal
