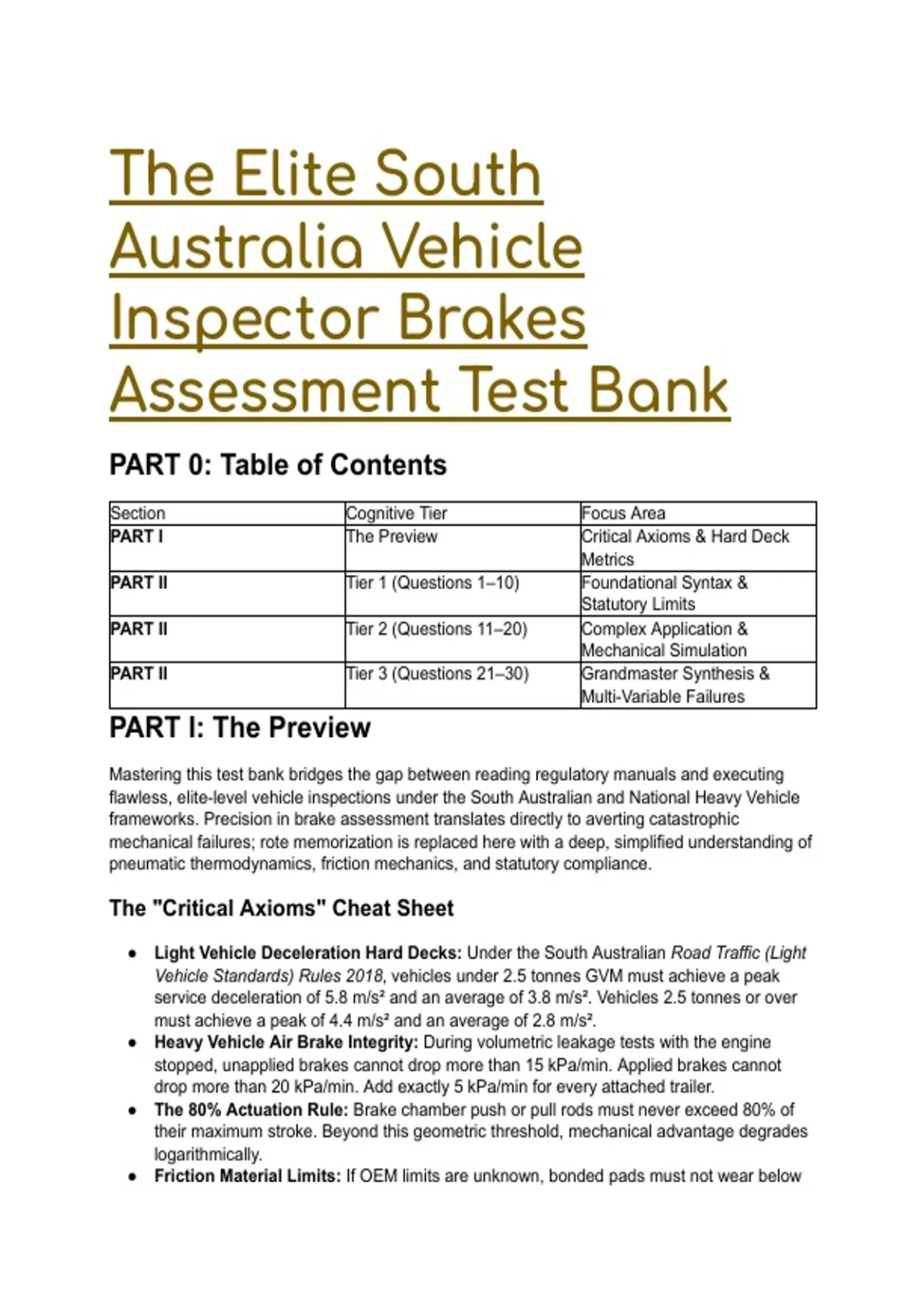

The Elite South
Australia Vehicle
Inspector Brakes
Assessment Test Bank
PART 0: Table of Contents
Section Cognitive Tier Focus Area
PART I The Preview Critical Axioms & Hard Deck
Metrics
PART II Tier 1 (Questions 1–10) Foundational Syntax &
Statutory Limits
PART II Tier 2 (Questions 11–20) Complex Application &
Mechanical Simulation
PART II Tier 3 (Questions 21–30) Grandmaster Synthesis &
Multi-Variable Failures
PART I: The Preview
Mastering this test bank bridges the gap between reading regulatory manuals and executing
flawless, elite-level vehicle inspections under the South Australian and National Heavy Vehicle
frameworks. Precision in brake assessment translates directly to averting catastrophic
mechanical failures; rote memorization is replaced here with a deep, simplified understanding of
pneumatic thermodynamics, friction mechanics, and statutory compliance.
The "Critical Axioms" Cheat Sheet
● Light Vehicle Deceleration Hard Decks: Under the South Australian Road Traffic (Light
Vehicle Standards) Rules 2018, vehicles under 2.5 tonnes GVM must achieve a peak
service deceleration of 5.8 m/s² and an average of 3.8 m/s². Vehicles 2.5 tonnes or over
must achieve a peak of 4.4 m/s² and an average of 2.8 m/s².
● Heavy Vehicle Air Brake Integrity: During volumetric leakage tests with the engine
stopped, unapplied brakes cannot drop more than 15 kPa/min. Applied brakes cannot
drop more than 20 kPa/min. Add exactly 5 kPa/min for every attached trailer.
● The 80% Actuation Rule: Brake chamber push or pull rods must never exceed 80% of
their maximum stroke. Beyond this geometric threshold, mechanical advantage degrades
logarithmically.
● Friction Material Limits: If OEM limits are unknown, bonded pads must not wear below
, 3mm from the mounting surface, and riveted linings must not wear down to the rivet/bolt
head.
● System Imbalance: A maximum of 30% braking force difference is permitted between
wheels on the exact same axle to prevent fatal yaw induction during dynamic weight
transfer.
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: A South Australian vehicle inspector is conducting a decelerometer test on a light
passenger vehicle with a Gross Vehicle Mass (GVM) of 1.8 tonnes. Under the Road Traffic
(Light Vehicle Standards) Rules 2018, which service brake peak deceleration metric must the
vehicle MINIMALLY achieve to pass the inspection? A) 4.4 m/s² B) 2.8 m/s² C) 5.8 m/s² D) 1.9
m/s²
● The Answer: C (5.8 m/s²)
● Distractor Analysis:
○ A is incorrect: The 4.4 m/s² threshold is the peak deceleration requirement for light
vehicles with a GVM of 2.5 tonnes or greater, and for heavy vehicles under the
NHVIM. It is entirely insufficient for lighter passenger chassis.
○ B is incorrect: The 2.8 m/s² metric represents the average (not peak) service brake
requirement for vehicles 2.5 tonnes or over.
○ D is incorrect: The 1.9 m/s² threshold is the peak requirement for the emergency
(parking) brake on this vehicle class, not the primary service brake.
The Mentor's Analysis: The statutory requirements sharply divide light vehicles at the
2.5-tonne threshold because kinetic energy absorption capabilities differ vastly across chassis
designs. When facing a standard passenger vehicle (<2.5t), the immediate priority is verifying
the highest threshold of stopping power. By utilizing the 5.8 m/s² peak hard deck, the inspector
bypasses the common trap of applying heavy-vehicle metrics to lightweight kinetic profiles.
Professional/Academic Intuition: Light vehicles under 2.5 tonnes must always hit a peak of
5.8 m/s²; their mass-to-friction ratio allows for highly efficient kinetic energy dissipation.
Q2: During a National Heavy Vehicle Inspection Manual (NHVIM) assessment of an ADR 35
compliant prime mover, the inspector drains the air system to test the low-pressure warning
device. At what pressure threshold MUST the visual or audible warning activate if the
manufacturer does not specify a different level? A) 350 kPa (50 psi) B) 420 kPa (60 psi) C) 550
kPa (80 psi) D) 720 kPa (100 psi)
● The Answer: B (420 kPa (60 psi))
● Distractor Analysis:
○ A is incorrect: The 350 kPa threshold is a legacy requirement strictly reserved for
pre-ADR 35 heavy vehicles, representing an outdated volumetric baseline.
○ C is incorrect: The 550 kPa threshold dictates the minimum allowable pressure for
the governor cut-in to recharge the system, not the emergency driver warning.
○ D is incorrect: The 720 kPa threshold dictates the minimum allowable pressure for
the governor cut-out when the tanks are full.
The Mentor's Analysis: Pneumatic braking systems rely on the early detection of catastrophic
volume loss to allow the operator to execute a controlled stop before spring brakes auto-deploy.
When evaluating ADR 35 vehicles, the immediate priority is confirming the 420 kPa trigger. By
, utilizing the ADR 35 standards, the inspector bypasses the common trap of passing modern
heavy vehicles on dangerous, legacy pre-ADR metrics. Professional/Academic Intuition: The
420 kPa (60 psi) threshold guarantees the driver has sufficient reserve volume to modulate the
foundation brakes safely before mechanical lockup occurs.
Q3: A customer presents a modified 1975 light vehicle for registration in South Australia. The
inspector observes that the vehicle has been fitted with seamless copper tubing for the custom
hydraulic brake lines. Based on SA Light Vehicle modification standards, what is the MOST
ACCURATE immediate action? A) Pass the vehicle, provided the copper tubing is securely
mounted and shielded from road debris. B) Reject the vehicle because the use of copper tubing
for hydraulic brake pipes is strictly prohibited. C) Pass the vehicle if an engineering signatory
(LVES) has signed off on the wall thickness of the copper. D) Reject the vehicle unless the
copper is joined exclusively by silver soldering.
● The Answer: B (Reject the vehicle because the use of copper tubing for hydraulic brake
pipes is strictly prohibited.)
● Distractor Analysis:
○ A is incorrect: Mounting and shielding do not mitigate the inherent metallurgical
flaws of standard copper in high-pressure, high-vibration cyclic applications.
○ C is incorrect: An LVES cannot override a blanket statutory ban on standard
commercial copper tubing in light vehicle hydraulic systems, regardless of wall
thickness.
○ D is incorrect: Joining any hydraulic brake pipes by brazing or silver soldering is
explicitly prohibited under SA regulations due to thermal stress concentrators.
The Mentor's Analysis: Hydraulic lines endure extreme internal fluid pressures and constant
high-frequency chassis vibration. When inspecting custom plumbing, the immediate priority is
metallurgical compliance. By rejecting standard copper tubing, you bypass the common trap of
assessing based on aesthetics; copper is highly prone to work-hardening and will abruptly
fracture under hydraulic shock. Professional/Academic Intuition: Standard copper tubing is
dead on arrival for brake lines due to fatigue failure (work-hardening). Only accepted standard
materials, such as steel Bundy tube or SAE J1047 compliant alloys, are permitted.
Q4: Under the NHVIM, an inspector is checking the service brake adjustment on a heavy
vehicle equipped with drum brakes. The inspector measures the travel of the brake chamber
push rods while the brakes are fully applied. What is the maximum allowable travel before the
component must be failed for over-stroking? A) 50% of their maximum stroke. B) 100% of their
maximum stroke. C) 80% of their maximum stroke. D) Until the stroke indicator completely
disappears.
● The Answer: C (80% of their maximum stroke.)
● Distractor Analysis:
○ A is incorrect: 50% is the threshold for reservoir pressure drop after four full
applications, not the physical geometric limit of the push rod.
○ B is incorrect: Allowing a push rod to reach 100% stroke means the S-cam has
rolled over or the diaphragm has completely bottomed out, resulting in zero braking
force.
○ D is incorrect: Stroke indicators are designed to provide a visual warning before
they run out of travel to prevent sudden mechanical loss of leverage.
The Mentor's Analysis: Brake stroke length directly dictates the mechanical torque applied to
the brake shoes via the slack adjuster. When measuring push rod travel, the immediate priority
is verifying the stroke remains within the optimal leverage curve. By enforcing the 80%
maximum stroke limit, the inspector bypasses the common trap of assuming long travel simply
