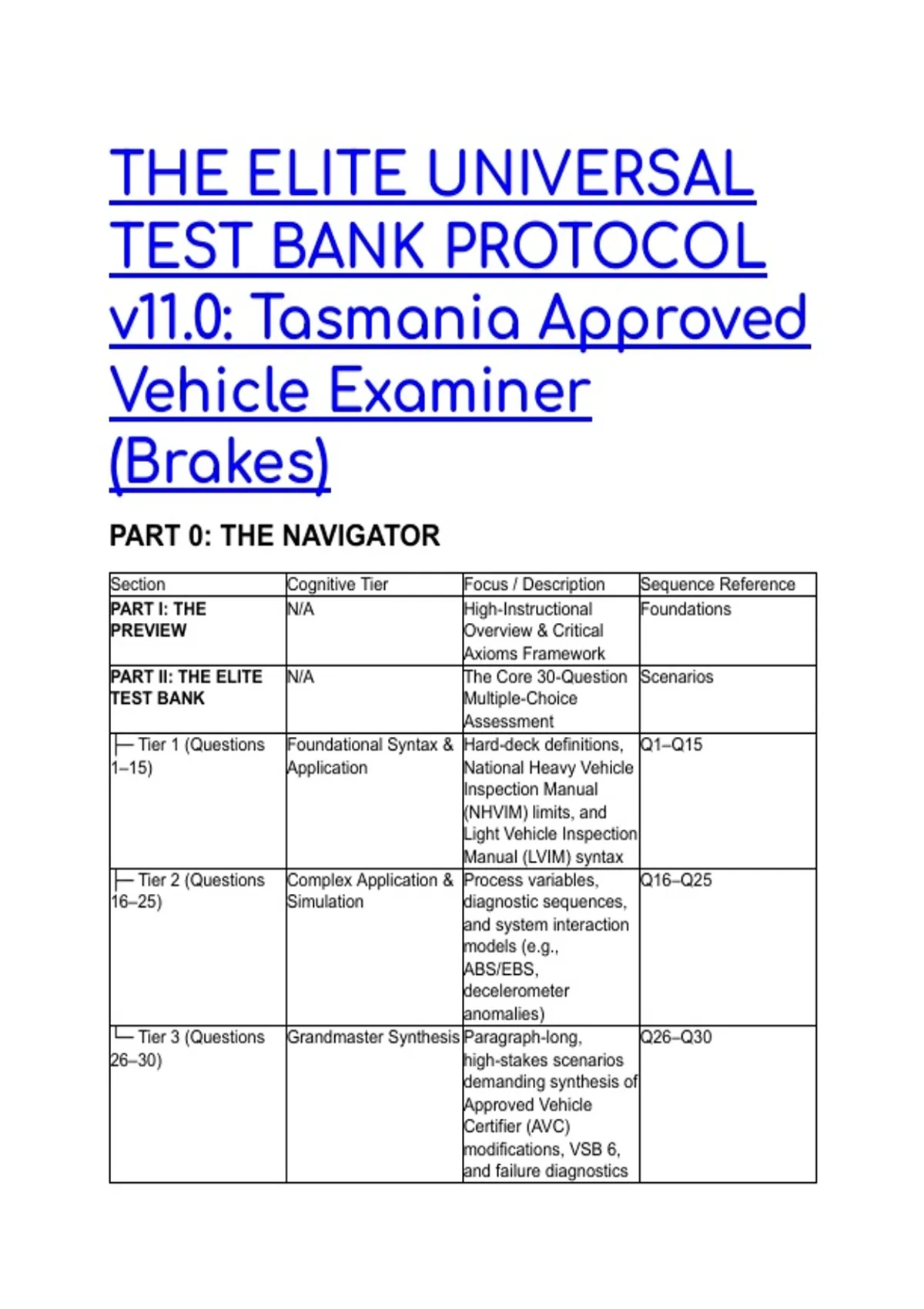

THE ELITE UNIVERSAL
TEST BANK PROTOCOL
v11.0: Tasmania Approved
Vehicle Examiner
(Brakes)
PART 0: THE NAVIGATOR
Section Cognitive Tier Focus / Description Sequence Reference
PART I: THE N/A High-Instructional Foundations
PREVIEW Overview & Critical
Axioms Framework
PART II: THE ELITE N/A The Core 30-Question Scenarios
TEST BANK Multiple-Choice
Assessment
├─ Tier 1 (Questions Foundational Syntax & Hard-deck definitions, Q1–Q15
1–15) Application National Heavy Vehicle
Inspection Manual
(NHVIM) limits, and
Light Vehicle Inspection
Manual (LVIM) syntax
├─ Tier 2 (Questions Complex Application & Process variables, Q16–Q25
16–25) Simulation diagnostic sequences,
and system interaction
models (e.g.,
ABS/EBS,
decelerometer
anomalies)
└─ Tier 3 (Questions Grandmaster Synthesis Paragraph-long, Q26–Q30
26–30) high-stakes scenarios
demanding synthesis of
Approved Vehicle
Certifier (AVC)
modifications, VSB 6,
and failure diagnostics
,PART I: THE PREVIEW
Mastery of this test bank translates directly to elite execution within the Approved Inspection
Station (AIS) and Approved Vehicle Certifier Approved Inspection Station (AVCAIS) frameworks,
forging examiners who navigate complex vehicular safety compliance with absolute precision.
By dissecting these meticulously crafted scenarios, the examiner bypasses novice diagnostic
traps and operationalizes the exact statutory mandates required by the Tasmanian Department
of State Growth, the NHVIM, and the LVIM.
The "Critical Axioms" Cheat Sheet
● The 20% Travel Rule: Under both LVIM and NHVIM standards, when the service brakes
are firmly applied, no less than 20% of the pedal travel must remain to prevent master
cylinder bottom-out.
● The 80% Stroke & Build-Up Mandates: Heavy vehicle brake chamber push and pull
rods legally fail if they move more than 80% of their maximum stroke during application.
Furthermore, a compressed air brake system must build up air pressure to at least 80% of
governor cut-out pressure within exactly five minutes after the pneumatic reserve is fully
depleted.
● Deceleration Baselines (GVM > 4.5t): Heavy vehicle service brakes must achieve a
peak deceleration of 4.4 m/s² and a sustained average deceleration of 2.8 m/s².
Emergency brakes demand a peak of 1.5 m/s² and an average of 1.1 m/s².
● The 30% Variance Threshold: A vehicle fails inspection immediately if a roller brake test
reveals more than a 30% difference in brake performance between the wheels situated on
the exact same axle.
● Modification Command (VSB 6 - Section G): Any upgrade to heavy vehicle trailer brake
systems (Code G8) or general braking substitution mandates strict adherence to Vehicle
Standards Bulletin 6 (VSB 6) and must be mathematically and physically certified by an
Approved Vehicle Certifier (AVC).
Tasmania Brake Inspection Metrics & Thresholds
Inspection Domain Target Component / Statutory Threshold / Regulatory Source
Variable Reject Criteria
Light Vehicle Brakes Bonded Brake Linings Worn below 0.8mm LVIM
above the backing plate
/ rivet head
Heavy Vehicle Brakes Service Brake Stopping Fails to stop within NHVIM Table 2.3
Distance 16.5m from 35 km/h
(Post-1930 vehicles)
Decelerometer Setup Device Securing Must remain stationary LVIM / AIS Rules
Tolerance under 1.5g horizontal
deceleration
Light Vehicle Hoses Hydraulic Brake Lines Exposed reinforcement LVIM
fabric, bulging, or
incorrect length
Heavy Vehicle Warning Devices Lacks visual/audible NHVIM
, Inspection Domain Target Component / Statutory Threshold / Regulatory Source
Variable Reject Criteria
Pneumatics alarm for low
air/vacuum
Advanced Braking ABS/EBS Connector Missing compliant NHVIM
(Post-2015) socket for trailer
attachment
PART II: THE ELITE TEST BANK
Q1: A Tasmanian Approved Vehicle Examiner (AVE) is inspecting a light commercial vehicle
under the Light Vehicle Inspection Manual (LVIM) criteria. The brake drum has been removed,
revealing bonded brake linings. The manufacturer's specifications for minimum thickness are
unavailable. Based on LVIM standards, what is the absolute minimum acceptable thickness for
the lining before a rejection is mandated? A) 1.5mm above the backing plate. B) 2.0mm above
the head of a rivet. C) 0.8mm above the head of a rivet or bonded backing plate. D) 3.0mm
overall material thickness.
● The Answer: C (0.8mm above the head of a rivet or bonded backing plate.)
● Distractor Analysis:
○ A is incorrect: The 1.5mm metric is the statutory minimum depth required for tyre
tread, which represents a common novice metric confusion during comprehensive
safety checks.
○ B is incorrect: While 2.0mm is a conservative industry rule of thumb used by
aftermarket mechanics for preventative maintenance, it is not the statutory LVIM
threshold for an official defect.
○ D is incorrect: Measuring overall thickness without accounting for the rivet head
height creates a critical safety hazard, as the rivet will score the drum before the
material reaches 0mm.
The Mentor's Analysis: Without manufacturer parameters, the regulatory framework sets an
absolute hard deck for friction material to standardize safety outcomes. The trend in aftermarket
brake manufacturing shows increasing variances in backing plate thicknesses, meaning relative
measurements to the rivet or plate are the only reliable metrics. When manufacturer data is
absent, the baseline of 0.8mm prevents catastrophic metal-on-metal contact while
acknowledging the minimal thermal mass required for a light vehicle's final kinetic dissipation.
By utilizing the statutory default parameters, the examiner bypasses arbitrary estimations and
subjective mechanic biases. Professional/Academic Intuition: When OEM friction data is
silent, the 0.8mm threshold dictates the absolute legal boundary between serviceable
wear and a critical defect.
Q2: During a heavy vehicle inspection (GVM > 4.5t), an examiner firmly applies the service
brake pedal. The system is a standard pneumatic-over-hydraulic design. Which pedal position
observation necessitates an IMMEDIATE defect notice under the NHVIM? A) The pedal
requires 50% of its total travel to engage the primary braking circuit. B) Less than 20% of the
total pedal travel remains upon firm application. C) The pedal holds its position for 5 seconds
before making imperceptible micro-adjustments. D) The brake system failure indicator remains
unilluminated during the physical pedal pressure test.
● The Answer: B (Less than 20% of the total pedal travel remains upon firm application.)
● Distractor Analysis:
○ A is incorrect: Engaging at 50% of stroke leaves ample reserve travel and does not
